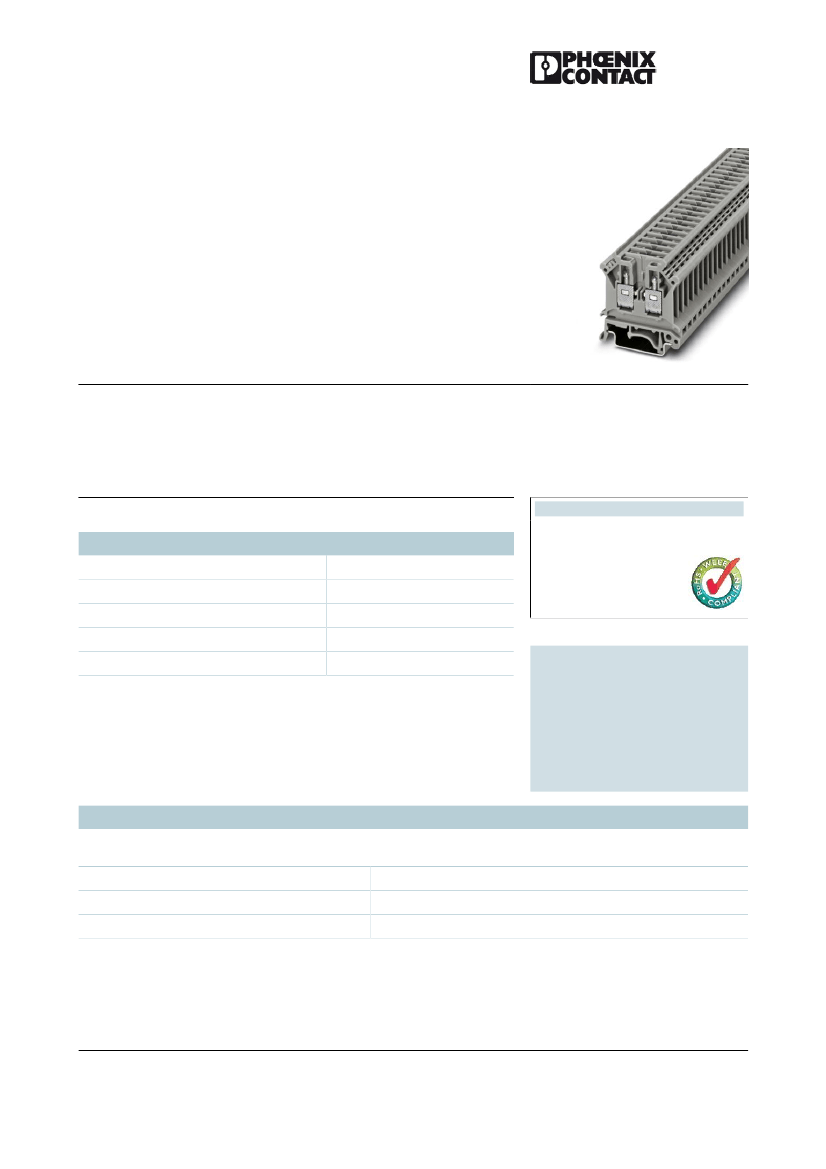

Extract from the online
catalog
UK 4-TG
Order No.: 2812018
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2812018
Disconnect and test disconnect terminal block, Connection
type: Screw connection, Cross section: 0.2 mm² - 4 mm²,
AWG: 24 - 12, Nominal current: 16 A, Nominal voltage: 500 V,
Length: 42.5 mm, Width: 6.2 mm, Color: gray, Assembly: NS 35/7,5,
NS 35/15, NS 32
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918076733
50 pcs.
85369010
0.009789 KG
Page 387 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
01/01/2003
Technical data
General
Number of levels
Number of connections
Color
1
2
gray
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 6
Mar 15, 2010
UK 4-TG
Order No.: 2812018
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2812018
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
Height NS 32
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
PA
V2
6.2 mm
42.5 mm
47 mm
54.5 mm
52 mm
16 A (with 4 mm² conductor cross section)
6 kV
3
III
I
IEC 60947-7-1
16 A
500 V
0.2 mm²
4 mm²
0.2 mm²
4 mm²
24
12
0.25 mm²
2.5 mm²
0.25 mm²
2.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 6
Mar 15, 2010
UK 4-TG
Order No.: 2812018
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2812018
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Cross-section with insertion bridge, solid max.
Cross-section with insertion bridge, stranded max.
Type of connection
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Certificates / Approvals
1.5 mm²
0.25 mm²
1.5 mm²
0.5 mm²
1.5 mm²
1.5 mm²
1.5 mm²
Screw connection
9 mm
A3
M3
0.6 Nm
0.8 Nm
Certification
CSA
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CUL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
UL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
ABS, CSA, CUL, GOST, UL
600 V
15 A
28-12
600 V
5A
28-12
600 V
5A
28-12
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 6
Mar 15, 2010
UK 4-TG
Order No.: 2812018
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2812018
Accessories
Item
Assembly
3003224
3022218
ATP-UK
CLIPFIX 35
Partition plate, Length: 56 mm, Width: 1.5 mm, Height: 59 mm,
Color: gray
Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 DIN
rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip
marker KLM 2 and KLM, width: 9.5 mm, color: gray
End cover, Length: 42.5 mm, Width: 1.8 mm, Height: 35.9 mm,
Color: gray
End clamp, for assembly on NS 32 or NS 35/7,5 DIN rail
G rail 32 mm (NS 32)
G-profile DIN rail, deep-drawn, material: Copper, unperforated,
height 15 mm, width 32 mm, length 2 m
G-profile DIN rail, material: Copper, unperforated, height 15 mm,
width 32 mm, length 2 m
G-profile DIN rail, material: Steel, perforated, height 15 mm, width
32 mm, length 2 m
G-profile DIN rail, material: Steel, unperforated, height 15 mm,
width 32 mm, length 2 m
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Designation
Description
3003020
1201442
1201028
1201280
1201358
1201002
1201015
0801762
0801733
0801681
1201756
1201895
1201730
1201714
1201798
D-UK 4/10
E/UK
NS 32 AL UNPERF 2000MM
NS 32 CU/120QMM UNPERF
2000MM
NS 32 CU/35QMM UNPERF
2000MM
NS 32 PERF 2000MM
NS 32 UNPERF 2000MM
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
Bridges
0201155
0201142
0201139
EB 2- 6
EB 3- 6
EB 10- 6
Cross connector/bridge, Number of positions: 2, Color: gray
Cross connector/bridge, Number of positions: 3, Color: gray
Cross connector/bridge, Number of positions: 10, Color: gray
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 6
Mar 15, 2010
UK 4-TG
Order No.: 2812018
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2812018
Marking
1007222
1050499
SBS 6:UNBEDRUCKT
ZB 6:SO/CMS
Marker cards for modular terminal blocks, color: white
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
Tools
1205053
SZS 0,6X3,5
Screwdriver, bladed, matches all screw terminal blocks up to 4.0
mm² connection cross section, blade: 0.6 x 3.5 mm, without VDE
approval
Diagrams/Drawings
Circuit diagram
