171-7.0M-SR-MR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> 171-7.0M-SR-MR

171-7.0M-SR-MR: DescriptionSeries - Fundamental Quartz Crystal, 7MHz Nom,; CategoryPassive components Crystal/resonator; File Size130KB，2 Pages; ManufacturerOscilent; Websitehttp://www.oscilent.com; Environmental Compliance

Download Datasheet Parametric View All

171-7.0M-SR-MR Overview

Series - Fundamental Quartz Crystal, 7MHz Nom,

171-7.0M-SR-MR Parametric

Parameter Name	Attribute value
Other features	BULK
Drive level	10 µW
Maximum operating temperature	60 °C
physical size	D3.1XH8.3 (mm)/D0.122XH0.327 (inch)
Series resistance	80 Ω
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
frequency stability	0.0005%
frequency tolerance	30 ppm
Nominal operating frequency	7 MHz
Installation features	THROUGH HOLE MOUNT
surface mount	NO
Minimum operating temperature	-10 °C
Is it lead-free?	Yes
Is it Rohs certified?	Yes
Objectid	1358398862
Reach Compliance Code	Compliant
Is Samacsys	N

Preview

Download Datasheet

View All

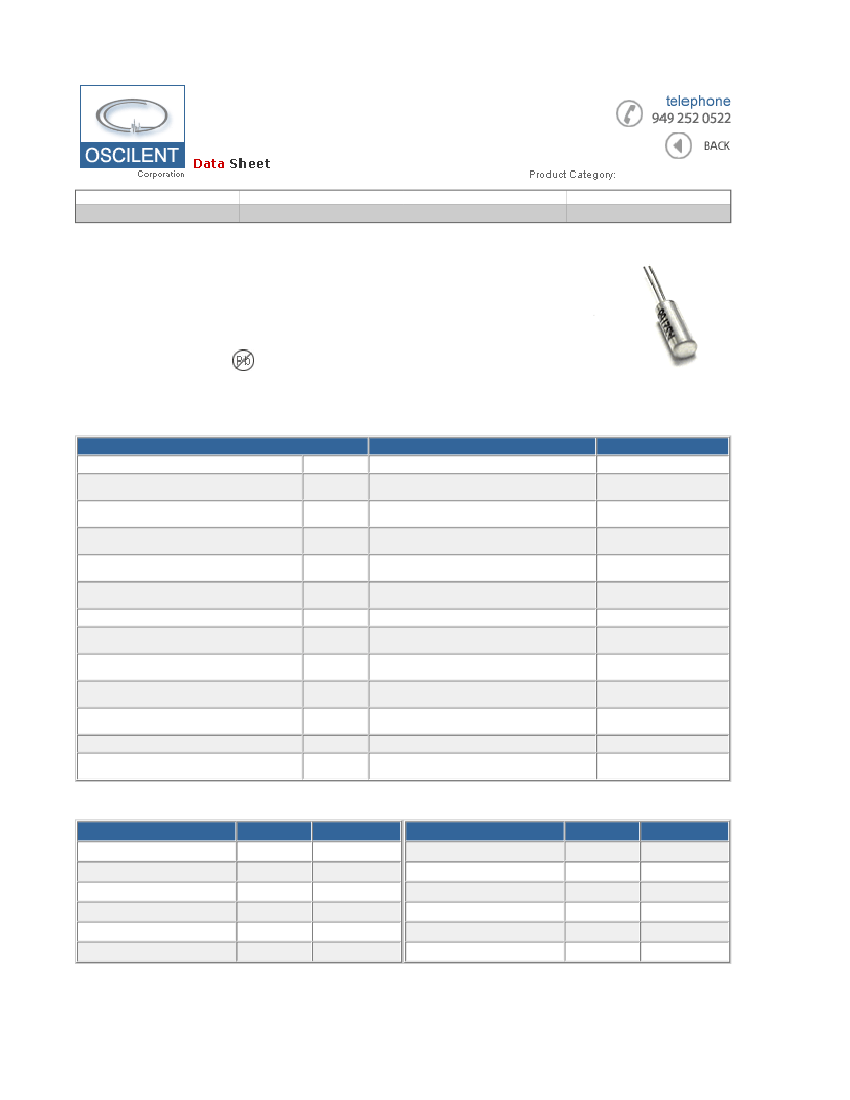

Oscilent Corporation | 171,174,175

Page 1 of 2

Quartz Crystals

Series Number

Package

Description

Last Modified

171, 174, 175

3x8, 3x9, 3x10

High Frequency Quartz

July. 01 2005

Quartz Crystal FEATURES

- Wide Frequency Range

- Industry standard package

- Excellent aging/reliability

- Cost effective

- RoHs / Lead Free compliant

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Size (Figure No.)

Frequency Range

Frequency Tolerance

Temperature Tolerance

Operating Temperature

Storage Temperature

Operation Mode

Load Capacitance

Shunt Capacitance

Drive Level

Insulation Resistance

Aging (First Year)

Motional Resistance

OPR

STG

+25°C

CHARACTERISTICS

All

3.579 ~ 60.0

±10 ~ 50

±5 std.

-10 ~ +60

-55 ~ +125

See Table

10.0 std. Series available

7.0 max.

0.01 ~ 1.0

500 min. (100DC)

+ / -5 max.

See Table

CONDITIONS

MHz

PPM

°C

Mohm

PPM/Y

ohm

OPERATION MODE AND RS

FREQUENCY RANGE (MHz)

3.579 ~ 3.699

3.700 ~ 3.999

4.000 ~ 4.099

4.100 ~ 4.999

5.000 ~ 5.999

7.000 ~ 9.999

MODE

Fundamental

RS (ohm max.)

200

180

150

120

100

FREQUENCY RANGE (MHz)

10.000 ~ 11.999

12.000 ~ 13.999

14.000 ~ 15.999

16.000 ~ 30.000

27.000 ~ 60.000

MODE

Fundamental

3rd O/T

RS (ohm max.)

100
