3-826467-8 datasheet, PDF - EEWORLD Datasheet

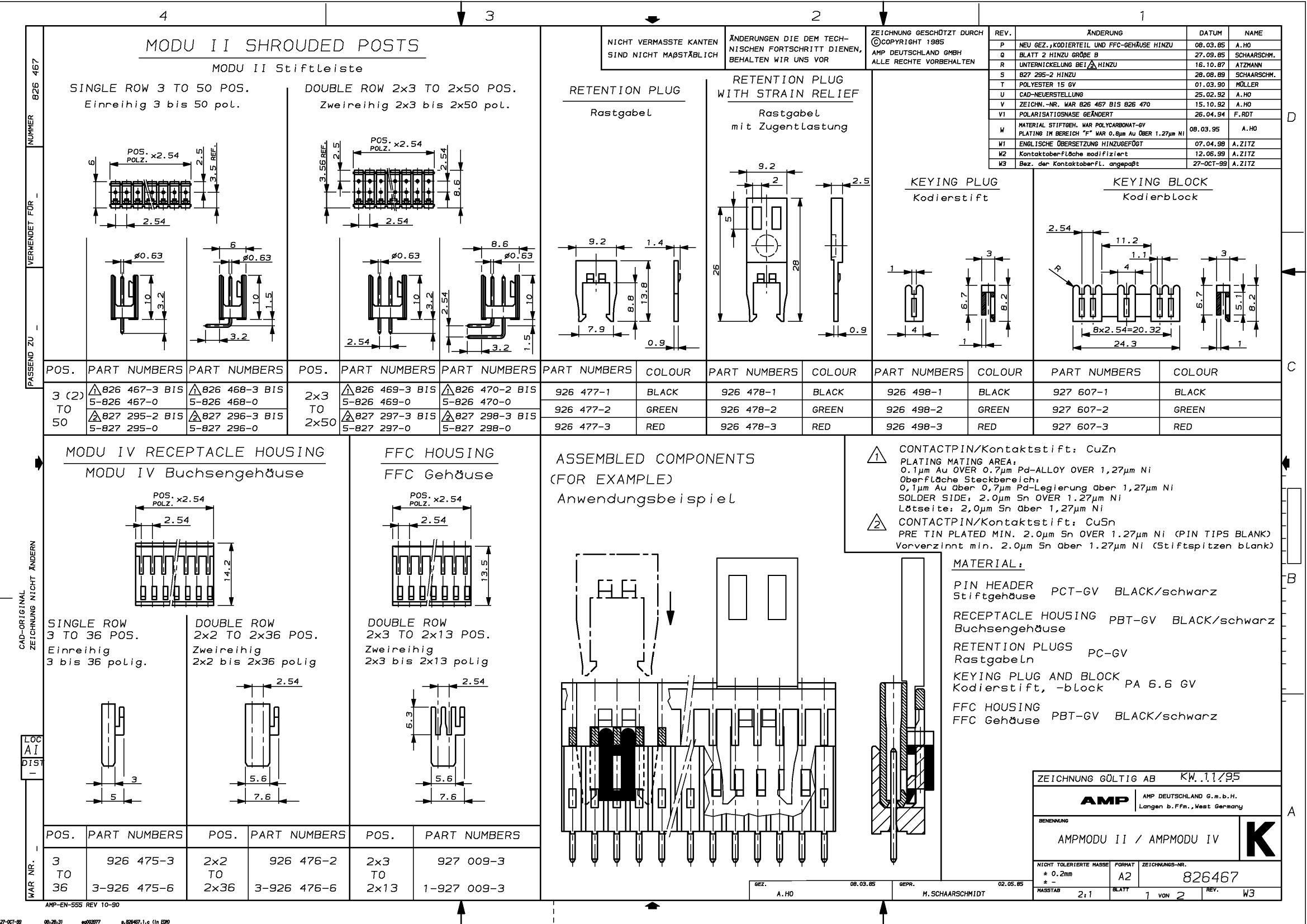

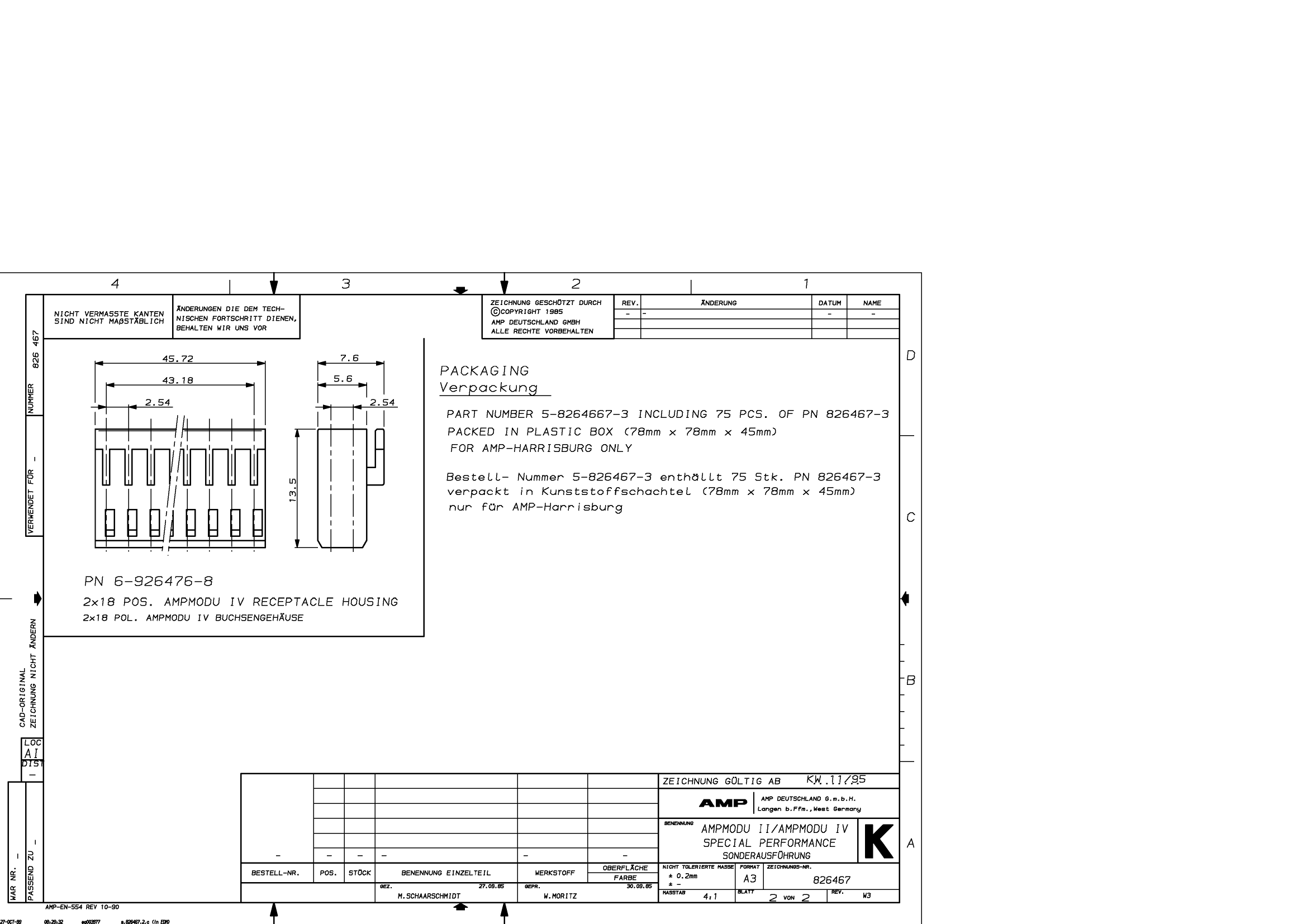

3-826467-8: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,38 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK; CategoryThe connector The connector; File Size122KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-826467-8 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,38 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK

Parameter Name	Attribute value
Is it Rohs certified?	Yes
Number of rows loaded	1
Other features	W/O STANDOFF & MOUNTING EARS
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU-PD-NI ON NI
PCB row number	1
Installation type	BOARD
Rated current (signal)	3 A
Terminal pitch	2.54 mm
Total number of contacts	38
Connector type	BOARD CONNECTOR
Contact point gender	MALE
insulator material	GLASS FILLED POLYCARBONATE
Installation method	STRAIGHT
body width	0.236 inch
subject depth	0.394 inch
body length	3.8 inch
Terminal length	0.126 inch
Termination type	SOLDER
Insulator color	BLACK
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Plating thickness	4u inch
Mixed contacts	NO
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Plug contact pitch	0.1 inch
Dielectric withstand voltage	750VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
polarization key	POLARIZED HOUSING
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Guideline	UL, CSA
Is Samacsys	N
YTEOL	0
Objectid	303021384
Reach Compliance Code	Compliant
ECCN code	EAR99
