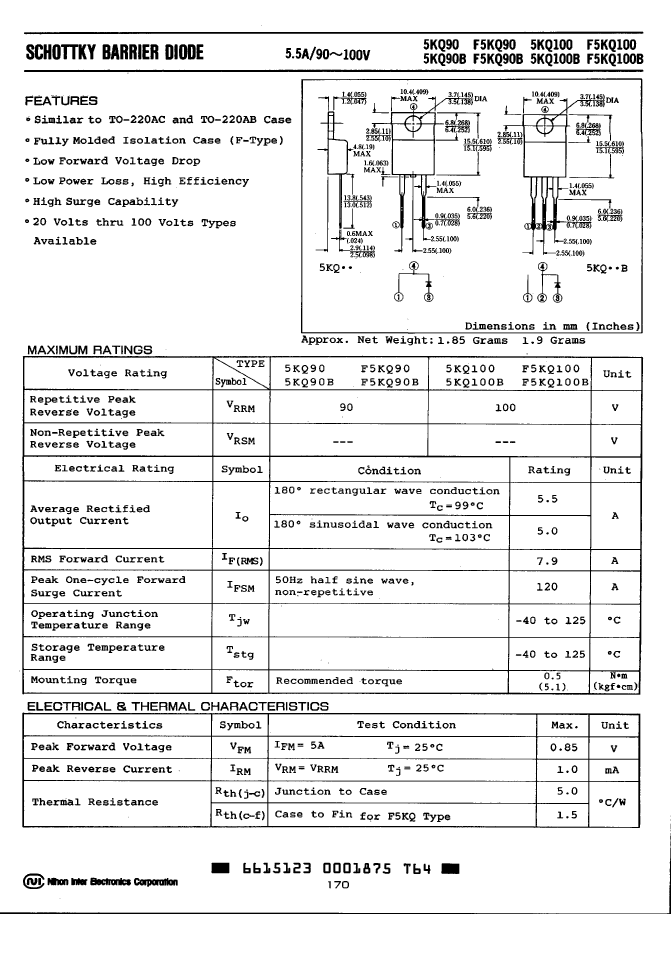

Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 90V V(RRM), Silicon, SIMILAR TO TO-220AB, 3 PIN

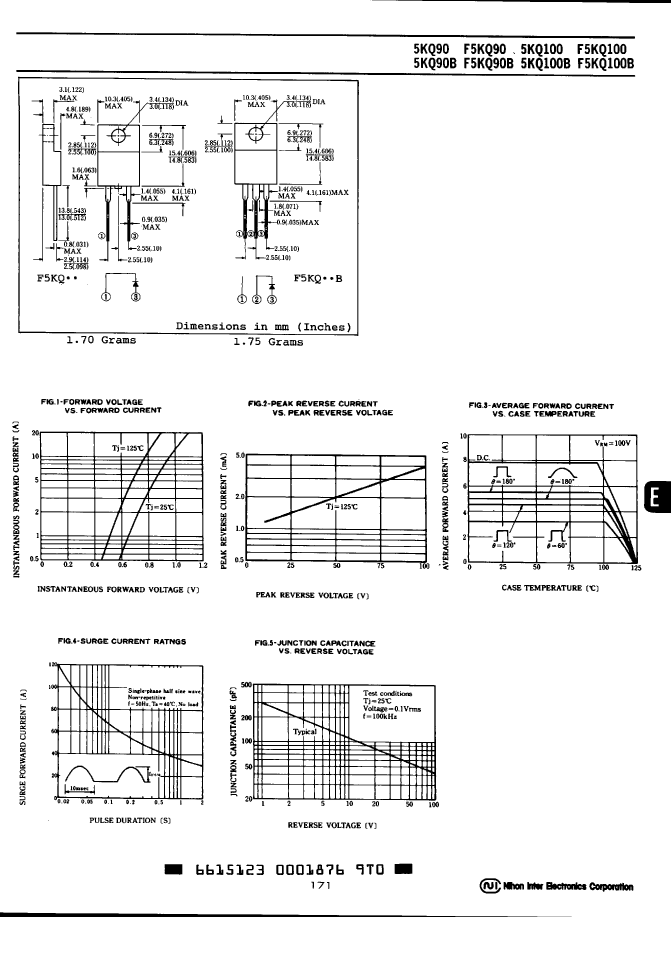

| Parameter Name | Attribute value |
| Parts packaging code | TO-220AB |
| package instruction | R-PSFM-T3 |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| application | GENERAL PURPOSE |
| Shell connection | CATHODE |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 0.85 V |
| JESD-30 code | R-PSFM-T3 |
| Maximum non-repetitive peak forward current | 120 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -40 °C |
| Maximum output current | 5 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 90 V |
| Maximum reverse current | 1000 µA |
| surface mount | NO |
| technology | SCHOTTKY |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Base Number Matches | 1 |
| 5KQ90B | F5KQ90B | F5KQ100 | 5KQ100 | 5KQ90 | F5KQ90 | |
|---|---|---|---|---|---|---|
| Description | Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 90V V(RRM), Silicon, SIMILAR TO TO-220AB, 3 PIN | Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 90V V(RRM), Silicon, SIMILAR TO TO-220AB, FULL PACK-3 | Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, SIMILAR TO TO-220AC, FULL PACK-2 | Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon, SIMILAR TO TO-220AC, 2 PIN | Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 90V V(RRM), Silicon, SIMILAR TO TO-220AC, 2 PIN | Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 90V V(RRM), Silicon, SIMILAR TO TO-220AC, FULL PACK-2 |
| Parts packaging code | TO-220AB | TO-220AB | TO-220AC | TO-220AC | TO-220AC | TO-220AC |
| package instruction | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 |
| Contacts | 3 | 3 | 2 | 2 | 2 | 2 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| application | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell connection | CATHODE | ISOLATED | ISOLATED | CATHODE | CATHODE | ISOLATED |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 0.85 V | 0.85 V | 0.85 V | 0.85 V | 0.85 V | 0.85 V |
| JESD-30 code | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 | R-PSFM-T2 |
| Maximum non-repetitive peak forward current | 120 A | 120 A | 120 A | 120 A | 120 A | 120 A |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Maximum output current | 5 A | 5 A | 5 A | 5 A | 5 A | 5 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 90 V | 90 V | 100 V | 100 V | 90 V | 90 V |
| Maximum reverse current | 1000 µA | 1000 µA | 1000 µA | 1000 µA | 1000 µA | 1000 µA |
| surface mount | NO | NO | NO | NO | NO | NO |
| technology | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
