PCB terminal block - PTSA 1,5/ 6-3,5-F MIX NZ08 - 1713075
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, nominal current: 8 A, nom. voltage: 250 V, pitch: 3.5 mm, number of positions: 6,
connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection
direction: 45 °, color: multi-color

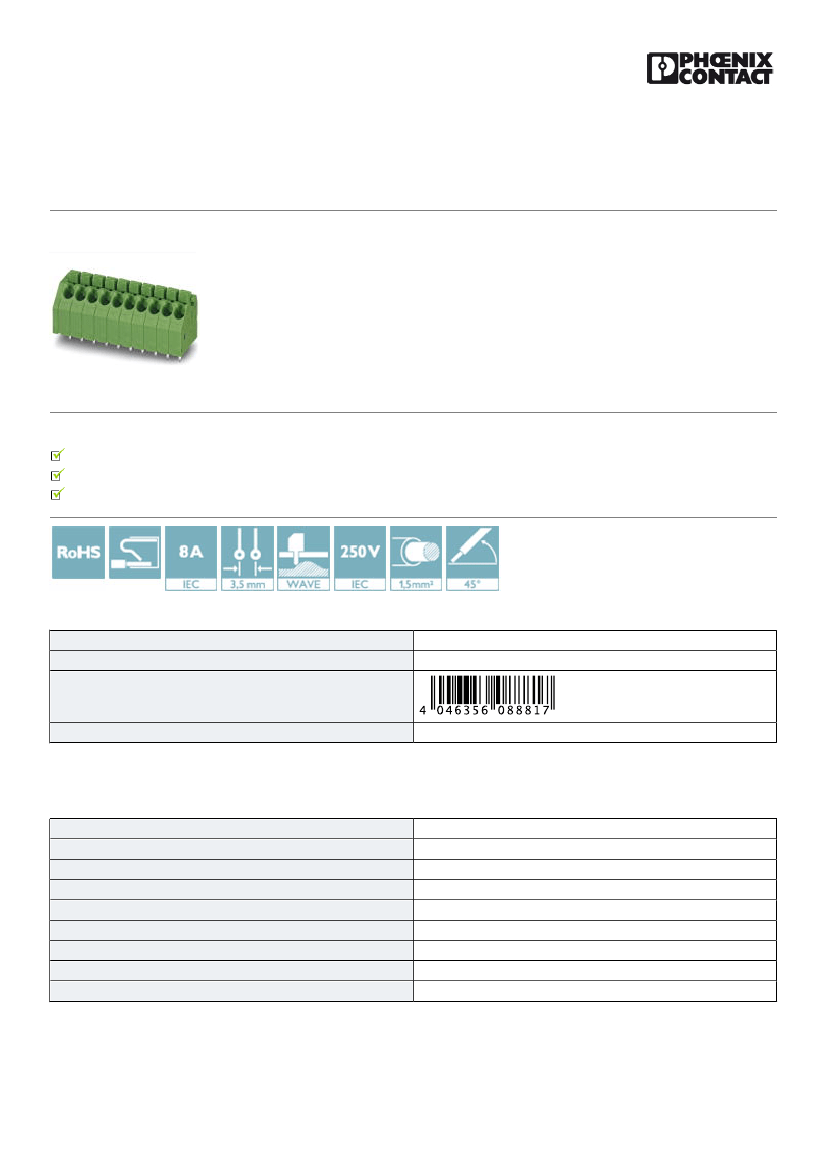

The figure shows a 10-position
version of the product
Your advantages
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Angled connection enables multi-row arrangement on the PCB
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4046356088817
160 pc
160 pc
Technical data
Dimensions
Length [ l ]
Pitch
Dimension a
Width [ w ]
Height
Height [ h ]
Solder pin [P]
Pin spacing
Hole diameter
12 mm
3.5 mm
17.5 mm
22.5 mm
13.1 mm
16.7 mm
3.6 mm
3.5 mm
1 mm
General
11/29/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/1713075
PCB terminal block - PTSA 1,5/ 6-3,5-F MIX NZ08 - 1713075
Technical data
General
Range of articles
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Stripping length
Number of positions
PTSA 1,5
2.5 kV
2.5 kV
2.5 kV
200 V
250 V
400 V
EN-VDE
8A
1.5 mm²
9 mm
6
Connection data
Conductor cross section AWG min.
Conductor cross section AWG max.
24
16
Standards and Regulations
Connection in acc. with standard
EN-VDE
CUL
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Approvals
Approvals
Approvals
CCA / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized
Ex Approvals
Approval details
CCA
Nominal current IN
mm²/AWG/kcmil
2A
0.75
11/29/2018 Page 2 / 3
CCA/DE1
34182/33276
https://www.phoenixcontact.com/pi/products/1713075
PCB terminal block - PTSA 1,5/ 6-3,5-F MIX NZ08 - 1713075
Approvals
VDE Gutachten mit
Fertigungsüberwachung
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
130 V
2A
0.5-.75
40018594
EAC
D
300 V
5A
24-16
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-20030527
B
300 V
5A
24-16
