Preliminary
TCG4 Series
TCVCXO Oscillator
November 2012
•Pletronics
TCG4 Series is an precision temperature
compensated crystal oscillator.
•The
TCG4 has a clipped-sine output.
•Frequencies
available from 15MHz to 52 MHZ
•Supply
voltages from 1.8V to 3.3V
•1.6
X 2.0 mm Ceramic LCC Package
•Very
Low Power consumption
•Optional
Voltage Control function
•Low
phase noise and jitter

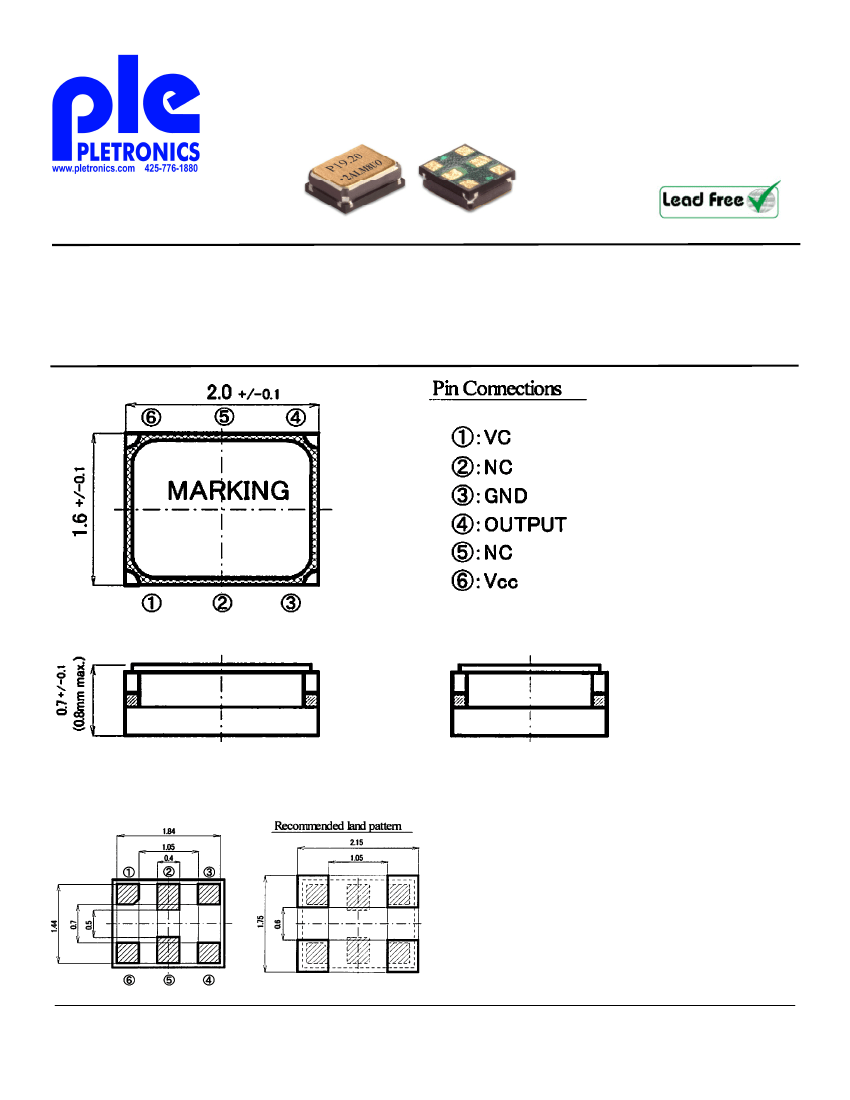

Mechanical:
NC= no external connection allowed
Contacts: gold 11.8 to 39.4 -inches (0.3 to 1.0 m) over
Nickel 50 to 350 -inches (1.27 to 8.89 m).
Layout and Application Information
For optimum jitter performance, Pletronics recommends:
•
A ground plane under the device
•
•
•
No large transient signals (both voltage and current) should
be routed under the device.
Do not layout near large magnetic fields such as high fre-
quency switching power supplies.
Do not place near piezoelectric buzzers or mechanical fans.
Product information is current as of publication date. The product conforms
to specifications per the terms of the Pletronics standard warranty. Production
processing does not necessarily include testing of all parameters.
Copyright © 2012, Pletronics Inc.
TCG4 Series
TCVCXO Oscillator
November 2012
Electrical Specification for specified Vcc over the specified temperature range
Item
Frequency Range
Frequency Tolerance
(Calibration)
Frequency Stability vs. Temp.
1
Frequency Stability vs. Supply
Frequency Stability vs. Load
Aging
Output Waveform
Output Level
Phase Noise
10 Hz
100Hz
1 KHz
10 KHz
100KHz
V
CC
I
CC
0.5
0.3
0.8
-
-
-
-
-85
-110
-130
-145
-145
-
2.5
2.5
1.5
-
-
-
-
Min
15
-1.0
TYP
Max
52
+1.0
Unit
MHz
ppm
Condition
See table of available frequencies.
Vcontrol =(1.50 or 0.9) volts at 25±2°C, reference to nominal frequency
Vcontrol = 0.9 volts for VCC below 2.5 Volts
-0.5
-0.2
-0.2
-1.0
+0.5
+0.2
+0.2
+1.0
Clipped Sinewave
V
p-p
dBc/Hz
ppm
ppm
ppm
ppm
Over operating range referenced to value at 25±2°C
Load: 10K ohm // 10 pF & Vcc ±5%
Load 10K ohm || 10 pF ±5%
Per year at 25°C
DC Coupled
Load: 10K ohm ±10% // 10 pF ±10%
V Supply Range
Supply Current
Vcontrol Range
1.7
3.3
Volts
mA
Volts
Specified by part number.
1.50 volts nominal for V
CC
≥ 2.5V
0.90 volts nominal for V
CC
≤ 2.5V
Frequency Pullability
1
Linearity
Operating Temperature Range
1
Storage Temperature Range
-
-30
-40
±8
0.05
2.0
+85
+85
ppm
%
o
In accordance with MIL-PRF-55310
C
C
o
1
Specified by Part Number
www.Pletronics.com
425-776-1880
2
TCG4 Series
TCVCXO Oscillator
November 2012

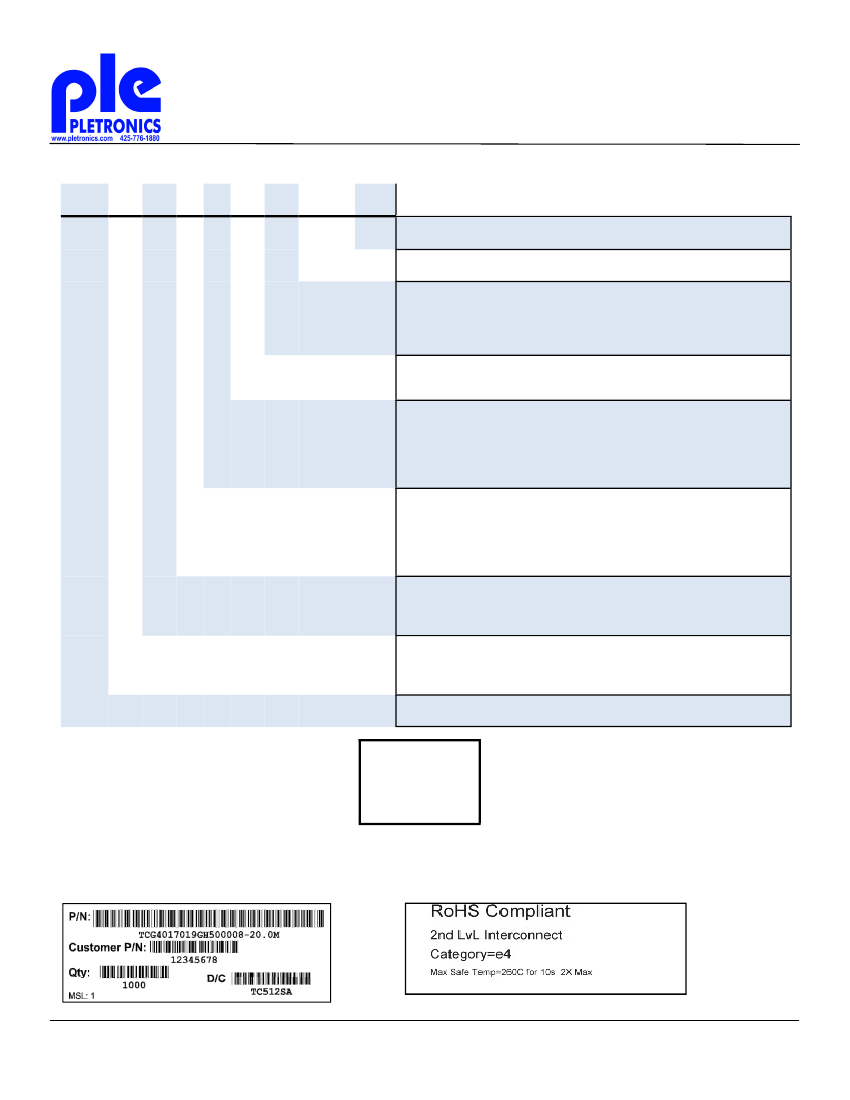

Part Number:
TCG4
017
019
G
H
010
008
-20.0M
-XX
Internal code or blank
Nominal Frequency in MHz
Pullability in ppm (Vcontrol)(in
ppm)
000
= TCXO only
005
= ±5 ppm minimum
008
= ±8 ppm minimum
Stability in ppm
010 =
± 1.0 ppm,
005
= ±0.5 ppm
Highest Specified Operating Temperature
A
= +40
o
C
E
= +60
o
C
J
= +80
o
C
B
= +45
o
C
F
= +65
o
C
K
= +85
o
C
C
= +50
o
C
G
= +70
o
C
o
D
= +55 C
H
= +75
o
C
Lowest Specified Operating Temperature
A
= +10
o
C
E
= -10
o
C
J
= -30
o
C
B
= +5
o
C
F
= -15
o
C
C
= +0
o
C
G
= -20
o
C
o
D
= -5 C
H
= -25
o
C
Highest Supply Voltage
1
(voltage * 10)
035
= 3.3 volts
030
= 3.0 volts
(typical examples shown)
Lowest Supply Voltage
1
(voltage * 10)
017
= 1.7 volts
028
= 2.8 volts
(typical examples shown)
Series (Part Type, Logic & Package)
Part Marking:
P
ff.ff
· xxx.xxxx
P
ff.ff
xxx.xxxx
=
=
=
Pletronics
frequency in MHz
internal code
Package Labeling:
Label is 1" x 2.6" (25.4mm x 66.7mm)
Font is Courier New
Bar code is 39-Full ASCII
Label is 1" x 2.6" (25.4mm x 66.7mm)
Font is Arial
www.Pletronics.com
425-776-1880
3
TCG4 Series
TCVCXO Oscillator
November 2012
Pletronics Inc. certifies this device is in accordance with the RoHS 6/6 (2002/95/EC) and
WEEE (2002/96/EC) directives.
•
•
•
•
Pletronics Inc. guarantees the device does not contain the following:
Cadmium, Hexavalent Chromium, Lead, Mercury, PBB’s, PBDE’s
Weight of the Device: 0.64 grams
Moisture Sensitivity Level: 1 As defined in J-STD-020D.
Second Level Interconnect code: e4
Absolute Maximum Ratings:
Parameter
V
CC
Supply Voltage
Vi
Vo
Input Voltage
Output Voltage
Unit
-0.5V to +6.0V
-0.5V to V
CC
+ 0.5V
-0.5V to V
CC
+ 0.5V
ESD Rating
Model
Human Body Model
Minimum Voltage
1500
Conditions
MIL-STD-883 Method 3115
JESD 22-C101
Charged Device Model 1000
Reliability
: Environmental Compliance
Parameter
Mechanical Shock
Vibration
Solderability
Thermal Shock
Condition
MIL-STD-883 Method 2002, Condition B
MIL-STD-883 Method 2007, Condition A
MIL-STD-883 Method 2003
MIL-STD-883 Method 1011, Condition A
www.Pletronics.com
425-776-1880
4
TCG4 Series
TCVCXO Oscillator
November 2012

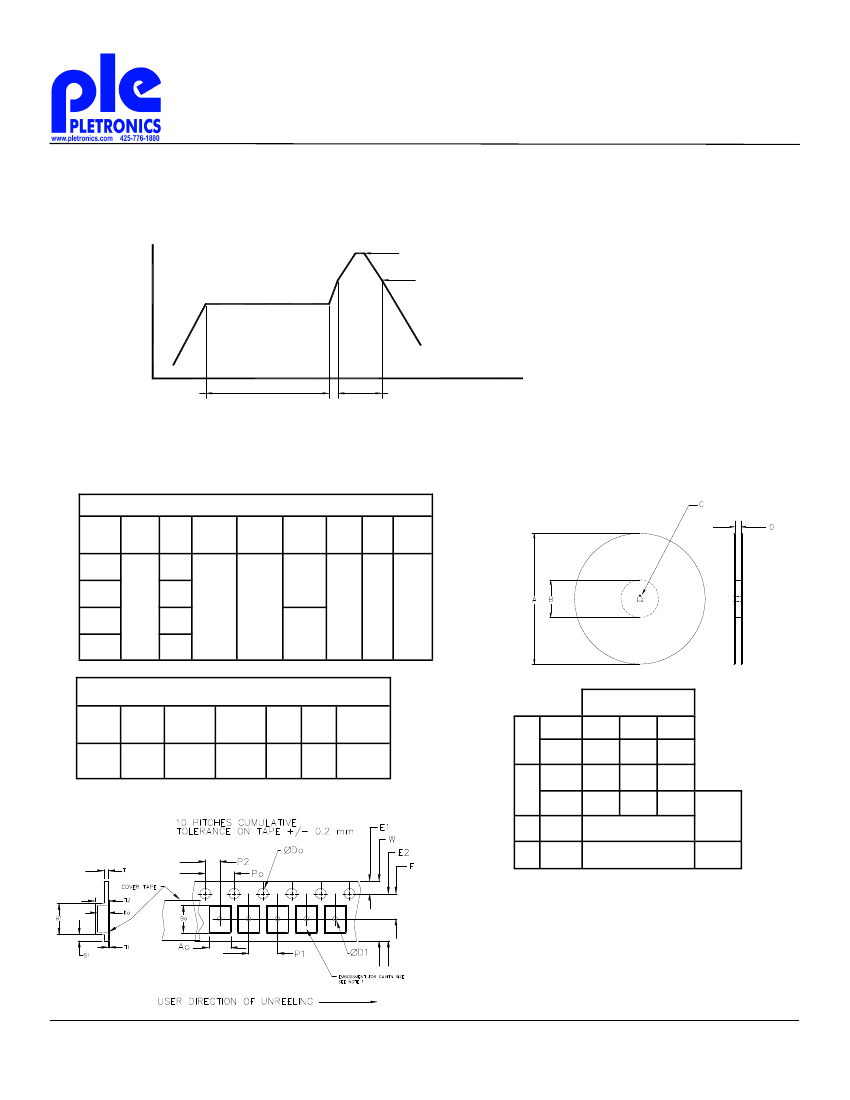

Reflow Cycle (typical for lead free processing)
Temperature (°C)
250
200
150
100
175°C±10°C
260°C Maximum
10 Seconds Maximum
215°C±10°C
120 to 160 Seconds
Approximately 50 Seconds
Allowed rate of temperature change
Maximum 4°C per second
Constant Dimensions Table 1
Tape
Size
8mm
12mm
16mm
24mm
1.5
–0.0
+1.0
D0
D1
Min
1.0
1.5
1.5
1.5
1.75
±0.1
4.0
±0.1
2.0
±0.1
E1
P0
P2
2.0
±0.05
-
0.6
-
S1
Min
T
Max
T1
Max
Variable Dimensions Table 2
Reel Dimensions
Tape
Size
8mm
B1
Max
2.2
F
P1
T2
Max
1.2
W
Max
8.0
Ao, Bo &
Ko
Note 1
B
mm
C
D
mm
mm
63.5
101.6
95.3
Tape
Width
16.0
Inches
A
mm
Inches
Note 1: Embossed Cavity to conform to EIA-481-B. Dimensions in mm Not to Scale
7.0
10.0
13.0
3.5 ±0.1 4.0 ±0.1
177.8 254.0 330.2
2.50
4.00
3.75
13.0 +0.5 / -0.2
16.4 +2.0 –0.0
Reel Dimensions may vary from the above.
www.Pletronics.com
425-776-1880
5
