Printed-circuit board connector - DMC 1,5/10-G1-3,5 P20THR - 1786918
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

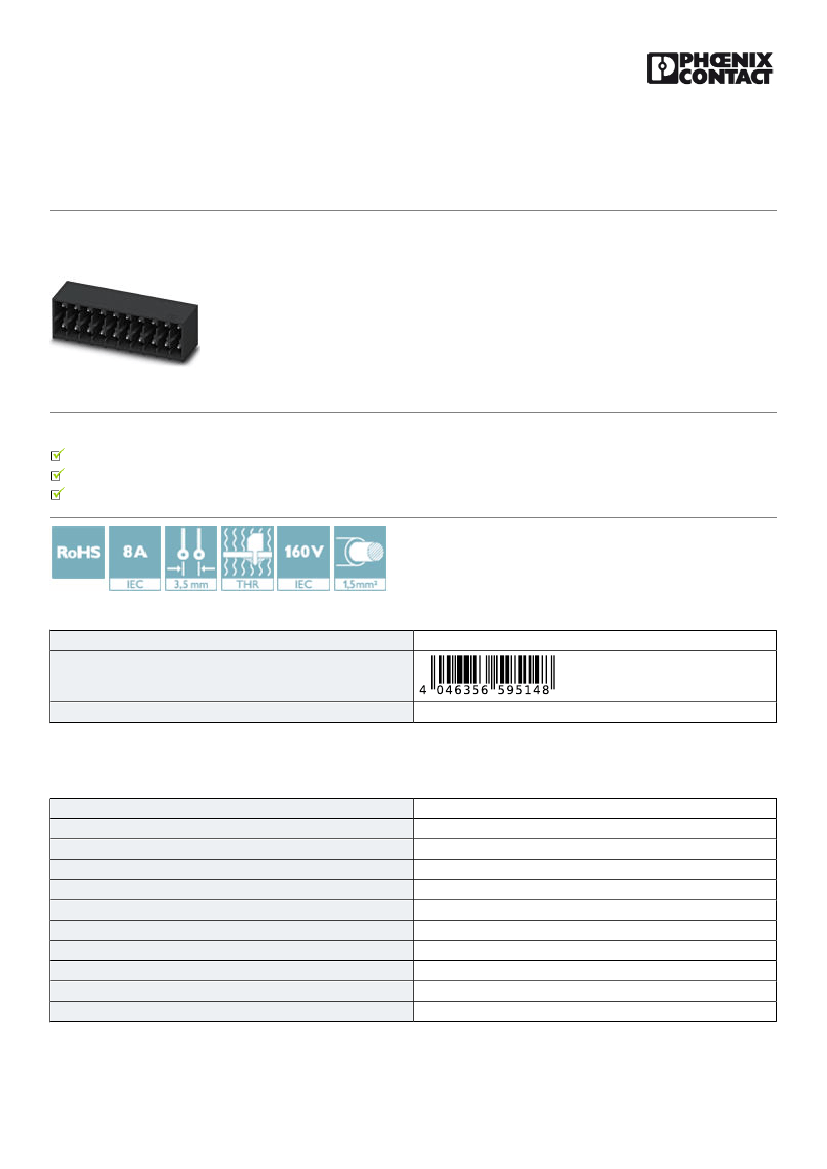

PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.5 mm, color:
black, contact surface: Tin, mounting: THR soldering
The figure shows a 10-pos. version
with 20 contacts
Your advantages
Designed for integration into the SMT soldering process
Conductor connection on several levels enables higher contact density
Small component size for applications where space is at a premium
Key Commercial Data
Packing unit
GTIN
GTIN
4046356595148
50 pc
Technical data
Dimensions
Length [ l ]
Width
Pitch
Dimension a
Width [ w ]
Height [ h ]
Height
Length of the solder pin
Pin dimensions
Pin spacing
Length
11.6 mm
35.8 mm
3.5 mm
31.5 mm
35.8 mm
12.8 mm
10.8 mm
2 mm
0.8 x 0.8 mm
2.50 mm
11.6 mm
General
10/28/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1786918
Printed-circuit board connector - DMC 1,5/10-G1-3,5 P20THR - 1786918
Technical data
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Flammability rating according to UL 94
Color
Number of positions
DMC 1,5/..-G1-THR
IIIa
2.5 kV
2.5 kV
2.5 kV
160 V
160 V
250 V
EN-VDE
8A
8A
LCP
V0
black
10
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CUL
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

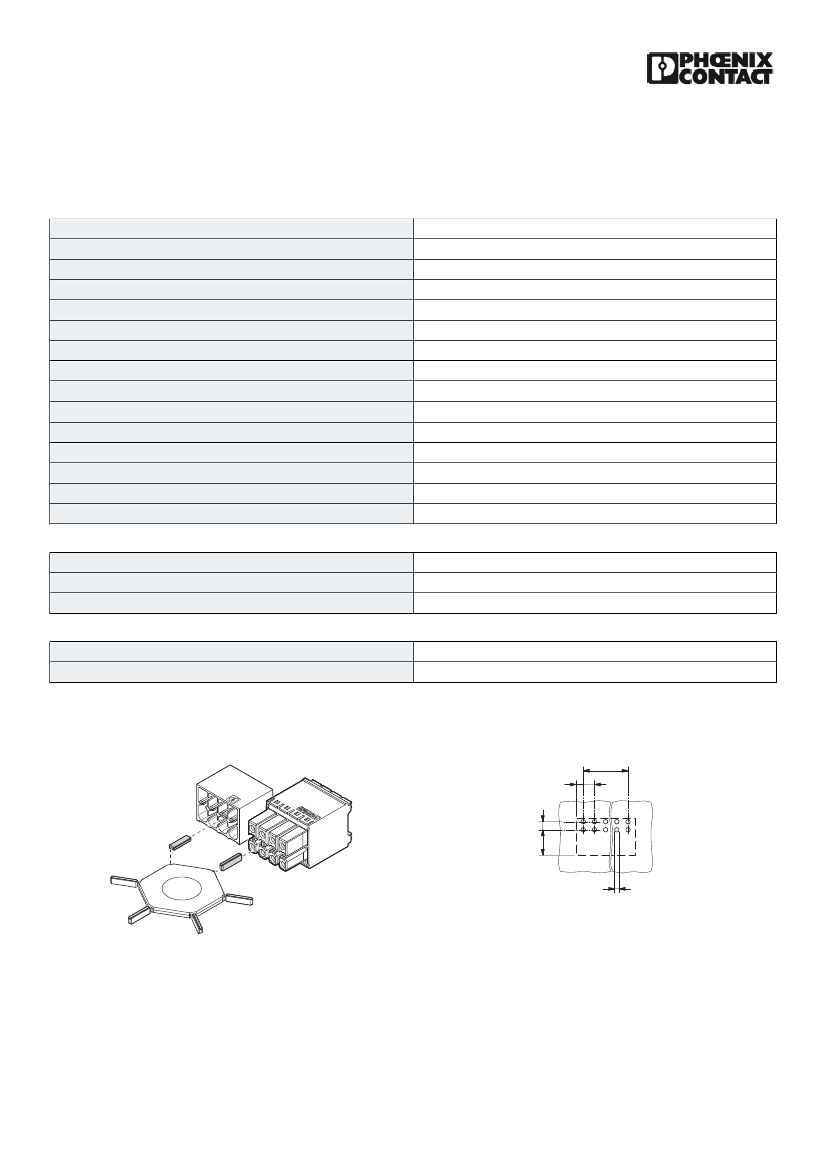

Drawings
Schematic diagram
Drilling diagram
a
2,15
3,5
8
2,5
Ø1,4
Use of the CP-DMC... coding profile
10/28/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1786918
Printed-circuit board connector - DMC 1,5/10-G1-3,5 P20THR - 1786918

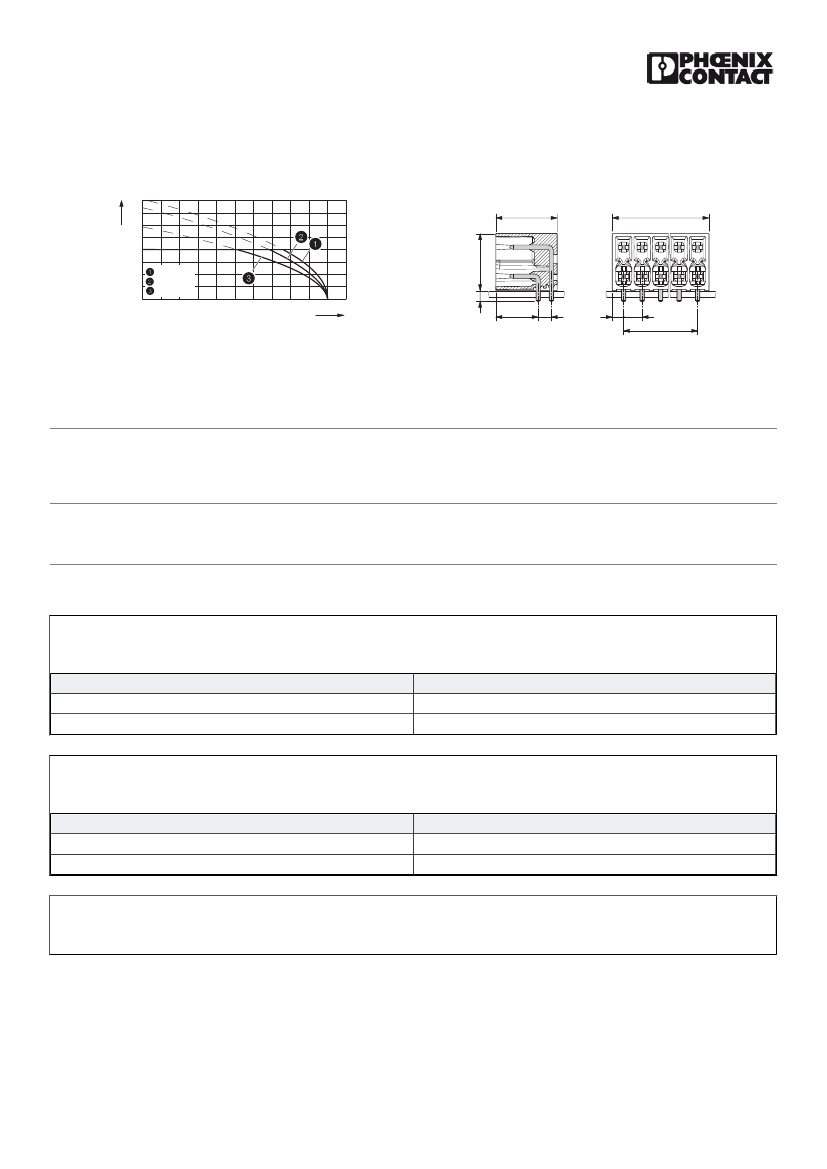

Diagram
16
14
12
10
8
6
4
2
0
0
Current strength [A]
Dimensional drawing
11,6
a+4,3
20
40
60
80
100
2
= 2-pos.
= 5-pos.
= 20-pos.
10,8
8
Ambient temperature [°C]
2,5
2,15
3,5
a
Approvals
Approvals
Approvals
IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized
Ex Approvals
Approval details
IECEE CB Scheme
Nominal voltage UN
Nominal current IN
http://www.iecee.org/
DE1-60359_B1_B2
160 V
8A
VDE Gutachten mit
Fertigungsüberwachung
Nominal voltage UN
Nominal current IN
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
160 V
8A
40038423
EAC
B.01742
10/28/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1786918
Printed-circuit board connector - DMC 1,5/10-G1-3,5 P20THR - 1786918
Approvals
cULus Recognized
Nominal voltage UN
Nominal current IN
D
300 V
8A
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-20110128
B
300 V
8A
C
50 V
8A
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/28/2018 Page 4 / 4
