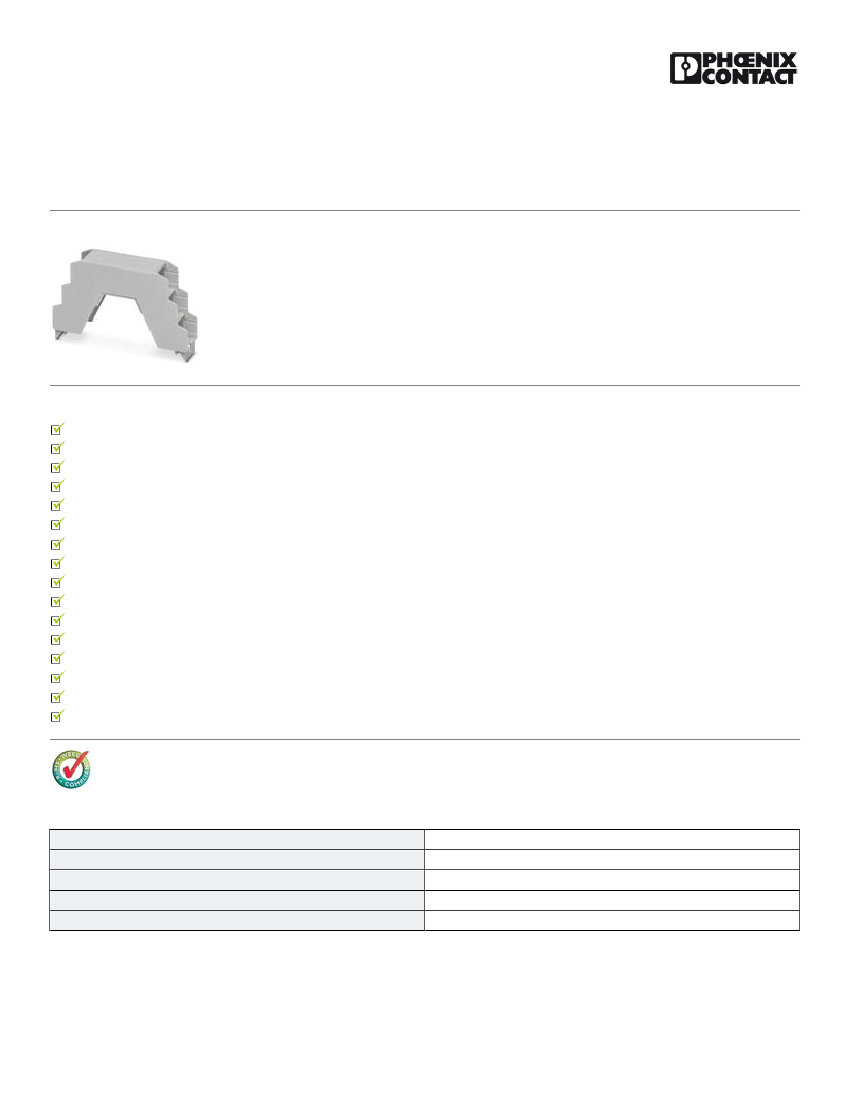

Electronic housing - ME 22,5 OT-3MSTBO KMGY - 2914880
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Upper part of housing, for COMBICON connection, three-level
Product Features
Tool-free mounting
ME...TBUS connector with 5 parallel contacts can be snapped onto DIN rails to save space
Large assembly area
Gold contacts for data transmission and power supply (125 V, 8 A)
Low design width with a high number of positions
When a device is unplugged from the system as a whole, the signal chain is not interrupted Supply via standard MINI COMBICON plug
Same PCB geometry for all design widths
Recessed labeling areas
Inflammability class V0 according to UL 94
Fast mounting on DIN rails according to EN 60715
Cost savings thanks to easy device production
Material and part identification embossed on the housing (recyclability)
Metal foot catch
Optional BUS connection integrated in the housing, for either parallel or serial contacting
Electronic components can be partially removed
Functional earth ground contact (EMC) integrated in the housing base
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
11
10 1
21.61 GRM
85472000
Germany
05.11.2013 Page 1 / 3
https://www.phoenixcontact.com/us/products/2914880
Electronic housing - ME 22,5 OT-3MSTBO KMGY - 2914880
Technical data
General
Housing type
Housing material
Color
Upper part
Polyamide
light gray
Ambient conditions
Ambient temperature (operation)
-40 °C ... 105 °C
Dimensions
Length
Constructional height
Width
99 mm
51.5 mm
22.5 mm
Technical data
Inflammability class according to UL 94
Number of positions
V0
24
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27180401
27180401
27180506
27180506
27180802
27182702
27182702
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001031
EC001031
EC001031
EC000886
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31261501
31261501
31261501
31261501
31261501
05.11.2013 Page 2 / 3
https://www.phoenixcontact.com/us/products/2914880
Electronic housing - ME 22,5 OT-3MSTBO KMGY - 2914880
Approvals
Approvals
Approvals
UL Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
Drawings
Dimensioned drawing
87,7
22,6
73,5
17,6
60,1
102
© Phoenix Contact 2013 - all rights reserved
http://www.phoenixcontact.com
34
05.11.2013 Page 3 / 3
