3V2012 datasheet, PDF - EEWORLD Datasheet

3V2012: DescriptionRocker Switch, DPDT, On-on, Horizontal, 10 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight,; CategoryMechanical and electronic products switch; File Size270KB，2 Pages; ManufacturerNidec Copal Electronics

Download Datasheet Parametric View All

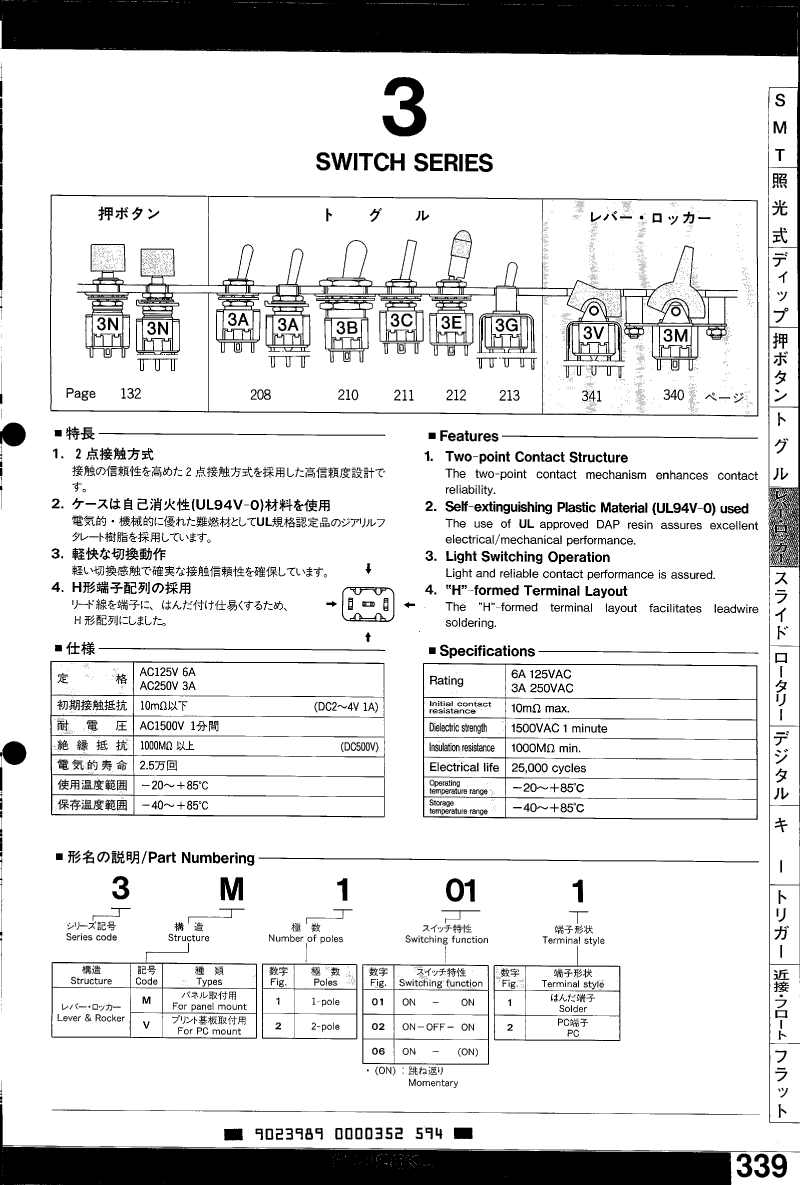

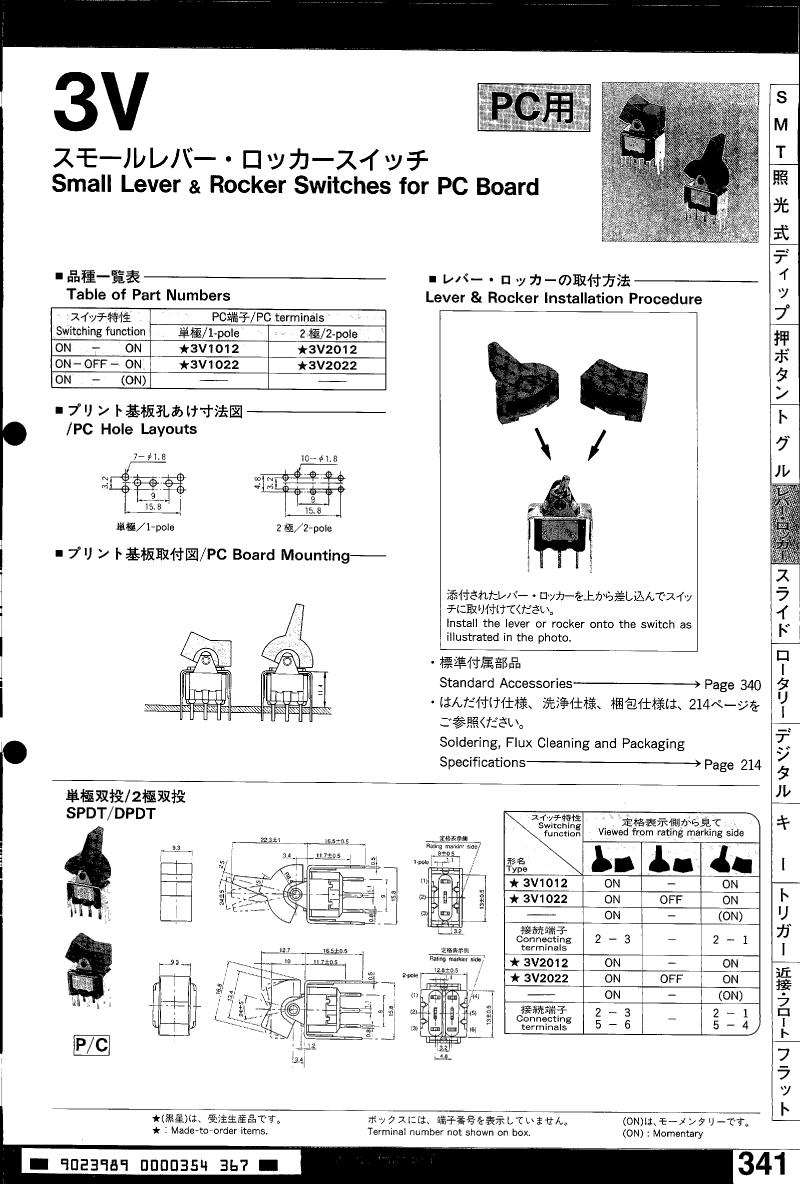

3V2012 Overview

Rocker Switch, DPDT, On-on, Horizontal, 10 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight,

Parameter Name	Attribute value
Solderability	HAND
surface mount	NO
Termination type	SOLDER
Washability	SOLVENT
Actuator angle	24 deg
contact time	BREAK-BEFORE-MAKE
Installation features	THROUGH HOLE-STRAIGHT
PCB hole count	10
Body length or diameter	13.0048 mm
Actuator length	0.5 inch
body width	12.8016 mm
Maximum contact current (AC)	3 A
Insulation resistance	1000000000 Ω
Other features	UL APPROVED
Contact (AC) maximum rated R load	3A@250VAC
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1500VAC V
Switch type	ROCKER SWITCH
Actuator type	ROCKER
Contact function	ON-ON
Contact resistance	0.01 mΩ
Electrical life	25000 Cycle(s)
Switch action	LATCHED
switch function	DPDT
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
YTEOL	0
Objectid	312032430
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
