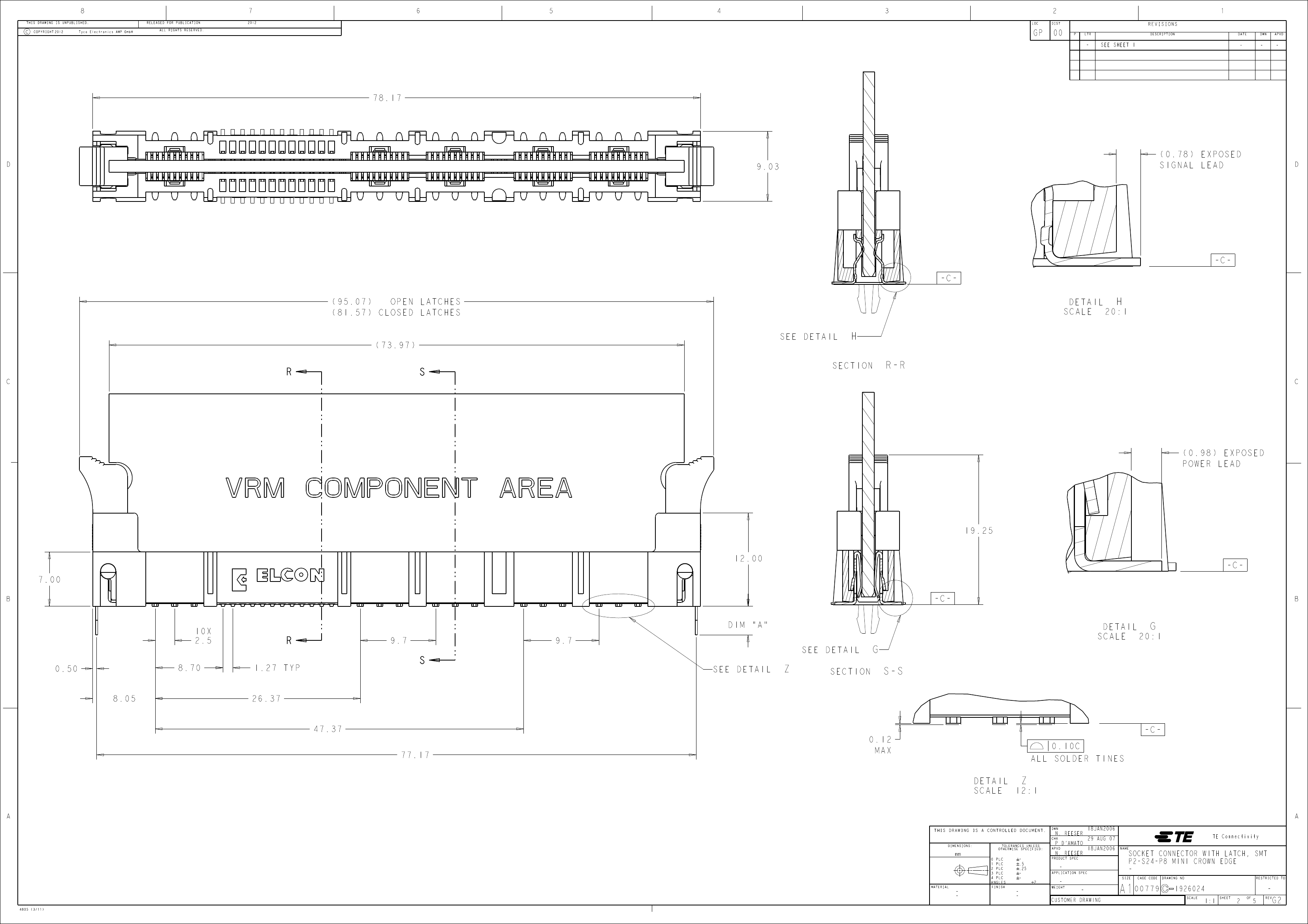

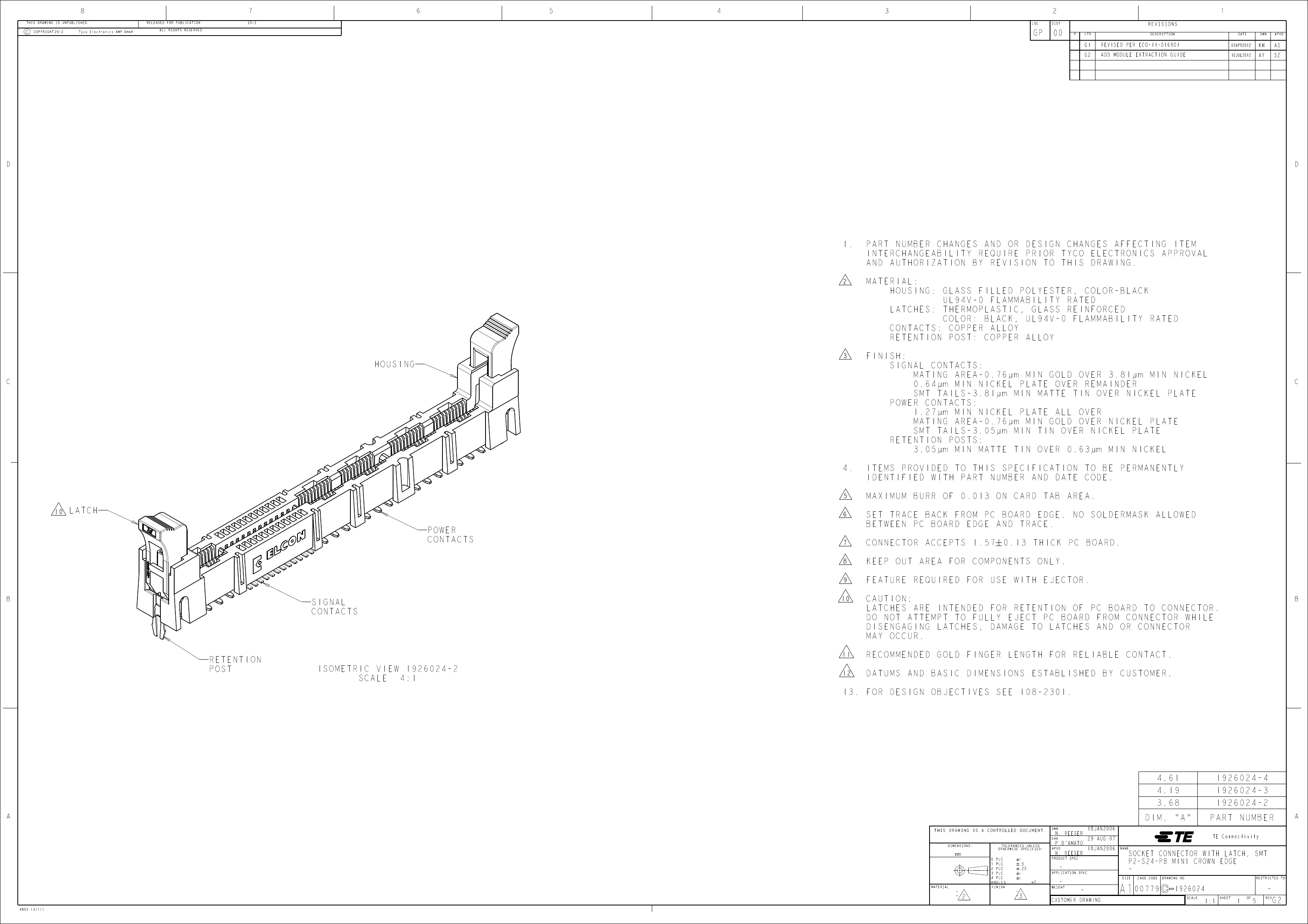

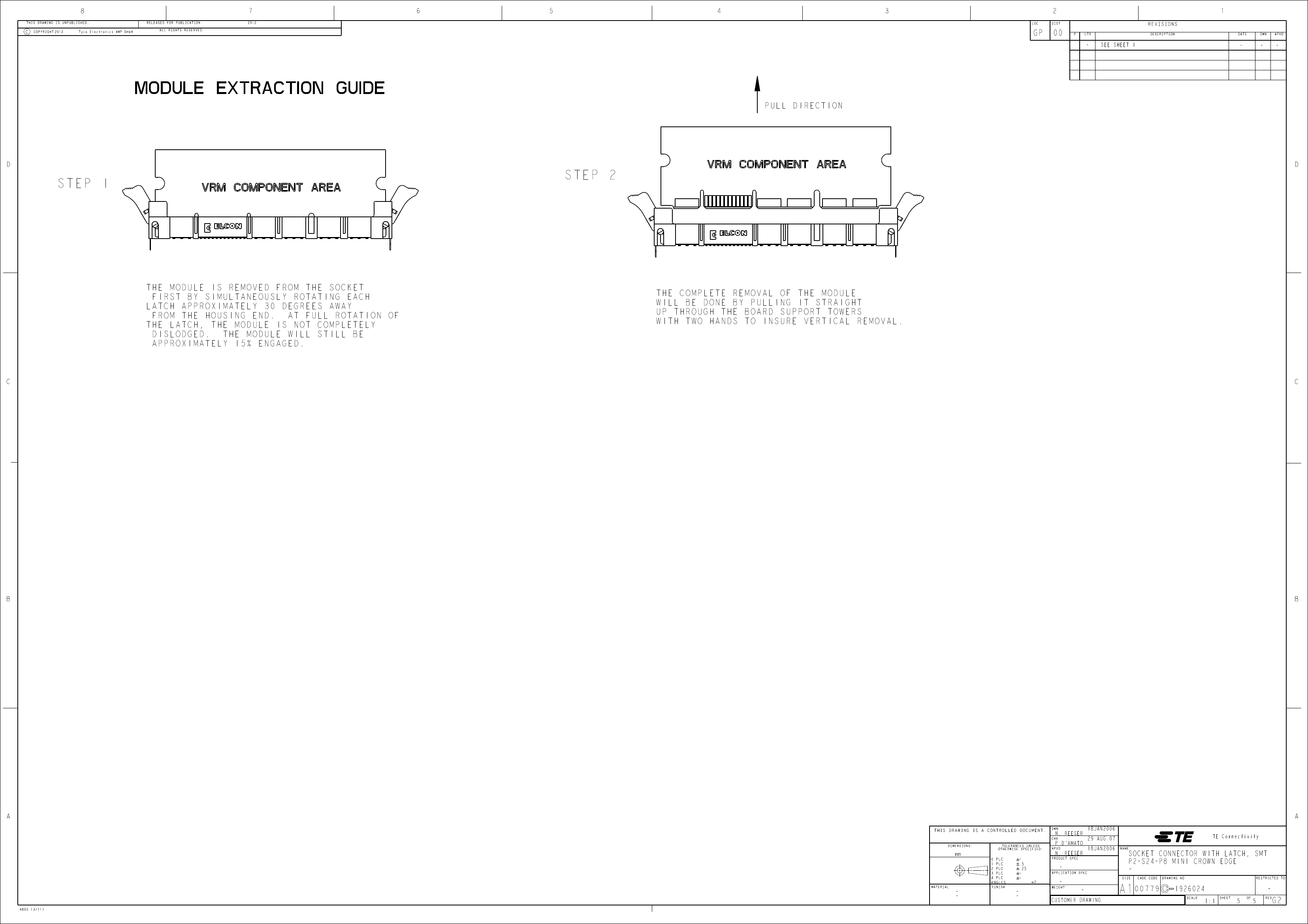

cpmm. skt w/latch, smt,mc-p5s1

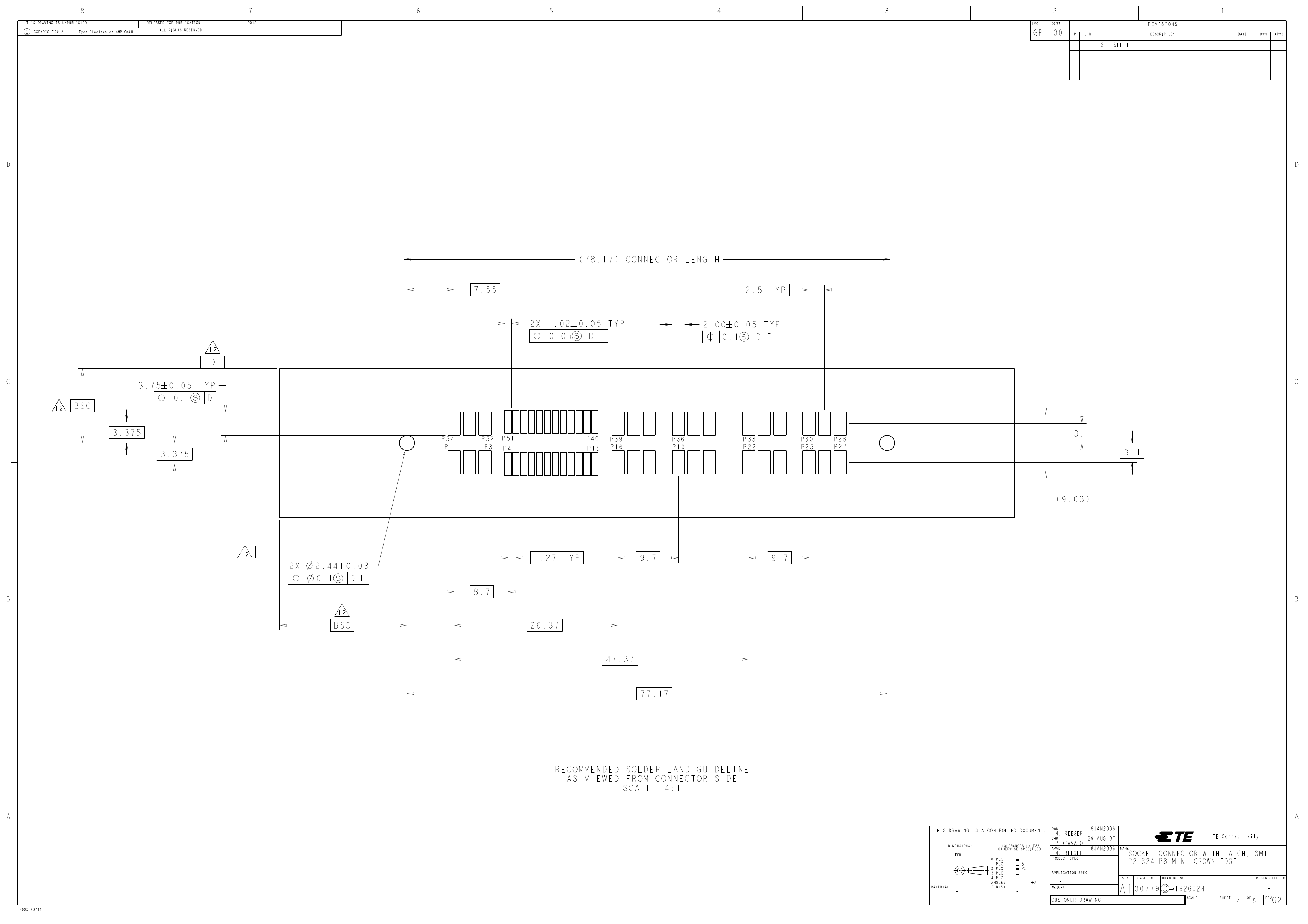

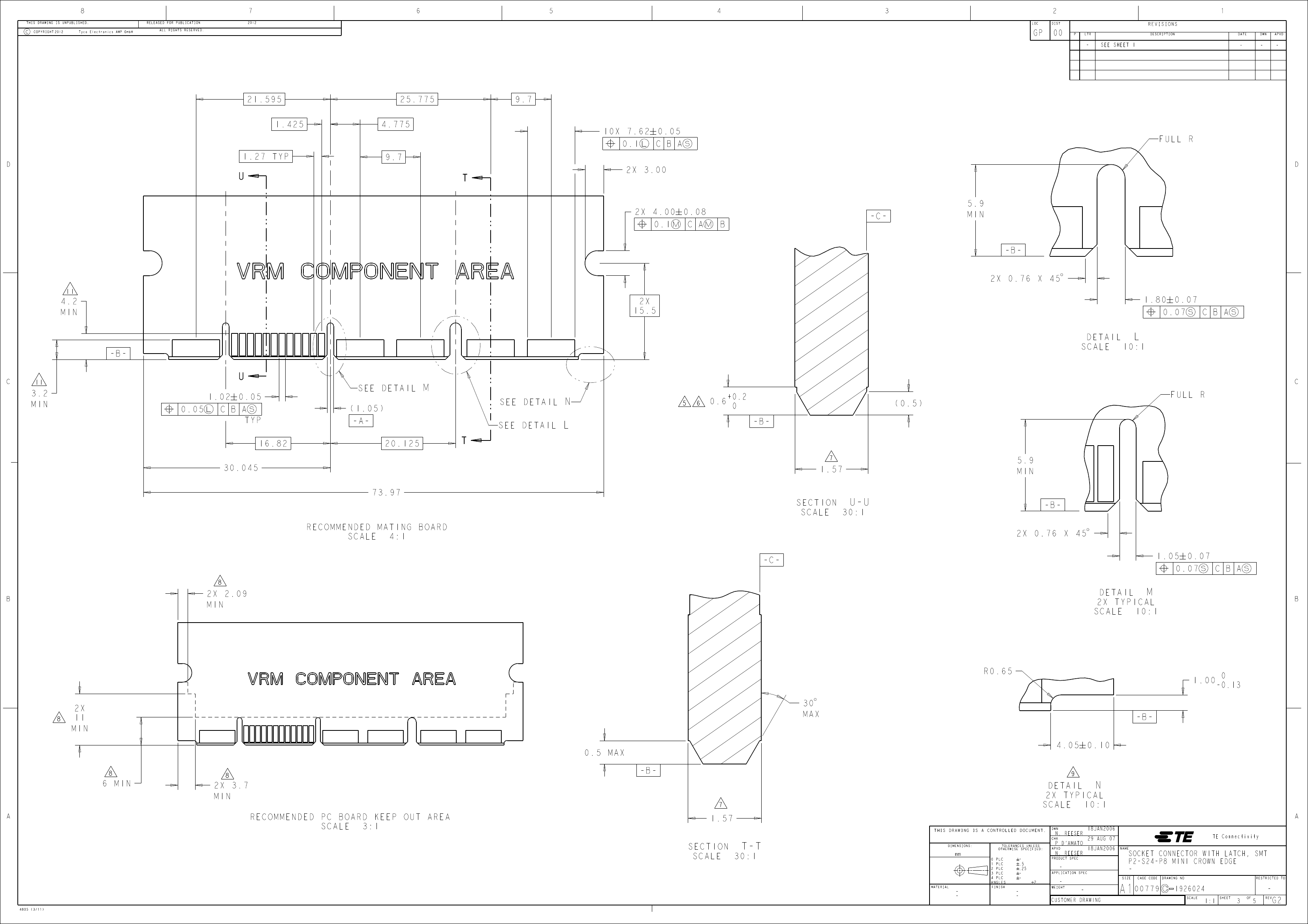

| Parameter Name | Attribute value |
| Housing type | female end, female end |
| Connector System | Board to Board |
| Connectors and terminals terminate to | A printed circuit board |
| Terminal type | socket |
| PCB mounting direction | vertical |
| Board-to-board configuration | right angle |
| Number of Positions | 34 |
| Number of power supply locations | 10 |
| Number of signal positions | 24 |
| Number of double positions | 5 |
| Number of single locations | 12 |
| Line spacing | 6.75 mm [ .266 in ] |
| Rows | 2 |
| Operating voltage (VAC) | 250 |
| Operating Voltage | 250 V |
| Terminal base material | copper alloy |
| Contact Current Rating (Max) (A) | 25 |
| Terminal contact plating material | gold |
| Plating thickness of terminal contact parts | .76 µm [ 29.92 µin ] |
| Terminal design | MULTI-TERM BAND/CROWN BAND |
| Terminal termination area plating material | tin |
| Terminal layout | Direct plug-in |
| Terminal Termination Area Plating Thickness (µin) | 120, 150 |
| Terminal termination area plating thickness (µm) | 3.05, 3.81 |
| Terminal retention | Without |
| Terminal termination area electroplated coating | matte |
| PCB Termination Methods | surface mount |
| PCB mounting fixation type | plate lock |
| PCB installation and fixation | with |
| PCB mounting alignment | Without |
| Connector mounting type | board mounting |
| joint fixation | with |
| joint alignment | with |
| Joint fixation type | latch |
| Centerline (Pitch) | 1.27 mm [ .05 in ] |
| Shell material | glass-filled polyester |
| end cap | Without |
| Shell color | black |
| Accept card thickness | 1.57 mm [ .062 in ] |
| Power terminal center line | 9.7 mm [ .381 in ] |
| Accept card width | 73.97 mm [ 2.91 in ] |
| high | 19.25 mm [ .758 in ] |
| length | 95.07 mm [ 3.74 in ] |
| width | 9.03 mm [ .3555 in ] |
| card slot depth | 6 mm [ .236 in ] |
| Working group temperature range | -55 – 105 °C [ -67 – 221 °F ] |
| characteristic | customizable |
| Circuit Application | Power and Signal |
| UL fire rating | UL 94V-0 |
| Agencies/Standards | CSA, UL |
| CSA file number | 1935071 |
| Organization/Standard Number | UL 1977 |
| Encapsulation method | Pallets, boxes and pallets |
| Package quantity | 26 |
| Applicable to | A printed circuit board |
