1776138-3: Description3P TERMI-BLOK HDR,HIGH TEMP; CategoryThe connector terminals; File Size160KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1776138-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1776138-3	-	-	View	Buy Now

1776138-3 Overview

3P TERMI-BLOK HDR,HIGH TEMP

1776138-3 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARD: UL 94V-0, POLYAMIDE, SHROUDED
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	3
Rated current	15 A
Rated voltage	300 V
safety certificate	UL
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

4

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

Tyco Electronics AMP GmbH

20

3

2

LOC

DIST

1

C

COPYRIGHT

20

FT

0

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

A3

REVISED PER ECO-14-008217

02JUN2014

NK

MM

D

5.00

2.3 REF

1.00

0.08

0.02

1

MATERIALS AND FINISH

HOUSING: HIGH TEMPERATURE POLYAMIDE, UL 94V-0 RATED,

COLOR: BLACK.

TERMINAL: COPPER ALLOY, TIN PLATED.

2. SUITABLE FOR 1,6-2,4mm PC BOARD THICKNESS.

3. END-TO-END STACKABLE WITHOUT LOSS OF

CENTERLINE SPACING.

4. RECOGNIZED UNDER THE COMPONENT PROGRAM OF

UNDERWRITERS LABORATORIES INC., FILE N $ E60677.

5. IMQ CERTIFICATE WITH SURVEILLANCE IN CONFORMITY

WITH IEC 998-1/998-2-1.

C

6. UL RATING: 300V, 15A.

7

8

TAPE AND REEL PACKAGING

PRELIMINARY-NOT FOR PRODUCTION

C

1776138-3 AS SHOWN

A

3.5

0.4

4.15

B

8.65

0.15

3.9 REF

1.00

12.0

0.02

8

7

14.6

59.6

54.6

49.6

44.6

39.6

34.6

29.6

24.6

19.6

14.6

9.6

3

12

11

10

9

8

7

6

5

4

3

2

NO OF

POSN

2

1-1776138-4

1- 1776138 -2

1- 1776138 -1

1- 1776138 -0

1776138 -9

1776138 -8

1776138 -7

1776138 -6

1776138 -5

1776138 -4

1776138 -3

1776138 -2

PART

NUMBER

TE Connectivity

NAME

B

8

7

1-1776138-3

1.4

+0.1

0

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

9.6

A

S.WELDON

C.RICHARD

03JUN2005

DIMENSIONS:

A

5.0

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

A

RECOMMENDED PC BOARD LAYOUT

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

.2

.25

-

PRODUCT SPEC

C.RICHARD

APPLICATION SPEC

108-20166

114-20079

-

2 $

WEIGHT

1

1471-9 (3/11)

1

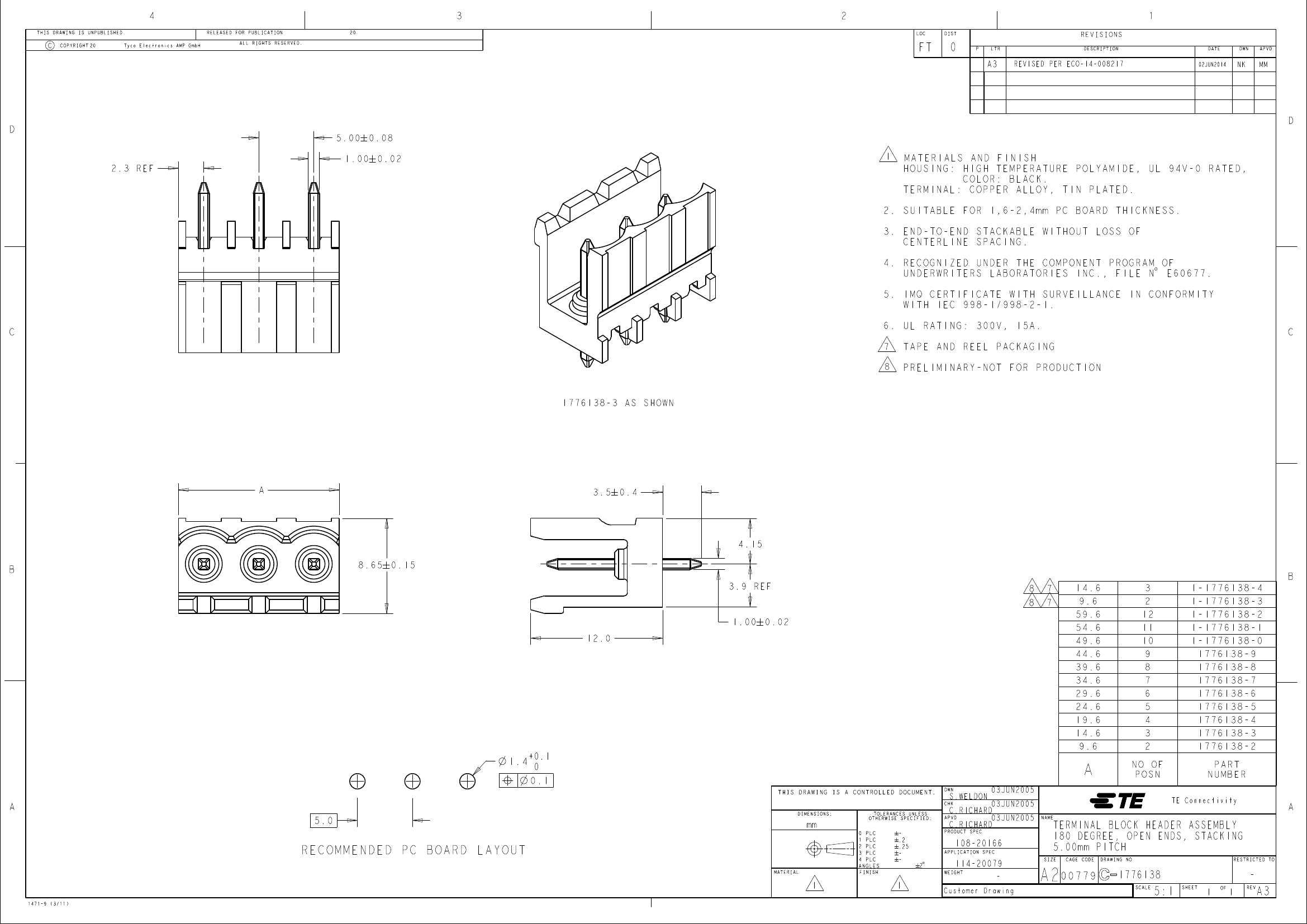

Customer Drawing

A2

00779

SIZE

TERMINAL BLOCK HEADER ASSEMBLY

180 DEGREE, OPEN ENDS, STACKING

5.00mm PITCH

CAGE CODE

DRAWING NO

RESTRICTED TO

1776138

SCALE

5:1

SHEET

1

OF

1

REV

-

A3
