Electronic housing - ME 45 OT-MSTBO GN - 2909743
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Upper part of housing, double-level, for COMBICON connection, housing width: 45 mm

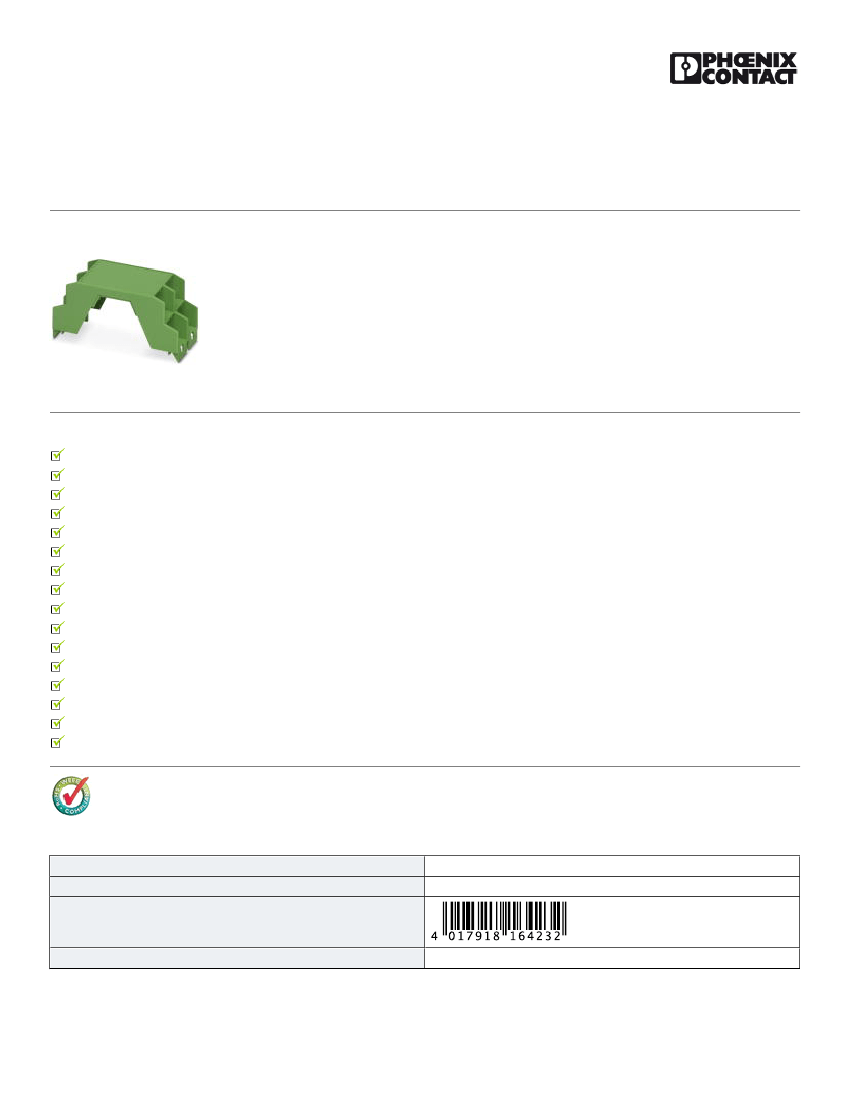

Illustration shows a fully mounted
version of the electronic housing
Product Features
Tool-free mounting
ME...TBUS connector with 5 parallel contacts can be snapped onto DIN rails to save space
Large assembly area
Gold contacts for data transmission and power supply (125 V, 8 A)
Low design width with a high number of positions
When a device is unplugged from the system as a whole, the signal chain is not interrupted Supply via standard MINI COMBICON plug
Same PCB geometry for all design widths
Recessed labeling areas
Inflammability class V0 according to UL 94
Fast mounting on DIN rails according to EN 60715
Cost savings thanks to easy device production
Material and part identification embossed on the housing (recyclability)
Electronic components can be partially removed
Functional earth ground contact (EMC) integrated in the housing base
Optional BUS connection integrated in the housing, for either parallel or serial contacting
Metal foot catch
Key commercial data
Packing unit
Minimum order quantity
GTIN
Custom tariff number
85472000
26.06.2013 Page 1 / 9
1 PCE
10 PCE
https://www.phoenixcontact.com/us/produkte/2909743
Electronic housing - ME 45 OT-MSTBO GN - 2909743
Country of origin
GERMANY
Technical data
General
Housing type
Housing material
Color
Upper part
PA 6.6
green
Dimensions
Length
Constructional height
Width
99 mm
38.5 mm
45 mm
Technical data
Ambient temperature (operation)
Inflammability class according to UL 94
Number of positions
Number of positions
-40 °C ... 105 °C
V0
32
48
Classifications
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001031
EC001031
EC001031
EC000886
UNSPSC
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
UNSPSC 6.01
UNSPSC 7.0901
31261501
31261501
31261501
31261501
31261501
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27180401
27180401
27180506
27180506
27180802
27182702
26.06.2013 Page 2 / 9
https://www.phoenixcontact.com/us/produkte/2909743
Electronic housing - ME 45 OT-MSTBO GN - 2909743
Classifications
eCl@ss
eCl@ss 8.0
27182702
Approvals
Approvals
Approvals
UL Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
Accessories
Accessories
Assembly
Electronic housing - ME DH36 NS 35 - 2909895
Spacers, for protection of the input or output contacts for DIN rail NS 35, width [B] 36 mm
Electronic housing - ME DH27 NS 35 - 2908760
Spacers, for protection of the input or output contacts for DIN rail NS 35, width [B] 27 mm
26.06.2013 Page 3 / 9
https://www.phoenixcontact.com/us/produkte/2909743
Electronic housing - ME 45 OT-MSTBO GN - 2909743
Accessories

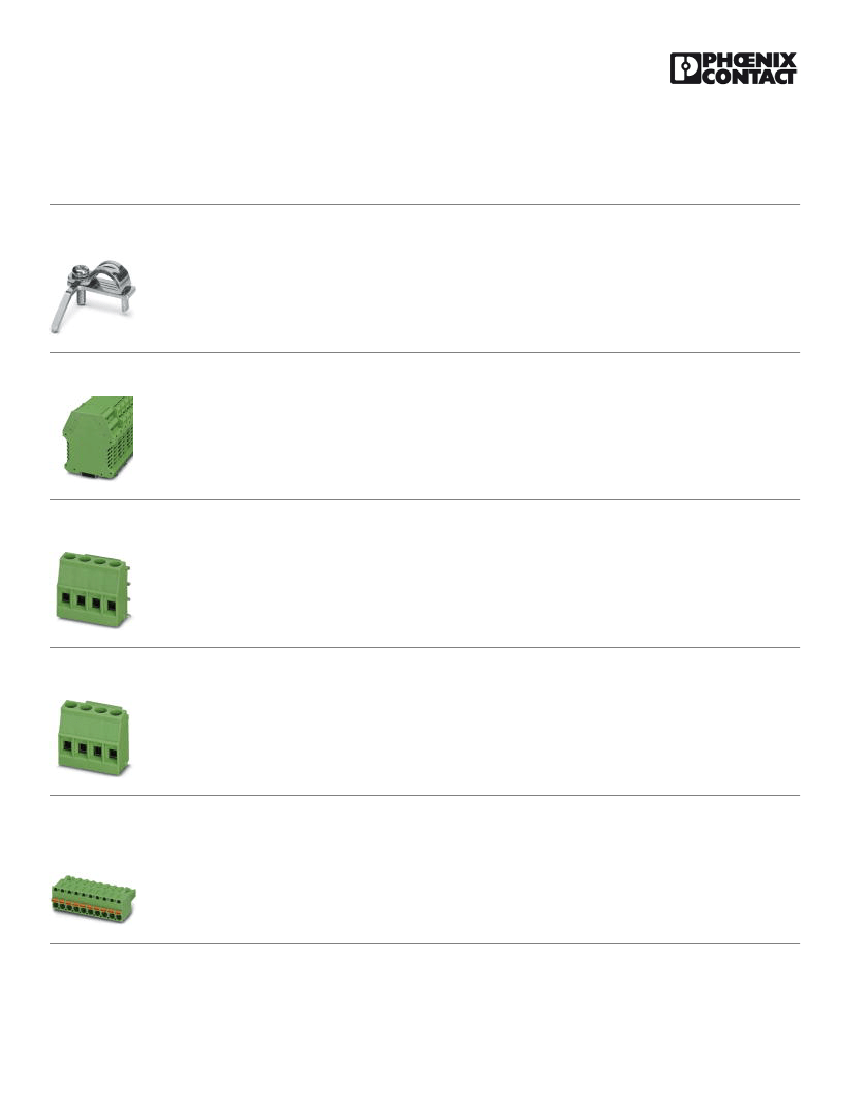

Components of electronic housing - ME-SAS - 2853899
Shield connection clamp for printed circuit terminal block
Electronic housing - ME 45 OT-MKDSO GN - 2909390
Housing upper part, for printed circuit terminal block connection
Basic terminal block - MKDSO 2,5/ 4-R - 1707247
PCB terminal block, Nominal current: 24 A, Nom. voltage: 400 V, Pitch: 5 mm, Number of positions: 4, Connection
method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color: green, Article with
lateral pin exit
Printed-circuit board connector - MKDSO 2,5/ 4-L - 1707234
PCB terminal block, Nominal current: 24 A, Nom. voltage: 400 V, Pitch: 5 mm, Number of positions: 4, Connection
method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0 °, Color: green, Article with
lateral pin exit
Printed-circuit board connector - FKCT 2,5/ 4-ST - 1909236
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 4, Pitch: 5 mm, Connection
method: Spring-cage conn., Color: green, Contact surface: Tin
26.06.2013 Page 4 / 9
https://www.phoenixcontact.com/us/produkte/2909743
Electronic housing - ME 45 OT-MSTBO GN - 2909743
Accessories
Printed-circuit board connector - MSTBT 2,5/ 4-ST - 1779851
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 4, Pitch: 5 mm, Connection
method: Screw connection, Color: green, Contact surface: Tin
Housing - MSTBO 2,5/ 4-G1R - 1861073
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 4, Pitch: 5 mm, Assembly: Soldering,
Article with lateral pin exit
Base strip - MSTBO 2,5/ 4-G1L - 1861060
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 4, Pitch: 5 mm, Assembly: Soldering,
Article with lateral pin exit

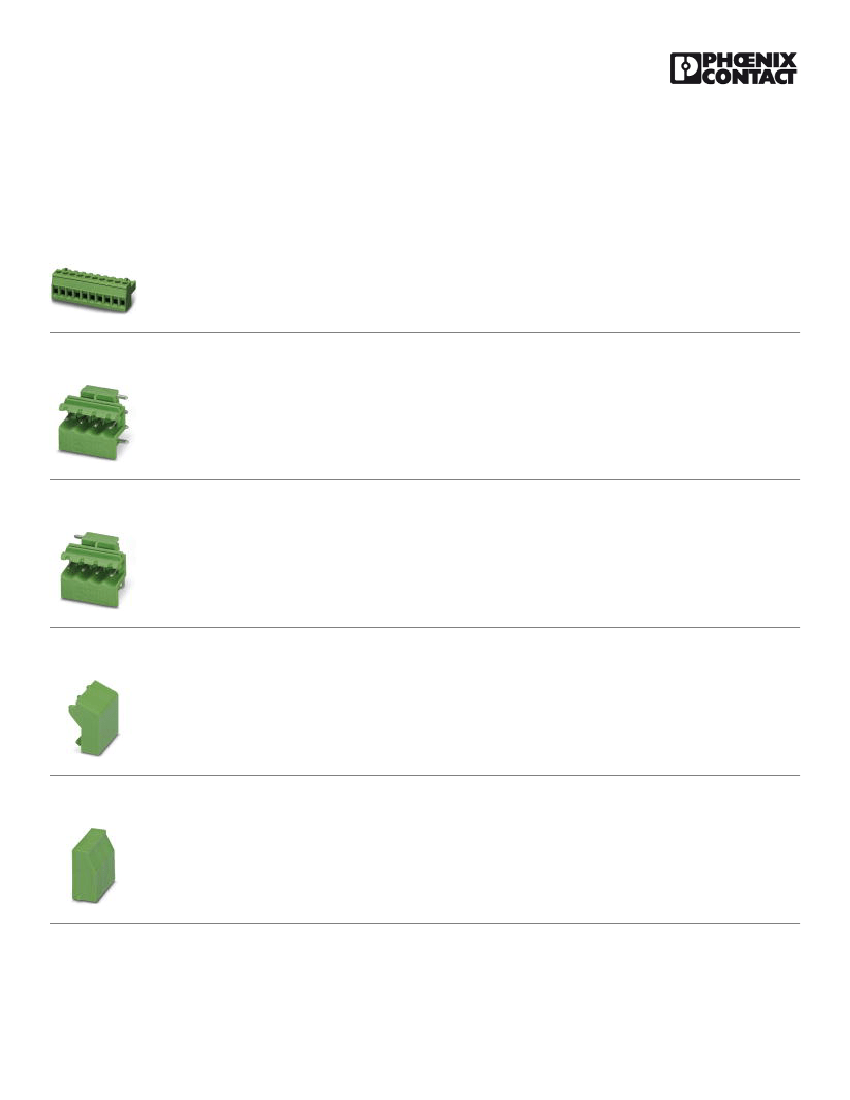

Electronic housing - ME B-22,5 MSTBO GN - 2907156
Filler plugs, for unoccupied terminal points
Electronic housing - ME B-22,5 MKDSO GN - 2907143
Filler plugs, for unoccupied terminal points
26.06.2013 Page 5 / 9
