Preview

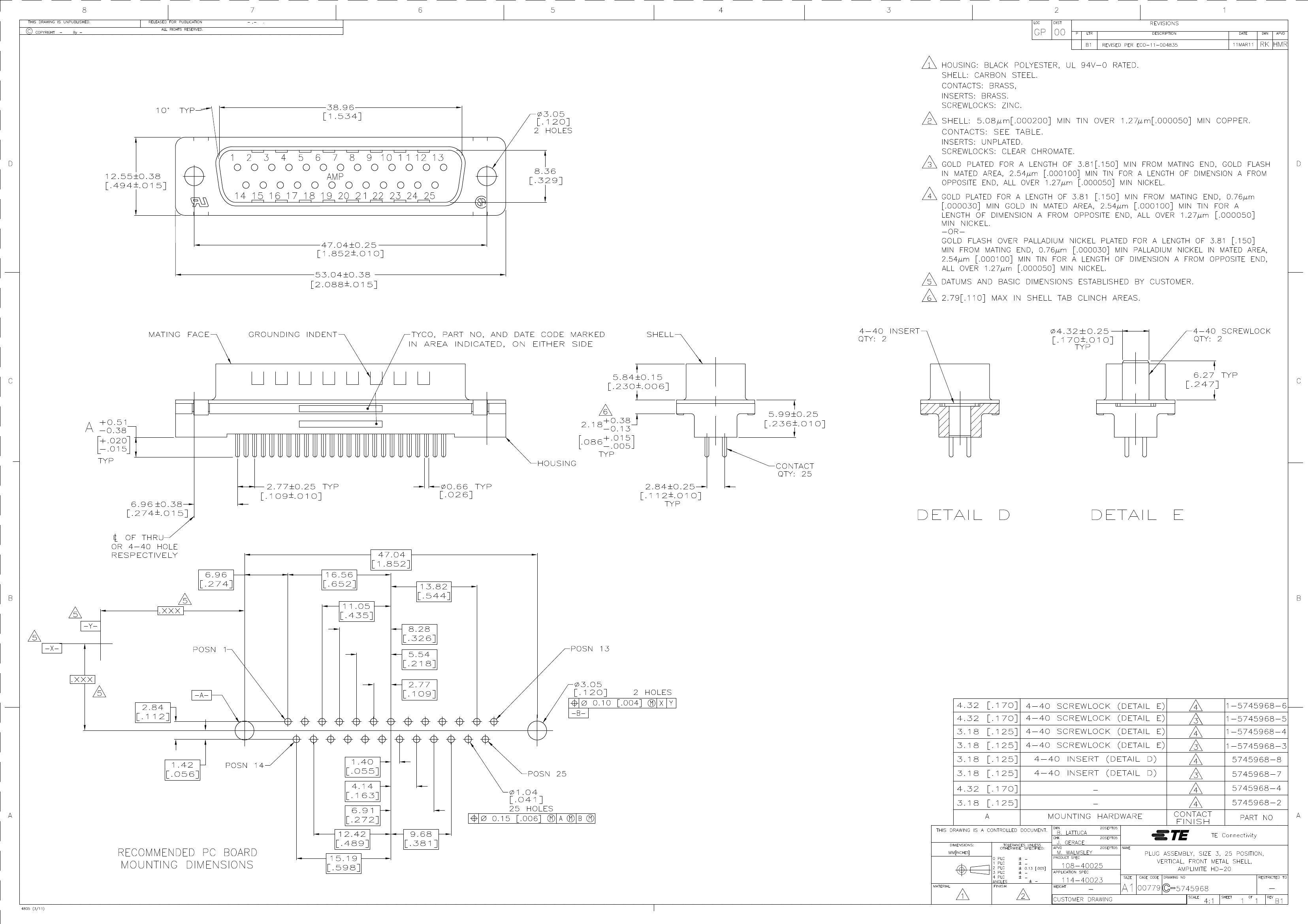

5745968-8: DescriptionHD-20 25 PLUG SP/FMS INSRT; CategoryThe connector The connector; File Size149KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5745968-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5745968-8	-	-	View	Buy Now

5745968-8 Overview

HD-20 25 PLUG SP/FMS INSRT

5745968-8 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2110824819
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	17 weeks 1 day
Samacsys Description	AMPLIMITE HD-20 d-sub PCB plug, 25 pin
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2023-03-07 16:10:32
YTEOL	8.5
Other features	AMPLIMITE
body width	0.494 inch
subject depth	0.23 inch
body length	2.088 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
Electromagnetic interference shielding	YES
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
MIL compliance	NO
Power Connector Ratings	6A
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED INSERT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.84 mm
Panel mounting	NO
Plating thickness	30u inch
Rated current (signal)	6 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	BRASS
Housing size	3/B
Terminal length	0.125 inch
Terminal pitch	2.74 mm
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

5745968-8 Related Products

	5745968-8	5745968-2	G802A01211EU	RJMG1J42183013L	5745968-4
Description	HD-20 25 PLUG SP/FMS INSRT	25 PLUG SP/FMS STD	Board Connector	Telecom and Datacom Connector, 8 Contact(s), Female and Female, Right Angle, Solder Terminal	25 PLUG SP/FMS STD
Reach Compliance Code	compliant	compliant	unknown	unknown	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	BOARD CONNECTOR	TELECOM AND DATACOM CONNECTOR	D SUBMINIATURE CONNECTOR
Brand Name	AMP	AMP	-	-	AMP
Is it Rohs certified?	conform to	conform to	-	-	conform to
Objectid	2110824819	-	1926710505	1354289472	2110824817
ECCN code	EAR99	-	EAR99	EAR99	-
Factory Lead Time	17 weeks 1 day	13 weeks	-	-	31 weeks 2 days
YTEOL	8.5	-	-	8.5	8.5
Other features	AMPLIMITE	AMPLIMITE	-	OTHER STACKING CONNECTORS: 8 CONTACTS, 2 PORTS, 4 POSITION EACH	AMPLIMITE
body width	0.494 inch	0.494 inch	-	-	0.494 inch
subject depth	0.23 inch	0.23 inch	-	-	0.23 inch
body length	2.088 inch	2.088 inch	-	-	2.088 inch
Body/casing type	PLUG	PLUG	-	-	PLUG
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE	Tin (Sn) - with Nickel (Ni) barrier	-	-	Tin (Sn)
Contact point gender	MALE	MALE	-	FEMALE AND FEMALE	MALE
Contact material	NOT SPECIFIED	BRASS	-	-	NOT SPECIFIED
contact mode	STAGGERED	STAGGERED	-	-	STAGGERED
Contact style	RND PIN-SKT	RND PIN-SKT	-	-	RND PIN-SKT
DIN compliance	NO	NO	-	NO	NO
empty shell	YES	NO	-	NO	YES
Filter function	NO	NO	-	YES	NO
IEC compliance	NO	NO	-	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	-	-	1000000000 Ω
Insulator color	BLACK	BLACK	-	-	BLACK
insulator material	POLYESTER	POLYESTER	-	POLYETHYLENE POLYESTER	POLYESTER
MIL compliance	NO	NO	-	NO	NO
Plug contact pitch	0.109 inch	0.109 inch	-	-	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	-	-	0.112 inch
Mixed contacts	NO	NO	-	NO	NO
Installation option 1	#4-40	LOCKING	-	-	HOLE .12
Installation method	STRAIGHT	STRAIGHT	-	RIGHT ANGLE	STRAIGHT
Installation type	BOARD	BOARD	-	BOARD	BOARD
PCB row number	2	2	-	-	2
Number of rows loaded	2	2	-	-	2
Maximum operating temperature	105 °C	105 °C	-	-	105 °C
Minimum operating temperature	-55 °C	-55 °C	-	-	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	-	-	STAGGERED
PCB contact row spacing	2.84 mm	2.8448 mm	-	-	2.84 mm
Rated current (signal)	6 A	6 A	-	-	6 A
Guideline	UL	UL	-	-	UL
reliability	COMMERCIAL	COMMERCIAL	-	-	COMMERCIAL
Shell surface	TIN	TIN	-	-	TIN
Shell material	BRASS	CARBON STEEL	-	STAINLESS STEEL, COPPER NICKEL PLATED	BRASS
Housing size	3/B	3/B	-	-	3/B
Terminal length	0.125 inch	0.125 inch	-	-	0.17 inch
Terminal pitch	2.74 mm	2.7686 mm	-	-	2.74 mm
Termination type	SOLDER	SOLDER	-	SOLDER	SOLDER
Total number of contacts	25	25	-	8	25
UL Flammability Code	94V-0	94V-0	-	94V-0	94V-0
