1280-15S-108: DescriptionD Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size373KB，1 Pages; ManufacturerTekcon Electronics Corp

Download Datasheet Parametric View All

1280-15S-108 Overview

D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

1280-15S-108 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	No
ECCN code	EAR99
Is Samacsys	N
Objectid	305398929
Reach Compliance Code	Unknown
body width	0.494 inch
subject depth	0.492 inch
body length	1.545 inch
Terminal length	0.125 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU
Contact resistance	20 mΩ
PCB row number	2
Installation type	BOARD
Rated current (signal)	3 A
Terminal pitch	2.7686 mm
Contact point gender	FEMALE
Number of rows loaded	2
insulator material	GLASS FILLED POLYETHYLENE
Installation method	RIGHT ANGLE
Shell material	STEEL
Total number of contacts	15
Contact completed and terminated	Tin/Lead (Sn/Pb)
Plug contact pitch	0.109 inch
Options	GENERAL PURPOSE
Termination type	SOLDER
Match contact row spacing	0.112 inch
PCB contact row spacing	2.8448 mm
Shell surface	TIN
Plating thickness	10u inch
Contact material	COPPER ALLOY
Contact style	RND PIN-SKT
Installation option 1	#4-40
PCB contact pattern	STAGGERED
contact mode	STAGGERED
Installation option 2	LOCKING
Dielectric withstand voltage	1400VAC V
Insulation resistance	5000000000 Ω
JESD-609 code	e0
Guideline	UL
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

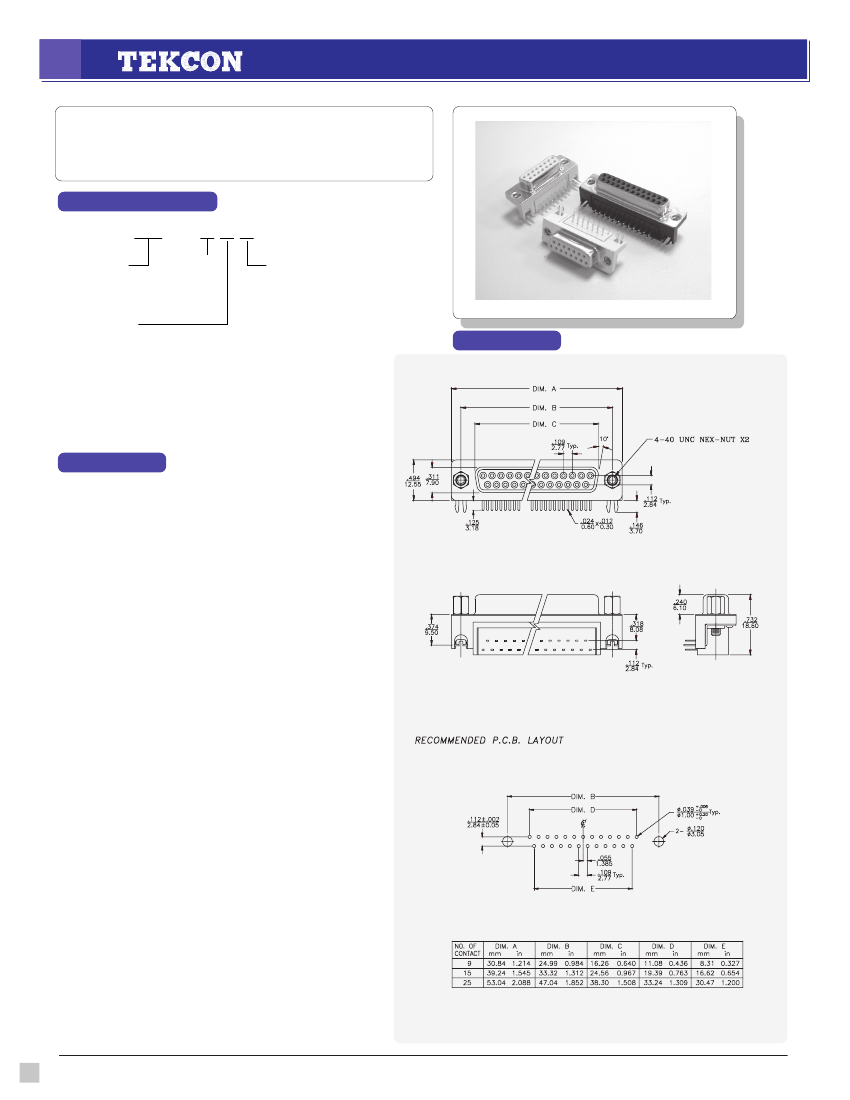

1280-15S-108 Preview

b

http://www.tekcon.com

http://www.tekcon.com.tw

1280 Series

D-Sub Miniature Connector, Economy Type

Right Angle, 0.318 Footprint, Receptacle

Ordering Information

1280

-

XX S

-

X X X

NO. of Contact

09 - 9 positions

15 - 15 positions

25 - 25 positions

Hex-Nut

Type 0,1,6

see Hex-Nut Table

(P.14-4, Appendix D.)

Contact Plating

0 - Gold Flash/Tin

1 - 10

µ"

Gold/Tin

3 - 30

µ"

Gold/Tin

5 - 15

µ"

Gold/Tin

Grounding Clip &

Shell Plating

4 - Type 4/ Nickel Plated

6 - Type 6/ Nickel Plated

8 - Type 4/ Tin Plated

9 - Type 2/ Tin Plated

see Grounding Clip Table

(P.14-1, Appendix A)

Dimension

Specification

p

Materials:

s

Insulator:

Glass Fiber Reinforced Thermoplastic

UL94V-0.

s

Shell:

Steel with Nickel Plating (Tin on

Request).

s

Contact:

Copper Alloy.

s

Plating:

Gold on Contact Area and

Tin/ Lead on Solder Tail.

s

Grounding Clip:

Copper Alloy with Tin/Lead Plating.

s

Hex-Nut:

Brass with Tin Plating.

p

Electrical:

s

Insulation Resistance:

5000 MΩ Minimum.

s

Dielectric Withstanding Voltage:

1000 VAC R.M.S.

s

Voltage Rating:

600V.

s

Current Rating:

3 AMP.

s

Contact Resistance:

20 mΩ Maximum.

p

Enviromental

s

Temperature: -558C to +1258C

v

All Dimensions are shown in in/mm.

v

The above ordering data is for our standard

products.

For Non-Standard products, please contact

TEKCON Electronics Corporation.

TEKCON Electronics Corporation

4-16

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
