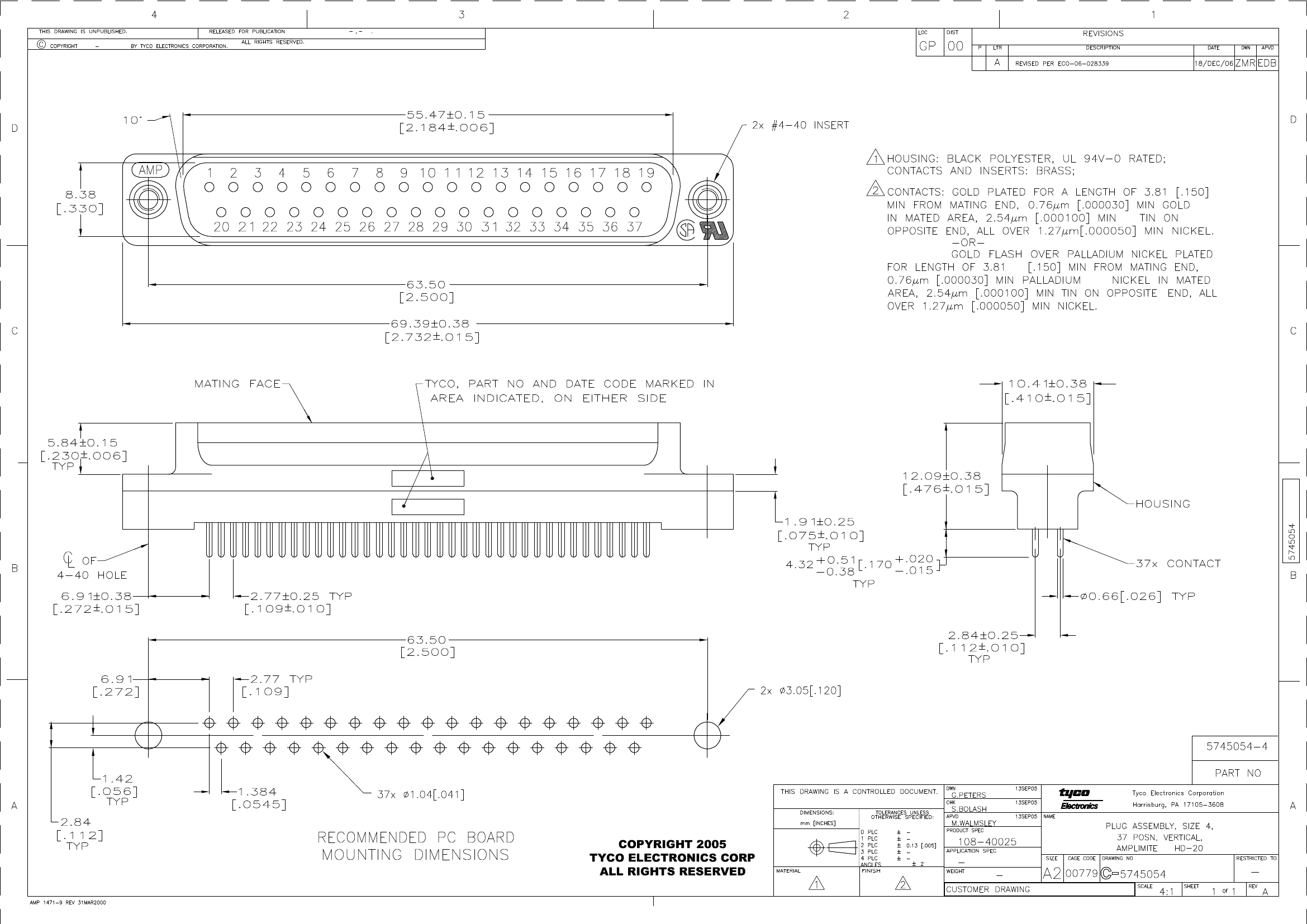

5745054-4

Description
HD-20 PLUG 37P VERT THD INS
CategoryThe connector    The connector
File Size138KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

5745054-4 Online Shopping

Suppliers Part Number Price MOQ In stock
5745054-4 - - View Buy Now

5745054-4 Overview

HD-20 PLUG 37P VERT THD INS

5745054-4 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1017204912
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time13 weeks
Samacsys DescriptionHD-20 PLUG 37P VERT THD INS
Samacsys ManufacturerTE Connectivity
Samacsys Modified On2020-10-11 10:54:44
YTEOL8.5
Other featuresAMPLIMITE
body width0.41 inch
subject depth0.246 inch
body length2.732 inch
Body/casing typePLUG
Connector typeD SUBMINIATURE CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialBRASS
contact modeSTAGGERED
Contact resistance20 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Electromagnetic interference shieldingNO
empty shellYES
Filter functionNO
IEC complianceNO
maximum insertion force2.224 N
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialPOLYESTER
JESD-609 codee3
MIL complianceNO
Power Connector Ratings6A
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Mixed contactsNO
Installation option 1#4/40 UNC
Installation option 2THREADED INSERT
Installation methodSTRAIGHT
Installation typeBOARD
PCB row number2
Number of ports1
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Panel mountingNO
Plating thickness30u inch
Rated current (signal)6 A
GuidelineUL
reliabilityCOMMERCIAL
Housing size4/C
Terminal length0.17 inch
Terminal pitch2.77 mm
Termination typeSOLDER
Total number of contacts37
UL Flammability Code94V-0
