2569P36T00W datasheet, PDF - EEWORLD Datasheet

2569P36T00W: DescriptionBoard Connector, 36 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size61KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

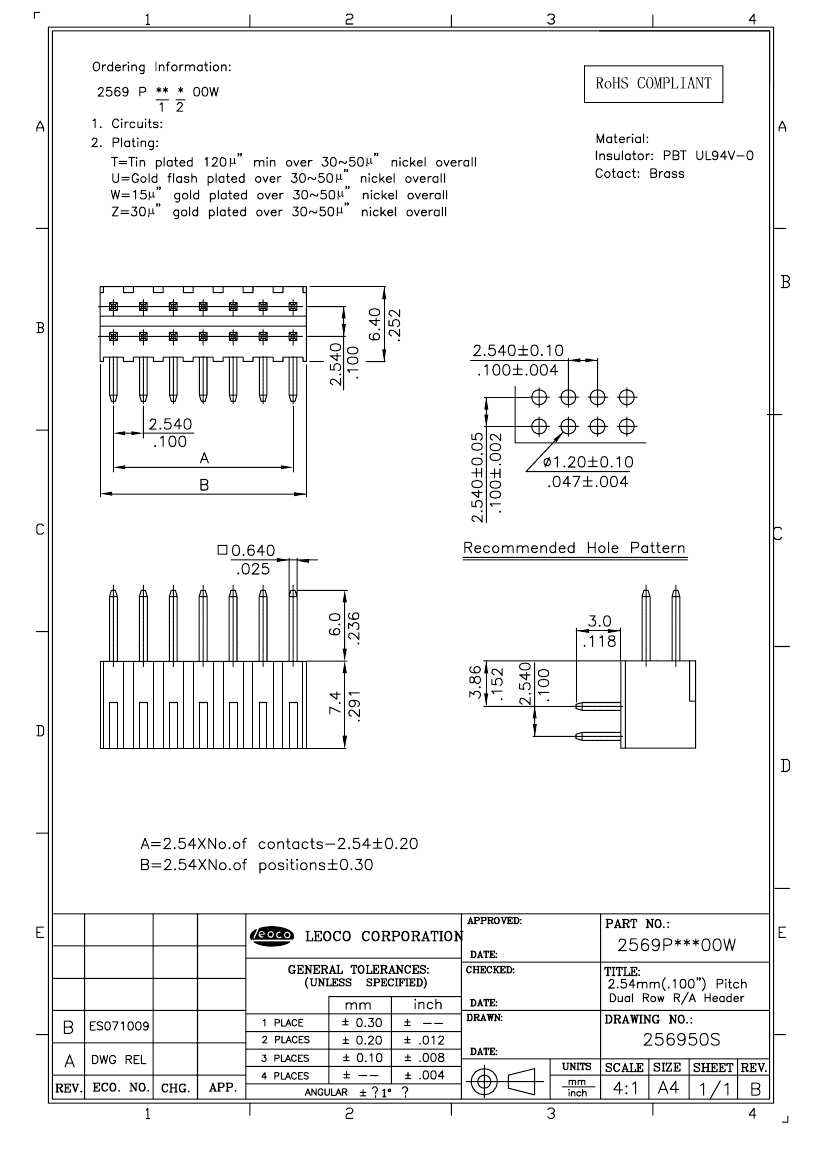

Download Datasheet Parametric View All

2569P36T00W Overview

Board Connector, 36 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Guideline	UL
Is Samacsys	N
Objectid	305342460
Reach Compliance Code	Unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Installation type	BOARD
Terminal pitch	2.54 mm
Number of rows loaded	2
Total number of contacts	36
Connector type	BOARD CONNECTOR
Contact resistance	20 mΩ
insulator material	POLYBUTYLENE TEREPHTHALATE
Installation method	RIGHT ANGLE
PCB row number	2
Body/casing type	RECEPTACLE
Contact point gender	MALE
Rated current (signal)	3 A
Contact to complete cooperation	SN ON NI
subject depth	0.291 inch
body length	1.8 inch
Terminal length	0.118 inch
body width	0.252 inch
Plating thickness	120u inch
Termination type	SOLDER
Contact completed and terminated	TIN OVER NICKEL
Contact material	BRASS
Contact style	SQ PIN-SKT
Mixed contacts	NO
Number of connectors	ONE
PCB contact row spacing	2.54 mm
contact mode	RECTANGULAR
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
PCB contact pattern	RECTANGULAR
Filter function	NO
Insulation resistance	1000000000 Ω
Dielectric withstand voltage	500VAC V
