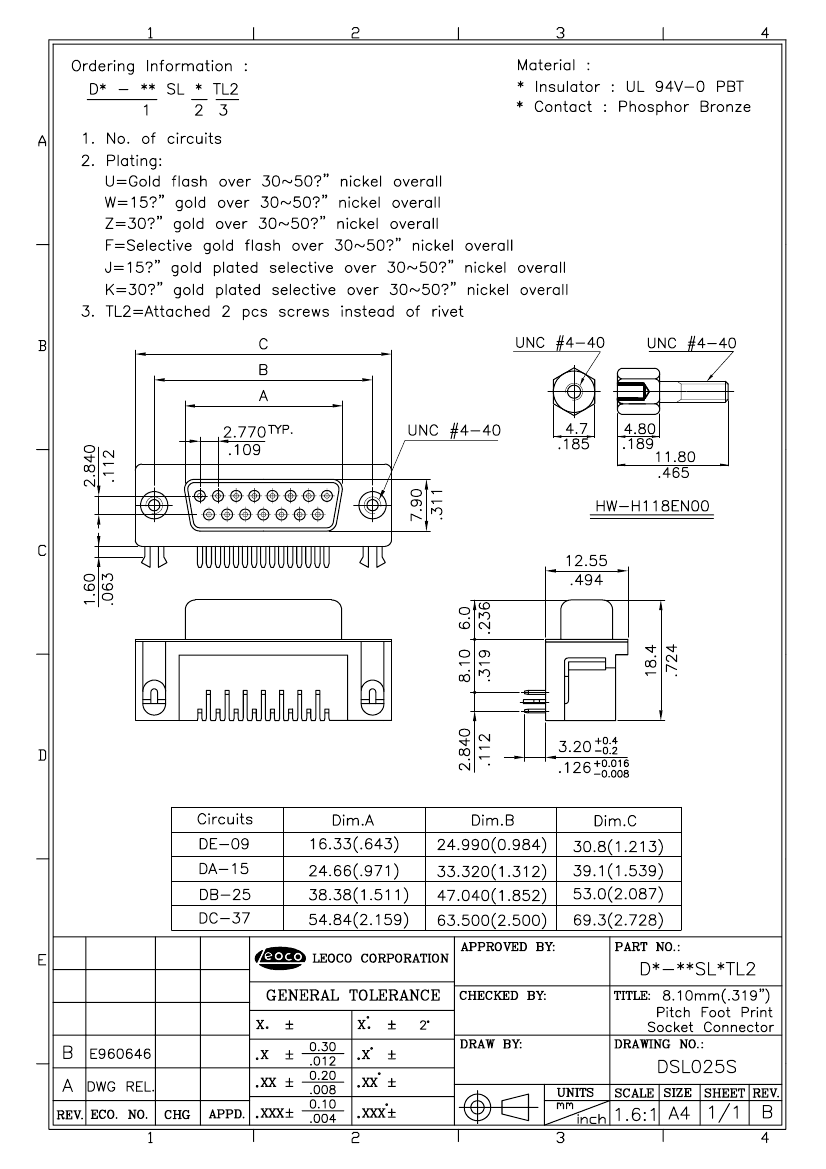

DB-25SLWTL2 datasheet, PDF - EEWORLD Datasheet

DB-25SLWTL2: DescriptionD Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric View All

DB-25SLWTL2 Overview

D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

Parameter Name	Attribute value
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Guideline	UL, CSA
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
Objectid	303582133
body width	0.494 inch
subject depth	0.488 inch
body length	2.087 inch
Terminal length	0.126 inch
Shell material	STEEL
Rated current (signal)	3 A
PCB row number	2
Terminal pitch	2.7686 mm
Total number of contacts	25
Contact point gender	FEMALE
insulator material	POLYBUTYLENE TEREPHTHALATE
Number of rows loaded	2
Contact resistance	20 mΩ
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI
Installation method	RIGHT ANGLE
Installation type	BOARD
Body/casing type	PLUG
Options	GENERAL PURPOSE
Contact material	PHOSPHOR BRONZE
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	SCREWLOCKS
Plating thickness	15u inch
contact mode	STAGGERED
Insulator color	BLACK
Plug contact pitch	0.109 inch
PCB contact row spacing	2.8448 mm
Contact style	RND PIN-SKT
Shell surface	TIN
Termination type	SOLDER
PCB contact pattern	STAGGERED
