DHSL-26WNB2 datasheet, PDF - EEWORLD Datasheet

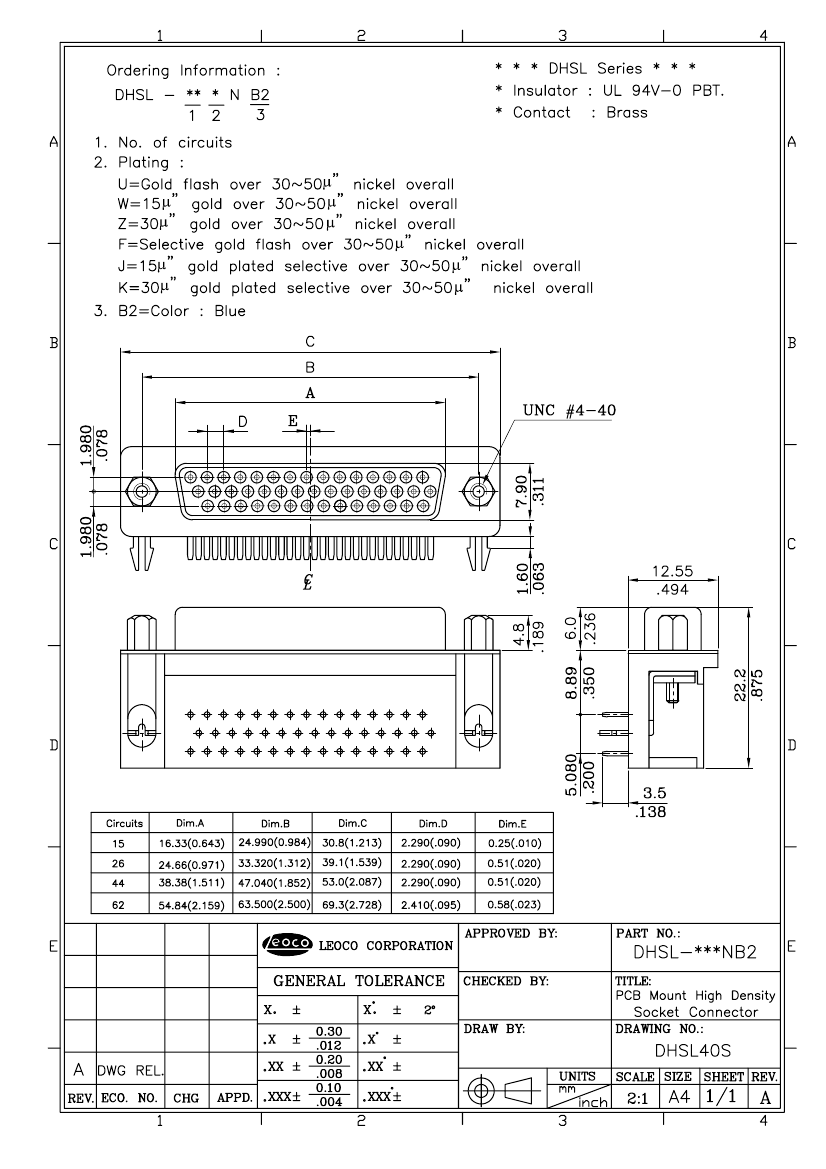

DHSL-26WNB2: DescriptionD Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size90KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric View All

DHSL-26WNB2 Overview

D Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug

Parameter Name	Attribute value
Insulator color	BLUE
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	#4-40
Installation option 2	SCREWLOCKS
PCB contact pattern	STAGGERED
Contact style	RND PIN-SKT
Plating thickness	15u inch
Shell surface	TIN
Termination type	SOLDER
Contact material	BRASS
contact mode	STAGGERED
Options	GENERAL PURPOSE
PCB contact row spacing	2.54 mm
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Guideline	UL, CSA
Is Samacsys	N
Objectid	303580882
Reach Compliance Code	Unknown
ECCN code	EAR99
subject depth	0.639 inch
body length	1.539 inch
Terminal length	0.138 inch
body width	0.494 inch
Connector type	OTHER D TYPE CONNECTOR
Number of rows loaded	3
Installation type	BOARD
Shell material	STEEL
Contact point gender	FEMALE
Contact resistance	20 mΩ
Installation method	RIGHT ANGLE
PCB row number	3
Rated current (signal)	3 A
Total number of contacts	26
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
insulator material	POLYBUTYLENE TEREPHTHALATE
Terminal pitch	2.286 mm
