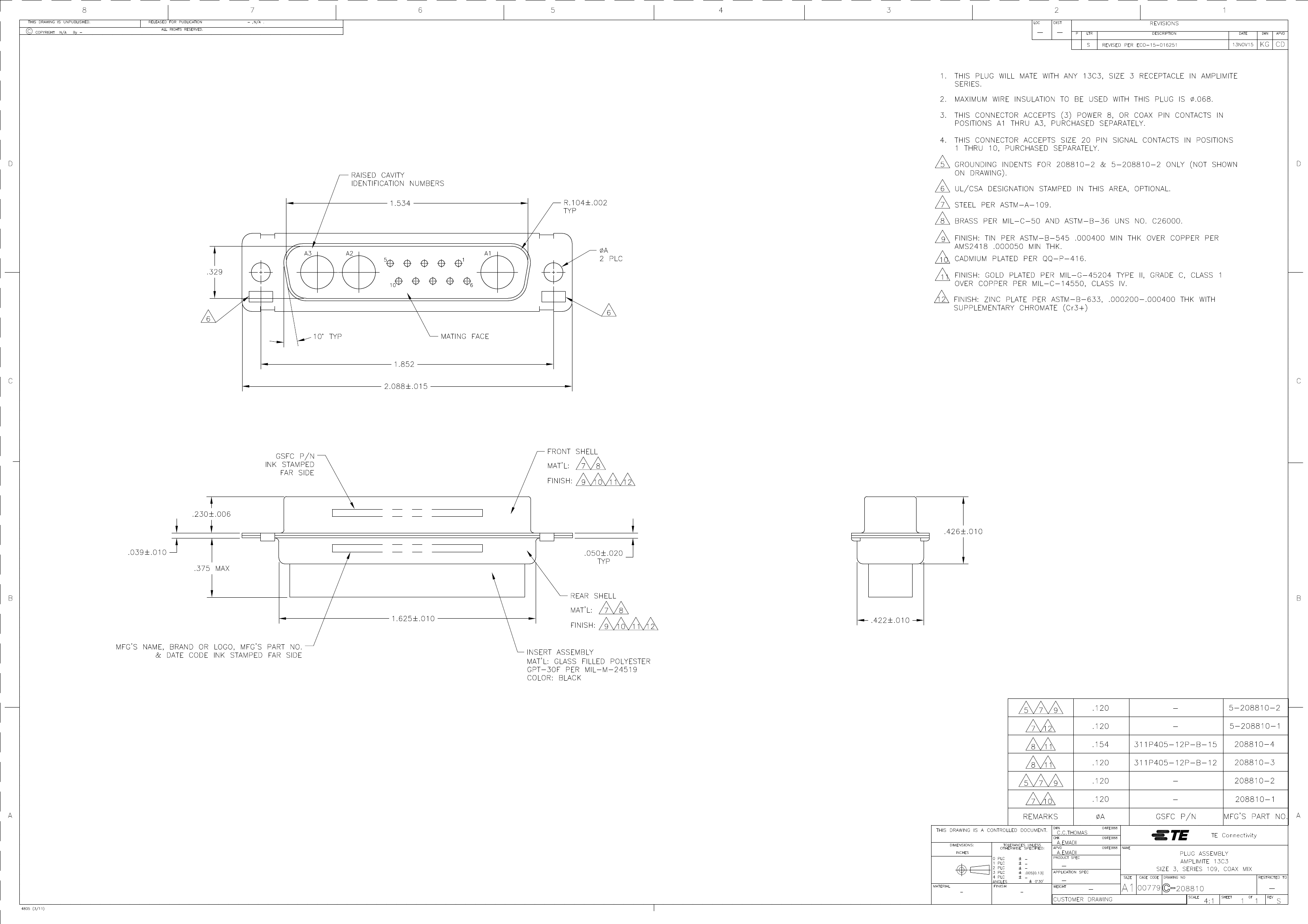

Preview

5-208810-2: DescriptionPLUG ASSY,COAX MIX,AMPLIMITE; CategoryThe connector The connector; File Size101KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-208810-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-208810-2	-	-	View	Buy Now

5-208810-2 Overview

PLUG ASSY,COAX MIX,AMPLIMITE

5-208810-2 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	28 weeks 6 days
Other features	AMPLIMITE; 1 GROUND CONTACT ALSO AVAILABLE
subject depth	0.414 inch
body length	2.088 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact arrangement	S10C3
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact style	HYBRID
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Installation type	PANEL
Options	GENERAL PURPOSE
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Total number of contacts	13
Base Number Matches	1

Preview

Download Datasheet

View All

5-208810-2 Related Products

	5-208810-2	208810-1	5-208810-1	208810-3	208810-4
Description	PLUG ASSY,COAX MIX,AMPLIMITE	13 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, CRIMP, PLUG	MALE, D SUBMINIATURE CONNECTOR, PLUG, ROHS COMPLIANT	13 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, CRIMP, PLUG, ROHS COMPLIANT	13 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, CRIMP, PLUG
Is it Rohs certified?	conform to	incompatible	conform to	conform to	conform to
Reach Compliance Code	compliant	_compli	compli	compli	compli
subject depth	0.414 inch	0.375 inch	0.414 inch	0.414 inch	0.414 inch
body length	2.088 inch	2.088 inch	2.088 inch	2.088 inch	2.088 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact arrangement	S10C3	S10C3	S10C3	S10C3	S10C3
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact style	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
DIN compliance	NO	NO	NO	NO	NO
empty shell	NO	YES	YES	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	YES	YES	YES	YES	YES
Installation option 1	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .138-.163
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	PANEL	CABLE	BOARD/CABLE	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	CADMIUM	ZINC	GOLD	GOLD
Shell material	STEEL	STEEL	STEEL	BRASS	BRASS
Housing size	3/B	3/B	3/B	3/B	3/B
Total number of contacts	13	13	13	13	13
Base Number Matches	1	1	1	1	1
package instruction	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	-
ECCN code	EAR99	EAR99	EAR99	-	-
Other features	AMPLIMITE; 1 GROUND CONTACT ALSO AVAILABLE	AMPLIMITE	-	AMPLIMITE; 1 GROUND CONTACT ALSO AVAILABLE	AMPLIMITE
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Termination type	-	CRIMP	-	CRIMP	CRIMP
Manufacturer's serial number	-	-	208810	208810-3	208810-4
