B49A-16-B-A-1-G

Description
Board Connector,
CategoryThe connector    The connector
File Size218KB,1 Pages
ManufacturerDon Connex Electronics Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

B49A-16-B-A-1-G Overview

Board Connector,

B49A-16-B-A-1-G Parametric

Parameter NameAttribute value
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (5)
Contact completed and terminatedGold (Au)
Contact materialPHOSPHOR BRONZE
JESD-609 codee4
Is it Rohs certified?Yes
Is SamacsysN
Objectid7208655885
Reach Compliance CodeUnknown
ECCN codeEAR99

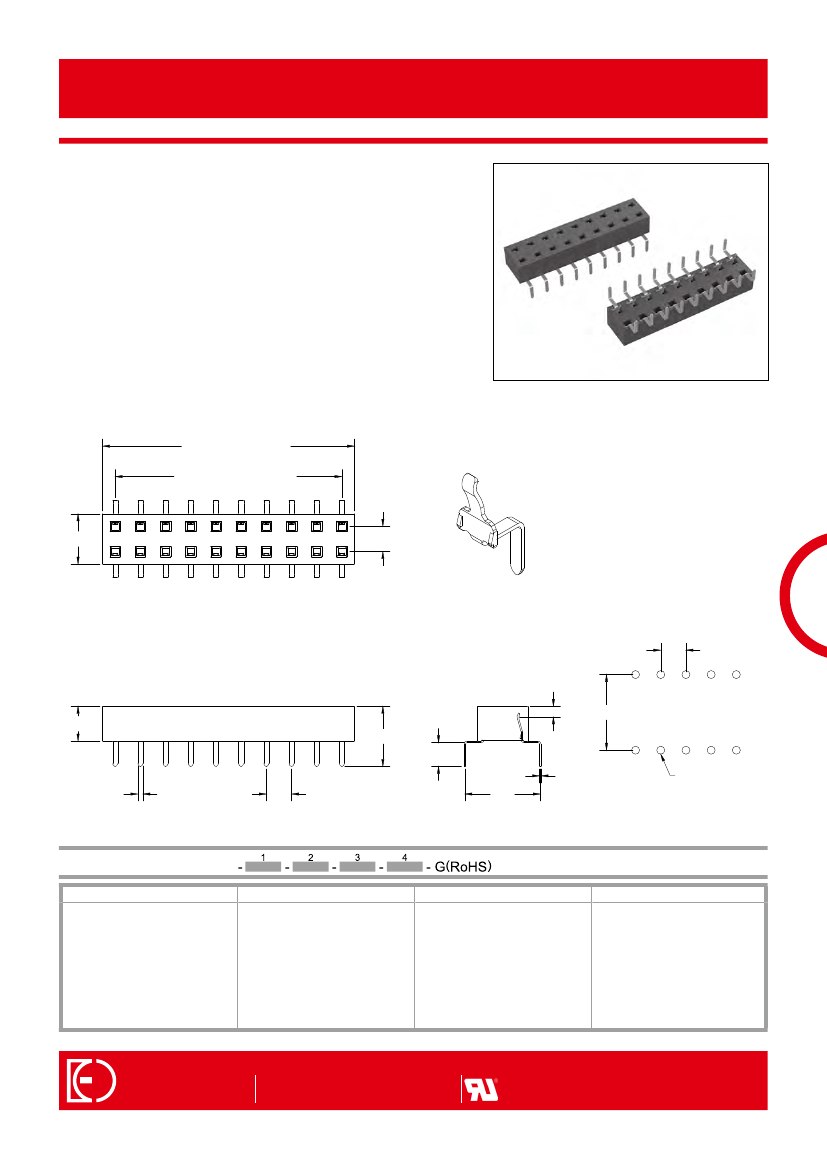

B49a FEMALE HEADER DUAL ENTRY TYPE (H: 3.51mm)
PITCH: 2.54mm * 2.54mm
SPECIFICATIONS
Material
Insulator : LCP, glass reinforced, rated UL 94V-0
Contact : Phosphor Bronze
Electrical
Current Rating : 1 Amp
Contact Resistance : 30 mΩ max.
Insulation Resistance : 3000 MΩ min.
Dielectric Withstanding Voltage : 500V AC for 1minute
Operating Temperature : -40˚C to +105˚C
►Mating
Suggestion : C17, C18, C20 & C25 series.
2.54*POSITION NO.
2.54*(POSITION ON.-1)
5.08
2.54
B
2.54
1.1
3.51
6.06
2.4
0.15
0.50
2.54
7.62
7.62
Ø0.81±0.05
RECOMMENDED P.C.B LAYOUT
How to order:
DUAL ROW
2*2 - 2*40
B49a
2.CONTACT MATERIAL
B: PHOSPHOR BRONZE
1.NO. OF CONTACT
3.CONTACT PLATING
T: TIN PLATED
S: SELECTIVE
G: GOLD FLASH
A: 5u'' INCH GOLD
B: 10u'' INCH GOLD
C: 15u'' INCH GOLD
D: 30u'' INCH GOLD
4.INSULATOR COLOR
1. BLACK
T
½
886 2 86483356 | F
½
886 2 86485885
E LE CTR O N I C S C O . , LTD
e-mail
½
info@donconnex.com.tw
DON CONNEX
Connector:E163339 | Flat cable:E162690
Wiring Harnesses:E312257
