B56-72-B-T-9-G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> B56-72-B-T-9-G

B56-72-B-T-9-G: DescriptionBoard Connector,; CategoryThe connector The connector; File Size241KB，1 Pages; ManufacturerDon Connex Electronics Co., Ltd.

Download Datasheet Parametric View All

B56-72-B-T-9-G Overview

Board Connector,

B56-72-B-T-9-G Parametric

Parameter Name	Attribute value
Objectid	8323934247
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
Connector type	BOARD CONNECTOR

Preview

Download Datasheet

View All

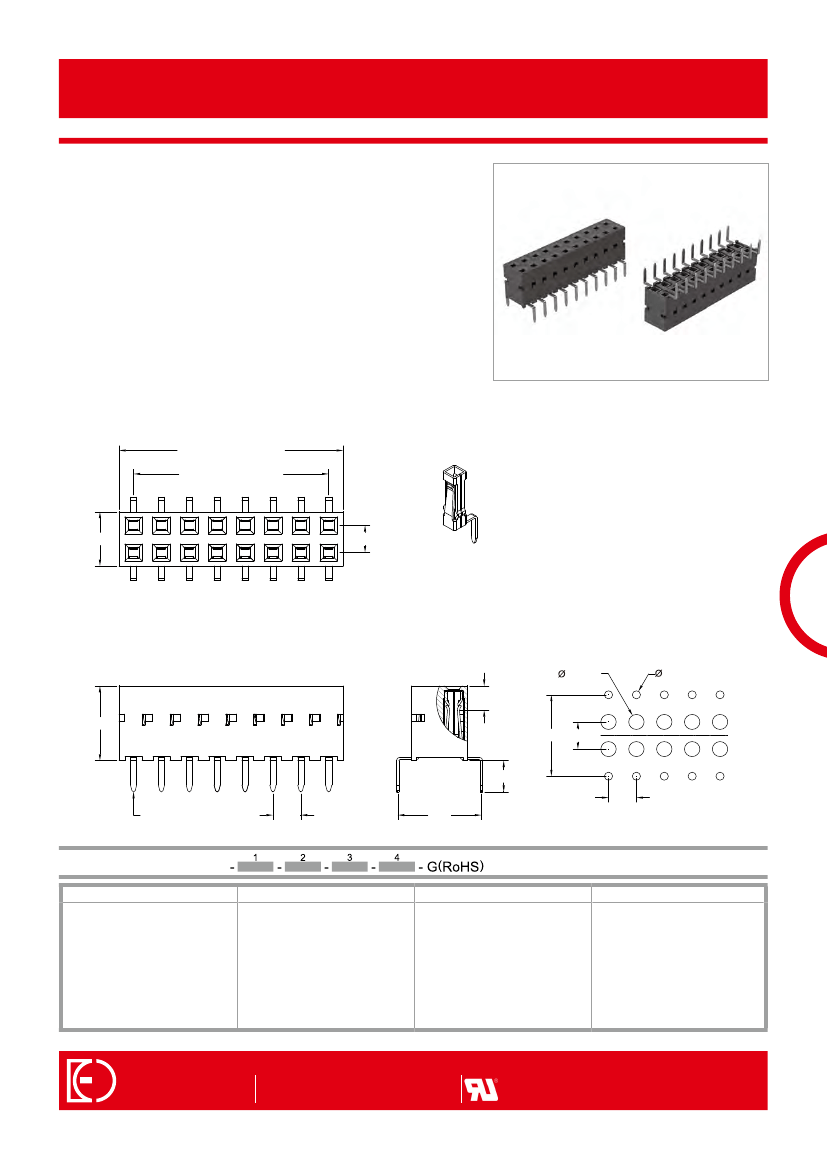

B56 DUAL ROW FEMALE HEADER DUAL ENTRY STR (H: 7.0mm)

PITCH: 2.54mm

SPECIFICATIONS

Material

Insulator : LCP, glass reinforced, rated UL 94V-0

Contact : Phosphor Bronze

Electrical

Current Rating : 1 Amp

Contact Resistance : 30 mΩ max.

Insulation Resistance : 3000 MΩ min.

Dielectric Withstanding Voltage : 500V AC for 1minute

Operating Temperature : -40˚C to +105˚C

►Mating

Suggestion : C17, C18, C20 & C25 series.

0.1+2.54*POSITION NO.

2.54*(POSITION NO.-1)

5.08

2.54

1.4 min.

2.28

7.0

0.75 min.

7.62 2.54

2.92

2.54

0.56x0.2t

2.54

7.62

RECOMMENDED P.C.B LAYOUT

How to order:

DUAL ROW

2*2 - 2*40

B56

2.CONTACT MATERIAL

B: PHOSPHOR BRONZE

1.NO. OF CONTACT

3.CONTACT PLATING

T: TIN PLATED

S: SELECTIVE

G: GOLD FLASH

A: 5u'' INCH GOLD

B: 10u'' INCH GOLD

C: 15u'' INCH GOLD

D: 30u'' INCH GOLD

4.INSULATOR COLOR

9. IVORY

886 2 86483356 | F

886 2 86485885

E LE CTR O N I C S C O . , LTD

e-mail

info@donconnex.com.tw

DON CONNEX

Connector:E163339 | Flat cable:E162690

Wiring Harnesses:E312257

297
