100F8P4C50C: DescriptionTelecom and Datacom Connector, 8 Contact(s), Female, Straight, Wire Terminal, Plug; CategoryThe connector The connector; File Size20KB，1 Pages; ManufacturerSouth Sea Terminal Co., Ltd.

Download Datasheet Parametric View All

100F8P4C50C Overview

Telecom and Datacom Connector, 8 Contact(s), Female, Straight, Wire Terminal, Plug

Parameter Name	Attribute value
Installation option 1	LOCKING
Plating thickness	50u inch
Cable type	WIRE, SOLID, FLAT
Contact style	TELCOM, MODULAR
empty shell	NO
Mixed contacts	NO
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Options	GENERAL PURPOSE
Termination type	IDC
Filter function	NO
Number of ports	1
polarization key	POLARIZED HOUSING
Guideline	UL
Objectid	303814784
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact point gender	FEMALE
insulator material	POLYCARBONATE
Installation type	CABLE
Total number of contacts	8
Other features	3 PRONG FOR SOLID CONDUCTOR
Number of rows loaded	1
Connector type	RJ CONNECTOR
body width	0.311 inch
subject depth	0.886 inch
body length	0.459 inch

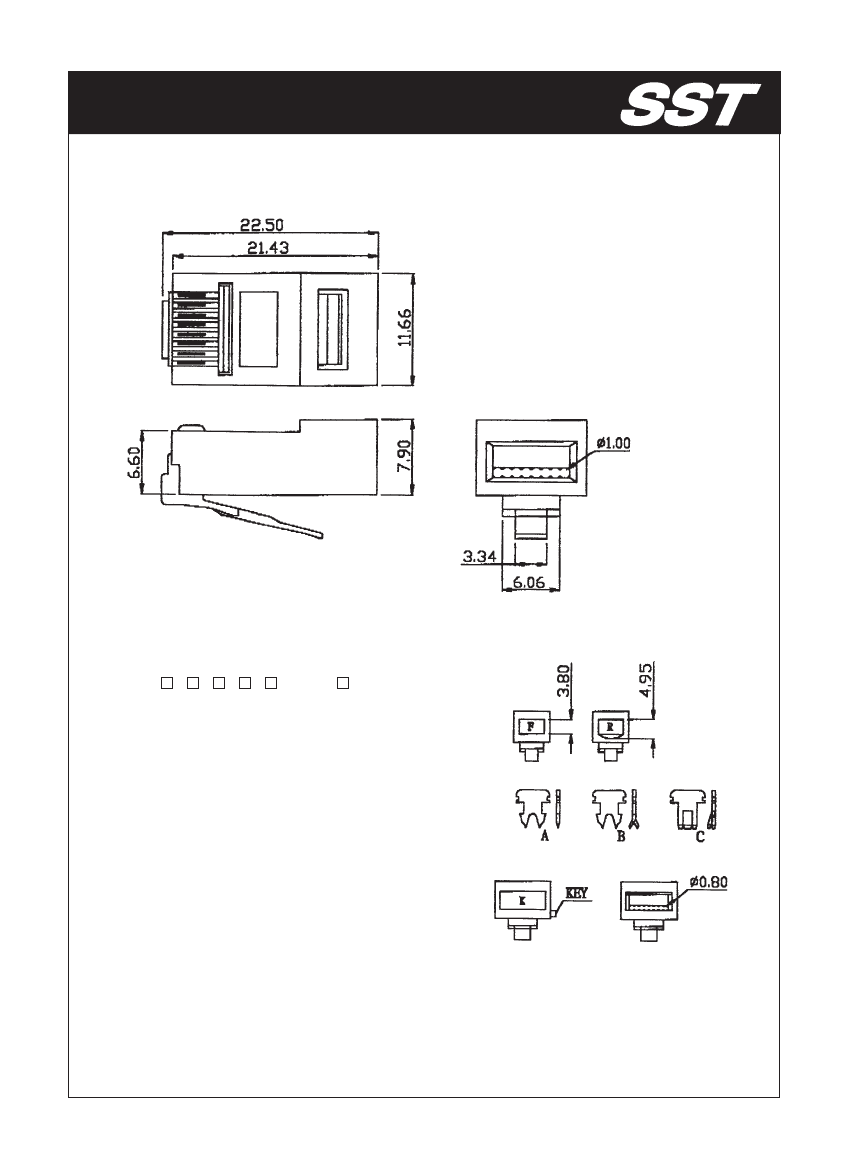

100 SERIES MODULAR PLUG 8 POSITION

MATERIAL & FINISH

HOUSING PC. UL94V-2

CONTACT : COPPER ALLOY PLATED WITH GOLD.

ORDERING INFORMATION

100 A B C D E + ( F )

A : CABLE TYPE (F OR R )

F : FLAT OVAL CABLE, R : ROUND CABLE

B : NUMBER OF POSITION (8P)

C : NUMBER OF CONTACT (4C OR 8C)

D : GOLD PLATING (03,06,15,30 OR 50) U”

E : CONTACT BLADE (A,B OR C)

A : 2 PRONG FOR STRANDED CONDUCTOR

B : 2 PRONG FOR SOLID CONDUCTOR

C : 3 PRONG FOR SOLID CONDUCTOR

F : ADDLTIANAL OPTION (0.8,3456,1236P,K,V0,.........)

0.8 : FOR DIA. 0.8 WIRE

3456 : LOADING POSITION

1236P : INSERT POSITION 1236 ONLY

K : WITH KEY

V0 : UL 94V-0 (HOUSING MATERIAL)
