11S201T1B-03-XLY-60 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 11S201T1B-03-XLY-60

Preview

11S201T1B-03-XLY-60: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size232KB，1 Pages; ManufacturerGSN Electronics

Download Datasheet Parametric View All

11S201T1B-03-XLY-60 Overview

Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug

11S201T1B-03-XLY-60 Parametric

Parameter Name	Attribute value
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Guideline	UL
Is Samacsys	N
Objectid	304408767
Reach Compliance Code	Unknown
ECCN code	EAR99
body width	0.094 inch
subject depth	0.169 inch
body length	0.256 inch
Terminal length	0.098 inch
Rated current (signal)	1 A
Connector type	BOARD CONNECTOR
Installation method	STRAIGHT
Number of rows loaded	1
Contact resistance	20 mΩ
insulator material	POLYETHYLENE
Installation type	BOARD
PCB row number	1
Terminal pitch	2.0066 mm
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact point gender	FEMALE
Total number of contacts	3
contact mode	RECTANGULAR
Mixed contacts	NO
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Termination type	SOLDER
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
Plug contact pitch	0.079 inch
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	1000000000 Ω

Preview

Download Datasheet

View All

GSN

board to board

Total Process Quality

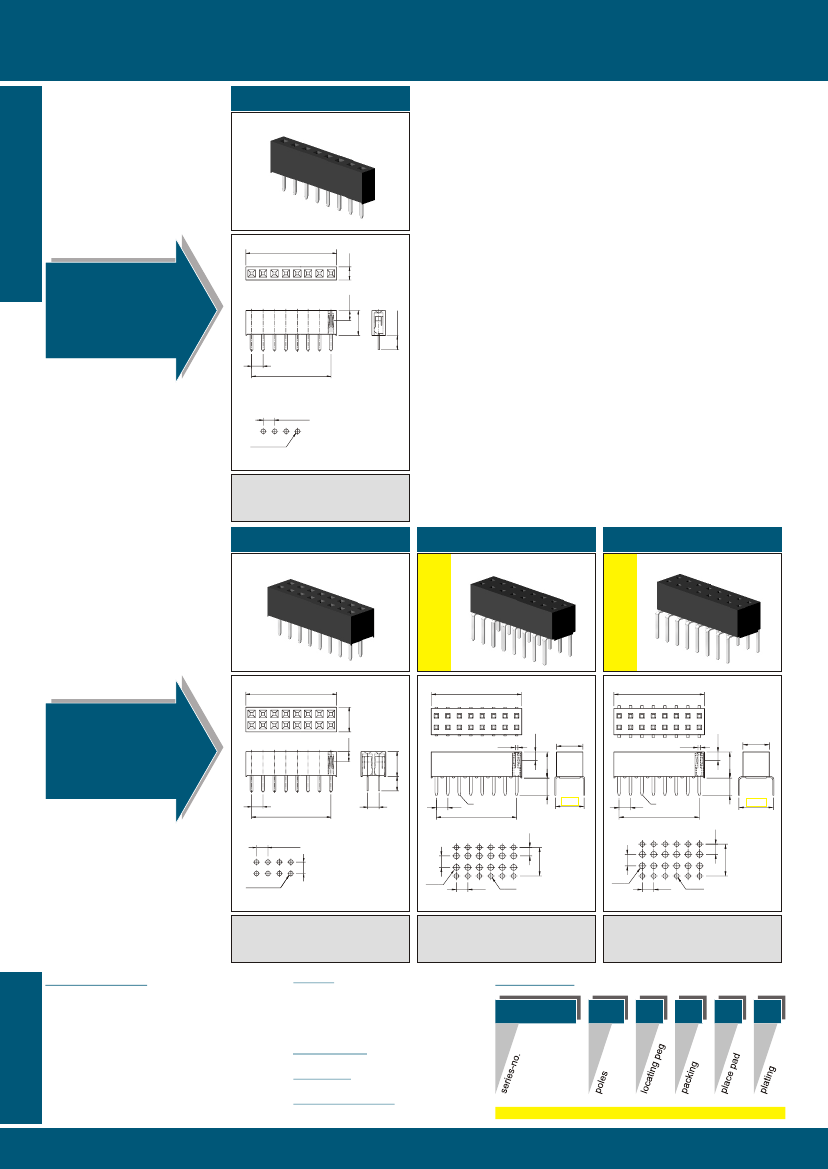

11S201T1B

female header vertical THT 2.00

(2.0 x n) +0.5

2.40

2.0

2.0 x (n -1)

2.00±0.05

Ø0.80±0.05

available pole no.:

mates with male header:

03 to 40

0.5x0.5mm

11S202T1D

bottom contact

2.5±0.05

4.30

single row

1.60

11S202T1A

bottom contact

(2.0 x n/2) +0.5

11S202T1B

(2.0 x n/2) +0.5

4.6

1.30

1.60

4.30

double row

2.0

2.0 x (n/2 -1)

0.45

4.60

4.3

0.45

4.60

2.7

3.6

2.0

2.00

0.5x0.2

2.0 x (n/2 -1)

5.00

3.0

4.3

2.00

0.5x0.2

2.0 x (n/2 -1)

1.50

6.00

2.00±0.05

1.50

2.00

5.00

Ø0.80±0.05

Ø1.00

2.00

Ø0.80

Ø1.00

2.00

Ø0.80

available pole no.:

mates with male header:

Shown fotos may differ to final product

Currently valid drawings are only on www.gsn.sg

In case of any doubt, please contact GSN

06 to 80

0.5x0.5mm

available pole no.:

mates with male header:

06 to 80

0.5x0.5mm

available pole no.:

mates with male header:

technical data

contact material

insulator

flammability

dielectric strength

current rating

insulation resistance

contact resistance

operating temperature

soldering temperature

: phosphor bronze

: thermoplastic

: UL 94V-0

:

500V AC for 1 minute

1A

1000 Meg Ohm min

20 milli Ohm max

plating

00=

30=

50=

60=

flash gold

selective gold 0.75µm

tin

selective flash gold

X=without

Y=without, P=with

order code

11S201T1B-

06 -

X

L

Y-

60

locating peg

place pad

: -40°C to +105°C

: 260°C max / 10 sec

possible packing

L=loose,

P=tray,

T=tube

other dimensions / materials are available, please contact us

A25

support@gsn.sg

6.00

06 to 80

0.5x0.5mm
