DC37PTW1NGS-R: DescriptionD Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle; CategoryThe connector The connector; File Size101KB，1 Pages; ManufacturerGTK UK Ltd

Download Datasheet Parametric View All

DC37PTW1NGS-R Overview

D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle

DC37PTW1NGS-R Parametric

Parameter Name	Attribute value
Objectid	304016457
Reach Compliance Code	Compliant
ECCN code	EAR99
Is Samacsys	N
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
Contact resistance	30 mΩ
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Installation type	PANEL
Number of rows loaded	2
Total number of contacts	37
Other features	ROHS COMPLIANT
Contact to complete cooperation	AU
Rated current (signal)	1 A
body width	0.494 inch
body length	2.729 inch
Contact completed and terminated	GOLD
Contact material	BRASS
contact mode	STAGGERED
Insulator color	WHITE
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Options	GENERAL PURPOSE
Shell surface	TIN
Contactor design	PREASSEM CONN
Contact style	RND PIN-SKT
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Termination type	SOLDER LUG
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Guideline	UL

Preview

Download Datasheet

View All

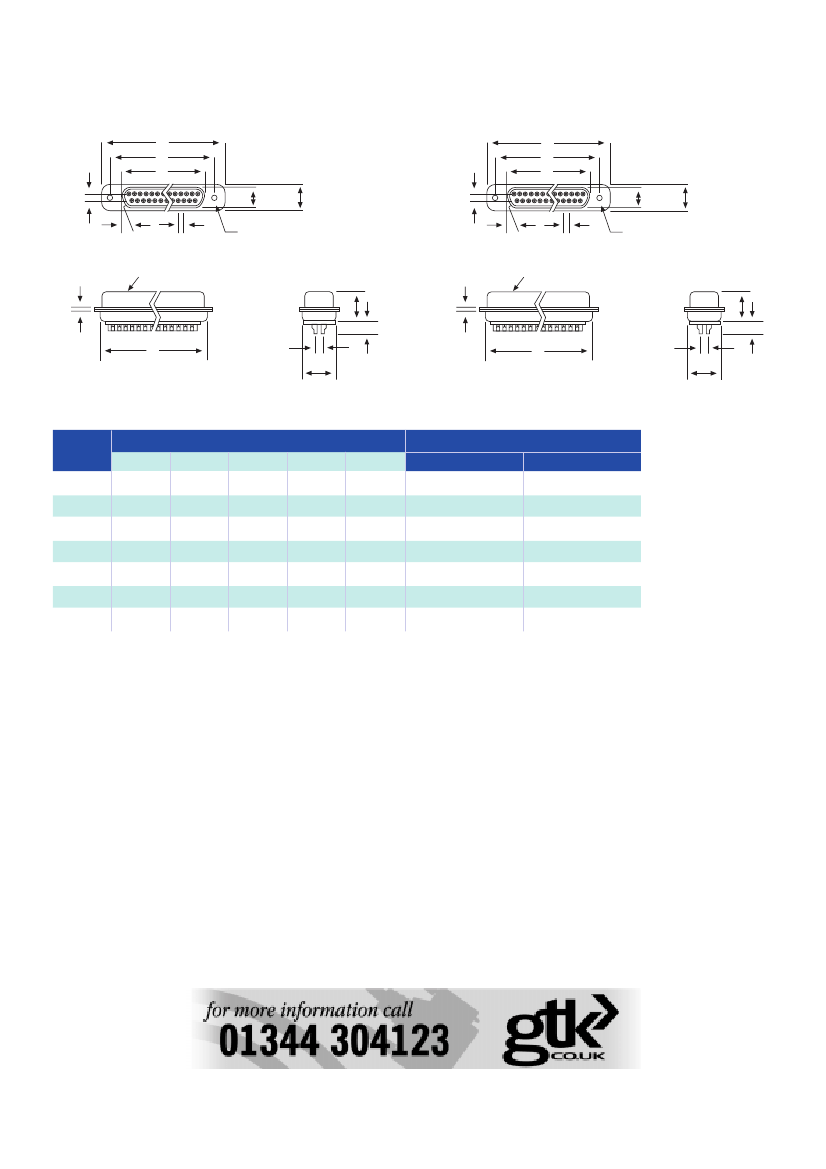

Solder

D-Sub

Cable Assembly Connectors

PLUG (9 - 37 way)

SOCKET (9 - 37 way)

C

B

A

2.84

10û

2.77

7.9 12.55

2-¿3.05

10û

2.84

C

B

A

7.9 12.55

2-¿3.05

2.77

Mating Face

11

3.3

1

D

11

3.3

2.84

10.72

Mating Face

1

D

2.84

10.72

Position

A

9

15

19

23

25

37

50

16.92

25.25

32.90

38.50

38.96

55.42

52.86

B

24.99

33.32

39.03

44.36

47.04

63.50

61.11

Dimension

C

30.81

39.14

44.80

50.30

53.04

69.32

66.90

D

19.28

27.51

33.02

38.15

41.30

57.71

55.30

E

16.33

24.66

29.92

35.18

38.38

54.84

52.34

Plug

Part Number

Socket

DE09STW2NGS

DA15STW2NGS

DF19STW2NGS

DG23STW2NGS

DB25STW2NGS

DC37STW2NGS

DD50STW2NGS

DE09PTW1NGS

DA15PTW1NGS

DF19PTW1NGS

DG23PTW1NGS

DB25PTW1NGS

DC37PTW1NGS

DD50PTW1NGS
