eZdsp
TM
TMS320LF2407
HARDWARE KIT
C2000 CODE COMPOSER 4.XX DEVELOPMENT TOOLS
SETUP INSTRUCTIONS - Win95, Win98, Win NT
01/25/2001
Needed Items:
1. eZdsp for TMS320LF2407, power supply,
parallel cable, and driver diskettes.
2. Computer with Win95/Win98/NT operating system.
TM
25 pin male
D-sub connector
(Plugs into parallel
port on PC)
Debugger Setup Checklist:
1. Reboot your computer and enter the BIOS
setup area. Set the LPT1 mode to ECP+EPP,
ECP, EPP, or bi-directional.
Save the setting and let the PC finish booting up.
eZdsp
TM
LF2407
2. Do NOT connect the any hardware at this time.
3. If installing on a
Win NT
system you
must
log on
as
administrator.
Power
4. Install the C2000 Code Composer Tools CD
25-pin male
Supply
D-sub connector
TMDS324012XX and choose the default options.
5. Reboot your system.
25 pin female
To wall outlet
D-sub connector
6. Close the setup utility when the computer reboots.
TM
7. Install the Spectrum Digital eZdsp TMS320LF2407

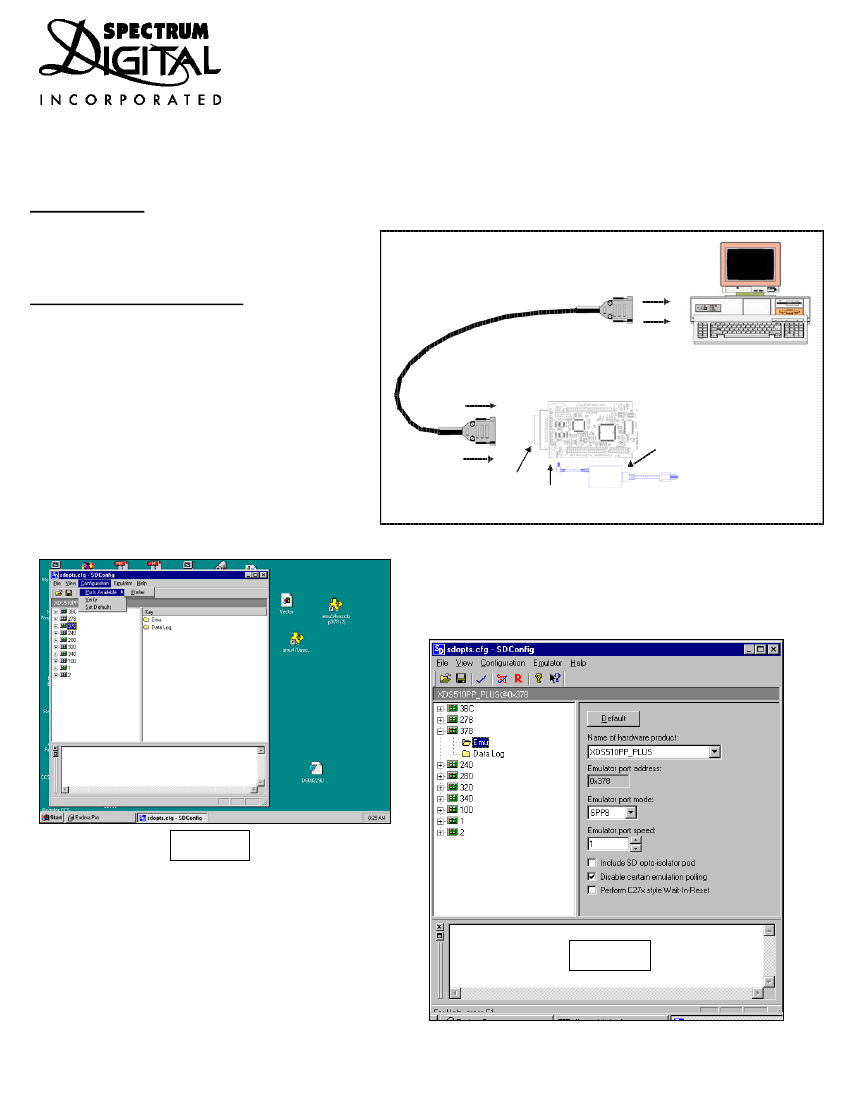

Figure A, Code Composer - eZdsp
T M
LF2407 Configuration
software package by placing the CD (505568-6001)
from the envelope into the "d:" drive and from the
task bar select RUN
"d:setup.exe".
Select the defaults.
8. From the install window, double click on the icon “sdconfig”.
The window similar to the one shown in
Figure B
should
appear. From the toolbar select
“Configuration, Ports
Available, Printer",
and the available ports will be shown in
the console window.
25 Conductor Cable
Figure B
9. Double click on the emulator ID (port address) that matches
the port selected above.
Figure C
should appear. If
changes are made in the configuration select “File->Save”
(also small floppy on tool bar) before continuing.
10. You can reset your emulator by selecting the large red
"R" icon in the tool bar. Once your emulator can reset you
can proceed with configuring Code Composer.
Figure C
12502 Exchange Dr., Ste 440, Stafford, TX. 77477
505568-4001A
T:281.494.4505, F:281.494.5310
Page 1 of 4
www.spectrumdigital.com
11. From the install folder chose the
“CC_SETUP”
icon.
Figure D

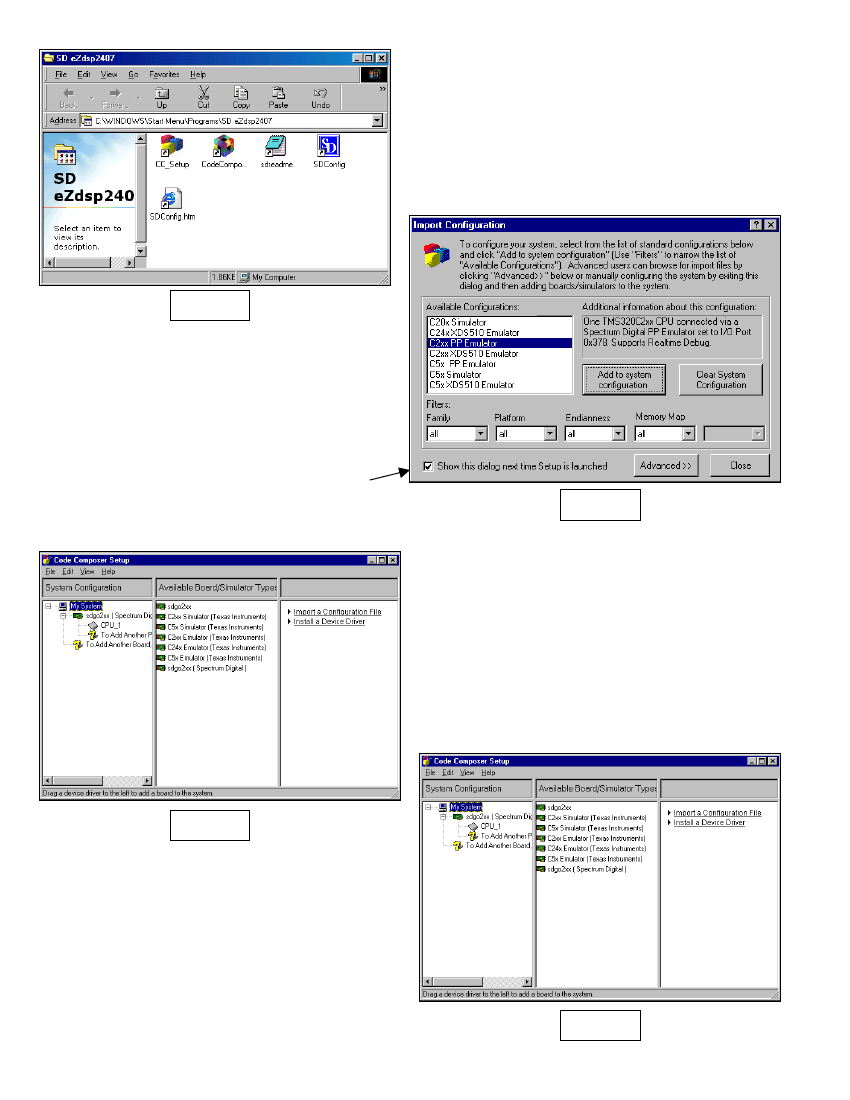

12. The window similar to that in
Figure E
should appear.
You can directly import a configuration by selecting
“C2xx PP Emulator”,
then selecting
“Add to
system Configuration".
It is wise to
“Clear system
Configuration”
prior to importing the configuration. If
you import the configuration you can go to step 18. If
you manually configure, continue with the following
steps.
Note:
This window may not appear if this is the
second launch and this check box is checked.
Figure E
13. On the far right of this window choose
“Install a Device
Driver”
from the select device driver window. Double click
on
“sdgo2xx.dvr”,
then chose Open, and Okey. After this
the window shown in
Figure G
should appear.
Figure F
Figure G
12502 Exchange Dr., Ste 440, Stafford, TX. 77477
505568-4001A
T:281.494.4505, F:281.494.5310
Page 2 of 4
www.spectrumdigital.com

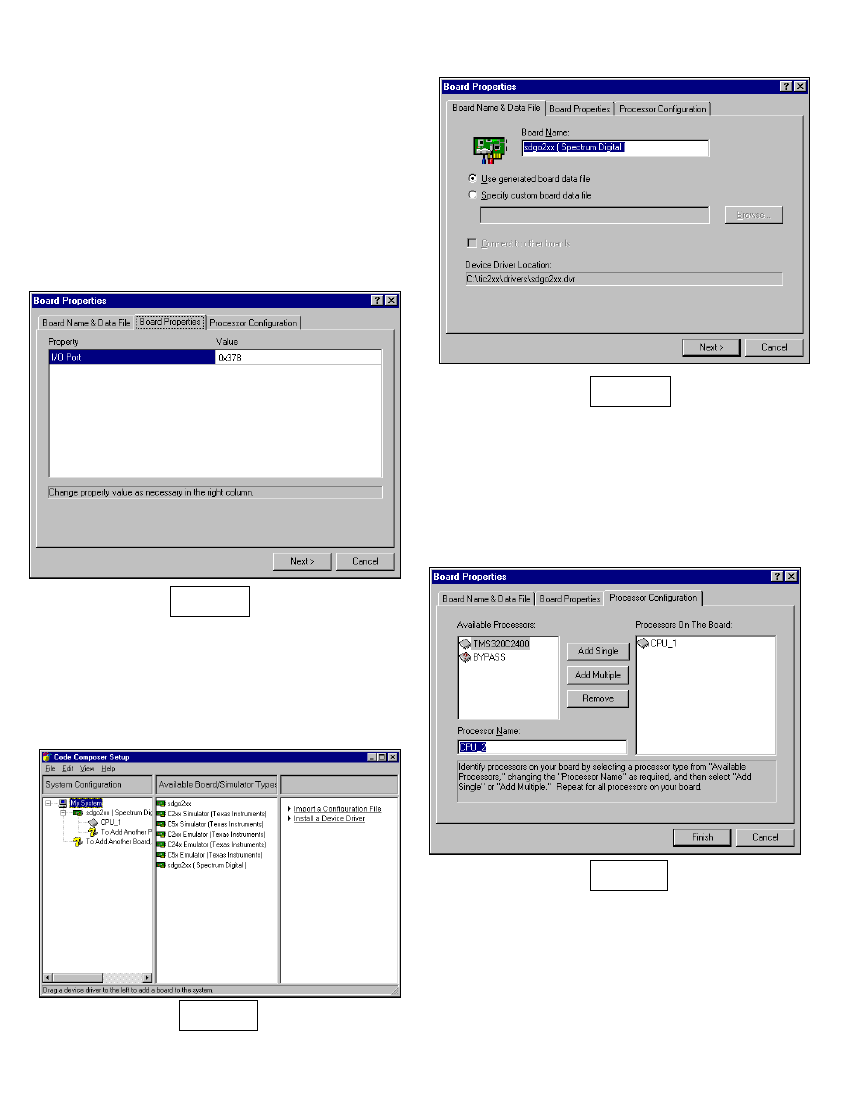

14. Double click on the
“sdgo2xx”
icon under the available
board/simulator. This will bring up a properties window
similar to
Figure H.
Figure H
15. Select the "Board
Properties".
A window similar to
Figure I
will appear.
Figure I
16. Enter a value into the
“I/O Port”
address. This is typically
"0x378". You should have obtained this address in step #8
above. Click "Next". The "Add
Processor Configuration"
menu should appear as
Figure J.
Figure J
17. Click
“Add Single”.
Then click on
“Finish”.
A window
similar to
Figure K
should appear.
Figure K
12502 Exchange Dr., Ste 440, Stafford, TX. 77477
505568-4001A
T:281.494.4505, F:281.494.5310
Page 3 of 4
www.spectrumdigital.com
18. Click "File->Save" and
“File->Exit”
and your system should
be configured.

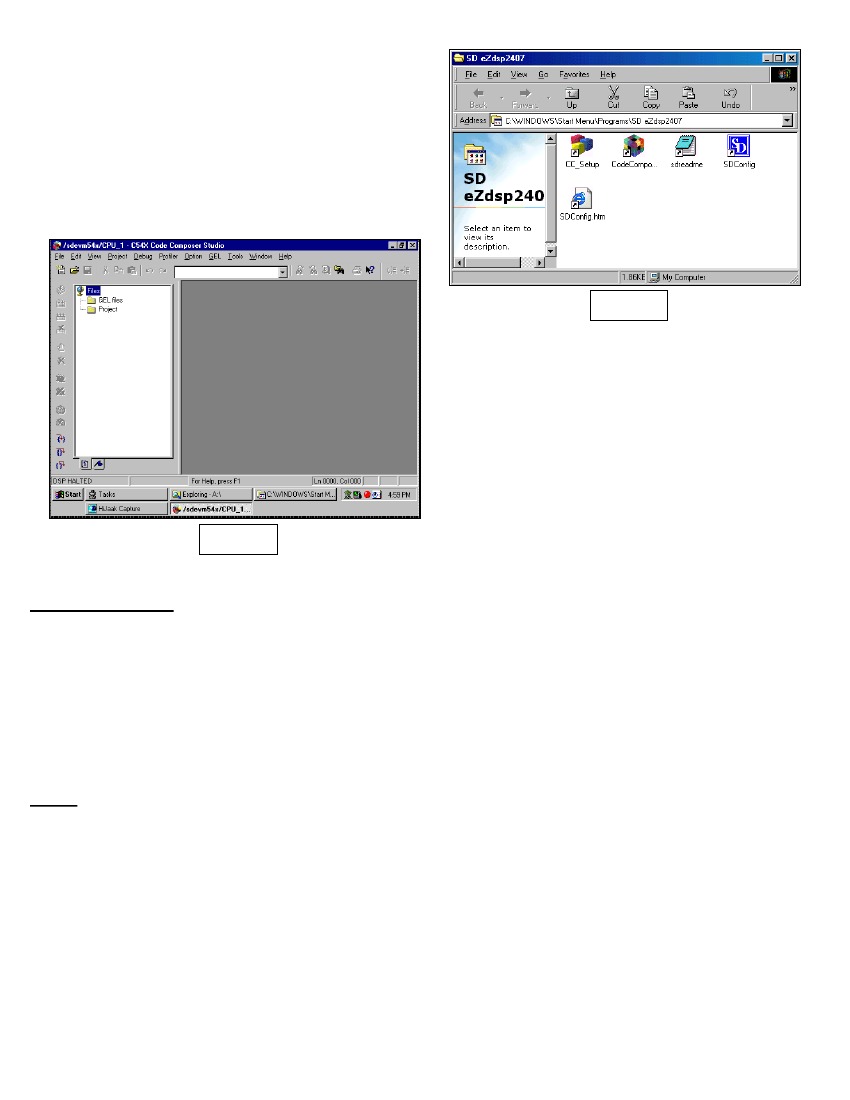

19. From
Figure C
shown at the right click on the
“Code
Composer”
icon to launch Code Composer. A window similar
to that shown in
Figure M
should appear.
Figure L
Figure M
Trouble Shooting:
If you have problems try the following:
T1: The most common problem at this point is the "mode" parameter in the
"sdopts.cfg"
file. It may not match the
hardware setup of parallel port (LPT1) on your computer. This can be verified with the SDConfig Utiltiy.
T2: Reset the computer and enter the BIOS setup. Configure the parallel port to be used to ECP, EPP, EPP 1.9
or bi-directional. ECP or EPP will provide the best performance. Let the computer boot and return to installation in
step #6.
T3: If you cannot reset your emulator the port is most likely incorrectly configured. Use the SDConfig Utility to configure
your port before attempting Code Composer setup.
Hints:
H1: The eZdsp for the TMS320LF2407 emulator operates with its best performance when the
"EmuPortMode=EPP"
in
the
"sdopts.cfg"
file and the BIOS has the parallel port configured as
"ECP+EPP".
The next best option for the BIOS
setting is
"EPP".
If the
"EPP"
option is not available in the BIOS try to using
"bi-directional"
and
"EmuPortMode=SPP8".
H2: It is recommended that the
XDS510PP
be used with the power supply provided.
H3: Read through
all
documentation.
H4: Prior to calling Spectrum Digital for support have the following information available: OS type (Win95, Win98, or NT), BIOS
parallel port setting, the port being used, the contents of the
"sdopts.cfg"
and
"SdEmulog.txt"
files.
