Oscilent Corporation
PRODUCT SPECIFICATION
REV A January 2010
Oscilent Controlled Document
Ordering Code / Part Number
Product Description
862-RF1643.5M-A
Wireless, Balanced RF SAW Filter
Specification Contents
o
o
o
o
o
o
o
Mechanical Dimensions
Test Circuit
Maximum Ratings
Electrical Specification
Frequency Performance
VSWR
Smith Chart
Notes
o
o
o
o
Electrostatic Sensitive Device (ESD)
Avoid excessive ultrasonic exposure
Solderability compatible with JEDEC J-STD-020C Pb-free process, 260°C peak reflow temperature
This product complies with EU directive 2002/95/EC (RoHS compliance)
Oscilent Corporation
Telephone: 1.949.252.0522
Fax: 1.949.252.0522
Email: sales@oscilent.com
Product Specification
www.oscilent.com
Oscilent Part Number
862-RF1643.5M-A
January 2010 Rev A
Wireless, Balanced RF SAW Filter

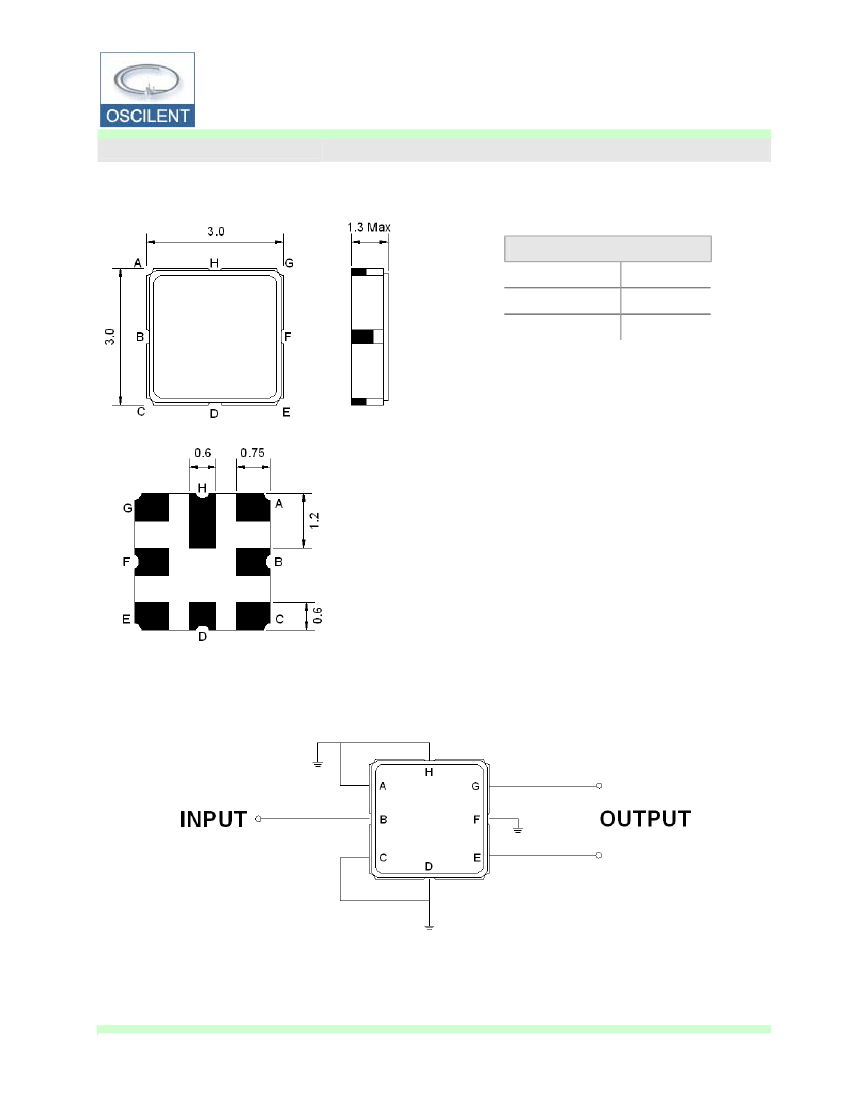

Mechanical Dimensions
(mm)
Pin Description
A, C, D, F, H
Ground
B
In
E, G
Out
Test Circuit
Source Impedance: 50
Ω
Load Impedance: 50
Ω
Product Specification
P. 1
www.oscilent.com
Oscilent Part Number
862-RF1643.5M-A
January 2010 Rev A
Wireless, Balanced RF SAW Filter
Maximum Ratings
Parameters Description
Operating Temperature Range
Storage Temperature Range
Maximum DC Voltage
Maximum Input Power
Source Impedance (single ended)
(1)
Load Impedance (balanced ended)
(1)
Notes: No Matching Network
Unit
°C
°C
V
dBm
Ω
Ω
Minimum
-30
-40
-
-
-
-
Typical
-
-
-
-
50
50
Maximum
+85
+85
0
10
-
-
Electrical Specification
Parameters Description
Center Frequency (Fo)
Insertion Loss within 1626.5 ~ 1660.5 MHz
Amplitude Ripple within 1626.5 ~ 1660.5 MHz
Attenuation:
D.C. ~ 1000.0 MHz
1000.0 ~ 1575.0 MHz
1575.0 ~ 1590.0 MHz
1700.0 ~ 1750 MHz
1750.0 ~ 1885.0 MHz
1885.0 ~ 2200.0 MHz
2200.0 ~ 2500.0 MHz
2500.0 ~ 40000.0 MHz
Input / Output VSWR within 1626.5 ~ 1660.5 MHz
dB
dB
dB
dB
dB
dB
dB
dB
-
50
35
20
20
37
30
28
20
-
60
40
33
30
45
44
38
30
1.7
-
-
-
-
-
-
-
-
2.2
Unit
MHz
dB
dB
p-p
Minimum
-
-
-
Typical
1643.5
3.2
0.6
Maximum
-
4.0
1.5
Product Specification
P. 2
www.oscilent.com
Oscilent Part Number
862-RF1643.5M-A
January 2010 Rev A
Wireless, Balanced RF SAW Filter

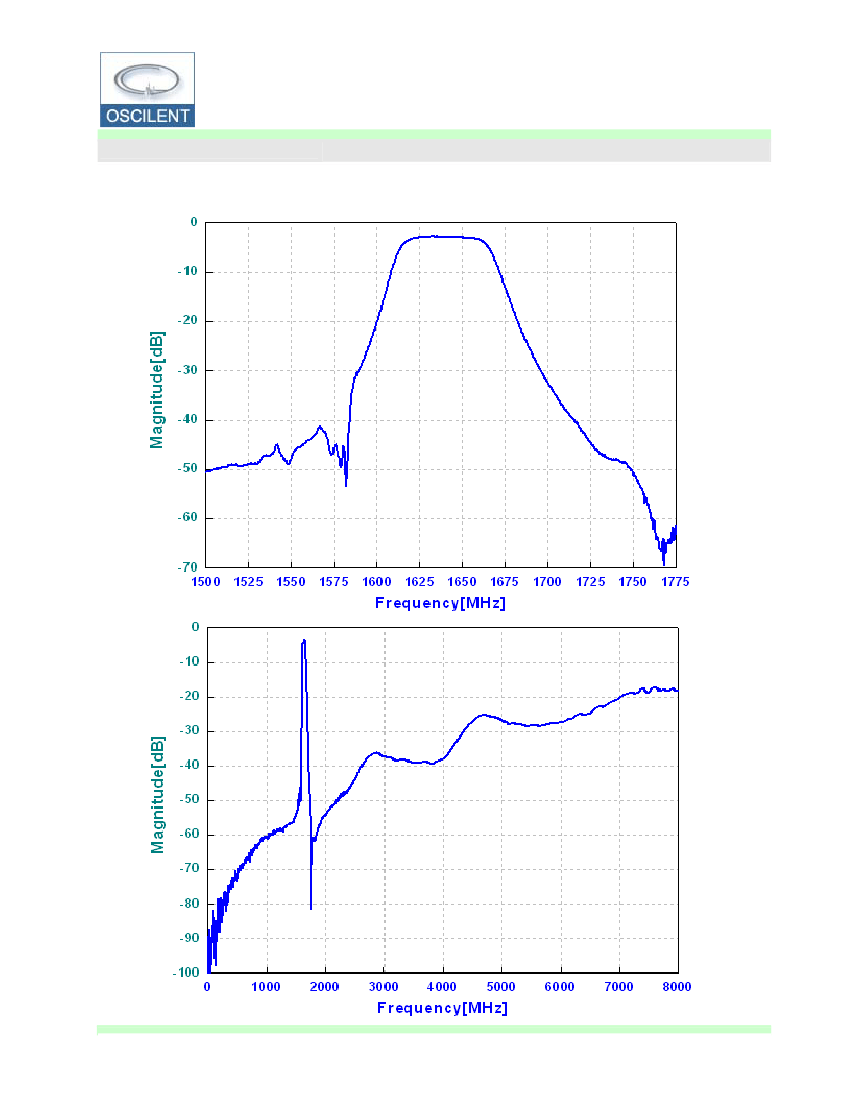

Frequency Performance
Product Specification
P. 3
www.oscilent.com
Oscilent Part Number
862-RF1643.5M-A
January 2010 Rev A
Wireless, Balanced RF SAW Filter

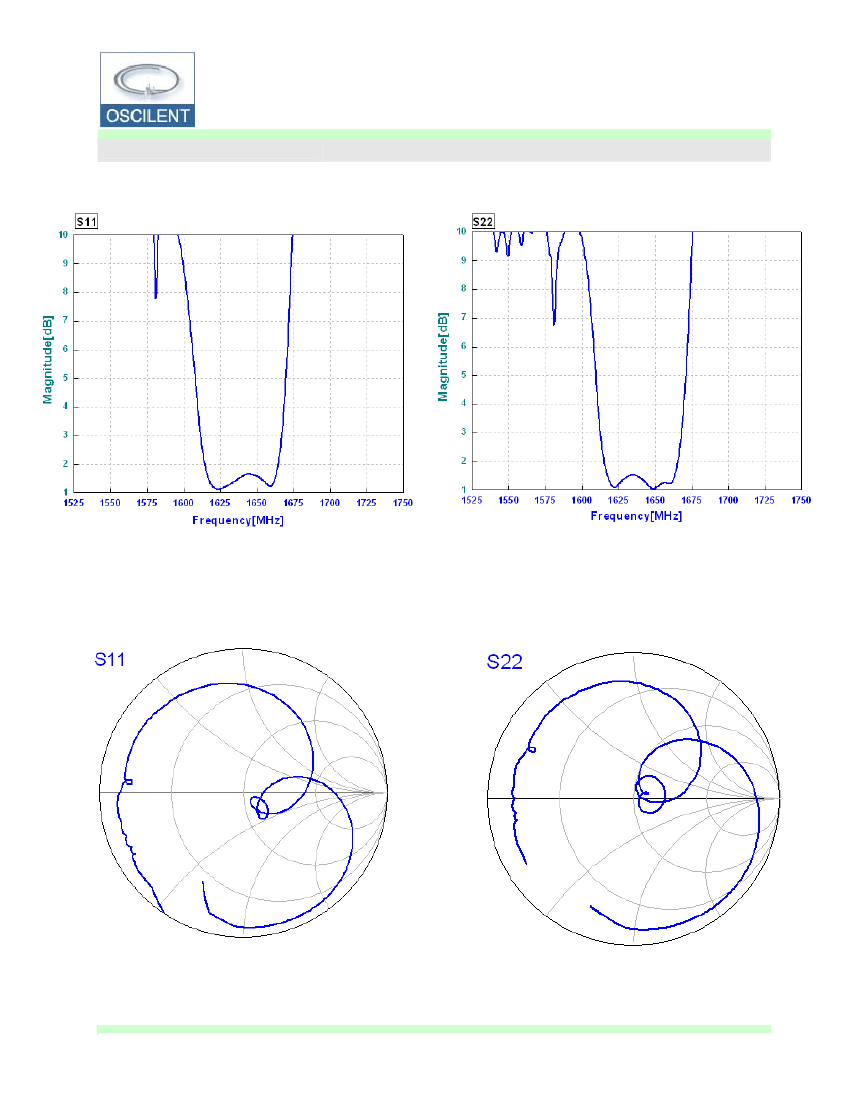

VSWR
Smith Chart
Product Specification
P. 4
www.oscilent.com
