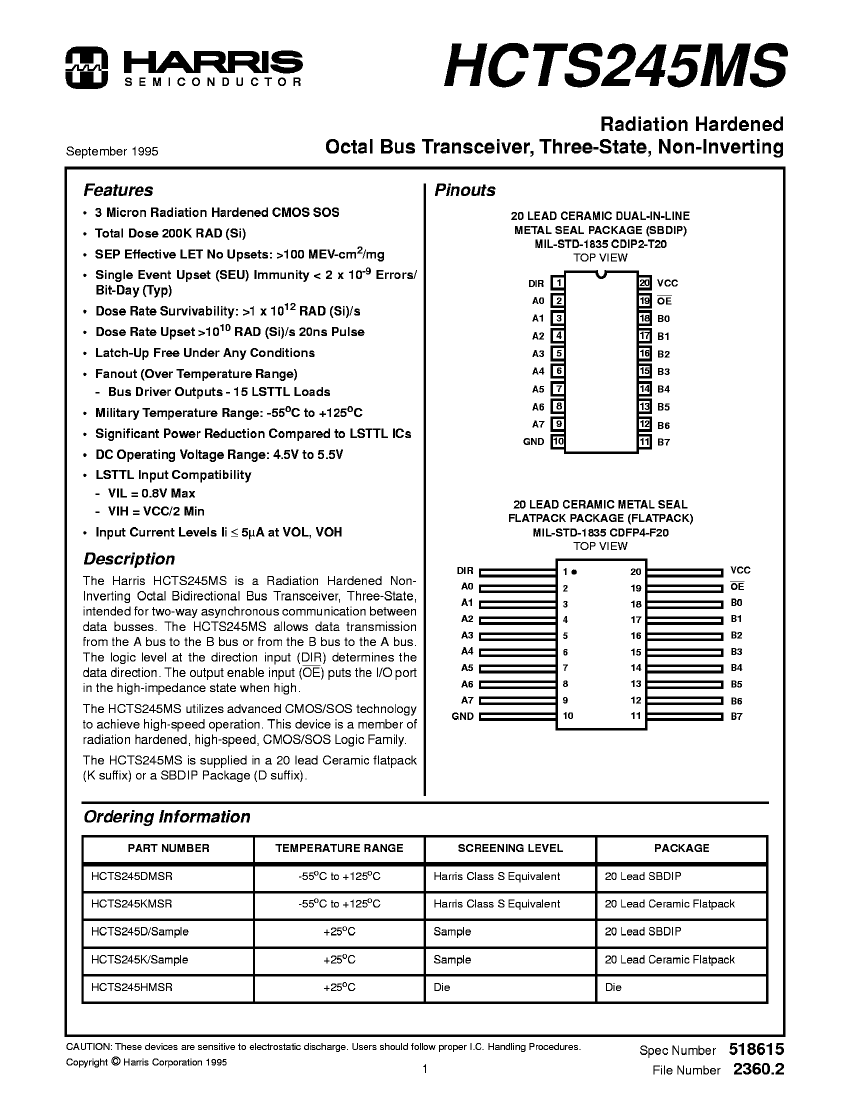

Bus Transceiver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20

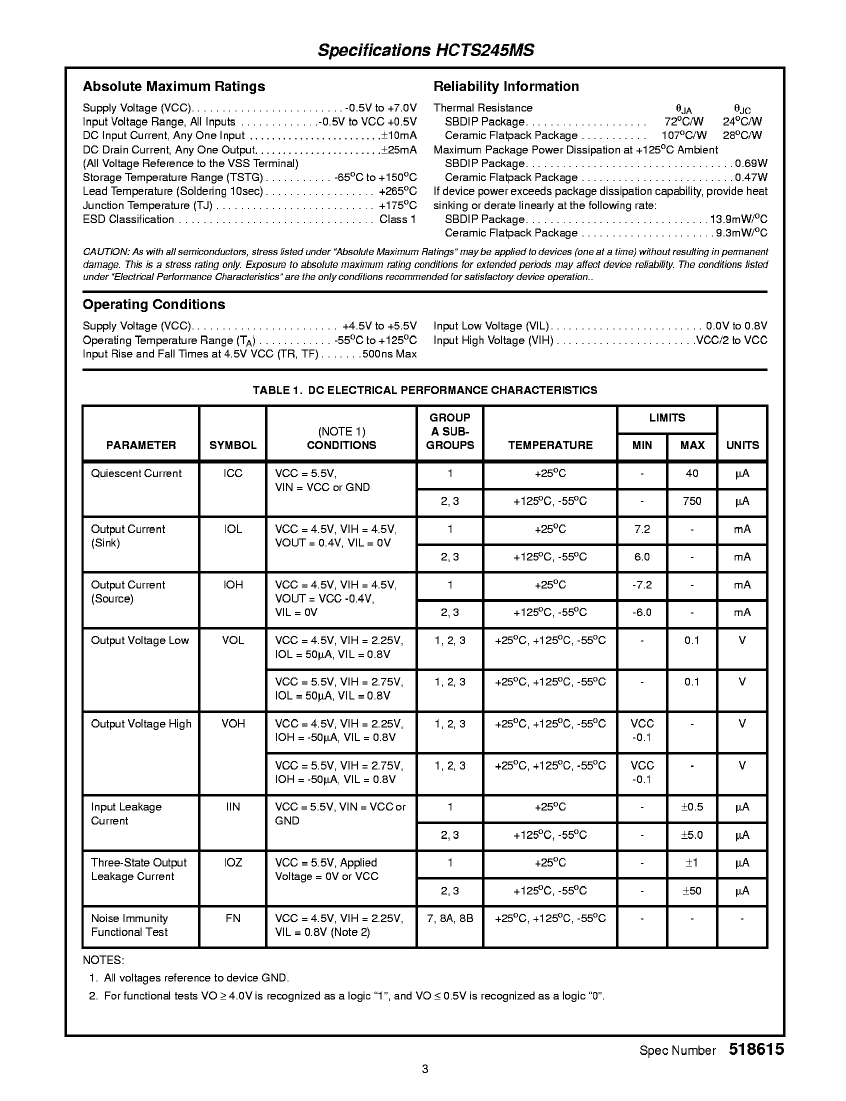

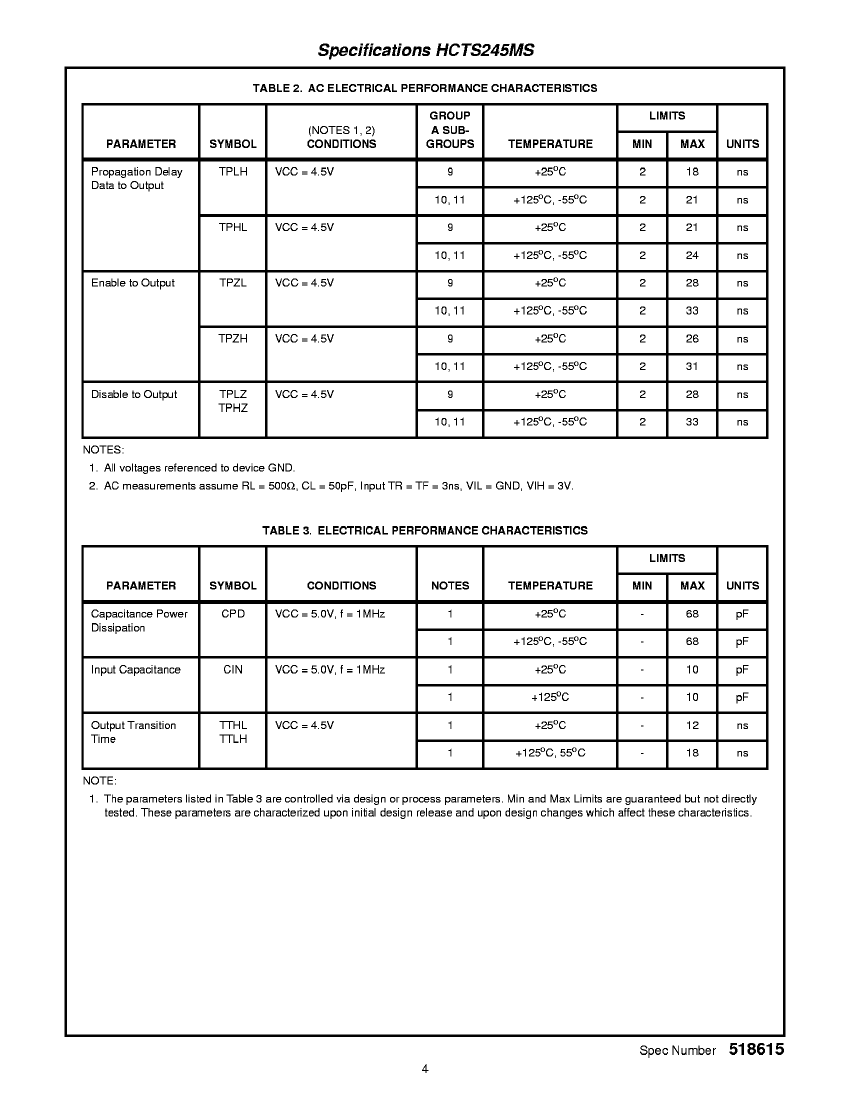

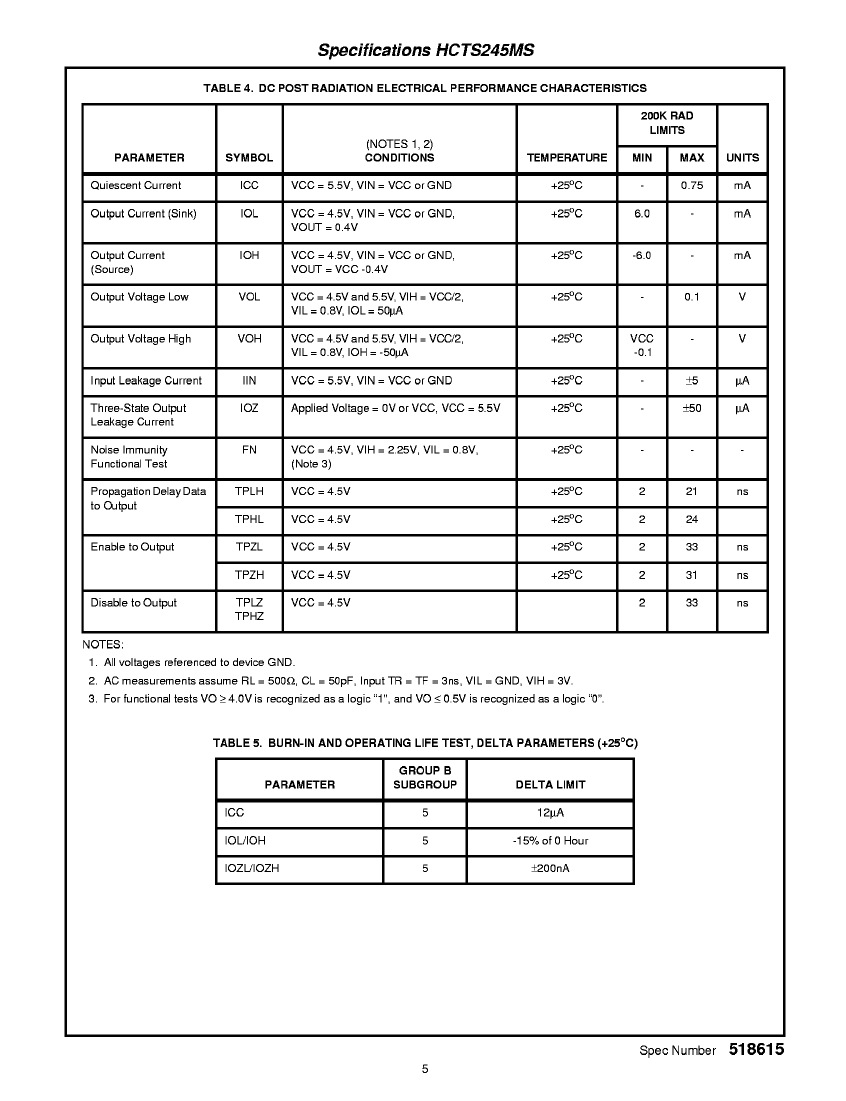

| Parameter Name | Attribute value |
| package instruction | , |
| Reach Compliance Code | unknown |
| Other features | WITH DIRECTION CONTROL |
| series | HCT |
| JESD-30 code | R-CDFP-F20 |
| JESD-609 code | e4 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | BUS TRANSCEIVER |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| propagation delay (tpd) | 24 ns |
| Certification status | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | GOLD |
| Terminal form | FLAT |
| Terminal location | DUAL |
| total dose | 100k Rad(Si) V |
| Base Number Matches | 1 |
| 5962R9574501VXC | 5962R9574501V9A | 5962R9574501VRC | HCTS245HMSR | |
|---|---|---|---|---|
| Description | Bus Transceiver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20 | Bus Transceiver, HCT Series, 1-Func, 8-Bit, True Output, CMOS | Bus Transceiver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20 | Bus Transceiver, HCT Series, 1-Func, 8-Bit, True Output, CMOS |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Other features | WITH DIRECTION CONTROL | WITH DIRECTION CONTROL | WITH DIRECTION CONTROL | WITH DIRECTION CONTROL |
| series | HCT | HCT | HCT | HCT |
| JESD-30 code | R-CDFP-F20 | X-XUUC-N20 | R-CDIP-T20 | X-XUUC-N20 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | BUS TRANSCEIVER | BUS TRANSCEIVER | BUS TRANSCEIVER | BUS TRANSCEIVER |
| Number of digits | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED | UNSPECIFIED | CERAMIC, METAL-SEALED COFIRED | UNSPECIFIED |
| Package shape | RECTANGULAR | UNSPECIFIED | RECTANGULAR | UNSPECIFIED |
| Package form | FLATPACK | UNCASED CHIP | IN-LINE | UNCASED CHIP |
| propagation delay (tpd) | 24 ns | 24 ns | 24 ns | 24 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO | YES |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | FLAT | NO LEAD | THROUGH-HOLE | NO LEAD |
| Terminal location | DUAL | UPPER | DUAL | UPPER |
| JESD-609 code | e4 | e0 | e4 | - |
| Terminal surface | GOLD | TIN LEAD | GOLD | - |
| total dose | 100k Rad(Si) V | 100k Rad(Si) V | 100k Rad(Si) V | - |
| Base Number Matches | 1 | 1 | 1 | - |
