5962-8969001LX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> 5962-8969001LX

5962-8969001LX: DescriptionStandard SRAM, 2KX8, 25ns, CMOS, 1.280 X 0.310 INCH, 0.200 INCH HEIGHT, DIP-24; Categorystorage storage; File Size204KB，9 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

5962-8969001LX Overview

Standard SRAM, 2KX8, 25ns, CMOS, 1.280 X 0.310 INCH, 0.200 INCH HEIGHT, DIP-24

5962-8969001LX Parametric

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	DIP
package instruction	DIP, DIP24,.3
Contacts	24
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	25 ns
I/O type	COMMON
JESD-30 code	R-XDIP-T24
length	31.877 mm
memory density	16384 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	24
word count	2048 words
character code	2000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	2KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	UNSPECIFIED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	5.08 mm
Maximum standby current	0.02 A
Minimum standby current	4.5 V
Maximum slew rate	0.135 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

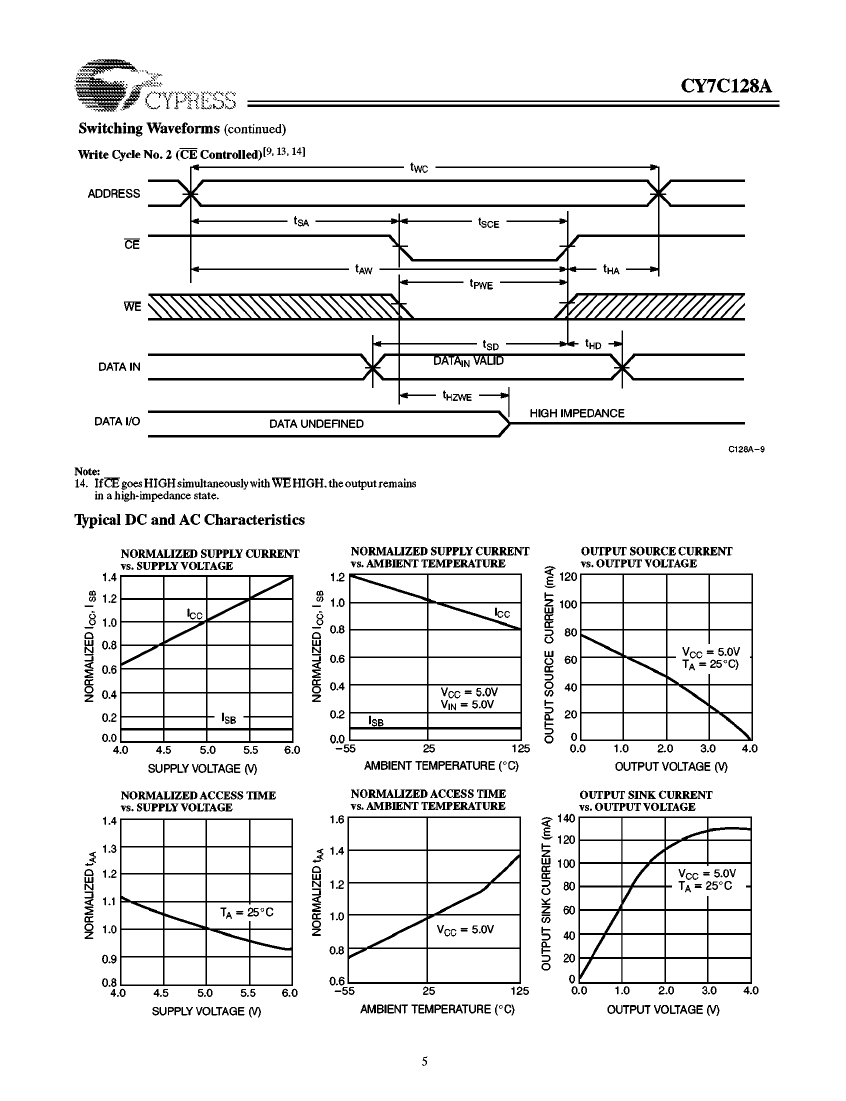

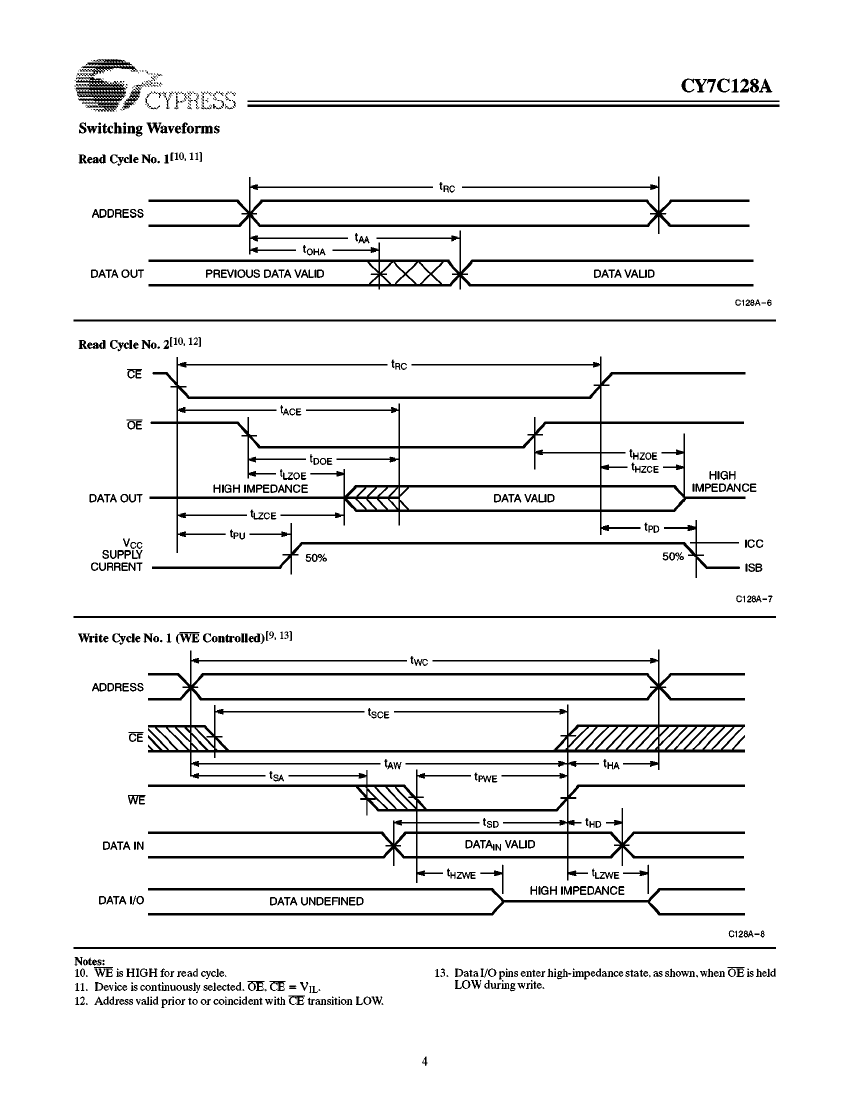

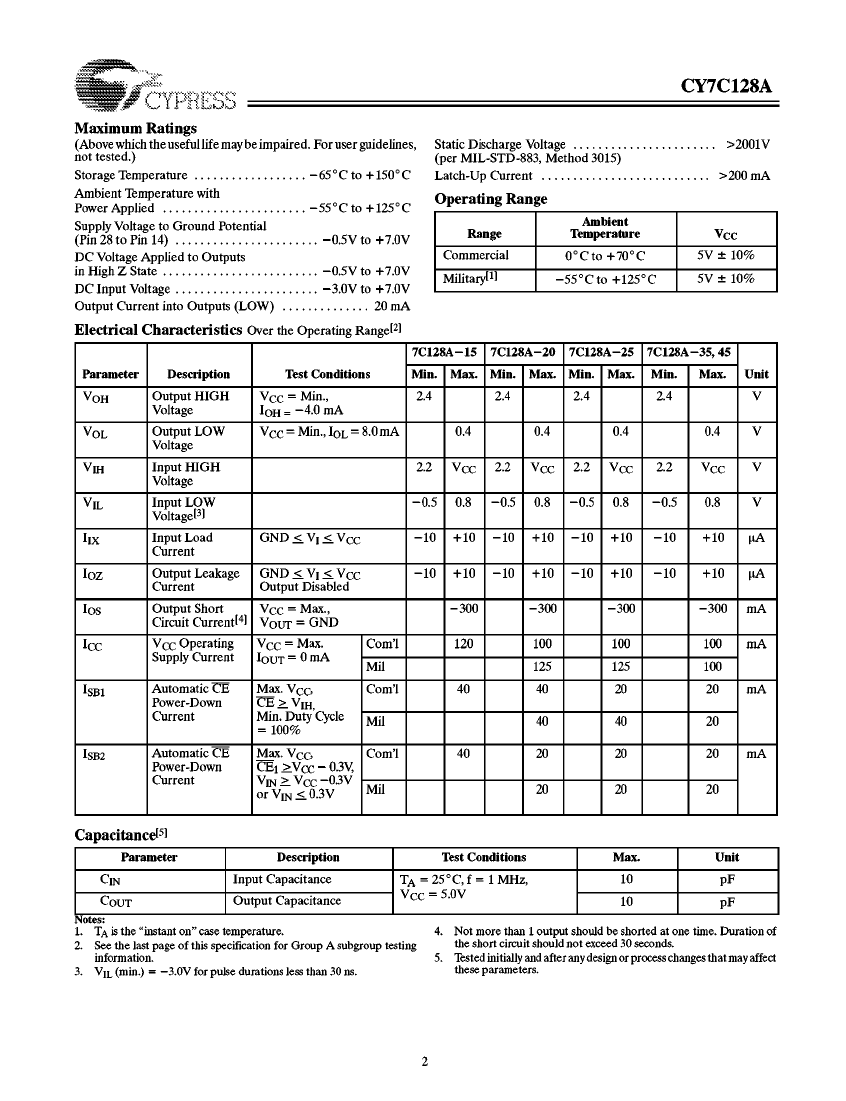

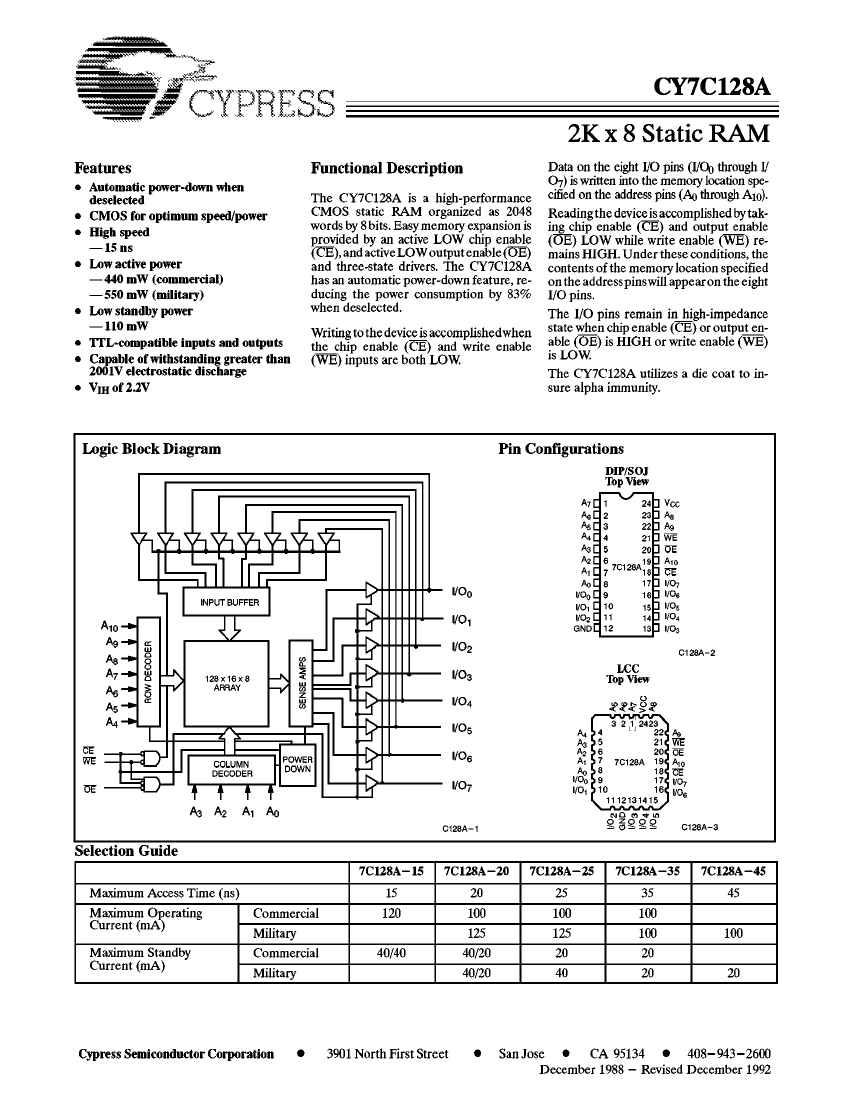

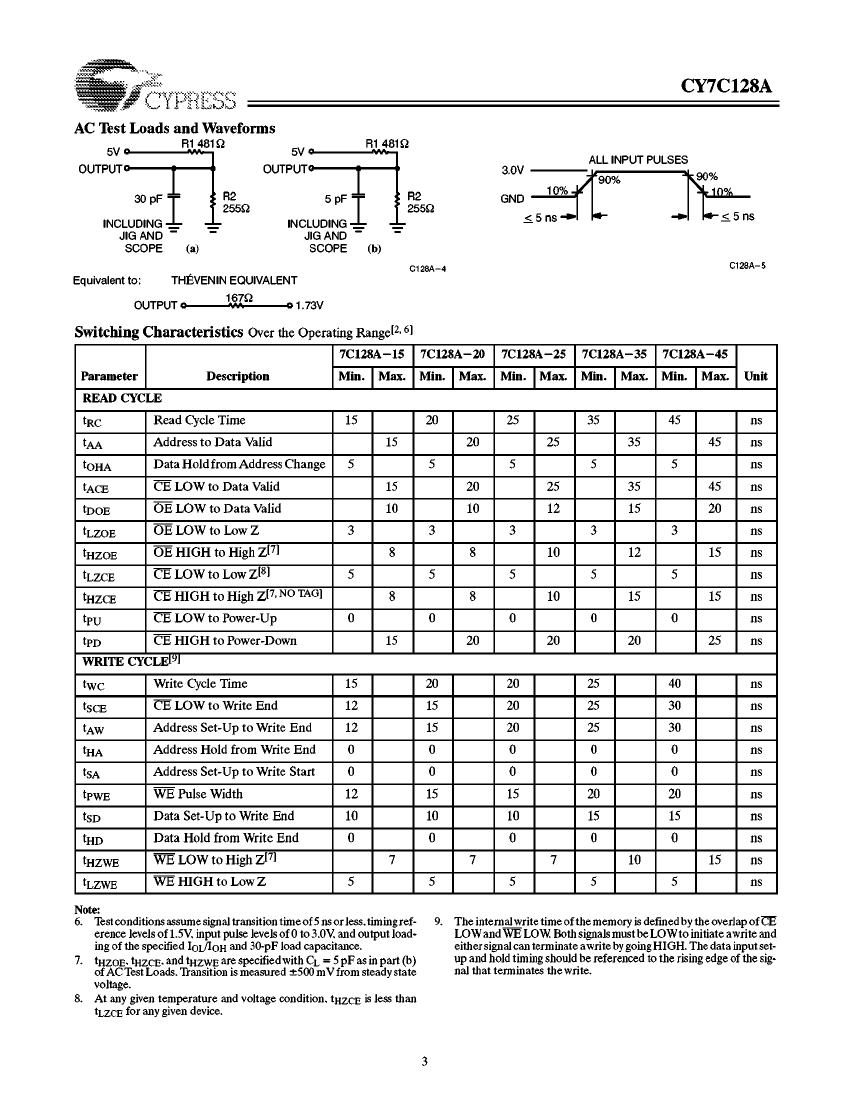

Preview

Download Datasheet

View All

5962-8969001LX Related Products

	5962-8969001LX	5962-8969002LX	5962-8969002YX
Description	Standard SRAM, 2KX8, 25ns, CMOS, 1.280 X 0.310 INCH, 0.200 INCH HEIGHT, DIP-24	Standard SRAM, 2KX8, 20ns, CMOS, 1.280 X 0.310 INCH, 0.200 INCH HEIGHT, DIP-24	Standard SRAM, 2KX8, 20ns, CMOS, 0.308 X 0.408 INCH, 0.078 INCH HEIGHT, LCC-24
Parts packaging code	DIP	DIP	LCC
package instruction	DIP, DIP24,.3	DIP, DIP24,.3	QCCN, LCC24,.3X.4
Contacts	24	24	24
Reach Compliance Code	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum access time	25 ns	20 ns	20 ns
I/O type	COMMON	COMMON	COMMON
JESD-30 code	R-XDIP-T24	R-XDIP-T24	R-XQCC-N24
length	31.877 mm	31.877 mm	10.16 mm
memory density	16384 bit	16384 bit	16384 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8
Number of functions	1	1	1
Number of terminals	24	24	24
word count	2048 words	2048 words	2048 words
character code	2000	2000	2000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
organize	2KX8	2KX8	2KX8
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP	QCCN
Encapsulate equivalent code	DIP24,.3	DIP24,.3	LCC24,.3X.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum seat height	5.08 mm	5.08 mm	1.9812 mm
Maximum standby current	0.02 A	0.02 A	0.02 A
Minimum standby current	4.5 V	4.5 V	4.5 V
Maximum slew rate	0.135 mA	0.15 mA	0.15 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	YES
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD
Terminal pitch	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD
width	7.62 mm	7.62 mm	7.62 mm
Base Number Matches	1	1	1
Maker	Cypress Semiconductor	-	Cypress Semiconductor
Number of ports	1	1	-
Exportable	YES	YES	-
