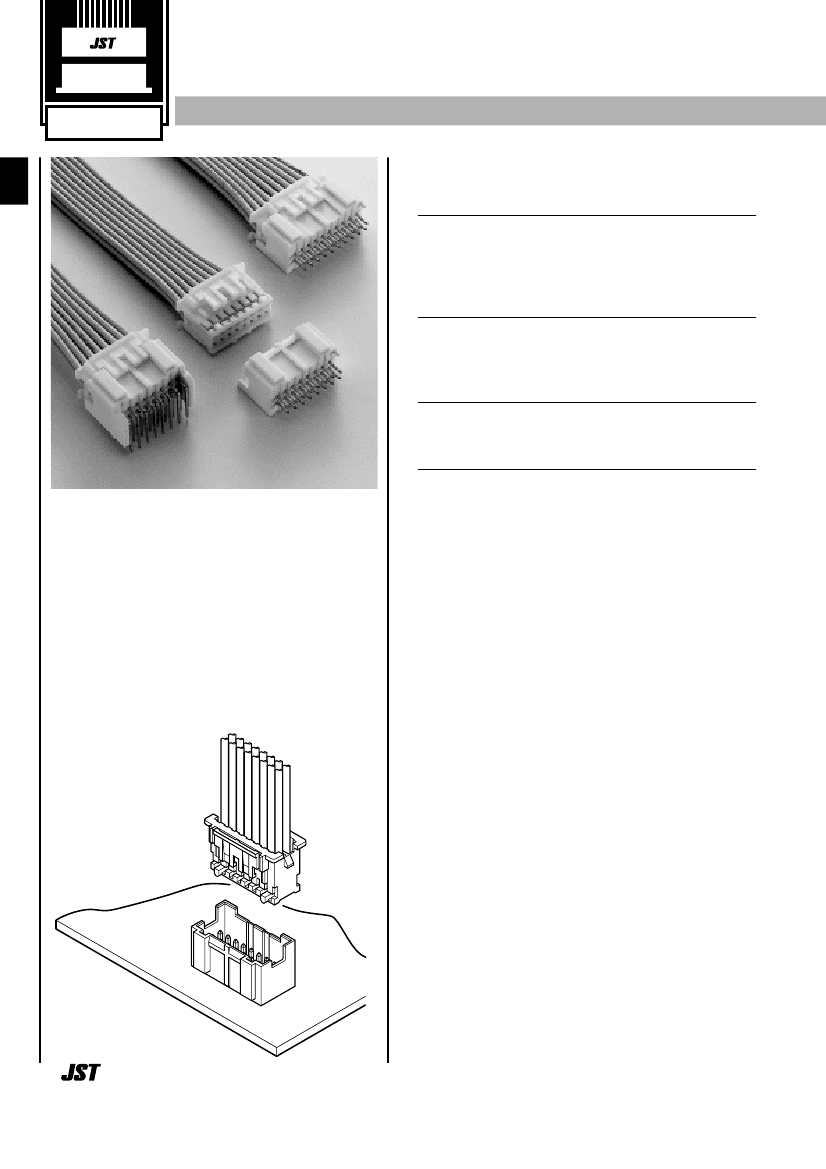

Crimp
PAD
CONNECTOR
Disconnectable Crimp style connectors
Features ––––––––––––––––––––––––
• Locking device
The housing has a locking device to securely hold the header,
preventing accidental disconnection because of external forces
that might result from the routing of wires during assembly
process or of vibration.
2.0mm
(.079") pitch
• Reliable contacts
The contact has long dimples near the center that ensure
continuity of low voltage and low current circuits at all times,
even under conditions of vibration and abusive prying.
• Insertion guide mechanism
Header has housing insertion guides for easy and secure
insertion.
• Polarizing boss
Top entry type headers with polarizing bosses are also
Dual-row construction allows high density
mounting.
available.
Specifications –––––––––––––––––––
• Current rating: 3A AC, DC (AWG#22)
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m Ω max.
After environmental testing/20m Ω max.
• Insulation resistance:
1,000M Ω min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: AWG #28 to #22
• Applicable PC board thickness: 1.6mm(.063")
* Contact JST for details.
Standards ––––––––––––––––––––––
44
0
1
Recognized E60389
Certified LR20812
PAD
CONNECTOR
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Model No.
SPH-001T-P0.5L
SPH-002T-P0.5L
5.7(.224)
2.85
(.112)
2.05
(.081)
1.0(.039)
mm
2
Applicable wire
AWG #
Insulation O.D. mm(in.)
26 to 22
28 to 24
1.0 to 1.5(.039 to .059)
0.8 to 1.5(.031 to .059)
Q'ty /
reel
8,000
0.13 to 0.33
0.08 to 0.22
Material and Finish
Phosphor bronze, tin-plated
2.08
(.082)
1.5(.059)
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
(10 to 14 circuits)
B
A
2.0
(.079)
6.85(.270)
10.0(.394)
Circuit
10
12
14
16
20
11.0(.433)
Model No.
PADP-10V-1-S
PADP-12V-1-S
PADP-14V-1-S
PADP-16V-1-S
PADP-20V-1-S
PADP-22V-1-S
PADP-24V-1-S
Dimensions mm(in.)
A
B
8.0(.315)
10.0(.394)
12.0(.472)
14.0(.551)
18.0(.709)
20.0(.787)
22.0(.866)
12.0( .472)
14.0( .551)
16.0( .630)
18.0( .709)
22.0( .866)
24.0( .945)
26.0(1.024)
Q'ty /
bag
1,000
1,000
1,000
250
200
1,000
1,000
22
24
Circuit No.1
mark
Material
Nylon 66, UL94V-0, natural (white)
2.0
(.079)
(16 to 24 circuits)
B
A
2.0
(.079)
6.85(.270)
10.0(.394)
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
PADP-16V-1-S-
S…natural (white)
K…black R…red Y…yellow E…blue M…green P…purple
L…lemon yellow
Circuit No.1
mark
2.0
(.079)
11.0(.433)
45
PAD
CONNECTOR
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Top entry type
(10 to 14 circuits)
B
A
2.0
(.079)
9.5(.374)
(16 to 24 circuits)
B
A
2.0
(.079)
10.2(.402)
9.5(.374)
10.2(.402)
7.8(.307)
7.8(.307)
1.2(.047)
2.5 2.0
(.098) (.079)
1.2(.047)
3.4
(.134)
0.5
(.020)
1.3
(.051)
2.5 2.0
(.098) (.079)
0.5
(.020)
1.3
(.051)
Side entry type
(10 circuits)
B
A
2.0
(.079)
10.5(.413)
[3.0(.118)]
(16 to 20 circuits)
B
A
2.0
(.079)
10.2(.402)
10.5(.413)
[3.0(.118)]
10.2(.402)
10.7(.421)
3.4
(.134)
2.0
(.079)
3.0
(.118)
Model No.
Circuit
Top entry type
With a boss Without a boss
10
B10B-PADSS-1 B10B-PADSS
12
B12B-PADSS-1 B12B-PADSS
14
B14B-PADSS-1 B14B-PADSS
16
B16B-PADSS-1 B16B-PADSS
20
B20B-PADSS-1 B20B-PADSS
22
B22B-PADSS-1 B22B-PADSS
24
B24B-PADSS-1 B24B-PADSS
3.0
(.118)
Dimensions
mm(in.)
Side entry type
S10B-PADSS-1
–
–
S16B-PADSS-1
S20B-PADSS-1
–
–
A
B
8.0(.315) 12.0( .472)
10.0(.394) 14.0( .551)
12.0(.472) 16.0( .630)
14.0(.551) 18.0( .709)
18.0(.709) 22.0( .866)
20.0(.787) 24.0( .945)
22.0(.866) 26.0(1.024)
Q'ty /
box
Top
Side
entry type entry type
400
300
300
200
150
150
150
504
–
–
336
280
–
–
Material and Finish
Post: Copper alloy, copper-undercoated, tin/lead-plated
Wafer: Glass-filled PBT, UL94V-0,
natural (white)
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
B16B-PADSS(-1)-
S…natural (white)
K…black R…red Y…yellow E…blue M…green P…purple
L…lemon yellow
46
2.0
(.079)
10.7(.421)
PAD
CONNECTOR
PC board layout
(viewed from component side)
and Assembly layout ––––––––––––––––––
Top entry type
10.0(.394)
A
±0.05(.002)
1.6
±0.05
(.063
±.002
)
Side entry type
15.2(.598)
A±0.05(.002)
2.0±0.05
(.079
+.002
)
0
Even number
circuits
Odd number
circuits
0
0.7
±0.1
(.028
+.004
)dia.
0
2.5±0.05 2.0±0.05
(.098±.002) (.079±.002)
12.2(.480)
Circuit No.1
1.0
+0.1
0
(.039
+.004
)dia.
0
Even number
circuits
Odd number
circuits
0.1
0.7
+
0
.004
(.028
+
0
)dia.
Circuit No.1
2.0
(.079)
10.7(.421)
Note:
1. Tolerances are non-cumulative: ±0.05mm(±.002") for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. If printed circuit boards made of hard material such as FR-4 are used, the hole
dimensions should be larger. The dimensions above should serve as a guideline. Contact JST for details.
Applicator for the semi-automatic press AP-K2N –––––––––––––––––––––––––––––––
Contact
SPH-001T-P0.5L
SPH-002T-P0.5L
Crimp applicator MKS-L
with safety cover
without safety cover
APLMK SPH001-05L
APLMK SPH002-05L
APLNC SPH001-05L
APLNC SPH002-05L
Compact crimp applicator MKS-LS
with safety cover
without safety cover
APLMKLS SPH001-05L
APLMKLS SPH002-05L
APLLSNC SPH001-05L
APLLSNC SPH002-05L
Strip-crimp applicator MKS-SC
with safety cover
–
–
47
11.0(.433)
1.3±0.05
(.051±.002)
0.1
1.1
+
0
.004
(.043
+
0
)dia.
2.0±0.05 1.4±0.05
(.079±.002) (.055±.002)
1.6
±0.05
2.0
±0.05
(.063
±.002
) (.079
±.002
)
