J01160A0039 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> J01160A0039

J01160A0039: DescriptionRF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size2MB，3 Pages; ManufacturerTelegartner Karl Gartner GmbH; Websitehttps://www.telegaertner.com

Download Datasheet Parametric Compare View All

J01160A0039 Overview

RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle,

J01160A0039 Parametric

Parameter Name	Attribute value
Maker	Telegartner Karl Gartner GmbH
Reach Compliance Code	compliant
Other features	STANDARD:IEC 169-10, VSWR MAX AT 3GHZ
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF SMB CONNECTOR
Contact to complete cooperation	COPPER NICKEL GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Installation method	STRAIGHT
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.65
Base Number Matches	1

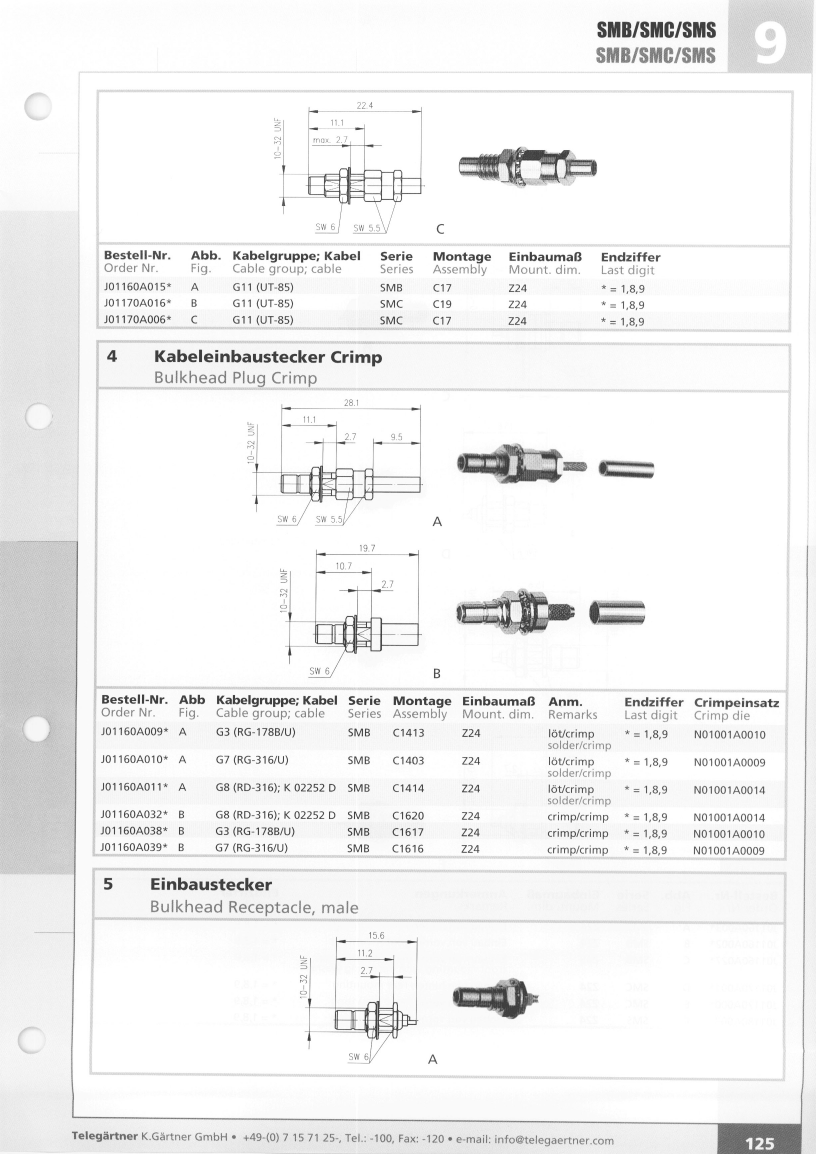

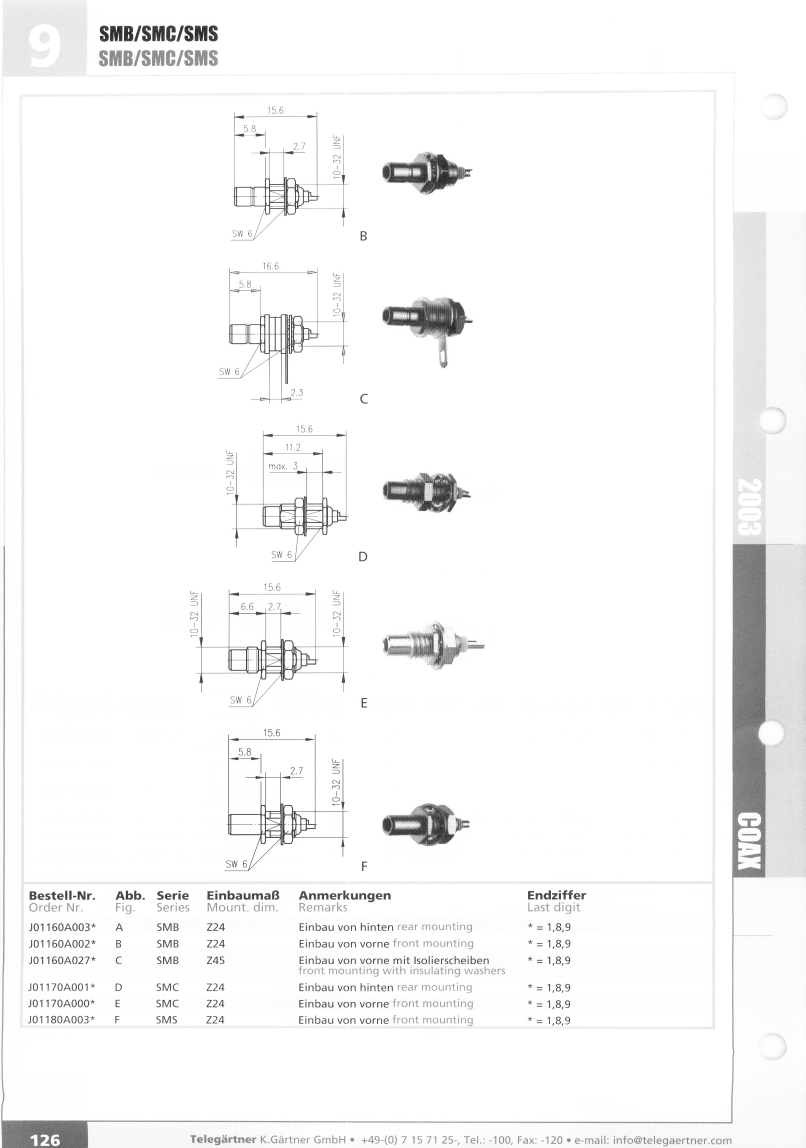

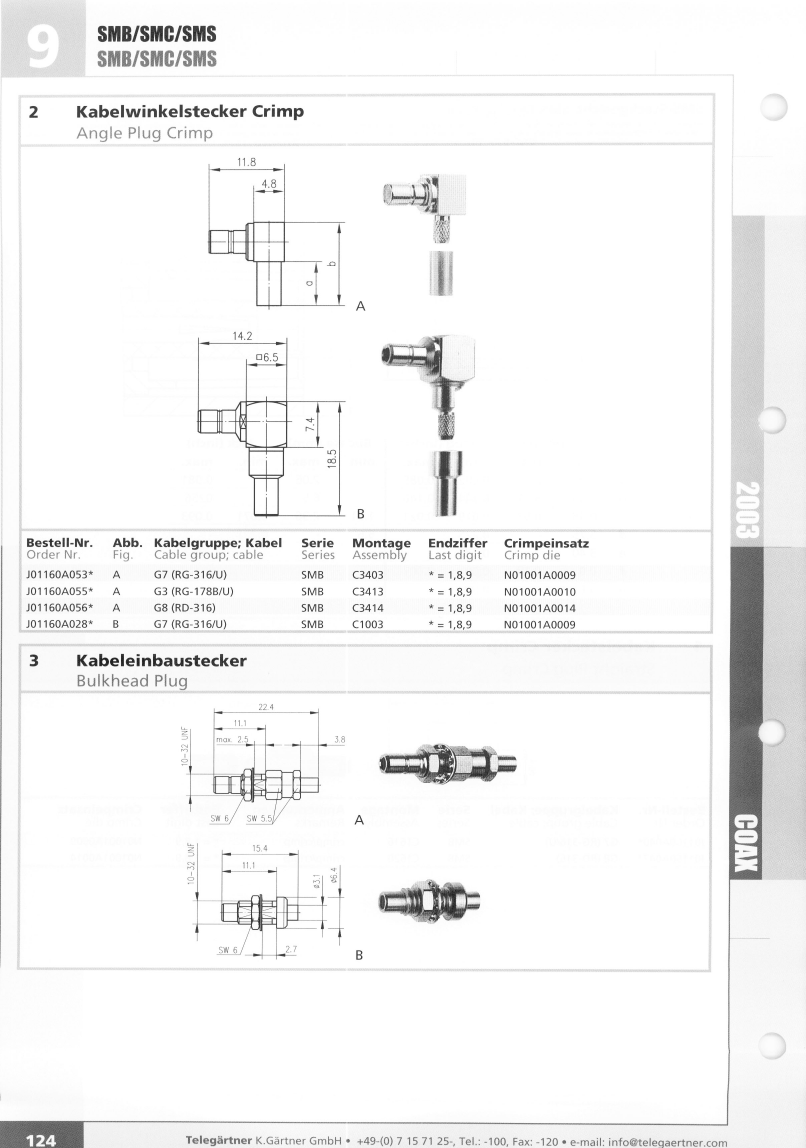

Preview

Download Datasheet

View All

J01160A0039 Related Products

	J01160A0039	J01160A0119	J01160A0159	J01160A0151	J01160A0329	J01160A0279	J01160A0029	J01160A0282	J01160A0289
Description	RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle,	RF SMB Connector, Male, Panel Mount, Cable Mount, Crimp Solder Terminal, Plug,	RF SMB Connector, Male, Panel Mount, Cable Mount, Plug,	RF SMB Connector, Male, Panel Mount, Cable Mount, Plug,	RF SMB Connector, Male, Panel Mount, Cable Mount, Crimp Terminal, Plug,	RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle,	RF SMB Connector, Male, Panel Mount, Solder Terminal, Receptacle,	RF SMB Connector, Male, Cable Mount, Crimp Terminal, Plug,	RF SMB Connector, Male, Cable Mount, Crimp Terminal, Plug,
Maker	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH	Telegartner Karl Gartner GmbH
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDARD:IEC 169-10, VSWR MAX AT 3GHZ	APPLICABLE CABLE: RD 316, VSWR MAX AT 3 GHZ	VSWR MAX AT 3 GHZ	VSWR MAX AT 3 GHZ	APPLICABLE CABLE: RD 316, VSWR MAX AT 3 GHZ	STANDARD:IEC 169-10, VSWR MAX AT 3GHZ	STANDARD:IEC 169-10, VSWR MAX AT 3GHZ	APPLICABLE CABLE: RG 316/U, VSWR MAX AT 3 GHZ	APPLICABLE CABLE: RG 316/U, VSWR MAX AT 3 GHZ
Body/casing type	RECEPTACLE	PLUG	PLUG	PLUG	PLUG	RECEPTACLE	RECEPTACLE	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR
Contact to complete cooperation	COPPER NICKEL GOLD	COPPER NICKEL GOLD	COPPER NICKEL GOLD	COPPER NICKEL GOLD	COPPER NICKEL GOLD	COPPER NICKEL GOLD	COPPER NICKEL GOLD	COPPER NICKEL GOLD	COPPER NICKEL GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE
Maximum operating frequency	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES	YES	YES	YES	YES	NO	NO
voltage standing wave ratio	1.65	1.65	1.65	1.65	1.65	1.65	1.65	1.79	1.79
Termination type	SOLDER	CRIMP SOLDER	-	-	CRIMP	SOLDER	SOLDER	CRIMP	CRIMP
Base Number Matches	1	1	1	1	1	1	1	-	-
Installation type	-	CABLE	CABLE	CABLE	CABLE	-	-	CABLE	CABLE
