DSS805C: DescriptionSLIDE DIP SWITCH-5SWITCHES, 5PST, LATCHED,0.1A, 6VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size928KB，2 Pages; ManufacturerNidec Copal Electronics; Environmental Compliance

Download Datasheet Parametric View All

DSS805C Overview

SLIDE DIP SWITCH-5SWITCHES, 5PST, LATCHED,0.1A, 6VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT

DSS805C Parametric

Parameter Name	Attribute value
Contact (DC) maximum rated R load	.1A@6VDC
Switch type	SLIDE DIP SWITCH
JESD-609 code	e4
PCB hole count	10
method of packing	TUBE
surface mount	NO
Terminal surface	Gold (Au)
Termination type	SOLDER
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Is it Rohs certified?	Yes
ECCN code	EAR99
Is Samacsys	N
YTEOL	0
Objectid	1533733946
package instruction	ROHS COMPLIANT
Reach Compliance Code	Unknown
Body length or diameter	14.15 mm
body width	6.4 mm
body height	4.5 mm
Switch action	LATCHED
switch function	SPST
Maximum contact current (DC)	0.1 A
Maximum contact voltage (DC)	6 V
Electrical life	1000 Cycle(s)
Number of switching segments	5

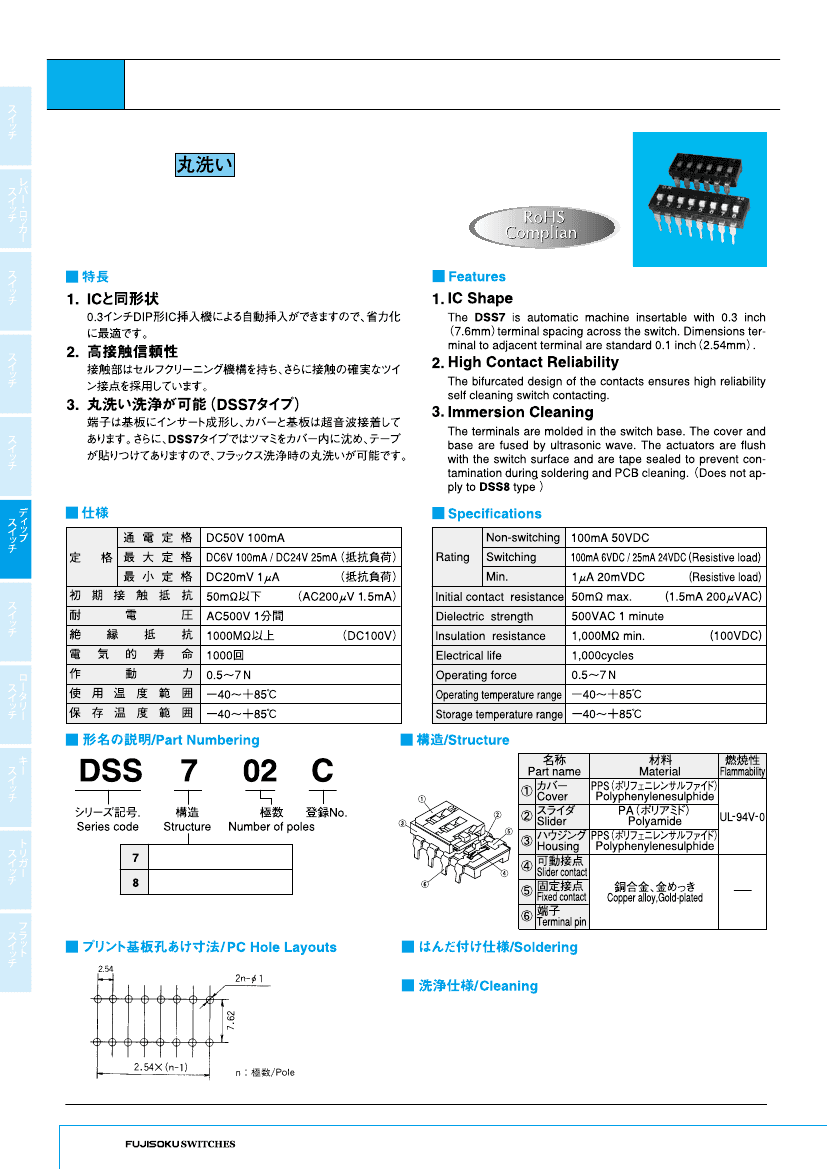

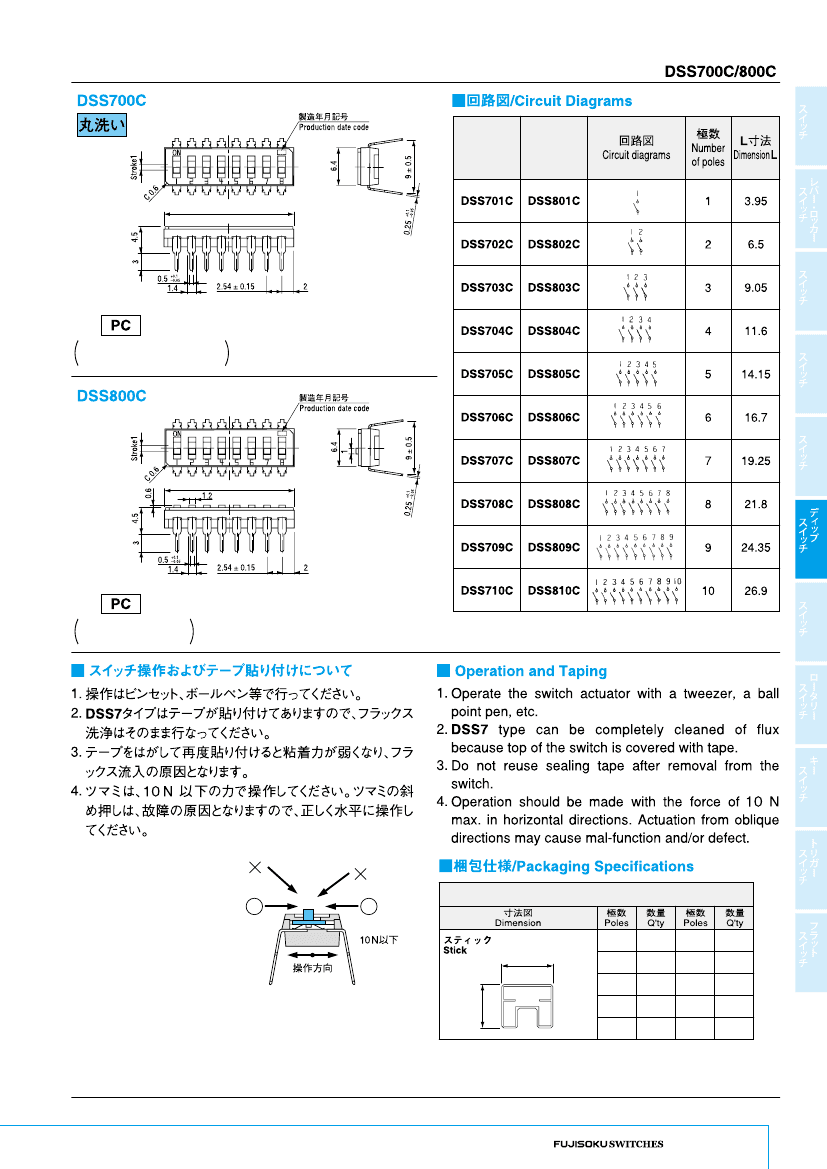

Preview

Download Datasheet

View All

ト

グ

ル

DSS

IC タイプディップスライドスイッチ

IC type Dip Slide Switches

表

面

実

装

用

DSS

700C・800C

押

ボ

タ

ン

RoHS

対応品

照

光

式

照

光

式

押

ボ

タ

ン

表

面

実

装

用

ト

グ

ル

ス

ラ

イ

ド

ス

ラ

イ

ド

フラッ

トツマミ

（テー

プシール）

タイプ

Flat knob (tape seal) type

凸ノブ

（無洗浄）

タイプ

Convex knob (Non-washable) type

……………………… page 310.

270

—

2013

—
