DAD-108-LTZ: DescriptionSwitch, SPST, Horizontal, 0.025A, 24VDC, Surface Mount-straight; CategoryMechanical and electronic products switch; File Size411KB，2 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric View All

DAD-108-LTZ Overview

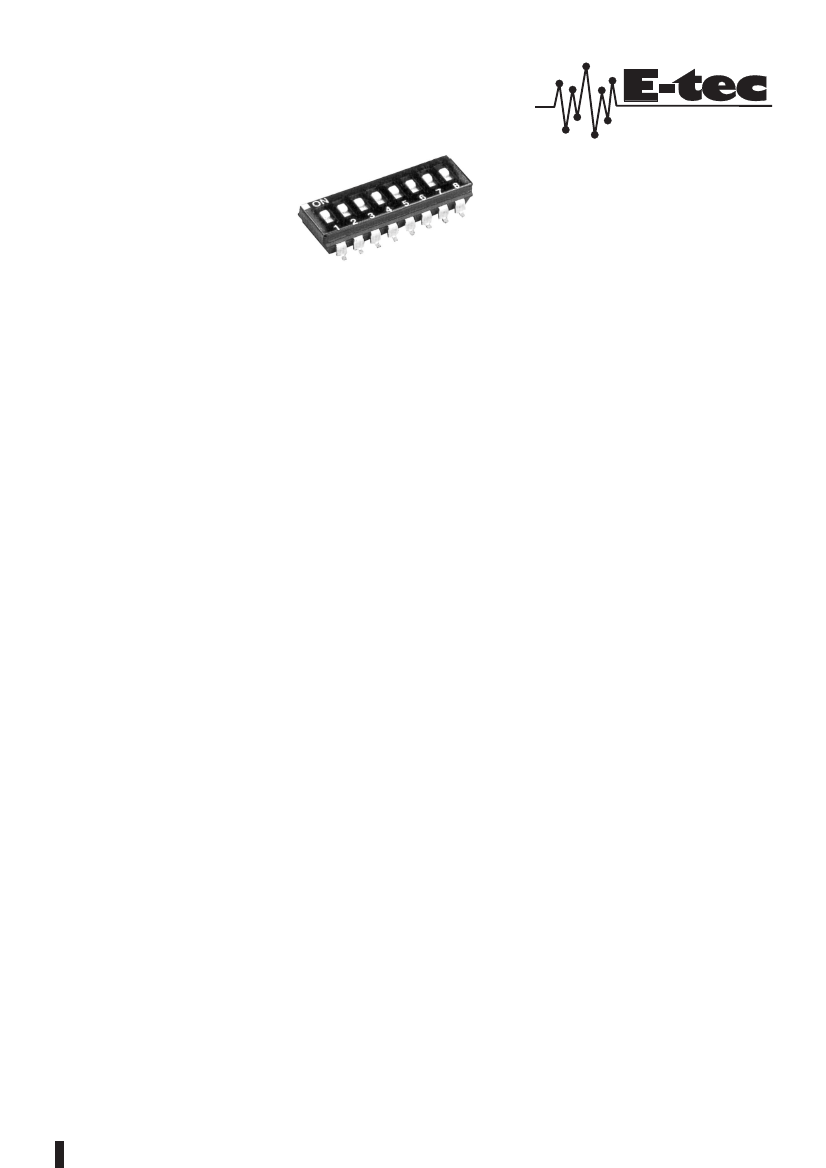

Switch, SPST, Horizontal, 0.025A, 24VDC, Surface Mount-straight

DAD-108-LTZ Parametric

Parameter Name	Attribute value
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Is it Rohs certified?	Yes
ECCN code	EAR99
Is Samacsys	N
Objectid	304748056
Reach Compliance Code	Compliant
Actuator angle
Center contact plating	GOLD
Installation features	SURFACE MOUNT-STRAIGHT
seal	MOLDED
Solderability	MIL-STD
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER
Other features	ROHS COMPLIANT
Contact (DC) maximum rated R load	0.025A@24VDC
Contact function	ON-OFF
Dielectric withstand voltage	500VDC V
Insulation resistance	1000000000 Ω
Actuator type	SLIDE
body width	6.4008 mm
body height	3.4036 mm
Body length or diameter	22.1234 mm
Switch action	HORIZONTAL
switch function	SPST
Maximum contact current (DC)	0.025 A
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	24 V
Electrical life	2000 Cycle(s)
End contact plating	GOLD
Number of positions	8
JESD-609 code	e3

Preview

Download Datasheet

View All

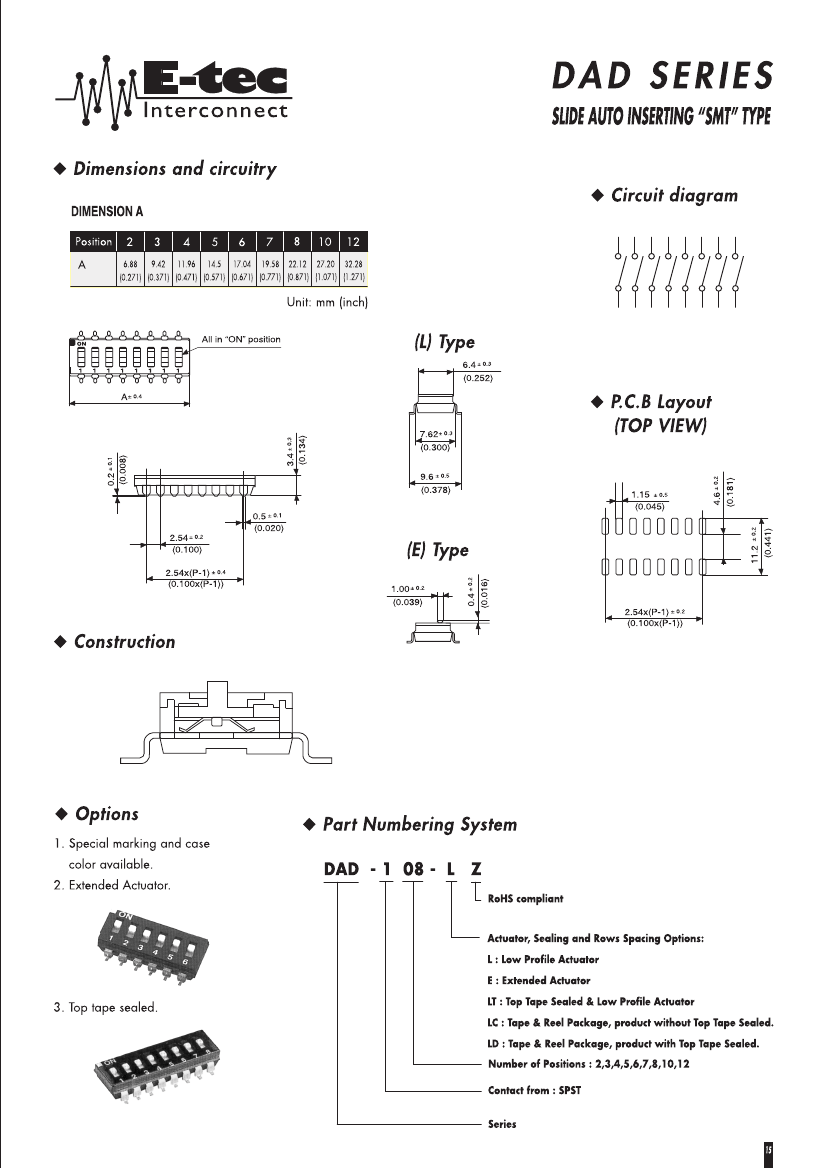

DAD SERIES

SLIDE AUTO INSERTING “SMT” TYPE

Interconnect

x

Features

• Same size with IC, can be assembled by any automatic IC inserter.

• Molded .300” integrated circuit packing outline allowing automatic insertion.

• Smaller size makes better heat convection during PC board reflow wave soldering.

• Top tape sealed to withstand wave soldering, board washing.

• All plastics are UL 94V-0 grade fire retardant.

• Gold plated contact to ensure low contact resistance and tin plated

terminals to prevent contamination during soldering (

tin/gold

).

x

Specifications

x

Applications

• Numerical setting for computer terminal equipment.

• Price setting for vending machines.

: 25mA, 24 VDC

: 100mA

: 50mΩ Max.

: 100mΩ Max.

: 1000MΩ. Min. at 100 VDC.

: 500 VDC Min. for 1 min.

: 5pF Max.

• Programming for game machines

• Programming for industrial equipment and measuring instruments.

1

. ELECTRICAL

1-1 Contact rating

switching

non-switching

1-2 Contact resistance

initial

after life test

1-3 Insulation resistance

1-4 Dielectric strength

1-5 Capacitance between

adjacent switches

2

. MECHANICAL and ENVIRONMENTAL

2-1 Temperature rating

Operating

Storage

2-2 Operation force

2-3 Mechanical life

2-4 Humidity

2-5 Vibration

2-6 Solderability

2-7 Soldering temperature

through hole wave soldering

SMT reflow soldering

: 260°C max. for 5 seconds.

: 210°C for 20 seconds, 230°C peak for 3 sec.

: -25°C to +70°C

: -40°C to +85°C

: 800g Max.

: 2000 operations

: 95% RH, 40°C for 96 Hrs.

: Per MIL-STD-202F, method 204D

: 95% coverage after 230°C +/- 5 for 5 sec.
