BZX85C3V3_T50A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZX85C3V3_T50A

BZX85C3V3_T50A: DescriptionZener Diode, 3.3V V(Z), 5%, 1.3W, Silicon, Unidirectional, DO-41, GLASS PACKAGE-2; CategoryDiscrete semiconductor diode; File Size149KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BZX85C3V3_T50A Overview

Zener Diode, 3.3V V(Z), 5%, 1.3W, Silicon, Unidirectional, DO-41, GLASS PACKAGE-2

BZX85C3V3_T50A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fairchild
Parts packaging code	DO-41
package instruction	O-GALF-W2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	20 Ω
JEDEC-95 code	DO-41
JESD-30 code	O-GALF-W2
JESD-609 code	e3
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Package body material	CERAMIC, GLASS-SEALED
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1.3 W
Nominal reference voltage	3.3 V
surface mount	NO
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%
Working test current	80 mA
Base Number Matches	1

Preview

Download Datasheet

View All

BZX85C3V3 - BZX85C56 — Zener Diodes

September 2013

BZX85C3V3 - BZX85C56

Zener Diodes

Tolerance = 5%

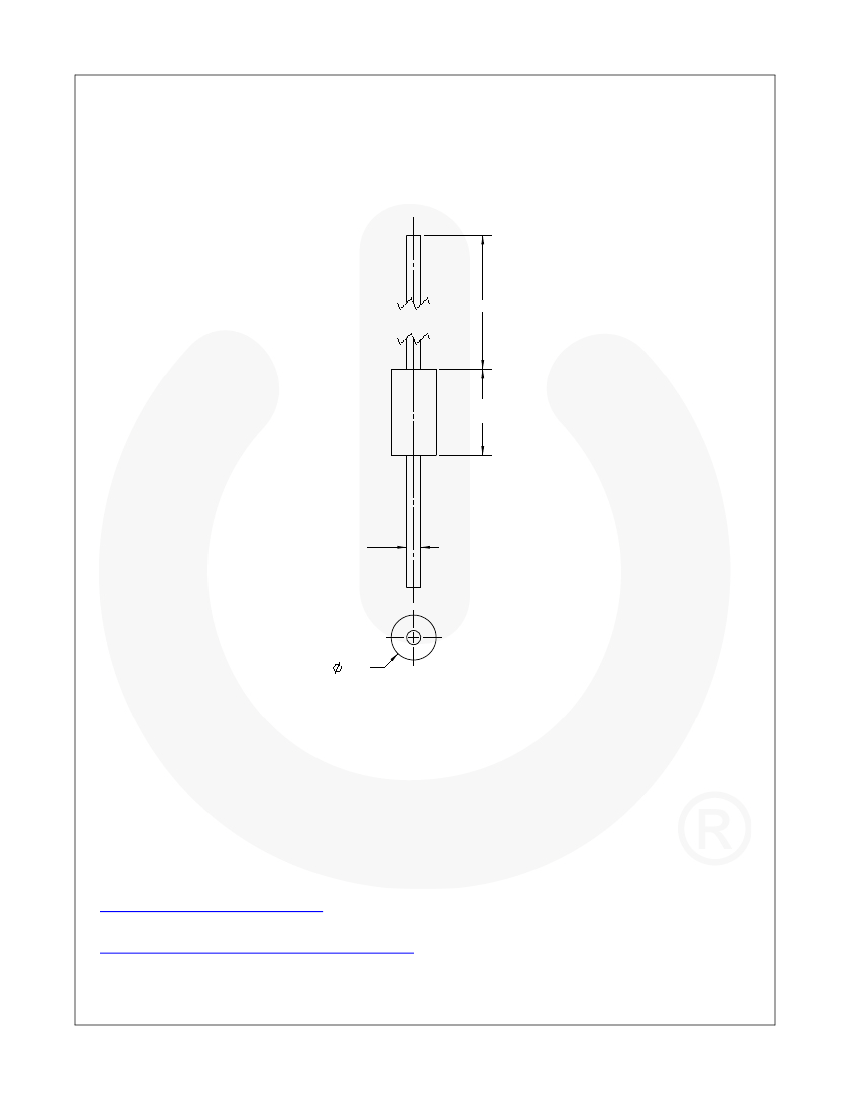

DO-41 Glass Case

COLOR BAND DENOTES CATHODE

Absolute Maximum Ratings

Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-

ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-

tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The

absolute maximum ratings are stress ratings only. Values are at T

= 25°C unless otherwise noted.

Symbol

, T

STG

Parameter

Power Dissipation @ T

= 25°C

Power Dissipation @ T

= 25°C at 4 mm distance from the glass

package

Derate above 50°C

Operating and Storage Temperature Range

Value

1.0

1.3

6.67

-65 to +200

Units

mW/°C

°C

BZX85C3V3 - BZX85C56 Rev. 1.1.0

www.fairchildsemi.com

BZX85C3V3_T50A Related Products

	BZX85C3V3_T50A	BZX85C47_T50A	BZX85C39_T50A	BZX85C47_T50R	BZX85C36_T50A	BZX85C3V3_T50R	BZX85C56_T50A	BZX85C39_T50R
Description	Zener Diode, 3.3V V(Z), 5%, 1.3W, Silicon, Unidirectional, DO-41, GLASS PACKAGE-2	Zener Diode, 47V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, GLASS PACKAGE-2	Zener Diode, 39V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, GLASS PACKAGE-2	Zener Diode, 47V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, GLASS PACKAGE-2	Zener Diode, 36V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, GLASS PACKAGE-2	Zener Diode, 3.3V V(Z), 5%, 1.3W, Silicon, Unidirectional, DO-41, GLASS PACKAGE-2	Zener Diode, 56V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, GLASS PACKAGE-2	Zener Diode, 39V V(Z), 5%, 1W, Silicon, Unidirectional, DO-41, GLASS PACKAGE-2
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41
package instruction	O-GALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-GALF-W2	O-LALF-W2	O-LALF-W2
Contacts	2	2	2	2	2	2	2	2
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	unknown	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
Maximum dynamic impedance	20 Ω	90 Ω	45 Ω	90 Ω	40 Ω	20 Ω	120 Ω	45 Ω
JEDEC-95 code	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41
JESD-30 code	O-GALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-GALF-W2	O-LALF-W2	O-LALF-W2
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
Number of components	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Package body material	CERAMIC, GLASS-SEALED	GLASS	GLASS	GLASS	GLASS	CERAMIC, GLASS-SEALED	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	NOT SPECIFIED	NOT APPLICABLE	NOT APPLICABLE
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	1.3 W	1 W	1 W	1 W	1 W	1.3 W	1 W	1 W
Nominal reference voltage	3.3 V	47 V	39 V	47 V	36 V	3.3 V	56 V	39 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal surface	Matte Tin (Sn)	Bright Tin (Sn)	Bright Tin (Sn)	Bright Tin (Sn)	Bright Tin (Sn)	Matte Tin (Sn)	Bright Tin (Sn)	Bright Tin (Sn)
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	NOT SPECIFIED	NOT APPLICABLE	NOT APPLICABLE
Maximum voltage tolerance	5%	5%	5%	5%	5%	5%	5%	5%
Working test current	80 mA	4 mA	6 mA	4 mA	8 mA	80 mA	4 mA	6 mA
Base Number Matches	1	1	1	1	1	1	1	1
Maker	Fairchild	-	Fairchild	-	Fairchild	Fairchild	Fairchild	Fairchild
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
