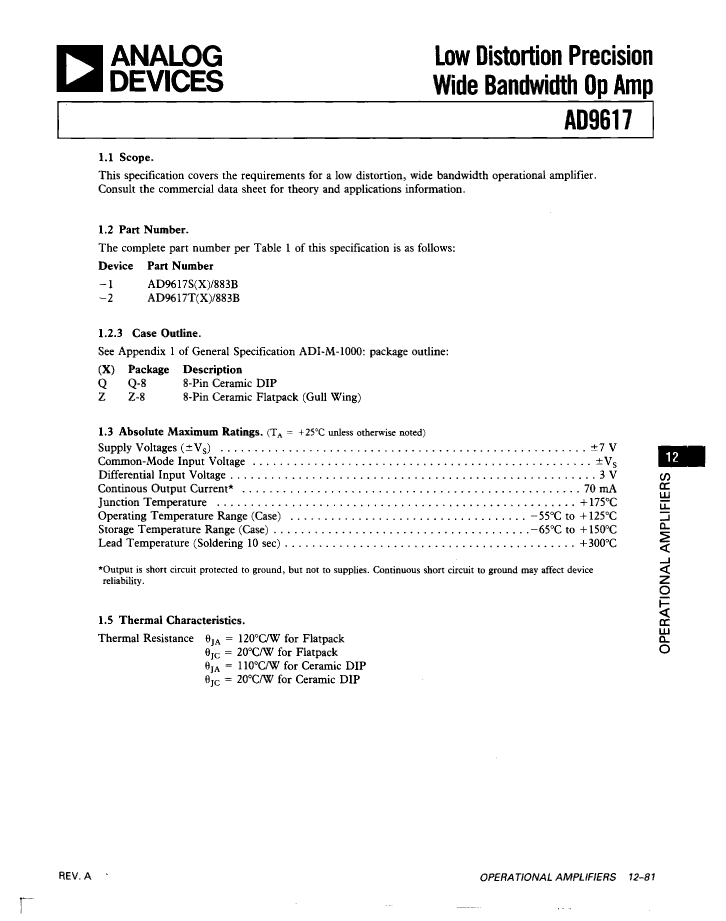

5962-9086801MPA amplifier basic information:
5962-9086801MPA is an OPERATIONAL AMPLIFIER. The commonly used packaging method is CERDIP-8

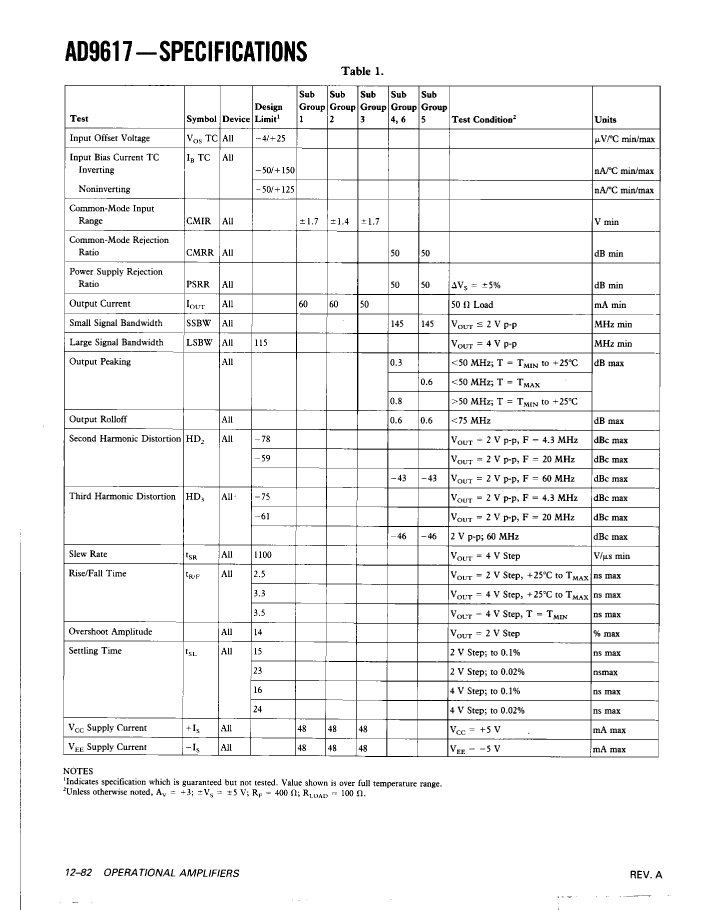

5962-9086801MPA amplifier core information:
The minimum operating temperature of the 5962-9086801MPA is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Maximum bias current at 25°C: 50 µA
The maximum slew rate of the 5962-9086801MPA given by the manufacturer is 48 mA, while the minimum slew rate is 1100 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-9086801MPA gain becomes 0.707 times the low-frequency gain is 570000 kHz.
The nominal supply voltage of 5962-9086801MPA is 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of 5962-9086801MPA is 2200 µV (Input offset voltage: the compensation voltage between the two input terminals required to make the output terminal of the operational amplifier 0V (or close to 0V).) The width of 5962-9086801MPA is: 7.62 mm .

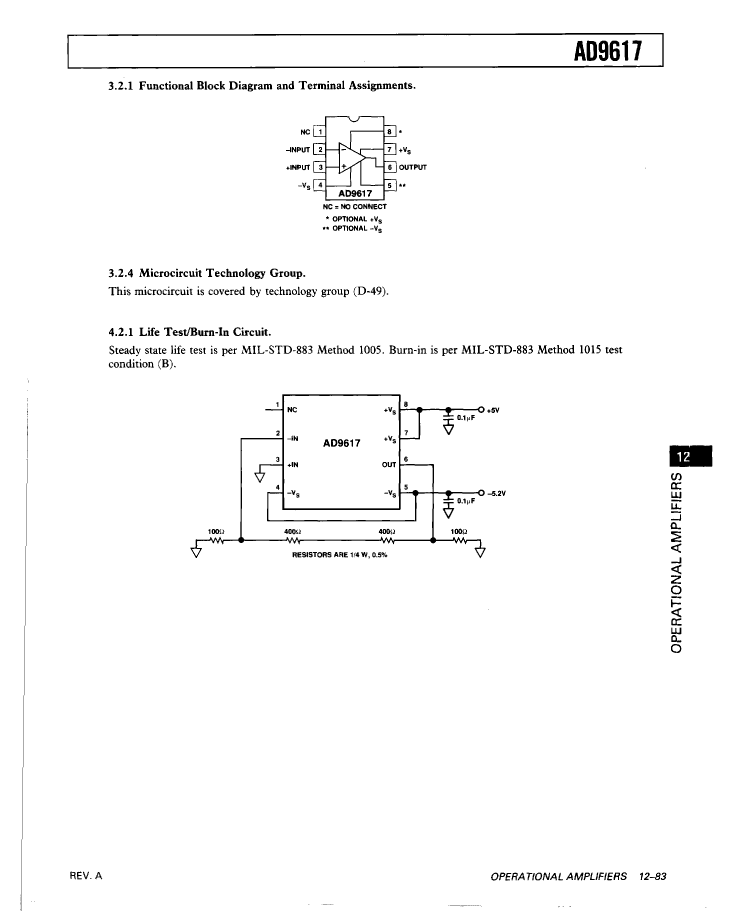

Related dimensions of 5962-9086801MPA:
5962-9086801MPA has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 8
5962-9086801MPA amplifier other information:
5962-9086801MPA adopts the CURRENT-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of 5962-9086801MPA is: YES. Its temperature grade is: MILITARY. 5962-9086801MPA is not Rohs certified.
The corresponding JESD-30 code is: R-GDIP-T8. The corresponding JESD-609 code is: e0. The packaging code of 5962-9086801MPA is: DIP. 5962-9086801MPA packaging materials are mostly CERAMIC, GLASS-SEALED. The package shape is RECTANGULAR.
The 5962-9086801MPA package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE. The maximum seat height is 5.08 mm.
5962-9086801MPA amplifier basic information:
5962-9086801MPA is an OPERATIONAL AMPLIFIER. The commonly used packaging method is CERDIP-8
5962-9086801MPA amplifier core information:
The minimum operating temperature of the 5962-9086801MPA is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Maximum bias current at 25°C: 50 µA
The maximum slew rate of the 5962-9086801MPA given by the manufacturer is 48 mA, while the minimum slew rate is 1100 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-9086801MPA gain becomes 0.707 times the low-frequency gain is 570000 kHz.
The nominal supply voltage of 5962-9086801MPA is 5 V, and its corresponding nominal negative supply voltage is -5 V. The input offset voltage of 5962-9086801MPA is 2200 µV (Input offset voltage: the compensation voltage between the two input terminals required to make the output terminal of the operational amplifier 0V (or close to 0V).) The width of 5962-9086801MPA is: 7.62 mm .
Related dimensions of 5962-9086801MPA:
5962-9086801MPA has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 8
5962-9086801MPA amplifier other information:
5962-9086801MPA adopts the CURRENT-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of 5962-9086801MPA is: YES. Its temperature grade is: MILITARY. 5962-9086801MPA is not Rohs certified.
The corresponding JESD-30 code is: R-GDIP-T8. The corresponding JESD-609 code is: e0. The packaging code of 5962-9086801MPA is: DIP. 5962-9086801MPA packaging materials are mostly CERAMIC, GLASS-SEALED. The package shape is RECTANGULAR.
The 5962-9086801MPA package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE. The maximum seat height is 5.08 mm.
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | ADI |
| Parts packaging code | DIP |
| package instruction | CERDIP-8 |
| Contacts | 8 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | CURRENT-FEEDBACK |
| Maximum bias current (IIB) at 25C | 50 µA |
| Nominal Common Mode Rejection Ratio | 48 dB |
| frequency compensation | YES |
| Maximum input offset voltage | 2200 µV |
| JESD-30 code | R-GDIP-T8 |
| JESD-609 code | e0 |
| low-dissonance | NO |
| Negative supply voltage upper limit | -7 V |
| Nominal Negative Supply Voltage (Vsup) | -5 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP8,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | +-5 V |
| Certification status | Not Qualified |
| Filter level | MIL-STD-883 |
| Maximum seat height | 5.08 mm |
| minimum slew rate | 1100 V/us |
| Maximum slew rate | 48 mA |
| Supply voltage upper limit | 7 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) - hot dipped |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 570000 kHz |
| broadband | YES |
| width | 7.62 mm |
| Base Number Matches | 1 |
| 5962-9086801MPA | 5962-9086801MXA | 5962-9086802MPA | 5962-9086802MXA | 5962-9086801MXX | 5962-9086802MPX | 5962-9086801MPX | 5962-9086802MXX | |
|---|---|---|---|---|---|---|---|---|
| Description | IC OP-AMP, 2200 uV OFFSET-MAX, CDIP8, CERDIP-8, Operational Amplifier | IC OP-AMP, 570 MHz BAND WIDTH, CDSO8, CERAMIC, FP-8, Operational Amplifier | IC OP-AMP, 2200 uV OFFSET-MAX, CDIP8, CERDIP-8, Operational Amplifier | IC OP-AMP, 570 MHz BAND WIDTH, CDSO8, CERAMIC, FP-8, Operational Amplifier | IC OP-AMP, 570 MHz BAND WIDTH, CDSO8, CERAMIC, FP-8, Operational Amplifier | IC OP-AMP, 2200 uV OFFSET-MAX, CDIP8, CERDIP-8, Operational Amplifier | IC OP-AMP, 2200 uV OFFSET-MAX, CDIP8, CERDIP-8, Operational Amplifier | IC OP-AMP, 570 MHz BAND WIDTH, CDSO8, CERAMIC, FP-8, Operational Amplifier |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | DIP | DFP | DIP | DFP | DFP | DIP | DIP | DFP |
| package instruction | CERDIP-8 | CERAMIC, FP-8 | DIP, DIP8,.3 | CERAMIC, FP-8 | CERAMIC, FP-8 | CERDIP-8 | CERDIP-8 | CERAMIC, FP-8 |
| Contacts | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| JESD-30 code | R-GDIP-T8 | S-CDSO-G8 | R-GDIP-T8 | S-CDSO-G8 | S-CDSO-G8 | R-GDIP-T8 | R-GDIP-T8 | S-CDSO-G8 |
| Nominal Negative Supply Voltage (Vsup) | -5 V | -5 V | -5 V | -5 V | -5 V | -5 V | -5 V | -5 V |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | SOP | DIP | SOP | SOP | DIP | DIP | SOP |
| Package shape | RECTANGULAR | SQUARE | RECTANGULAR | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR | SQUARE |
| Package form | IN-LINE | SMALL OUTLINE | IN-LINE | SMALL OUTLINE | SMALL OUTLINE | IN-LINE | IN-LINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | 220 | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Filter level | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 |
| Maximum seat height | 5.08 mm | 2.49 mm | 5.08 mm | 2.49 mm | 2.49 mm | 5.08 mm | 5.08 mm | 2.49 mm |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | NO | YES | YES | NO | NO | YES |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | GULL WING | THROUGH-HOLE | GULL WING | GULL WING | THROUGH-HOLE | THROUGH-HOLE | GULL WING |
| Terminal pitch | 2.54 mm | 1.27 mm | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | 30 | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 570000 kHz | 570000 kHz | 570000 kHz | 570000 kHz | 570000 kHz | 570000 kHz | 570000 kHz | 570000 kHz |
| width | 7.62 mm | 6.475 mm | 7.62 mm | 6.475 mm | 6.475 mm | 7.62 mm | 7.62 mm | 6.475 mm |
| Maker | ADI | ADI | ADI | ADI | - | - | ADI | ADI |
| Maximum input offset voltage | 2200 µV | 2200 µV | 2200 µV | 1100 µV | - | 2200 µV | 2200 µV | - |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | - | e0 | e0 |
| Supply voltage upper limit | 7 V | 7 V | 7 V | 7 V | - | 7 V | 7 V | - |
| Terminal surface | Tin/Lead (Sn/Pb) - hot dipped | Tin/Lead (Sn/Pb) - hot dipped | Tin/Lead (Sn/Pb) - hot dipped | Tin/Lead (Sn/Pb) - hot dipped | TIN LEAD | - | TIN LEAD | TIN LEAD |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | - | - |
