DHPH-2-26-U-.110/.290/.430 datasheet, PDF

DHPH-2-26-U-.110/.290/.430: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator; CategoryThe connector The connector; File Size94KB，1 Pages; ManufacturerAdam Tech; Environmental Compliance

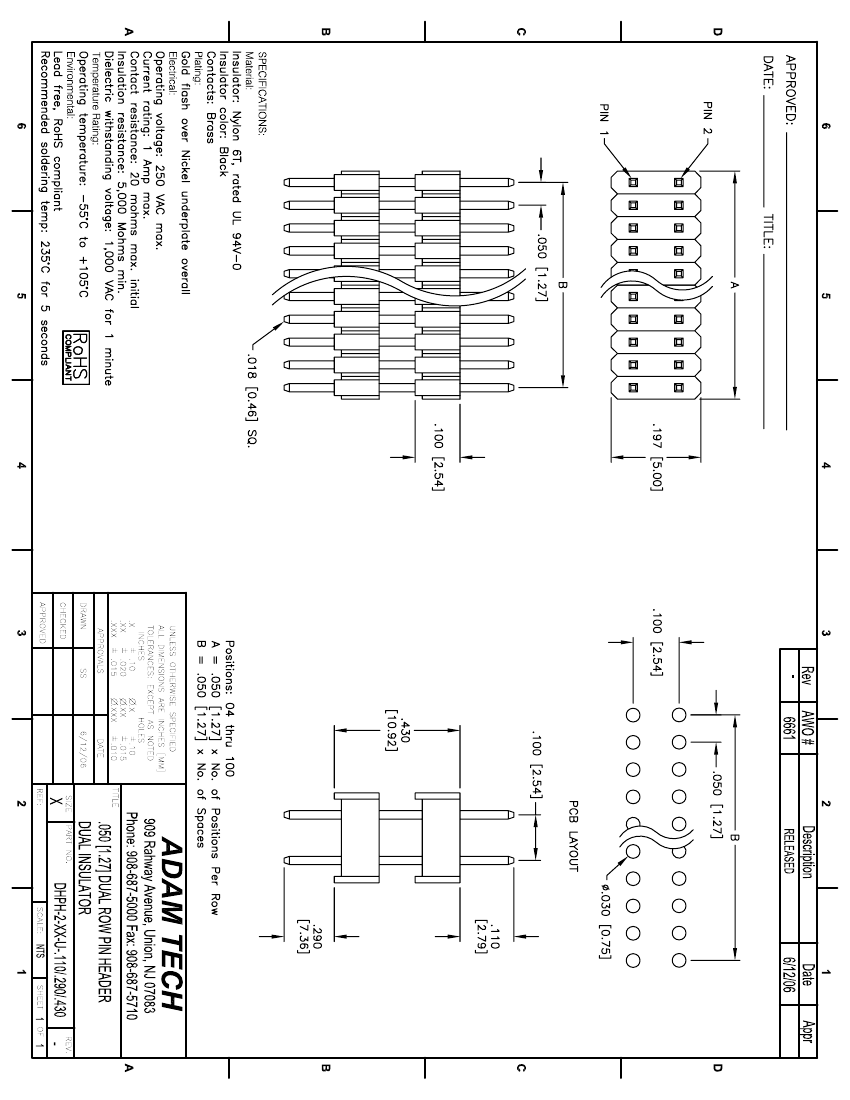

Download Datasheet Parametric View All

DHPH-2-26-U-.110/.290/.430 Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator

Parameter Name	Attribute value
Number of rows loaded	2
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Durability	500 Cycles
Installation method	STRAIGHT
PCB row number	2
Contact resistance	20 mΩ
insulator material	POLYAMIDE
Installation type	BOARD
Rated current (signal)	1 A
Terminal pitch	1.27 mm
Total number of contacts	26
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	BRASS
Contact style	SQ PIN-SKT
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Termination type	SOLDER
contact mode	RECTANGULAR
Insulator color	BLACK
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Number of connectors	ONE
Plating thickness	FLASH inch
Dielectric withstand voltage	1000VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
JESD-609 code	e4
Guideline	UL, CSA
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Is it Rohs certified?	Yes
YTEOL	0
Objectid	315151340
Reach Compliance Code	Compliant
ECCN code	EAR99
Is Samacsys	N
body width	0.197 inch
subject depth	0.43 inch
body length	0.65 inch
Terminal length	0.29 inch
