ECLPG335MY datasheet, PDF - EEWORLD Datasheet

ECLPG335MY: DescriptionActive Delay Line, 1-Func, 7-Tap, True Output, ECL, CDIP9, CERAMIC, MODULE, DIP-16/9; Categorylogic logic; File Size80KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric View All

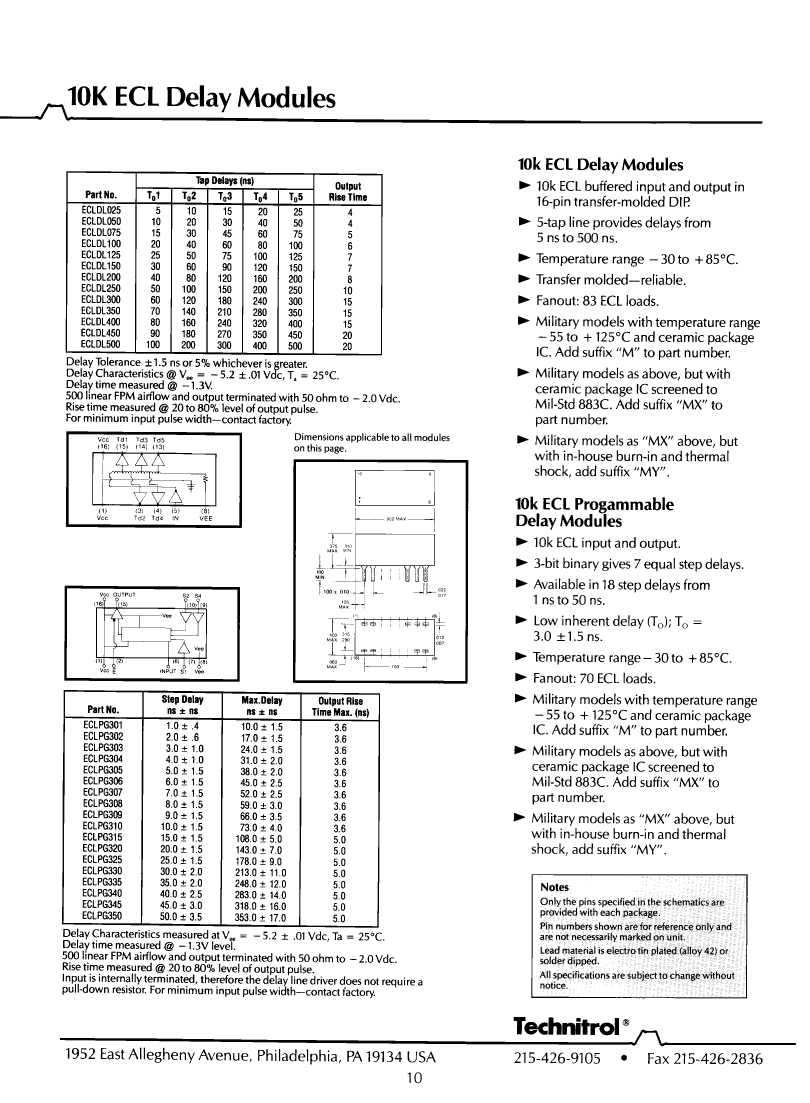

ECLPG335MY Overview

Active Delay Line, 1-Func, 7-Tap, True Output, ECL, CDIP9, CERAMIC, MODULE, DIP-16/9

Parameter Name	Attribute value
Maker	Pulse Electronics
Parts packaging code	DIP
package instruction	CERAMIC, MODULE, DIP-16/9
Contacts	16/9
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	WITH EBAR; FAN OUT OF 70 ECL LOADS; WITH IN-HOUSE BURN-IN AND THERMAL SHOCK
series	10K
JESD-30 code	R-CDIP-T9
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	7
Number of terminals	9
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-EMITTER
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	9.525 mm
surface mount	NO
technology	ECL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	248 ns
width	7.62 mm
Base Number Matches	1
