8Mb: 512K x 18, 256K x 32/36
FLOW-THROUGH SYNCBURST SRAM
8Mb SYNCBURST
™
SRAM
FEATURES
• Fast clock and OE# access times
• Single +3.3V +0.3V/-0.165V power supply (V
DD
)
• Separate +3.3V or +2.5V isolated output buffer
supply (V
DD
Q)
• SNOOZE MODE for reduced-power standby
• Common data inputs and data outputs
• Individual BYTE WRITE control and GLOBAL WRITE
• Three chip enables for simple depth expansion and
address pipelining
• Clock-controlled and registered addresses, data I/Os
and control signals
• Internally self-timed WRITE cycle
• Burst control (interleaved or linear burst)
• Automatic power-down for portable applications
• 100-pin TQFP package
• 165-pin FBGA
• Low capacitive bus loading
• x18, x32, and x36 versions available
MT58L512L18F, MT58L256L32F,
MT58L256L36F; MT58L512V18F,
MT58L256V32F, MT58L256V36F
3.3V V
DD
, 3.3V or 2.5V I/O, Flow-Through
100-Pin TQFP
1
165-Pin FBGA
OPTIONS
• Timing (Access/Cycle/MHz)
7.5ns/8.8ns/113 MHz
8.5ns/10ns/100 MHz
10ns/15ns/66 MHz
• Configurations
3.3V I/O
512K x 18
256K x 32
256K x 36
2.5V I/O
512K x 18
256K x 32
256K x 36
• Packages
100-pin TQFP (2-chip enable)
100-pin TQFP (3-chip enable)
165-pin, 13mm x 15mm FBGA
• Operating Temperature Range
Commercial (0°C to +70°C)
Industrial (-40°C to +85°C)**
Part Number Example:
MARKING
-7.5
-8.5
-10
NOTE:
1. JEDEC-standard MS-026 BHA (LQFP).
MT58L512L18F
MT58L256L32F
MT58L256L36F
MT58L512V18F
MT58L256V32F
MT58L256V36F
T
S
F*
None
IT
* A Part Marking Guide for the FBGA devices can be found on Micron’s
Web site—http://www.micron.com/support/index.html.
** Industrial temperature range offered in specific speed grades and
configurations. Contact factory for more information.
GENERAL DESCRIPTION
The Micron
®
SyncBurst
™
SRAM family employs high-
speed, low-power CMOS designs that are fabricated us-
ing an advanced CMOS process.
Micron’s 8Mb SyncBurst SRAMs integrate a 512K x 18,
256K x 32, or 256K x 36 SRAM core with advanced syn-
chronous peripheral circuitry and a 2-bit burst counter.
All synchronous inputs pass through registers controlled
by a positive-edge-triggered single-clock input (CLK).
The synchronous inputs include all addresses, all data
inputs, active LOW chip enable (CE#), two additional
chip enables for easy depth expansion (CE2#, CE2), burst
control inputs (ADSC#, ADSP#, ADV#), byte write
MT58L256V36FT-10
8Mb: 512K x 18, 256K x 32/36 Flow-Through SyncBurst SRAM
MT58L512L18F_C.p65 – Rev. 2/02
1
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2002, Micron Technology, Inc.
8Mb: 512K x 18, 256K x 32/36
FLOW-THROUGH SYNCBURST SRAM

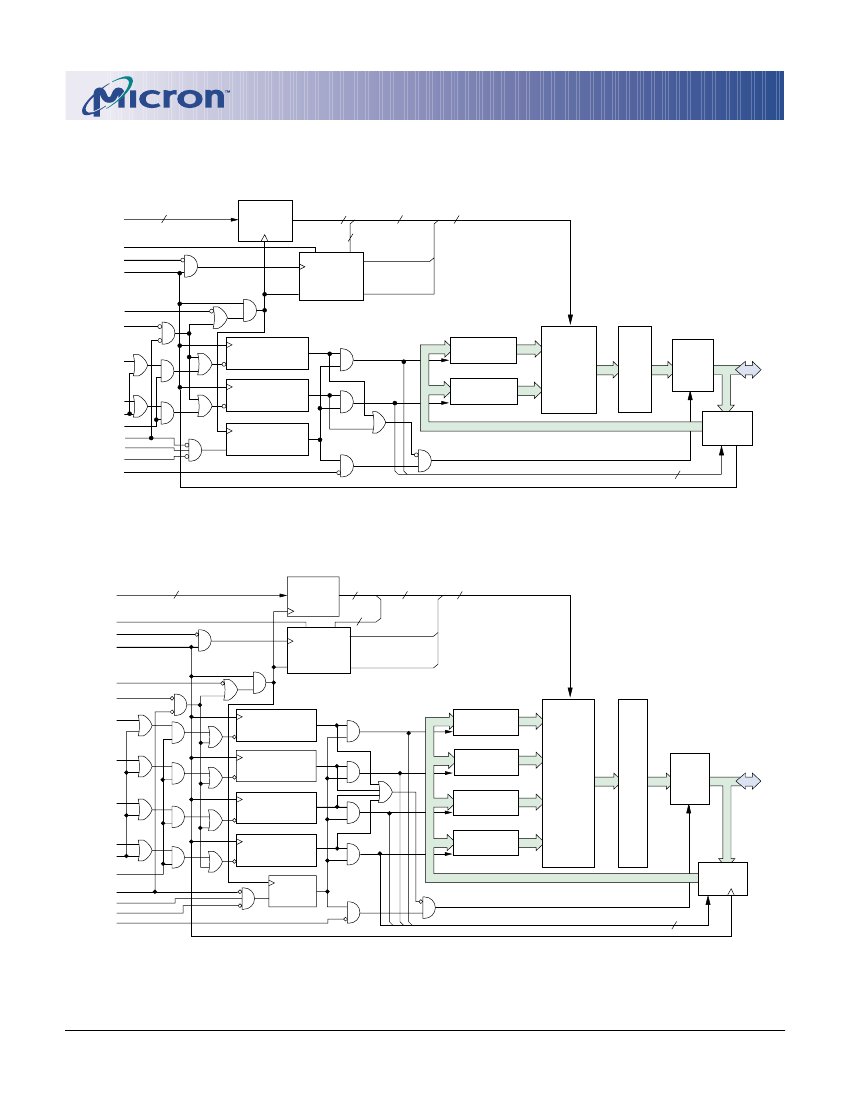

FUNCTIONAL BLOCK DIAGRAM
512K X 18
19
SA0, SA1, SAs
MODE
ADV#
CLK
ADDRESS
REGISTER
19
17
19
2
SA0-SA1
SA1'
BINARY Q1
COUNTER AND
LOGIC
CLR
Q0
SA0'
ADSC#
ADSP#
BYTE “b”
WRITE REGISTER
BYTE “b”
WRITE DRIVER
9
512K x 9 x 2
MEMORY
ARRAY
BYTE “a”
WRITE DRIVER
9
18
SENSE
AMPS
18
OUTPUT
BUFFERS
18
DQs
DQPa
DQPb
BWb#
BWa#
BWE#
GW#
CE#
CE2
CE2#
OE#
BYTE “a”
WRITE REGISTER
ENABLE
REGISTER
18
INPUT
REGISTERS
2
FUNCTIONAL BLOCK DIAGRAM
256K X 32/36
18
SA0, SA1, SAs
MODE
ADV#
CLK
BINARY Q1
SA1'
COUNTER
AND LOGIC
Q0
CLR
SA0'
ADDRESS
REGISTER
18
SA0-SA1
16
18
ADSC#
ADSP#
BWd#
BYTE “d”
WRITE REGISTER
BYTE “d”
WRITE DRIVER
9
BWc#
BYTE “c”
WRITE REGISTER
BYTE “c”
WRITE DRIVER
9
256K x 8 x 4
(x32)
256K x 9 x 4
(x36)
36
SENSE
AMPS
36
OUTPUT
BUFFERS
36
BWb#
BYTE “b”
WRITE REGISTER
BYTE “b”
WRITE DRIVER
9
MEMORY
ARRAY
DQs
DQPa
DQPb
DQPc
DQPd
BWa#
BWE#
GW#
CE#
CE2
CE2#
OE#
BYTE “a”
WRITE REGISTER
BYTE “a”
WRITE DRIVER
9
36
ENABLE
REGISTER
4
INPUT
REGISTERS
NOTE: Functional Block Diagrams illustrate simplified device operation. See Truth Table, Pin Descriptions, and timing diagrams
for detailed information.
8Mb: 512K x 18, 256K x 32/36 Flow-Through SyncBurst SRAM
MT58L512L18F_C.p65 – Rev. 2/02
2
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2002, Micron Technology, Inc.
8Mb: 512K x 18, 256K x 32/36
FLOW-THROUGH SYNCBURST SRAM
GENERAL DESCRIPTION (continued)
enables (BWx#) and global write (GW#). Note that
CE2# is not available on the T Version.
Asynchronous inputs include the output enable (OE#),
clock (CLK) and snooze enable (ZZ). There is also a burst
mode input (MODE) that selects between interleaved
and linear burst modes. The data-out (Q), enabled by
OE#, is also asynchronous. WRITE cycles can be from
one to two bytes wide (x18) or from one to four bytes wide
(x32/x36), as controlled by the write control inputs.
Burst operation can be initiated with either address
status processor (ADSP#) or address status controller
(ADSC#) inputs. Subsequent burst addresses can be in-
ternally generated as controlled by the burst advance
input (ADV#).
Address and write control are registered on-chip to
simplify WRITE cycles. This allows self-timed WRITE
cycles. Individual byte enables allow individual bytes to
be written. During WRITE cycles on the x18 device, BWa#
controls DQa pins and DQPa; BWb# controls DQb pins
and DQPb. During WRITE cycles on the x32 and x36
devices, BWa# controls DQa pins and DQPa; BWb#
controls DQb pins and DQPb; BWc# controls DQc pins
and DQPc; BWd# controls DQd pins and DQPd. GW#
LOW causes all bytes to be written. Parity bits are only
available on the x18 and x36 versions.
Micron’s 8Mb SyncBurst SRAMs operate from a +3.3V
V
DD
power supply, and all inputs and outputs are TTL-
compatible. Users can choose either a 3.3V or 2.5V I/O
version. The device is ideally suited for 486, Pentium
®
,
680x0 and PowerPC systems and those systems that ben-
efit from a wide synchronous data bus. The device is also
ideal in generic 16-, 18-, 32-, 36-, 64-, and 72-bit-wide
applications.
Please refer to Micron’S Web site (www.micron.com/
sramds)
for the latest data sheet.
TQFP PINOUTS
At the time of the writing of this data sheet, there are
two pinouts in the industry. Micron will support both
pinouts for this part.
