18Mb: 1 MEG x 18, 512K x 32/36
PIPELINED, DCD SYNCBURST SRAM
18Mb
SRAM
Features
SYNCBURST
™
MT58L1MY18D, MT58V1MV18D,
MT58L512Y32D, MT58V512V32D,
MT58L512Y36D, MT58V512V36D
3.3V V
DD
, 3.3V or 2.5V I/O; 2.5V V
DD
, 2.5V I/O
• Fast clock and OE# access times
• Single 3.3V ±5 percent or 2.5V ±5 percent power supply
• Separate 3.3V ±5 percent or 2.5V ±5 percent isolated
output buffer supply (V
DD
Q)
• SNOOZE MODE for reduced-power standby
• Common data inputs and data outputs
• Individual byte write control and global write
• Three chip enables for simple depth expansion and
address pipelining
• Clock-controlled and registered addresses, data
I/Os, and control signals
• Internally self-timed WRITE cycle
• Burst control (interleaved or linear burst)
• Low capacitive bus loading
Figure 1: 100-Pin TQFP
JEDEC-Standard MS-026 BHA (LQFP)
Options
• Timing (Access/Cycle/MHz)
3.1ns/5ns/200 MHz
3.5ns/6ns/166 MHz
4.2ns/7.5ns/133 MHz
5ns/10ns/100 MHz
• Configurations
3.3V V
DD
, 3.3V or 2.5V I/O
1 Meg x 18
512K x 32
512K x 36
2.5V V
DD
, 2.5V I/O
1 Meg x 18
512K x 32
512K x 36
• Packages
100-pin TQFP
165-ball, 13mm x 15mm FBGA
• Operating Temperature Range
Commercial (0ºC
£
T
A
£
+70ºC
Industrial (-40ºC
£
T
A
£
+85ºC)
NOTE:
TQFP
Marking
Figure 2: 165-Ball FBGA
-5
-6
-7.5
-10
JEDEC-Standard MO-216 (Var. CAB-1)
MT58L1MY18D
MT58L512Y32D
MT58L512Y36D
MT58V1MV18D
MT58V512V32D
MT58V512V36D
T
F
1
None
IT
2
Part Number Example:
MT58L512Y36DT-10
General Description
The Micron
®
SyncBurst
™
SRAM family employs
high-speed, low-power CMOS designs that are fabri-
cated using an advanced CMOS process.
Micron’s 18Mb SyncBurst SRAMs integrate a 1 Meg x
18, 512K x 32, or 512K x 36 SRAM core with advanced
synchronous peripheral circuitry and a 2-bit burst
counter. All synchronous inputs pass through registers
controlled by a positive-edge-triggered single-clock
input (CLK). The synchronous inputs include all
addresses, all data inputs, active LOW chip enable
1
1. A Part Marking Guide for the FBGA devices can be found
on Micron’s Web site—http://www.micron.com/number-
guide.
2. Contact factory for availability of Industrial Temperature
devices.
18Mb: 1 Meg x 18, 512K x 32/36, Pipelined, DCD SyncBurst SRAM
MT58L1MY18D_16_D.fm – Rev. D, Pub 2/03
©2003 Micron Technology, Inc.
PRODUCTS AND SPECIFICATIONS DISCUSSED HEREIN ARE SUBJECT TO CHANGE BY MICRON WITHOUT NOTICE.
18Mb: 1 MEG x 18, 512K x 32/36
PIPELINED, DCD SYNCBURST SRAM
(CE#), two additional chip enables for easy depth
expansion (CE2, CE2#), burst control inputs (ADSC#,
ADSP#, ADV#), byte write enables (BWx#), and global
write (GW#).
Asynchronous inputs include the output enable
(OE#), clock (CLK) and snooze enable (ZZ). There is
also a burst mode input (MODE) that selects between
interleaved and linear burst modes. The data out (Q) is
enabled by OE#. WRITE cycles can be from one to two
bytes wide (x18) or from one to four bytes wide (x32/
x36), as controlled by the write control inputs.
Burst operation can be initiated with either address
status processor (ADSP#) or address status controller
(ADSC#) inputs. Subsequent burst addresses can be
internally generated as controlled by the burst
advance input (ADV#).
Address and write control are registered on-chip to
simplify WRITE cycles. This allows self-timed write
cycles. Individual byte enables allow individual bytes
to be written. During WRITE cycles on the x18 device,
BWa# controls DQa pins/balls and DQPa; BWb# con-
trols DQb pins/balls and DQPb. During WRITE cycles
on the x32 and x36 devices, BWa# controls DQa pins/
balls and DQPa; BWb# controls DQb pins/balls and
DQPb; BWc# controls DQc pins/balls and DQPc; BWd#
controls DQd pins/balls and DQPd. GW# LOW causes
all bytes to be written. Parity bits are only available on
the x18 and x36 versions.
This device incorporates an additional pipelined
enable register which delays turning off the output
buffer an additional cycle when a deselect is executed.
This feature allows depth expansion without penaliz-
ing system performance.
The device is ideally suited for Pentium
®
and
PowerPC pipelined systems and systems that benefit
from a very wide, high-speed data bus. The device is
also ideal in generic 16-, 18-, 32-, 36-, 64-, and 72-bit-
wide applications.
Please refer to Micron’s Web site (www.micron.com/
sramds)
for the latest data sheet.
Dual Voltage I/O
The 3.3V V
DD
device is tested for 3.3V and 2.5V I/O
function. The 2.5V V
DD
device is tested for only 2.5V
I/O function.
18Mb: 1 Meg x 18, 512K x 32/36, Pipelined, DCD SyncBurst SRAM
MT58L1MY18D_16_D.fm – Rev. D, Pub 2/03
2
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2003 Micron Technology, Inc.
18Mb: 1 MEG x 18, 512K x 32/36
PIPELINED, DCD SYNCBURST SRAM

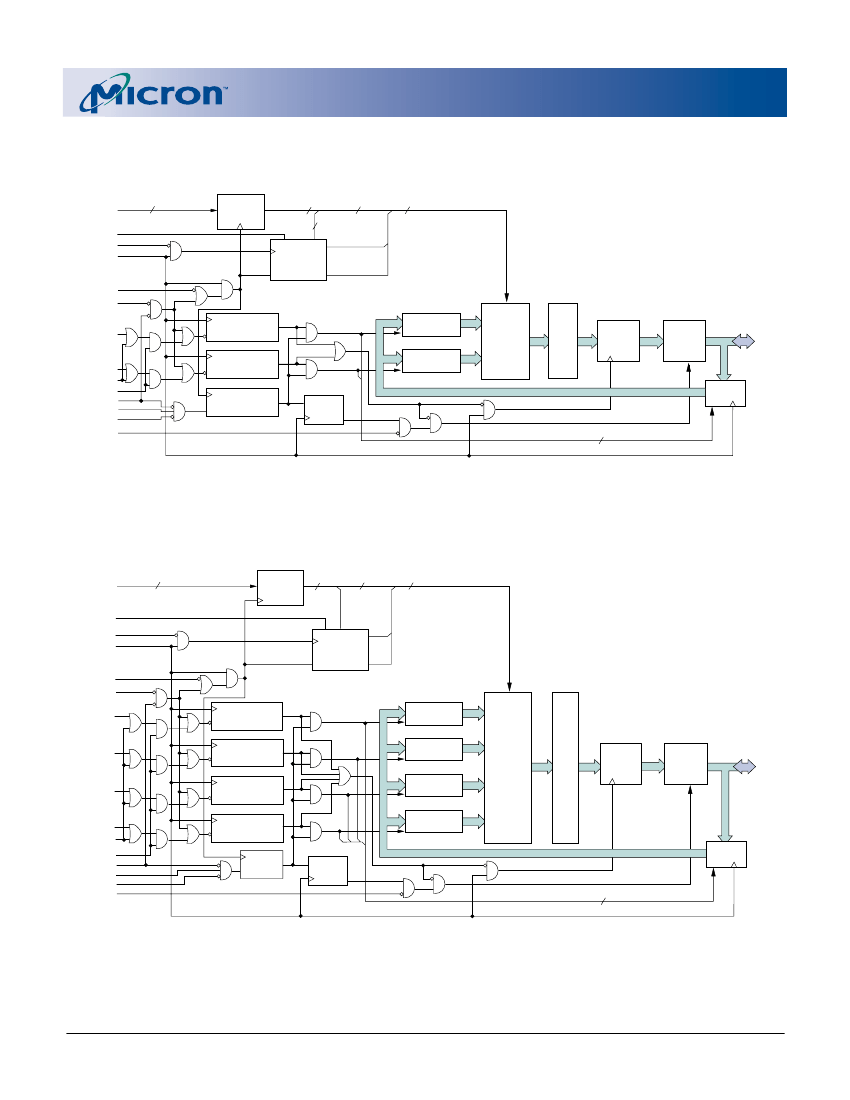

Figure 3: Functional Block Diagram
1 Meg x 18
20
SA0, SA1, SAs
MODE
ADV#
CLK
ADDRESS
REGISTER
20
18
20
2
SA0-SA1
SA1'
BINARY Q1
COUNTER AND
LOGIC
CLR
Q0
SA0'
ADSC#
ADSP#
BYTE “b”
WRITE REGISTER
9
BYTE “b”
WRITE DRIVER
9
1 Meg x 9 x 2
MEMORY
ARRAY
9
18
SENSE
AMPS
18
BWb#
OUTPUT
18
REGISTERS
OUTPUT
BUFFERS
E
18
BWa#
BWE#
GW#
CE#
CE2
CE2#
OE#
BYTE “a”
WRITE REGISTER
9
BYTE “a”
WRITE DRIVER
DQs
DQPa
DQPb
ENABLE
REGISTER
18
PIPELINED
ENABLE
2
INPUT
REGISTERS
Figure 4: Functional Block Diagram
512K x 32/36
19
SA0, SA1, SAs
ADDRESS
REGISTER
19
17
SA0-SA1
19
MODE
ADV#
CLK
Q1
SA1'
BINARY
COUNTER
SA0'
CLR
Q0
ADSC#
ADSP#
BWd#
BYTE “d”
WRITE REGISTER
BYTE “c”
WRITE REGISTER
9
BYTE
“d”
WRITE DRIVER
BYTE
“c”
WRITE DRIVER
BYTE
“b”
WRITE DRIVER
BYTE
“a”
WRITE DRIVER
9
BWc#
9
9
512K x 8 x 4
(x32)
512K x 9 x 4
(x36)
36
SENSE
AMPS
36
OUTPUT
REGISTERS
36
BWb#
BYTE “b”
WRITE REGISTER
9
9
MEMORY
ARRAY
OUTPUT
BUFFERS
E
36
DQs
DQPa
DQPb
DQPc
DQPd
BWa#
BWE#
GW#
CE#
CE2
CE2#
OE#
BYTE “a”
WRITE REGISTER
9
9
ENABLE
REGISTER
36
PIPELINED
ENABLE
4
INPUT
REGISTERS
NOTE:
Functional block diagrams illustrate simplified device operation. See truth tables, pin/ball description, and tim-
ing diagrams for detailed information.
18Mb: 1 Meg x 18, 512K x 32/36, Pipelined, DCD SyncBurst SRAM
MT58L1MY18D_16_D.fm – Rev. D, Pub 2/03
3
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2003 Micron Technology, Inc.
18Mb: 1 MEG x 18, 512K x 32/36
PIPELINED, DCD SYNCBURST SRAM
Figure 5:
Pin Layout (Top View)
100-Pin TQFP
SA
NC
NC
V
DD
Q
V
SS
NC
DQPa
DQa
DQa
V
SS
V
DD
Q
DQa
DQa
V
SS
NC
V
DD
ZZ
DQa
DQa
V
DD
Q
V
SS
DQa
DQa
NC
NC
V
SS
V
DD
Q
NC
NC
NC
SA
SA
ADV#
ADSP#
ADSC#
OE# (G#)
BWE#
GW#
CLK
V
SS
V
DD
CE2#
BWa#
BWb#
NC
NC
CE2
CE#
SA
SA
80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51
50
81
49
82
48
83
47
84
46
85
45
86
44
87
43
88
42
89
41
90
40
91
39
92
38
93
37
94
36
95
35
96
34
97
33
98
32
99
31
100
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
x18
SA
SA
SA
SA
SA
SA
SA
SA
SA
V
DD
V
SS
DNU2
DNU2
SA0
SA1
SA
SA
SA
SA
MODE
(LBO#)
SA
SA
ADV#
ADSP#
ADSC#
OE# (G#)
BWE#
GW#
CLK
V
SS
V
DD
CE2#
BWa#
BWb#
BWc#
BWd#
CE2
CE#
SA
SA
80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51
50
81
49
82
48
83
47
84
46
85
45
86
44
87
43
88
42
89
41
90
40
91
39
92
38
93
37
94
36
95
35
96
34
97
33
98
32
99
31
100
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
NF/DQPb
1
DQb
DQb
V
DD
Q
V
SS
DQb
DQb
DQb
DQb
V
SS
V
DD
Q
DQb
DQb
V
SS
NC
V
DD
ZZ
DQa
DQa
V
DD
Q
V
SS
DQa
DQa
DQa
DQa
V
SS
V
DD
Q
DQa
DQa
NF/DQPa
1
NC
NC
NC
V
DD
Q
V
SS
NC
NC
DQb
DQb
V
SS
V
DD
Q
DQb
DQb
NC
V
DD
NC
V
SS
DQb
DQb
V
DD
Q
V
SS
DQb
DQb
DQPb
NC
V
SS
V
DD
Q
NC
NC
NC
x32/x36
SA
SA
SA
SA
SA
SA
SA
SA
SA
V
DD
V
SS
DNU2
DNU2
SA0
SA1
SA
SA
SA
SA
MODE
(LBO#)
NOTE:
1. No Function (NF) is used on the x32 version. Parity (DQPx) is used on the x36 version.
2. Pins 39 and 38 are reserved for address expansion; 36Mb and 72Mb, respectively.
18Mb: 1 Meg x 18, 512K x 32/36, Pipelined, DCD SyncBurst SRAM
MT58L1MY18D_16_D.fm – Rev. D, Pub 2/03
NF/DQPc
1
DQc
DQc
V
DD
Q
V
SS
DQc
DQc
DQc
DQc
V
SS
V
DD
Q
DQc
DQc
NC
V
DD
NC
V
SS
DQd
DQd
V
DD
Q
V
SS
DQd
DQd
DQd
DQd
V
SS
V
DD
Q
DQd
DQd
NF/DQPd
1
4
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2003 Micron Technology, Inc.
18Mb: 1 MEG x 18, 512K x 32/36
PIPELINED, DCD SYNCBURST SRAM
Table 1:
SYMBOL
ADSC#
TQFP Pin Descriptions
TYPE
Input
DESCRIPTION
Synchronous Address Status Controller: This active LOW input interrupts any ongoing burst,
causing a new external address to be registered. A READ or WRITE is performed using the
new address if CE# is LOW. ADSC# is also used to place the chip into power-down state when
CE# is HIGH.
Synchronous Address Status Processor: This active LOW input interrupts any ongoing burst,
causing a new external address to be registered. A READ is performed using the new address,
independent of the byte write enables and ADSC#, but dependent upon CE#, CE2, and CE2#.
ADSP# is ignored if CE# is HIGH. Power-down state is entered if CE2 is LOW or CE2# is HIGH.
Synchronous Address Advance: This active LOW input is used to advance the internal burst
counter, controlling burst access after the external address is loaded. A HIGH on this pin
effectively causes wait states to be generated (no address advance). To ensure use of correct
address during a WRITE cycle, ADV# must be HIGH at the rising edge of the first clock after an
ADSP# cycle is initiated.
Synchronous Byte Write: These active LOW inputs allow individual bytes to be written when a
WRITE cycle is active and must meet the setup and hold times around the rising edge of CLK.
BWs need to be asserted on the same cycle as the address. To enable the BW’s functionality,
the byte write enable (BWE#) input must be asserted LOW. BWa# controls DQa pins; BWb#
controls DQb pins; BWc# controls DQc pins; and BWd# controls DQa pins.
Byte Write Enable: This active LOW input permits BYTE WRITE operations and must meet the
setup and hold times around the rising edge of CLK.
Synchronous Chip Enable: This active LOW input is used to enable the device and conditions
the internal use of ADSP#. CE# is sampled only when a new external address is loaded.
Synchronous Chip Enable: This active LOW input is used to enable the device and is sampled
only when a new external address is loaded.
Synchronous Chip Enable: This active HIGH input is used to enable the device and is sampled
only when a new external address is loaded.
Clock: This signal registers the address, data, chip enable, byte write enables, and burst
control inputs on its rising edge. All synchronous inputs must meet setup and hold times
around the clock’s rising edge.
Global Write: This active LOW input allows a full 18-, 32-, or 36-bit WRITE to occur
independent of the BWE# and BWx# lines and must meet the setup and hold times around
the rising edge of CLK.
Mode: This input selects the burst sequence. A LOW on this pin selects “linear burst.” NC or
HIGH on this pin selects “interleaved burst.” Do not alter input state while device is
operating. LBO# is the JEDEC-standard term for MODE.
Output Enable: This active LOW, asynchronous input enables the data I/O output drivers. G# is
the JEDEC-standard term for OE#.
Synchronous Address Inputs: These inputs are registered and must meet the setup and hold
times around the rising edge of CLK.
Snooze Enable: This active HIGH, asynchronous input causes the device to enter a low-power
standby mode in which all data in the memory array is retained. When ZZ is active, all other
inputs are ignored. This pin has an internal pull-down and can be left unconnected.
SRAM Data I/Os: For the x18 version, byte “a” is associated with DQa pins; byte “b” is
associated with DQb pins. For the x32 and x36 versions, byte “a” is associated with DQa pins;
byte “b” is associated with DQb pins; byte “c” is associated with DQc pins; byte “d” is
associated with DQd pins. Input data must meet setup and hold times around the rising edge
of CLK.
ADSP#
Input
ADV#
Input
BWa#
BWb#
BWc#
BWd#
BWE#
CE#
CE2#
CE2
CLK
Input
Input
Input
Input
Input
Input
GW#
Input
MODE
(LBO#)
OE# (G#)
SA0
SA1
SA
ZZ
Input
Input
Input
Input
DQa
DQb
DQc
DQd
Input/
Output
18Mb: 1 Meg x 18, 512K x 32/36, Pipelined, DCD SyncBurst SRAM
MT58L1MY18D_16_D.fm – Rev. D, Pub 2/03
5
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2003 Micron Technology, Inc.
京公网安备 11010802033920号
EEWORLD
