BG165-16-A-A-N-D datasheet, PDF

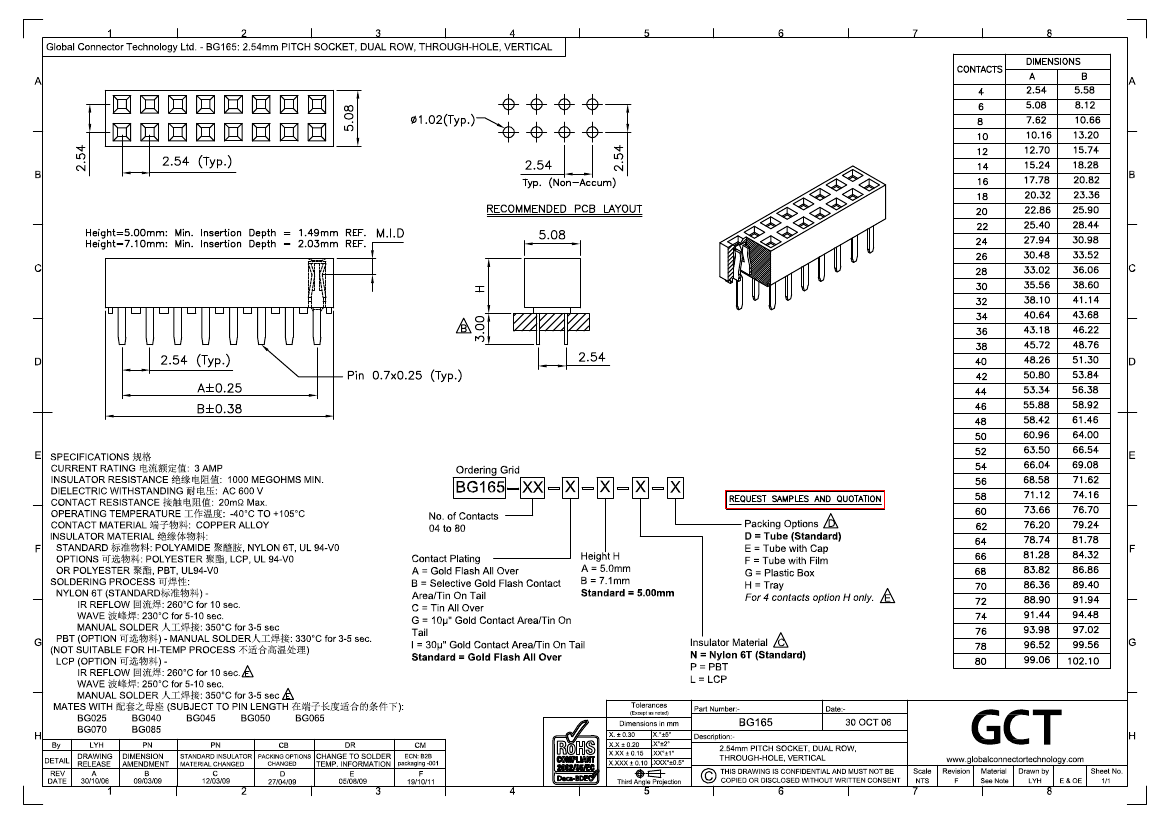

BG165-16-A-A-N-D: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size364KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG165-16-A-A-N-D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BG165-16-A-A-N-D	-	-	View	Buy Now

Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator,

Parameter Name	Attribute value
Is it Rohs certified?	Yes
Objectid	316106659
Reach Compliance Code	Compliant
Country Of Origin	Mainland China
ECCN code	EAR99
Is Samacsys	N
YTEOL	9.1
body length	0.82 inch
Terminal length	0.118 inch
body width	0.2 inch
subject depth	0.197 inch
Connector type	BOARD CONNECTOR
Contact resistance	20 mΩ
Total number of contacts	16
Durability	100 Cycles
Installation method	STRAIGHT
PCB row number	2
Rated current (signal)	3 A
Body/casing type	SOCKET
insulator material	POLYAMIDE6T
Number of rows loaded	2
Terminal pitch	2.54 mm
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Installation type	BOARD
Installation option 1	LOCKING
PCB contact row spacing	2.54 mm
Termination type	SOLDER
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
PCB contact pattern	RECTANGULAR
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Number of connectors	ONE
Plating thickness	FLASH inch
Contact material	COPPER ALLOY
Insulator color	BLACK
Plug contact pitch	0.1 inch
Options	GENERAL PURPOSE
Evacuation force-minimum value	0.3 N
Dielectric withstand voltage	600VAC V
Filter function	NO
maximum insertion force	3 N
Insulation resistance	1000000000 Ω
JESD-609 code	e4
Guideline	UL
UL Flammability Code	94V-0
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
