1210-021-15S-BAH datasheet, PDF

Datasheet> All Categories > The connector> The connector> 1210-021-15S-BAH

1210-021-15S-BAH: DescriptionD Type Connector, 15 Contact(s), Female, 0.1 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size342KB，1 Pages; ManufacturerTekcon Electronics Corp

Download Datasheet Parametric View All

1210-021-15S-BAH Overview

D Type Connector, 15 Contact(s), Female, 0.1 inch Pitch, Solder Terminal, #4-40, Receptacle

1210-021-15S-BAH Parametric

Parameter Name	Attribute value
Is Samacsys	N
Objectid	305386734
Reach Compliance Code	Unknown
ECCN code	EAR99
Terminal length	0.125 inch
body width	0.494 inch
subject depth	0.477 inch
body length	1.545 inch
Total number of contacts	15
PCB row number	2
Rated current (signal)	5 A
Contact point gender	FEMALE
Shell material	STEEL
Terminal pitch	2.54 mm
Body/casing type	RECEPTACLE
Contact resistance	10 mΩ
insulator material	GLASS FILLED POLYETHYLENE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU
Contact style	RND PIN-SKT
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact material	COPPER ALLOY
Match contact row spacing	0.112 inch
Plating thickness	FLASH inch
PCB contact row spacing	2.8448 mm
Shell surface	NICKEL
contact mode	STAGGERED
Plug contact pitch	0.1 inch
Installation option 1	#4-40
Installation option 2	LOCKING
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Termination type	SOLDER
Dielectric withstand voltage	1400VAC V
Insulation resistance	5000000000 Ω
JESD-609 code	e0
Guideline	UL
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Is it Rohs certified?	No

Preview

Download Datasheet

View All

http://www.tekcon.com

http://www.tekcon.com.tw

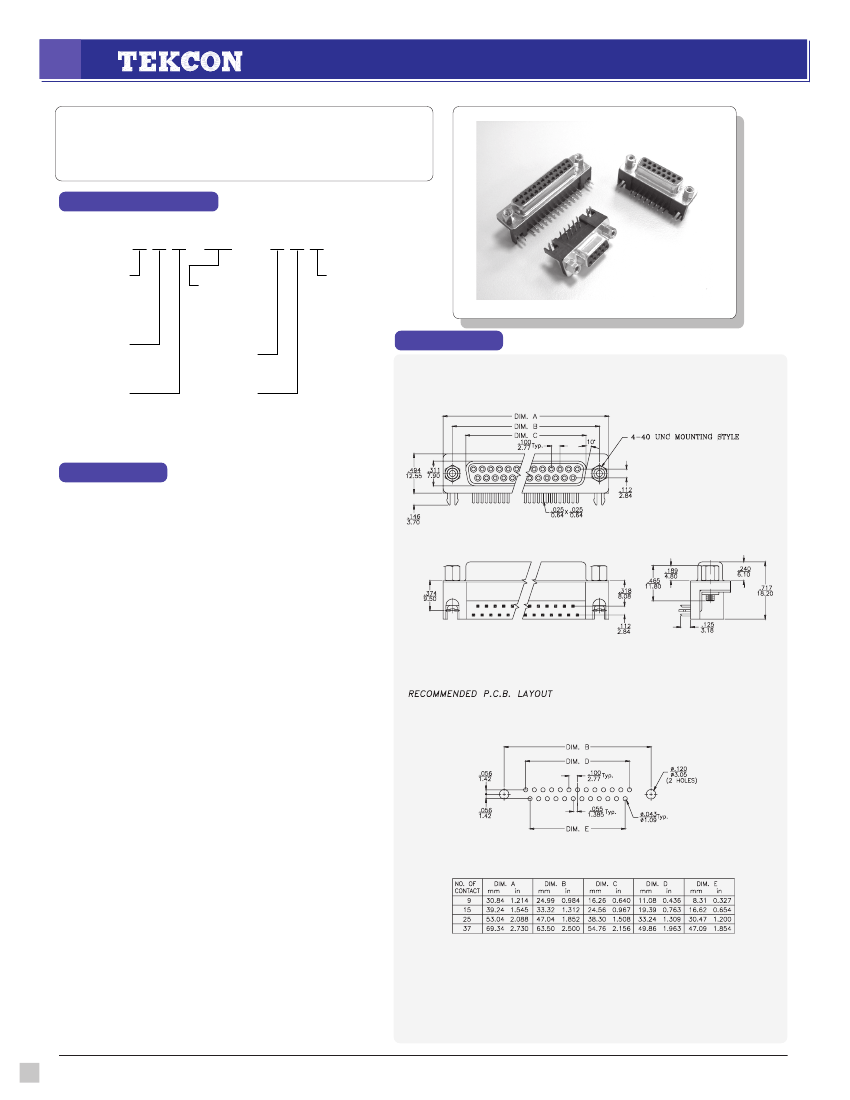

1210 Series

D-Sub Miniature Connector

0.318 Footprint, Right Angle, Receptacle

Ordering Information

1210

X X X

XX S

X X X

Contact Plating

0 - Gold Flash/Tin

1 - 10

µ"

Gold/Tin

3 - 30

µ"

Gold/Tin

5 - 15

µ"

Gold/Tin

Hex-Nut

Type 0,1,2,5,6,7,B,N,V,W,Y

see Hex-Nut Table

(P.14-4, Appendix D.)

Grounding Clip

Type 1 to 6

see Grounding Clip Table

(P.14-1, Appendix A)

NO. of Contact

09 - 9 positions

15 - 15 positions

25 - 25 positions

37 - 37 positions

Spacer Type

A - Open Type (Std.)

B - Close Type

Shell Plating

A - Nickel (Std.)

B - Tin

Omit for Standard

-High Temperature

Material, Black

Dimension

Specification

Materials:

Insulator:

Glass Fiber Reinforced Thermoplastic, UL94V-0.

Shell:

Steel with Nickel Plating (Tin on Request).

Contact:

Copper Alloy.

Plating:

Gold on Contact Area and

Tin/ Lead on Solder Tail.

Grounding Clip:

Copper Alloy with Tin/Lead Plating.

Hex-Nut:

Brass with Tin Plating.

Electrical:

Insulation Resistance:

5000 MΩ Minimum.

Dielectric Withstanding Voltage:

1000 VAC R.M.S.

Voltage Rating:

600V.

Current Rating:

5 AMP.

Contact Resistance:

10 mΩ Maximum.

Enviromental

Temperature: -558C to +1258C

All Dimensions are shown in in/mm.

The above ordering data is for our standard

products.

For Non-Standard products, please contact

TEKCON Electronics Corporation.

TEKCON Electronics Corporation

4-2
