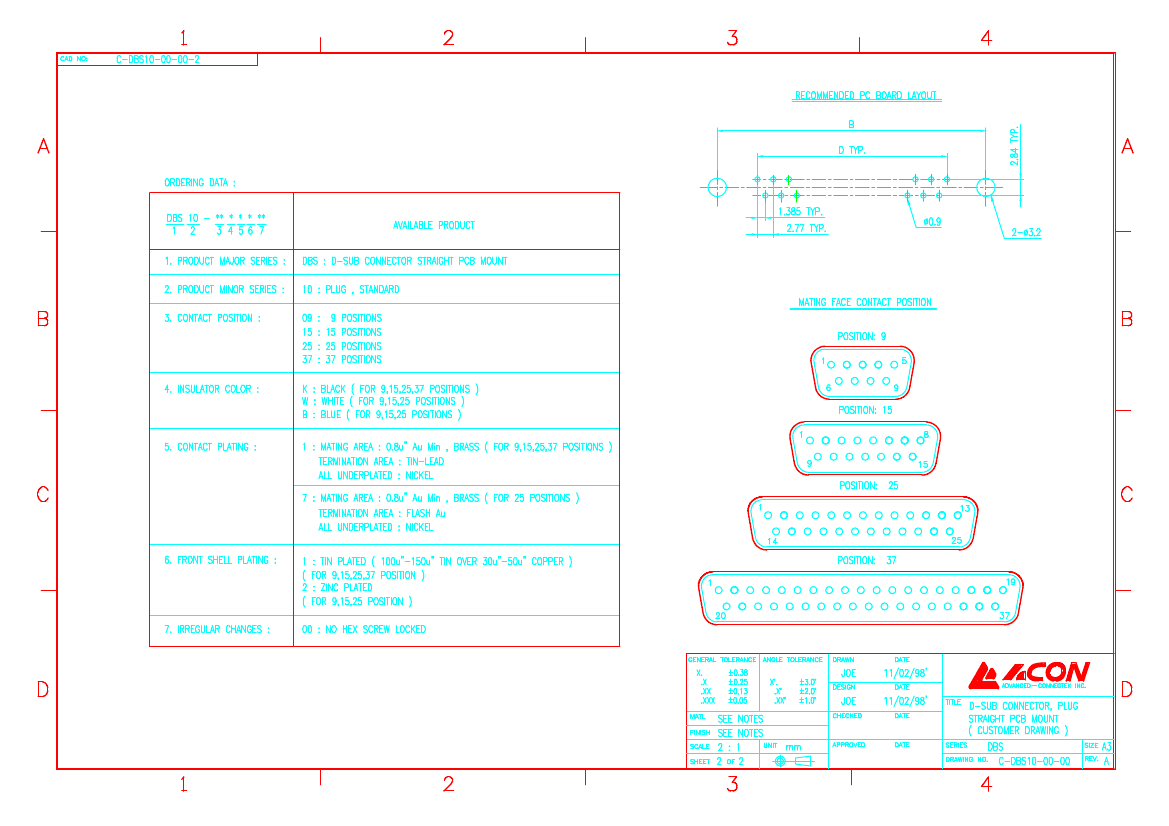

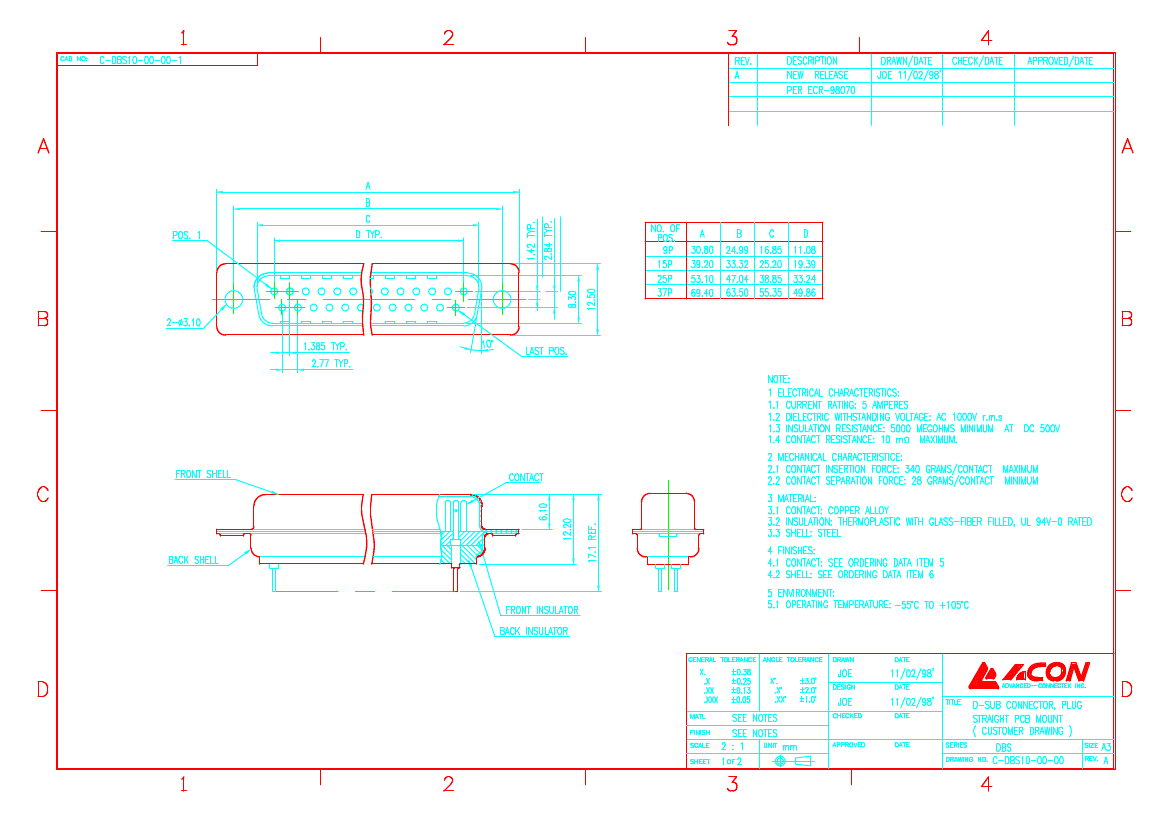

D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle
| Parameter Name | Attribute value |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| Guideline | UL, CSA |
| Objectid | 303788365 |
| Reach Compliance Code | Unknown |
| ECCN code | EAR99 |
| Is Samacsys | N |
| PCB row number | 2 |
| Body/casing type | RECEPTACLE |
| Contact to complete cooperation | AU ON NI |
| Contact resistance | 10 mΩ |
| Installation method | STRAIGHT |
| Rated current (signal) | 5 A |
| Shell material | STEEL |
| Other features | W/O HEX SCREW LOCK |
| Connector type | D SUBMINIATURE CONNECTOR |
| Installation type | BOARD |
| Number of rows loaded | 2 |
| Contact point gender | MALE |
| insulator material | GLASS FILLED POLYETHYLENE |
| Terminal pitch | 2.7686 mm |
| Total number of contacts | 25 |
| subject depth | 0.24 inch |
| body length | 2.091 inch |
| Terminal length | 0.193 inch |
| body width | 0.492 inch |
| Contact style | RND PIN-SKT |
| Insulator color | BLACK |
| Plug contact pitch | 0.109 inch |
| Installation option 2 | LOCKING |
| Shell surface | ZINC |
| Match contact row spacing | 0.112 inch |
| Installation option 1 | HOLE .112-.124 |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.8448 mm |
| Termination type | SOLDER |
| Contact completed and terminated | GOLD OVER NICKEL |
| Contact material | BRASS |
| contact mode | STAGGERED |
| Options | GENERAL PURPOSE |
| Dielectric withstand voltage | 1000VAC V |
| maximum insertion force | 3.336 N |
| Insulation resistance | 5000000000 Ω |
| Evacuation force-minimum value | .278 N |
