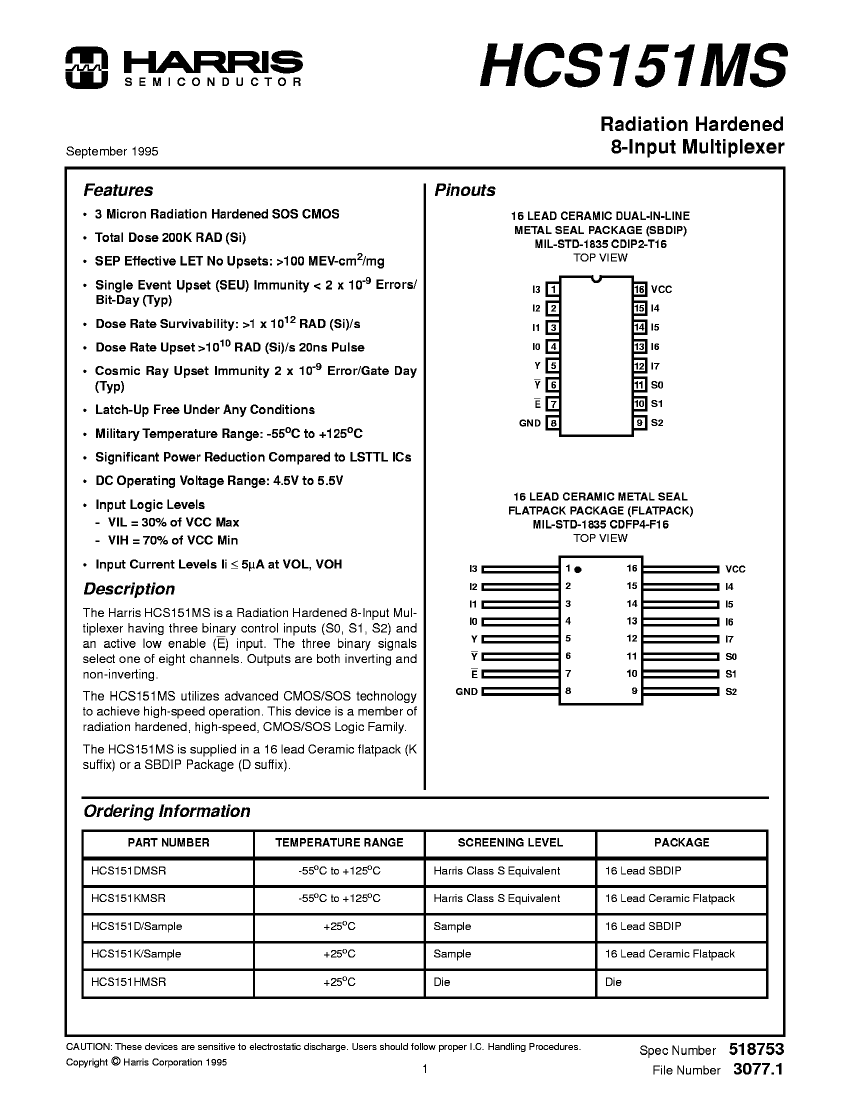

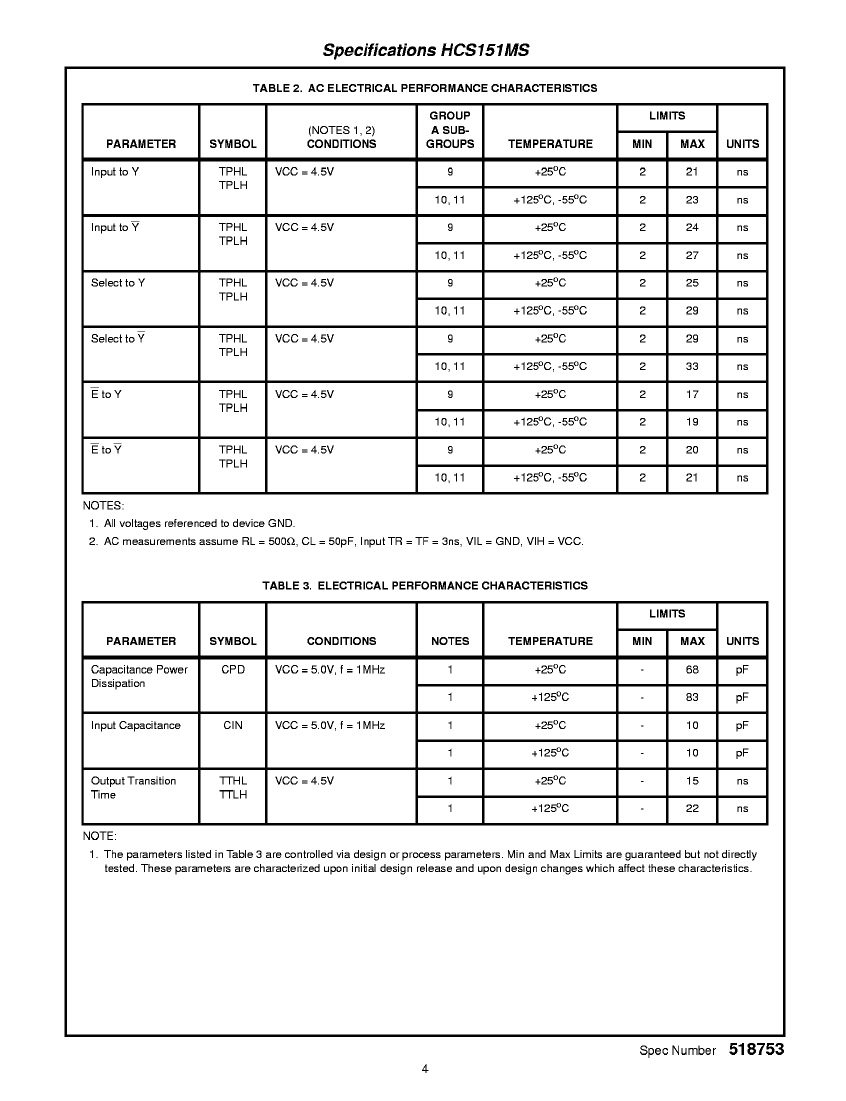

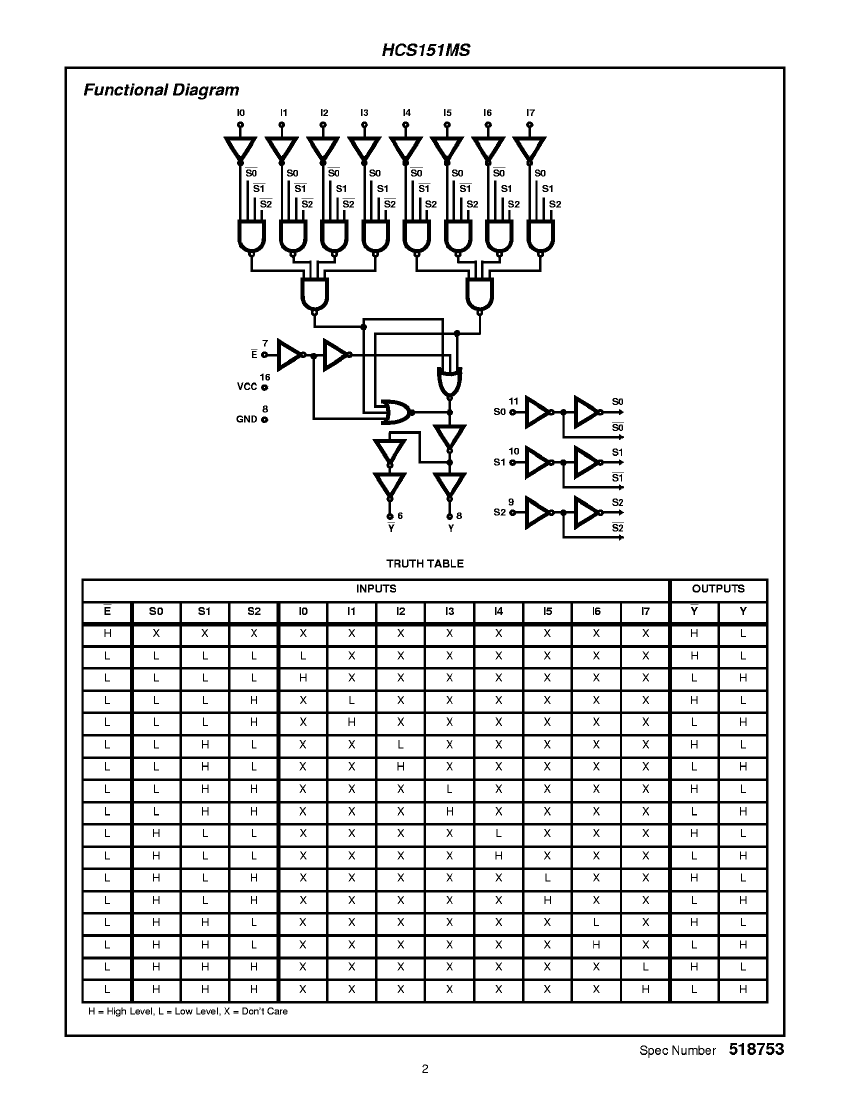

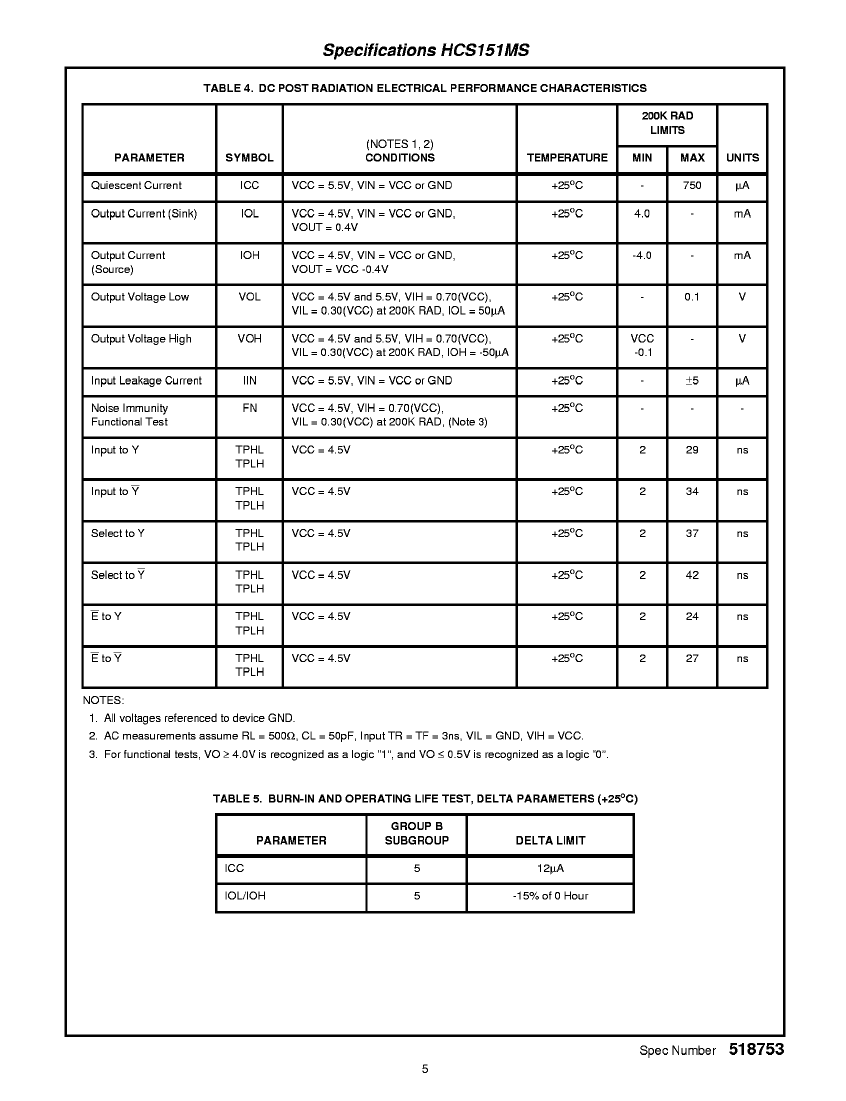

5962R9572801VEC datasheet, PDF

5962R9572801VEC: DescriptionHC/UH SERIES, 8 LINE TO 1 LINE MULTIPLEXER, COMPLEMENTARY OUTPUT, CDIP16, METAL SEALED, SIDE BRAZED, CERAMIC, DIP-16; Categorylogic logic; File Size226KB，9 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric View All

5962R9572801VEC Overview

HC/UH SERIES, 8 LINE TO 1 LINE MULTIPLEXER, COMPLEMENTARY OUTPUT, CDIP16, METAL SEALED, SIDE BRAZED, CERAMIC, DIP-16

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	METAL SEALED, SIDE BRAZED, CERAMIC, DIP-16
Is Samacsys	N
YTEOL	0
Objectid	1532325209
Contacts	16
Reach Compliance Code	Unknown
series	HC/UH
Number of entries	8
Output times	1
encapsulated code	DIP
Prop。Delay @ Nom-Sup	34 ns
propagation delay (tpd)	37 ns
surface mount	NO
Number of functions	1
Nominal supply voltage (Vsup)	5 V
JESD-30 code	R-CDIP-T16
JESD-609 code	e4
Certification status	Not Qualified
Maximum seat height	5.08 mm
width	7.62 mm
length	19.05 mm
MaximumI(ol)	0.004 A
Output polarity	COMPLEMENTARY
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
technology	CMOS
Temperature level	MILITARY
Logic integrated circuit type	MULTIPLEXER
Package body material	CERAMIC, METAL-SEALED COFIRED
Encapsulate equivalent code	DIP16,.3
Terminal pitch	2.54 mm
Terminal location	DUAL
Number of terminals	16
Package shape	RECTANGULAR
Package form	IN-LINE
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Filter level	38535V;38534K;883S
total dose	100k Rad(Si) V
