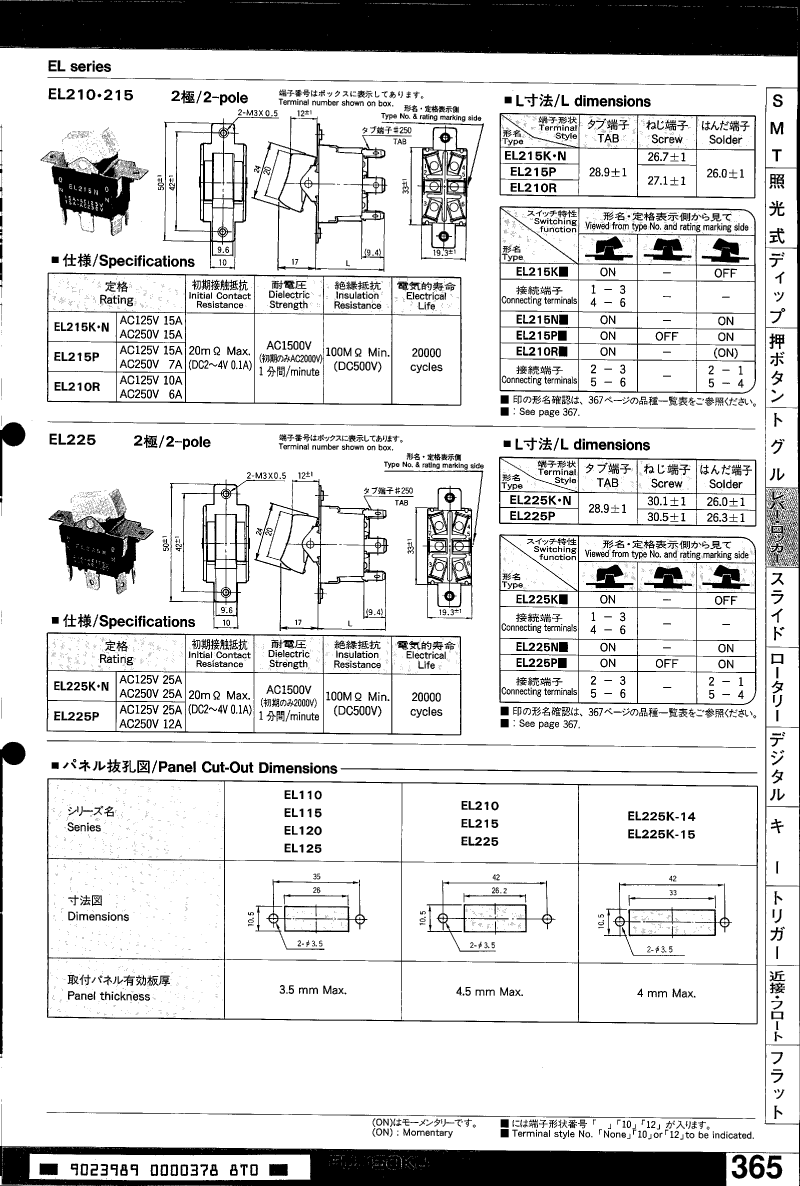

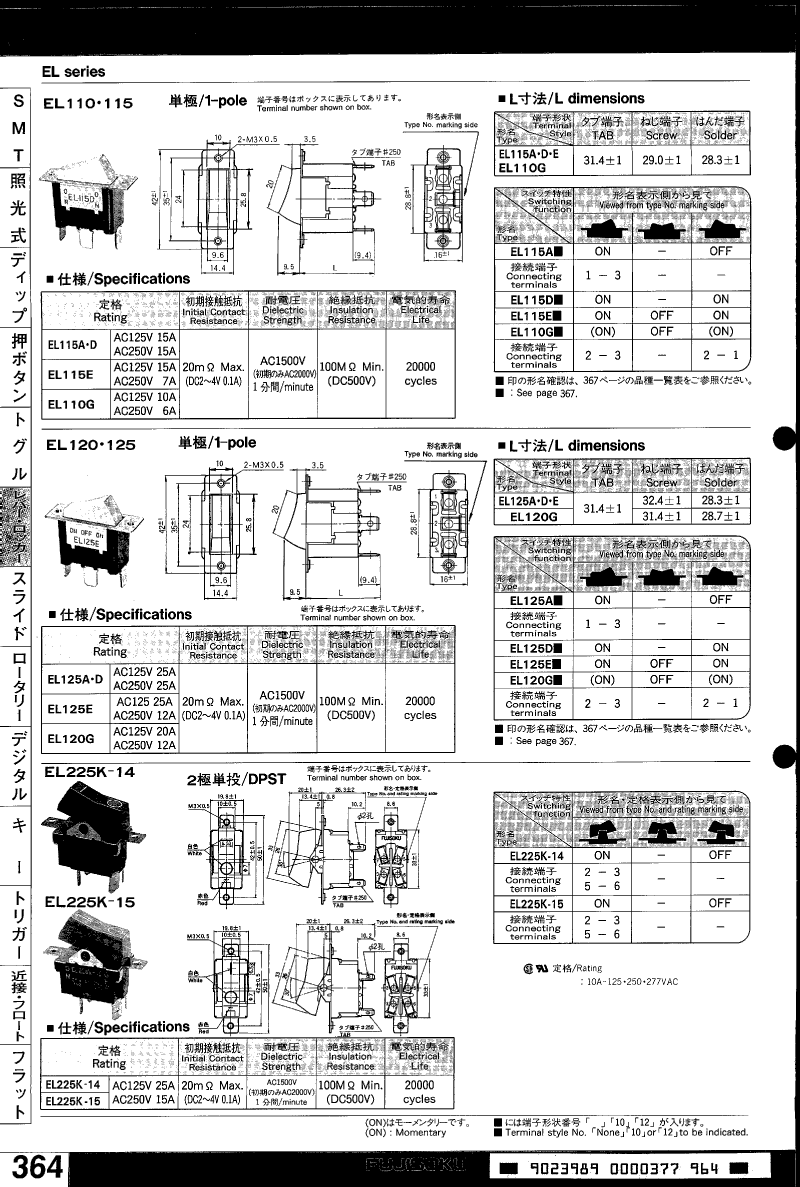

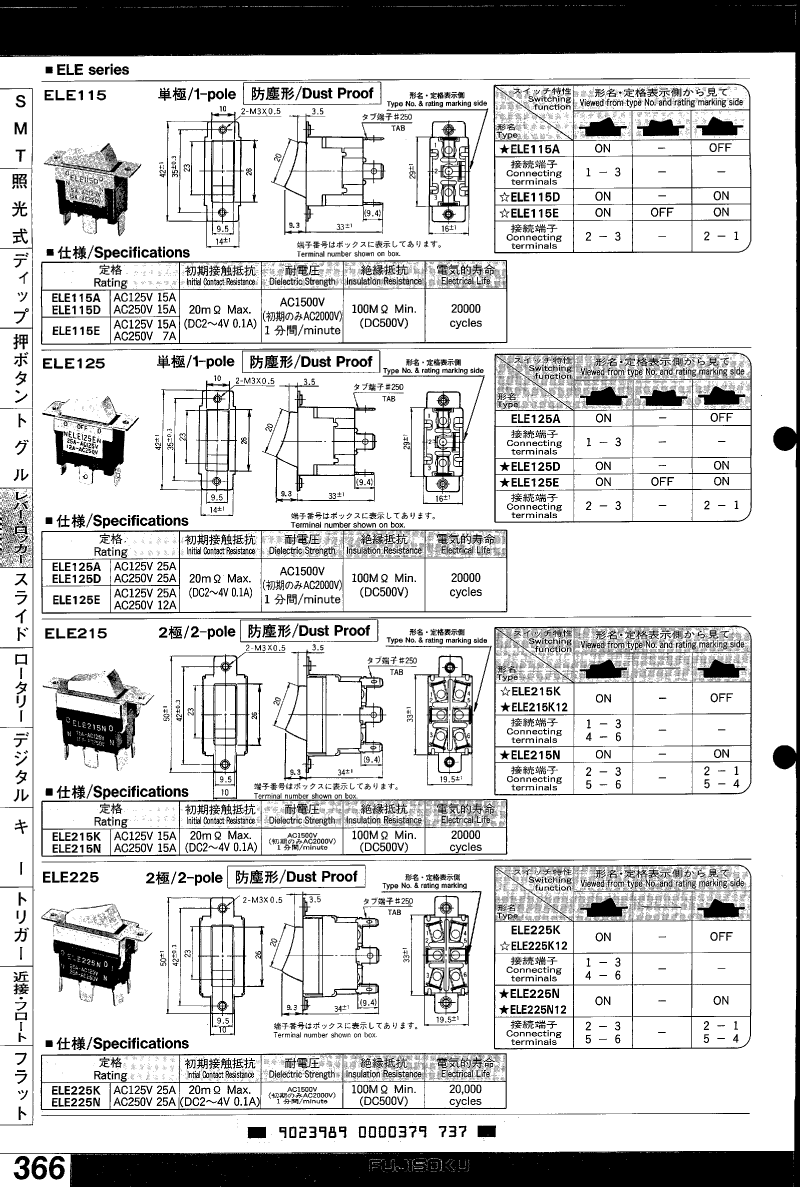

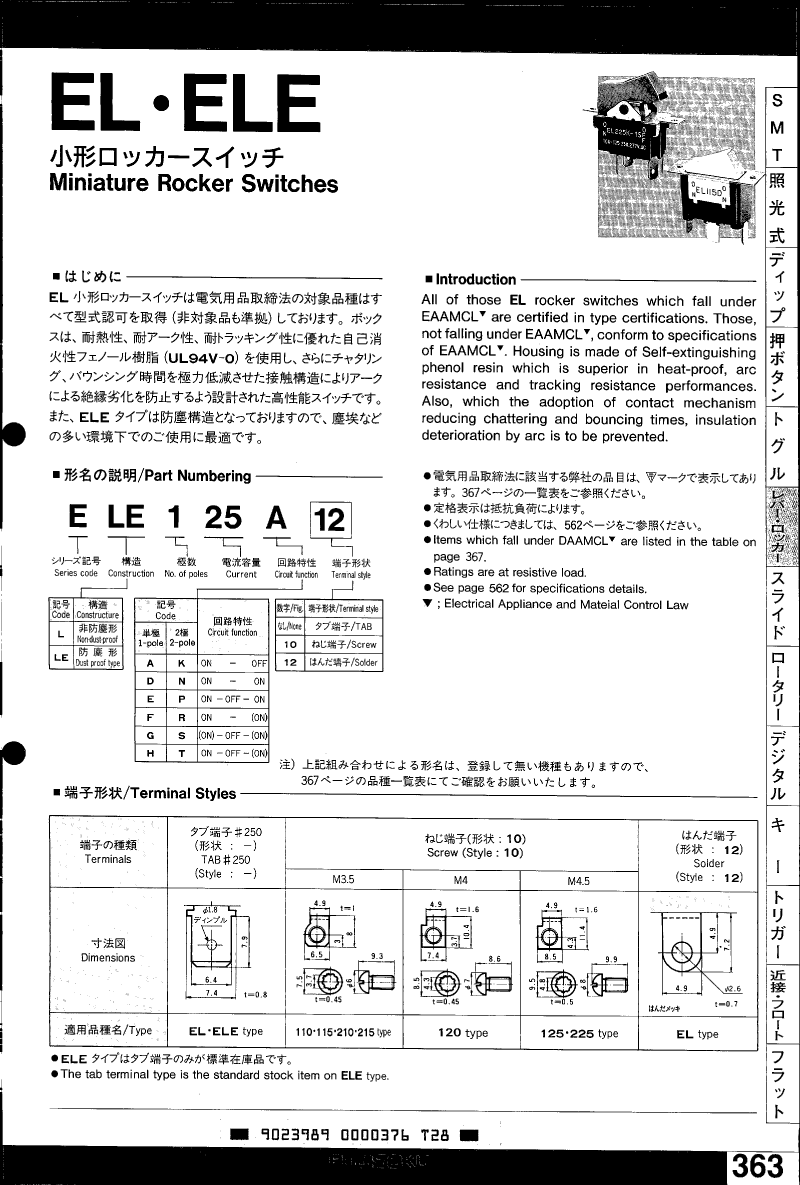

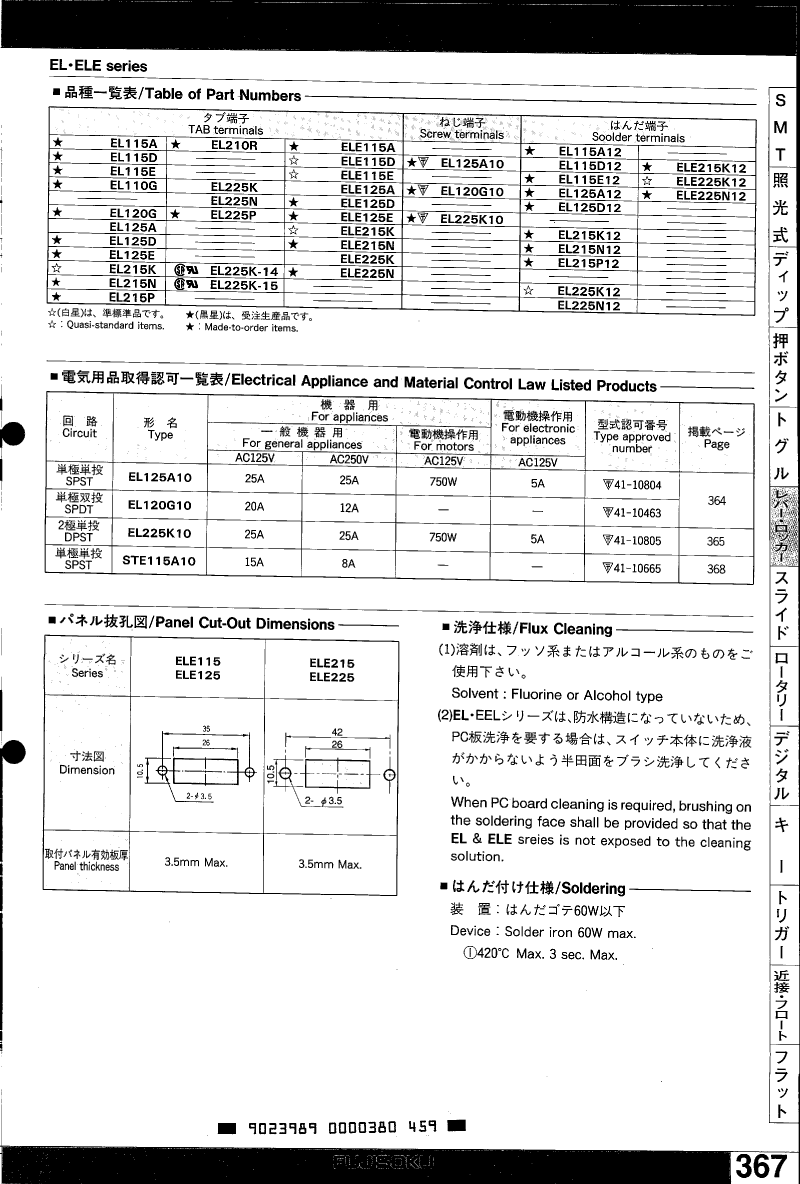

EL215N Overview

Rocker Switch, DPDT, On-on, Horizontal, Quick Connect Terminal, Rocker Actuator, Panel Mount,

Parameter Name	Attribute value
Is Samacsys	N
YTEOL	0
Objectid	312032304
Reach Compliance Code	Unknown
ECCN code	EAR99
Termination type	QUICK CONNECT
Washability	SOLVENT
Actuator angle
contact time	BREAK-BEFORE-MAKE
Installation features	PANEL MOUNT
Solderability	HAND
surface mount	NO
Switch type	ROCKER SWITCH
Actuator type	ROCKER
Maximum contact voltage (AC)	250 V
Insulation resistance	100000000 Ω
Contact function	ON-ON
Dielectric withstand voltage	1500VAC V
Other features	NON-DUST PROOF
Contact (AC) maximum rated R load	15A@250VAC
Maximum contact current (AC)	15 A
body width	19.304 mm
Body length or diameter	32.9946 mm
Switch action	LATCHED
switch function	DPDT
Contact resistance	0.02 mΩ
Electrical life	20000 Cycle(s)
