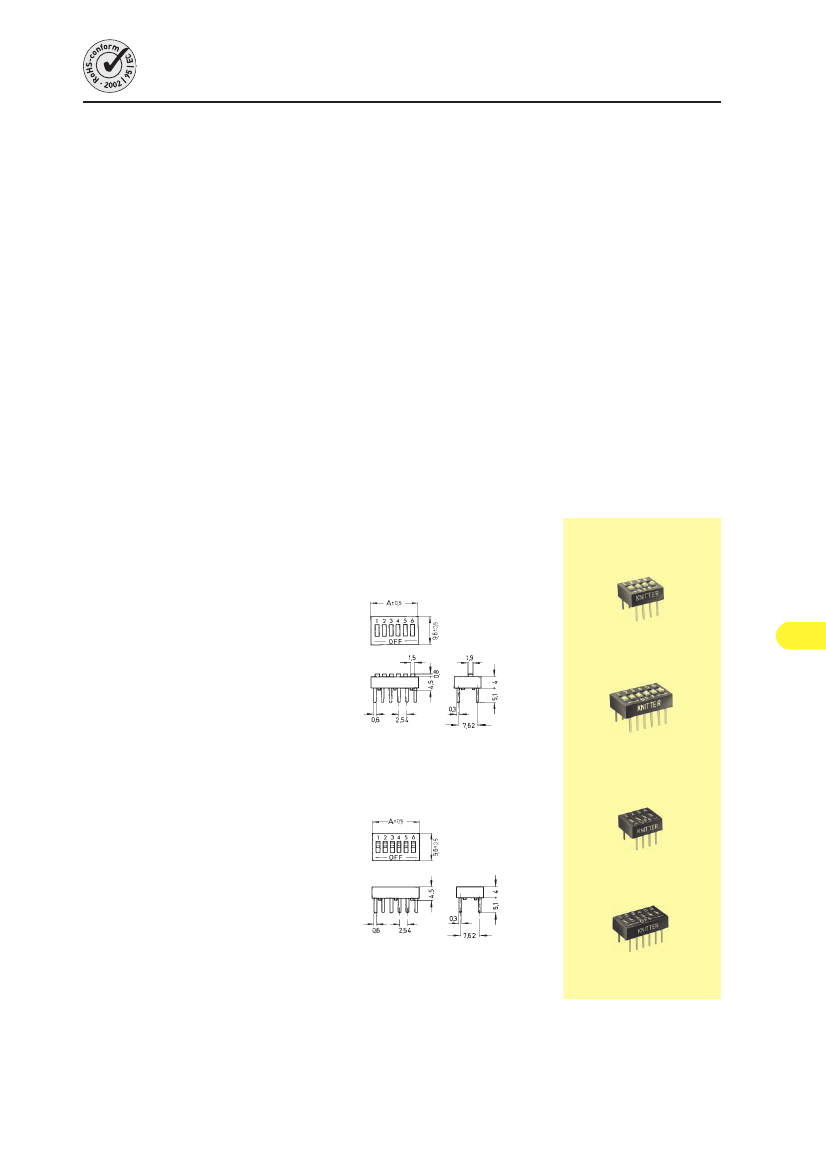

Dual-in-line Switches
Specifications:
Contact rating:
Contact resistance:
Insulation resistance:
Capacity:
Dielectric strength:
Operating temperature:
Mechanical life:
Shock resistance:
Vibration:
Contact/ Terminals:
Material:
Construction:
Slide position:
Mounting:
Soldering conditions:
50 V DC, 100 mA
< 50 mΩ
> 1000 MΩ at 100 V DC
< 5 pF between 2 poles
500 V, 50 Hz for the duration of 1 minute
– 20° to + 80° C
minimum 10 000 operations per pole
contact interruption < 10 µsec with triple shock in all 6 directions
shock conditions: 20 G, 11 msec duration (sine half wave)
contact interruption < 10 µsec at vibration test in accordance with
MIL-STD-202 D, method 204, condition C
PC terminals, phosphor bronze, 0,2 µm gold-plated over 1 µm nickel
case: PBTP, slide: PA
case sealed
series 400: slide recessed, sealed with protective tape
OFF
on pc-board
auto-soldering – max.: 3 sec, 270º C
Models:
Series DSS 200
Type
DSS 201
DSS 202
DSS 203
DSS 204
DSS 205
DSS 206
DSS 207
DSS 208
DSS 210
Poles
1
2
3
4
5
6
7
8
10
Length (A)
4,0 mm
6,6 mm
9,2 mm
11,7 mm
14,3 mm
16,8 mm
19,3 mm
21,8 mm
26,9 mm
5
Series DSS 400
Type
DSS 402
DSS 403
DSS 404
DSS 405
DSS 406
DSS 407
DSS 408
DSS 410
Accessories:
Acrylic caps
Poles
2
3
4
5
6
7
8
10
Length (A)
6,6 mm
9,2 mm
11,7 mm
14,3 mm
16,8 mm
19,3 mm
21,8 mm
26,9 mm
D 102 H to D 110 H (2–10 poles)
