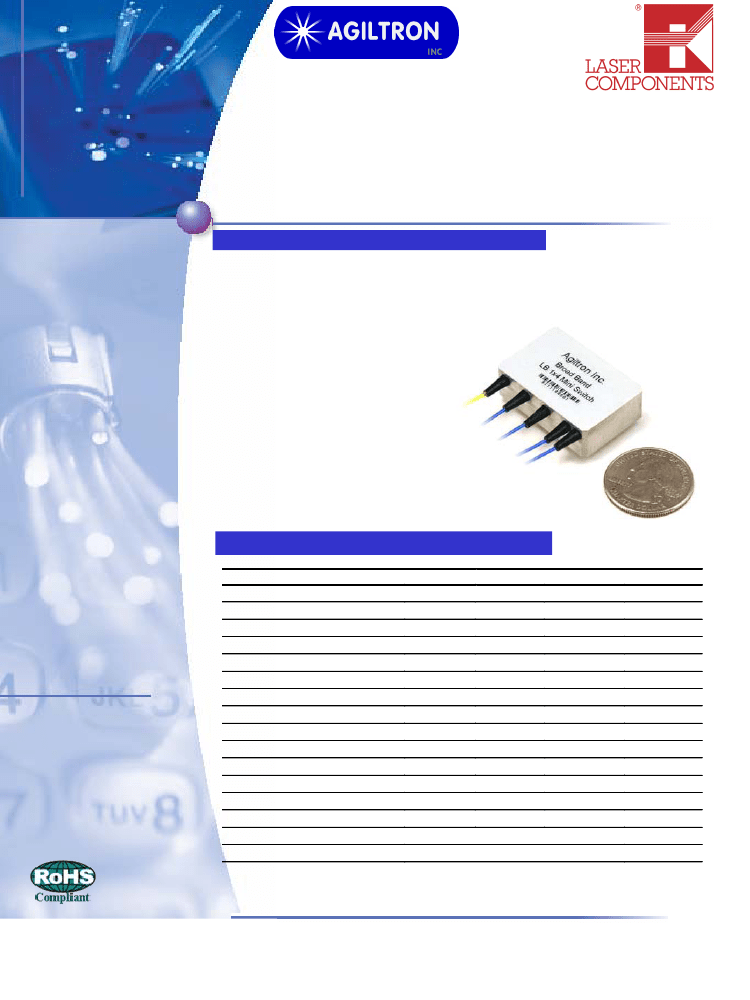

LightBend

Mini 1x4 PM

OptoMechanical Fiberoptic Switch

(Protected by U.S. patent 6823102 and pending patents)

Product Description

The LB Series Mini 1x4 PM fiber optic switch connects optical channels by

redirecting an incoming optical signal into a selected output fiber. This is

achieved by using a patented opto-mechanical configuration activated via

an electrical control signal. Latching operation preserves the selected

optical path after the drive signal

has been removed. The switch has

integrated electrical position

sensors, and the new material

based advanced design

significantly reduces moving part

position sensitivity, offering

unprecedented high stability and

longevity, as well as an unmatched

low cost. Electrical driver is also

available.

Features

•

Unmatched Low Cost

Low Optical Distortions

High Isolation

High Reliability

Epoxy-Free Optical Path

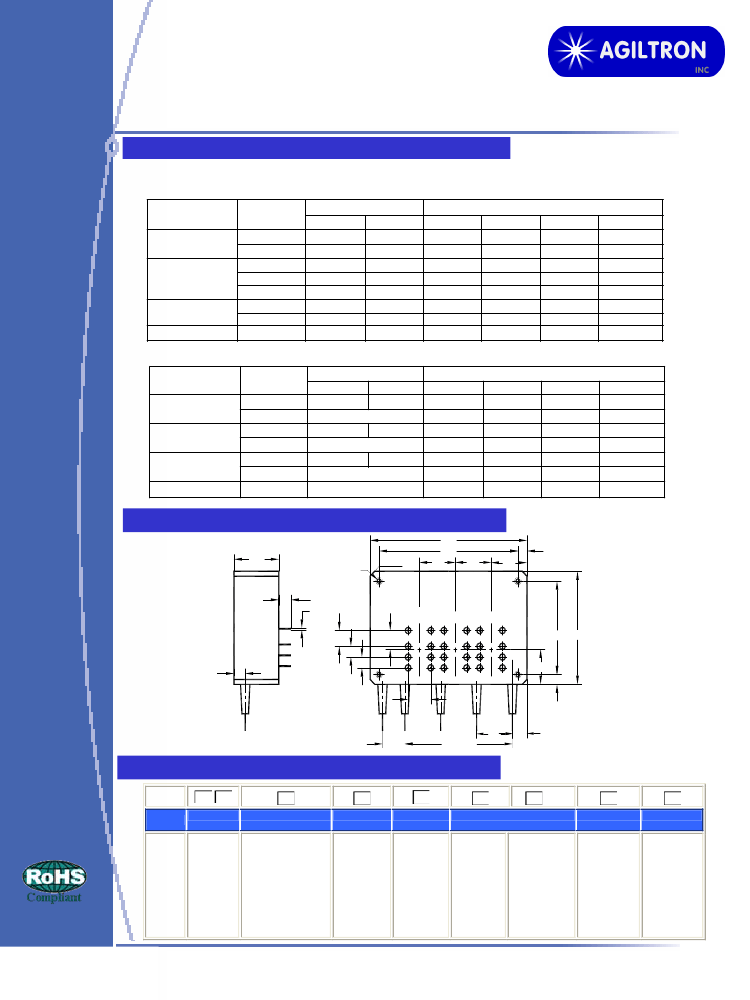

Performance Specifications

LB Series Mini 1x4 PM Switch

Operation Wavelength

Insertion Loss

Wavelength Dependent Loss

Extinction Ratio

Return Loss

Cross Talk

Switching Time

Repeatability

Operating Voltage

Voltage Pulse Width

(Latching)

Switching Type

Operating Temperature

Optical Power Handling

Storage Temperature

Fiber Type

Package Dimension

Min

Typical

Max

820~880, 1260~1360, 1510~1610

0.4

0.6

0.9

0.15

0.3

±0.05

Latching / Non-Latching

-5

300

500

-40

Panda 250, Panda 400

35L x 23W x 10H

Unit

VDC

Applications

•

Channel Blocking

Configurable Add/Drop

System Monitoring

Instrumentation

Note:

1. Exclude connectors, higher loss for Dual and Broad Band.

2. -40

C to 85

C is also available.
