300C30200-60 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 300C30200-60

300C30200-60: DescriptionRF Relay,; CategoryMechanical and electronic products relay; File Size824KB，2 Pages; ManufacturerDow-Key Microwave Corporation

Download Datasheet Parametric Compare View All

300C30200-60 Overview

RF Relay,

300C30200-60 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Relay type	RF RELAY
Base Number Matches	1

Preview

Download Datasheet

View All

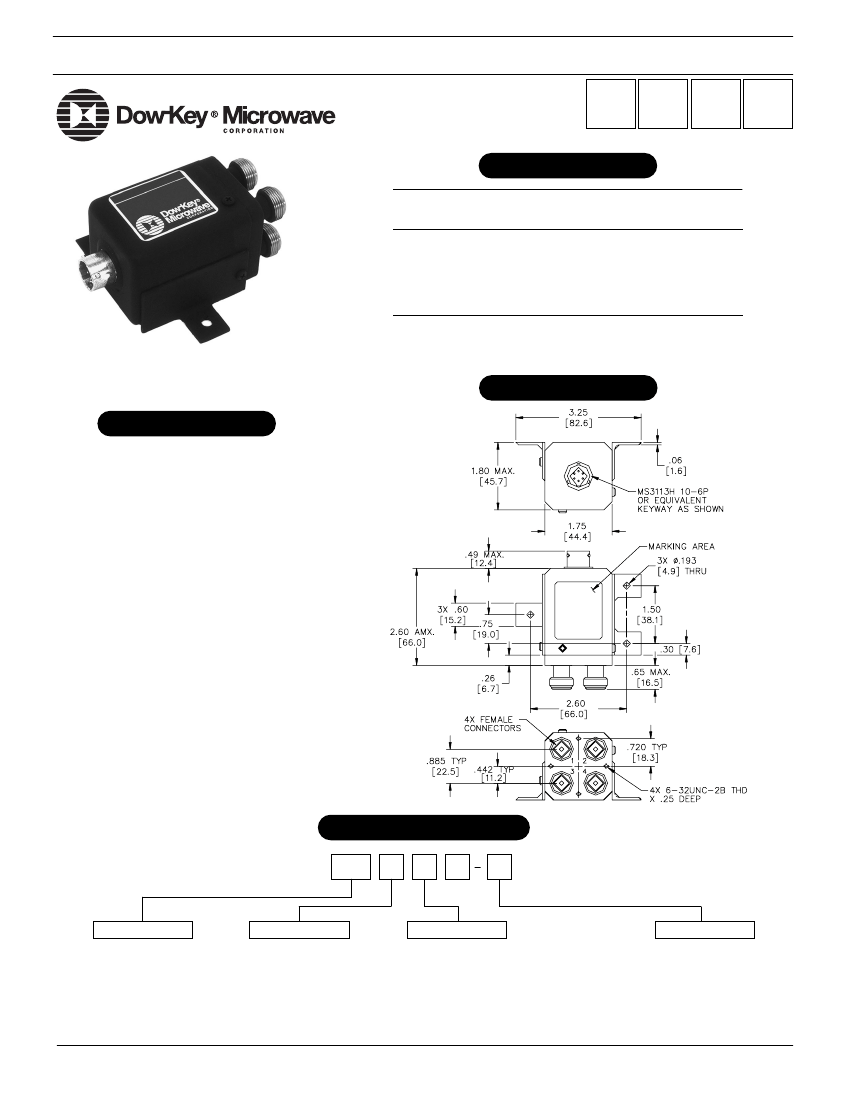

300 Series Transfer Latching

N, TNC, SC

C M A

Commercial

Military

Avionics

Space

RF Characteristics

Frequency

GHz

0-1

1-4

4-8

8-12.4

VSWR

(max)

1.20

1.35

1.45

1.50

Isolation

dB (min)

Ins. Loss

dB (max)

0.15

0.25

0.35

0.50

Note: RF Characteristics are for type N & TNC Female connectors, consult Dow-Key

for other connector configurations

300 Series

Transfer Latching

Specifications

Operating Voltage:

(across temperature range)

28 Vdc (20-30 Vdc)

Coil Current (max @ nom.Vdc & 20°C):

28 Vdc 650mA

Switching Time:

20 mS maximum

Operating Temperature:

-55ºC to +85ºC

Mechanical Life, Cycles:

100,000 minimum

Vibration, Operating:

20g’s sine/random

Mechanical Shock, Non-Operating:

50G, 1/2 Sine, 11mS

Nominal Weight:

12 oz., (340g.)

Mechanical

300C00100 Shown

Part Number Selection

300C

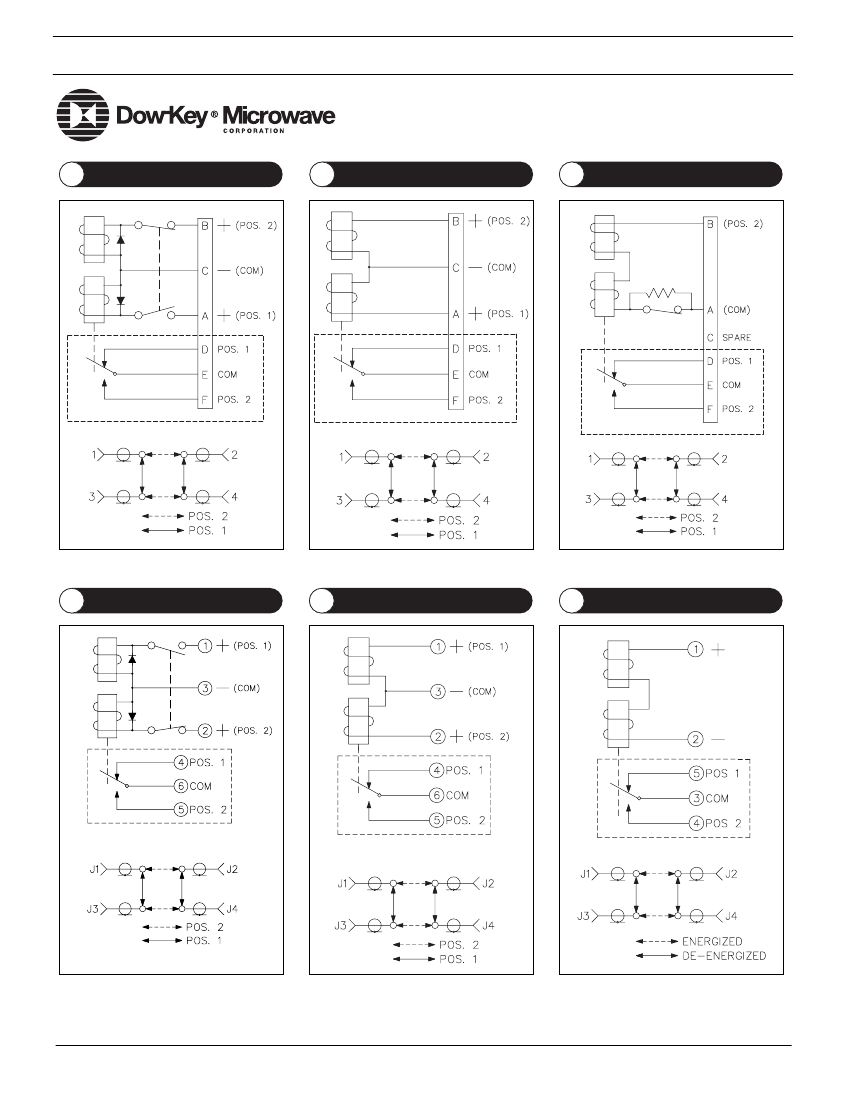

For Electrical Schematic

see page # 2-11

Family

Connectors

Voltage

Options

300C

= Transfer Latching

= N Female

= TNC Female

= SC Female*

= 28 Vdc, No Indicators

= 28 Vdc with SPDT Indicators

= 28 Vdc Pulse Latch, No Indicators

= 28 Vdc Pulse Latch with SPDT Indicators

= High Power**

*1” connector spacing

Consult Dow-Key for Dimensions

**Consult Power Chart on page #

ISO 9001 Certified

2-7

www.dowkey.com

300C30200-60 Related Products

	300C30200-60	300C00100	300C00200	300C00100-60	300C30100	300C00200-60	300C30200	300C30100-60
Description	RF Relay,	RF Relay,	RF Relay, SPDT, Latched, 0.65A (Coil), 28VDC (Coil), 18200mW (Coil), 12400MHz, DC Input, Panel Mount,	RF Relay,	RF Relay,	RF Relay,	RF Relay,	RF Relay,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Relay type	RF RELAY	RF RELAY	RF RELAY	RF RELAY	RF RELAY	RF RELAY	RF RELAY	RF RELAY
Base Number Matches	1	1	1	1	1	1	1	1
