Part Number

Search

3281-022704

Description
D Type Connector, 24 Contact(s), Female, 0.075 inch Pitch, Solder Terminal, Locking, Plug
CategoryThe connector    The connector
File Size155KB,2 Pages
ManufacturerWieson Technologies Co., Ltd.
Download Datasheet Parametric View All

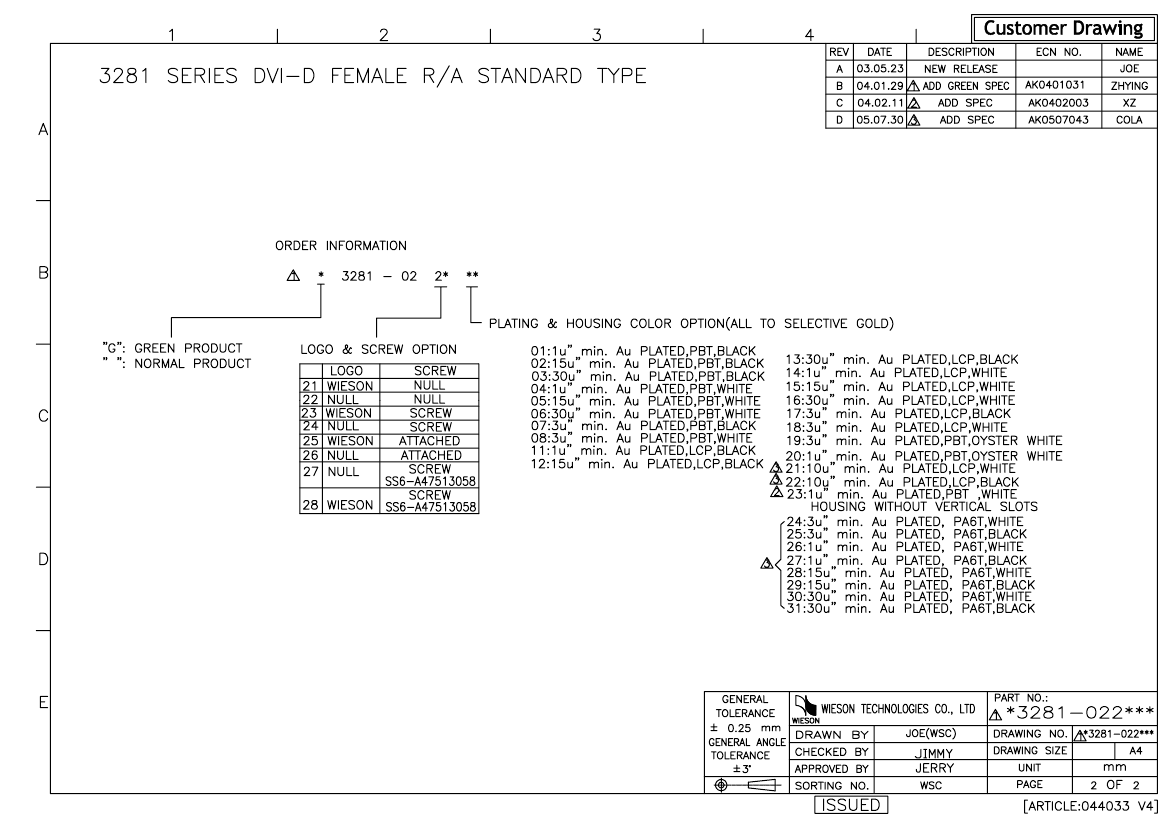

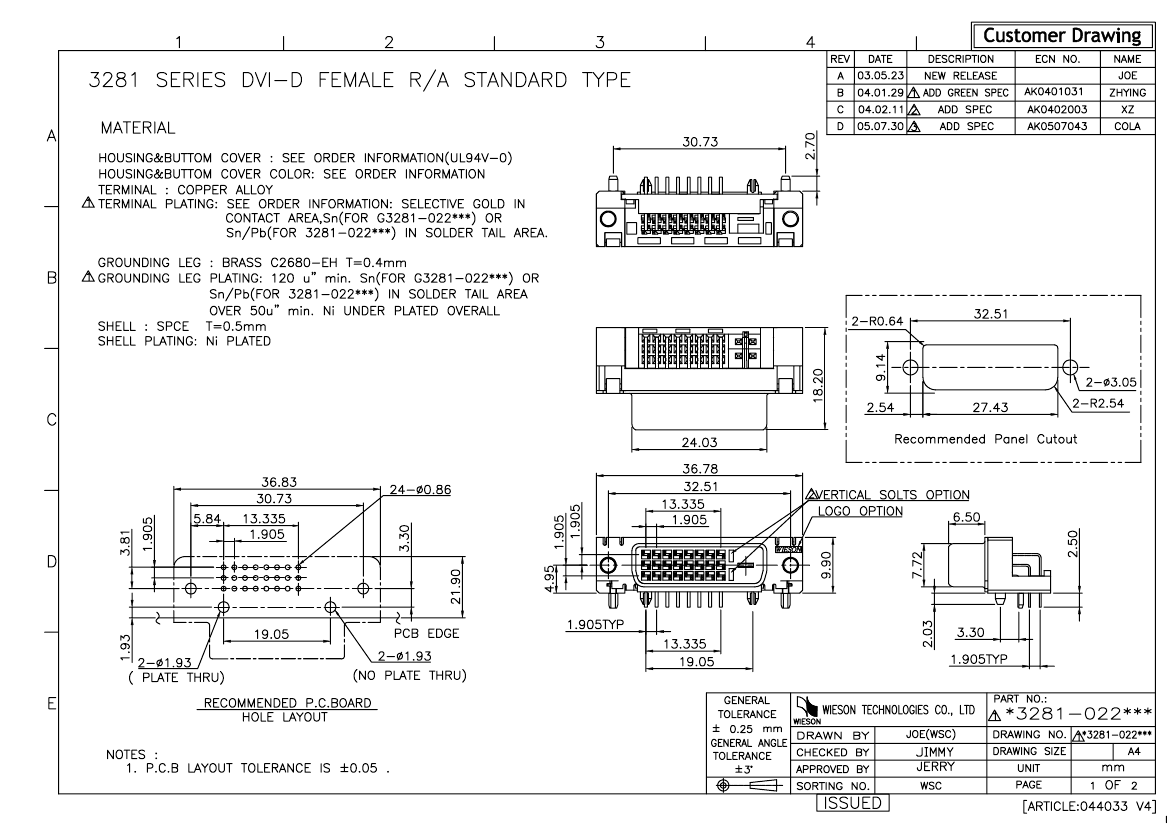

3281-022704 Overview

D Type Connector, 24 Contact(s), Female, 0.075 inch Pitch, Solder Terminal, Locking, Plug

3281-022704 Parametric

Parameter NameAttribute value
Is it Rohs certified?No
Is SamacsysN
YTEOL0
Objectid304263156
Reach Compliance CodeUnknown
ECCN codeEAR99
Other featuresWITHOUT LOGO
Installation typeBOARD
Terminal pitch1.905 mm
Total number of contacts24
Installation methodRIGHT ANGLE
PCB row number3
Number of rows loaded3
Body/casing typePLUG
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
insulator materialPOLYBUTYLENE TEREPHTHALATE
body width0.39 inch
subject depth0.461 inch
body length1.448 inch
Terminal length0.098 inch
Contact completed and terminatedTin/Lead (Sn/Pb)
Match contact row spacing0.075 inch
PCB contact row spacing1.905 mm
Contact styleSQ PIN-SKT
Insulator colorWHITE
Plug contact pitch0.075 inch
Shell surfaceNICKEL
contact modeRECTANGULAR
Plating thickness1u inch
Termination typeSOLDER
Contact materialCOPPER ALLOY
Installation option 1LOCKING
Installation option 2SCREW
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Filter functionYES
JESD-609 codee0
GuidelineUL
