ECS-135.6-10-33QZ-CGS-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-135.6-10-33QZ-CGS-TR

ECS-135.6-10-33QZ-CGS-TR: DescriptionParallel - Fundamental Quartz Crystal, 13.56MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size367KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-135.6-10-33QZ-CGS-TR Overview

Parallel - Fundamental Quartz Crystal, 13.56MHz Nom, SMD, 4 PIN

ECS-135.6-10-33QZ-CGS-TR Parametric

Parameter Name	Attribute value
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Installation features	SURFACE MOUNT
surface mount	YES
Minimum operating temperature	-40 °C
Is it Rohs certified?	Yes
Reach Compliance Code	Compliant
Is Samacsys	N
YTEOL	7.2
Objectid	7219191804
package instruction	SMD, 4 PIN
Other features	AEC-Q200
Drive level	10 µW
Maximum operating temperature	125 °C
physical size	3.2mm X 2.5mm X 0.8mm
Ageing	3 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
frequency tolerance	10 ppm
load capacitance	10 pF
Nominal operating frequency	13.56 MHz
frequency stability	0.003%
Series resistance	120 Ω
JESD-609 code	e4

Preview

Download Datasheet

View All

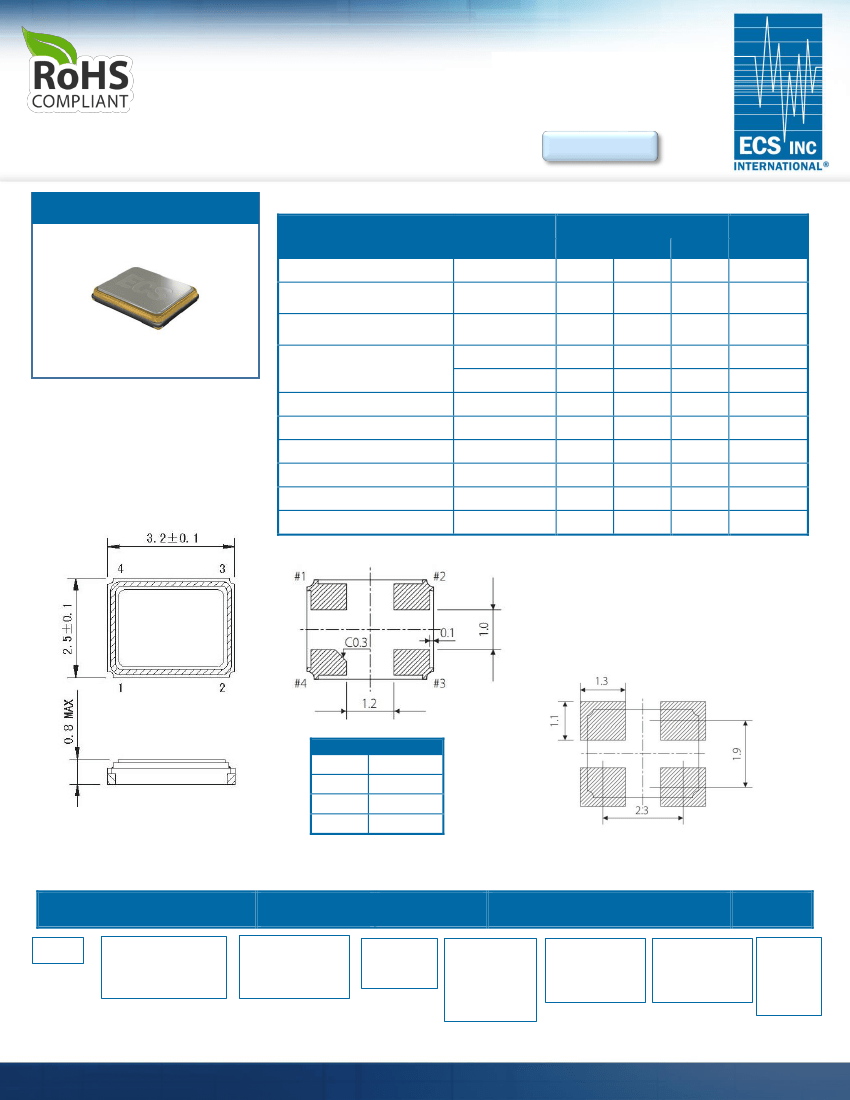

ECX-33QZ

SMD CRYSTAL

The ultra-miniature rugged ECX-33QZ compact SMD Crystal. The

3.2 x 2.5 x 0.8 mm ceramic package is ideal for harsh

environments such as TPMS applications.

ECX-33QZ SMD CRYSTAL

Request a Sample

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency

Frequency Tolerance

Frequency Stability

Equivalent Series

Resistance (ESR)

@ +25°C

(Standard)

CONDITIONS

MIN

ECX-33QZ

TYP

MAX

UNITS

26.000

± 15

± 50

120

MHz

ppm

100

+125

±3

μW

°C

ppm

13.000

-40 ~ +125°C

(Standard)

13 ~ 19.999 MHz

20 ~ 26.000 MHz

•

Low Profile

3.2 x 2.5 mm Footprint

Extended Temp. Range

AEC-Q200 Qualified

Automotive/TPMS Applications

Shunt Capacitance

Load Capacitance

Drive Level

Operating Temperature

Storage Temperature

Aging (First Year)

Specify in P/N

opr

stg

@ +25°C ±3°C

-40

DIMENSIONS (mm)

PAD CONNECTIONS

Figure 1)

Top, Side, and Bottom views

In/Out

Gnd

Out/In

Gnd

Figure 2)

Suggested Land Pattern

PART NUMBERING GUIDE: Example ECS-260-10-33QZ-TR

ECS - FREQUENCY ABBREVIATION

LOAD

CAPACITANCE

10 = 10 pF

12 = 12 pF

16 = 16 pF

PACKAGE

Tolerance

33QZ =

ECX-33QZ

Blank=Standard

CUSTOM OPTIONS

Stability

Blank=Standard

D = ± 100 ppm

E = ± 50 ppm

G = ±30 ppm

PACKAGING

Temp Range

Blank=Standard

N = -40 ~ +85°C

P = -40 ~ +105°C

S = -40 ~ +125°C

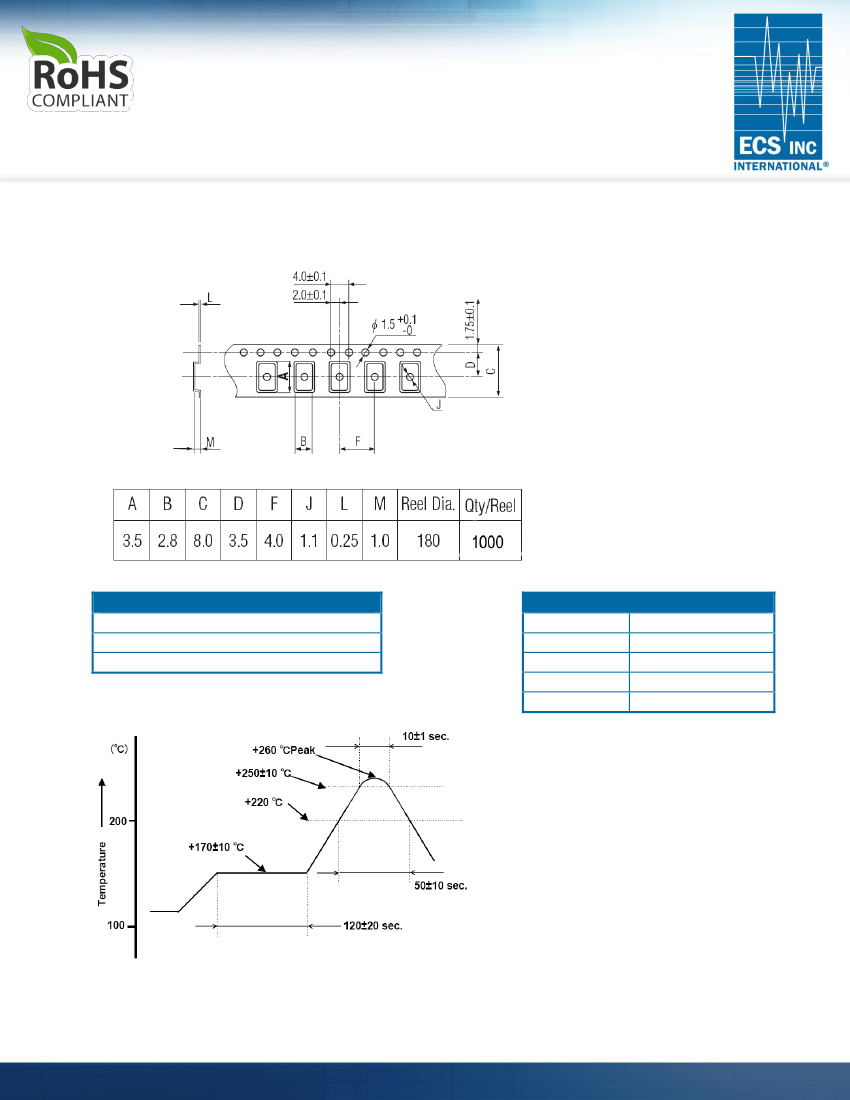

TR =

Tape

& Reel

1K/Reel

ECS

260 = 26.000 MHz

*See Developed

Frequencies Pg. 2

A = ± 25 ppm

J = ± 20 ppm

R = ± 15 ppm

C = ± 10 ppm

*Contact ECS for availability of non-developed frequencies.

Rev.2017

15351 West 109

Street

Lenexa, KS 66219

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
