3EQHJ53-BT-10.000 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 3EQHJ53-BT-10.000

3EQHJ53-BT-10.000: DescriptionLVCMOS Output Clock Oscillator, 10MHz Nom,; CategoryPassive components oscillator; File Size188KB，2 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/

Download Datasheet Parametric View All

3EQHJ53-BT-10.000 Overview

LVCMOS Output Clock Oscillator, 10MHz Nom,

3EQHJ53-BT-10.000 Parametric

Parameter Name	Attribute value
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
longest rise time	10 ns
Maximum slew rate	7 mA
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
maximum symmetry	55/45 %
Nominal supply voltage	3.3 V
frequency stability	50%
Nominal operating frequency	10 MHz
Oscillator type	LVCMOS
Output load	15 pF
Installation features	SURFACE MOUNT
Number of terminals	4
surface mount	YES
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	5X3.2X1.2 m
YTEOL	6.2
Objectid	145001433055
Reach Compliance Code	Compliant
Is Samacsys	N

Preview

Download Datasheet

View All

EURO

QUARTZ

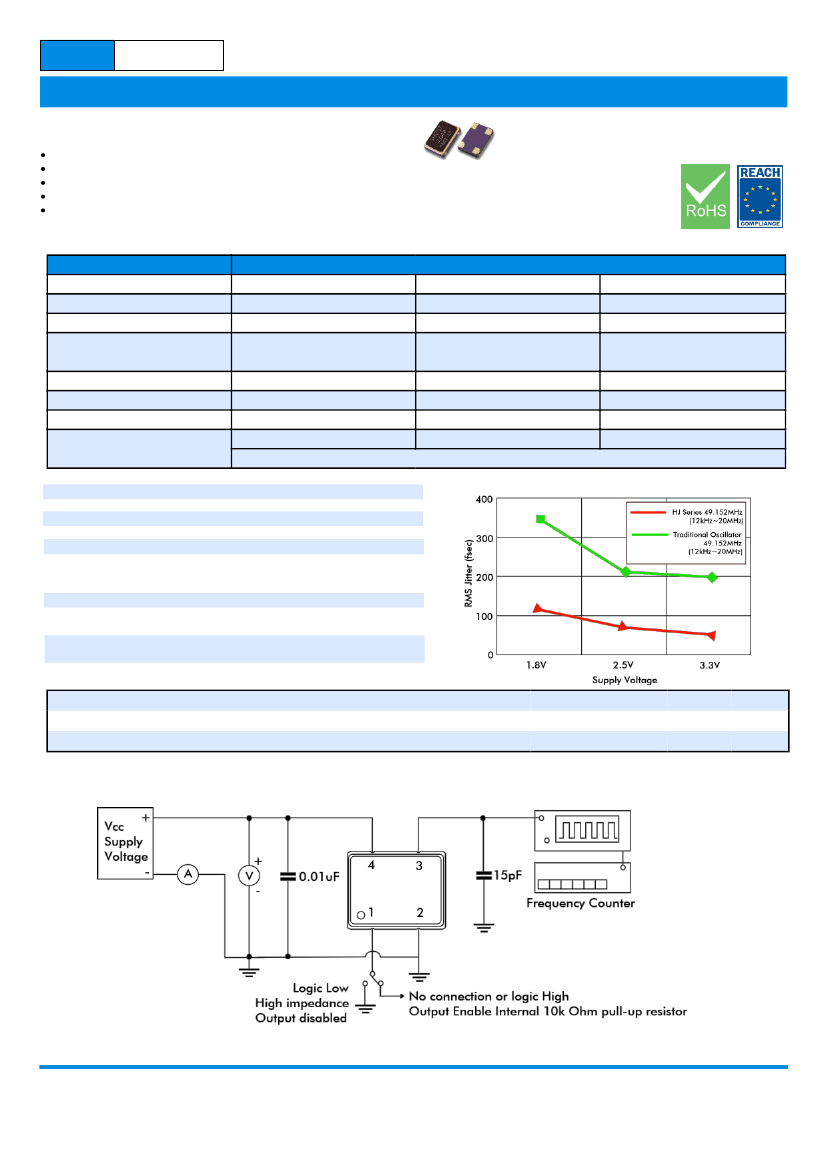

Ultra-low jitter Oscillator

FEATURES

Ultra-low Phase Jitter, 50fs typical

LVCMOS output

Supply voltage 1.8, 2.5 or 3.3 Volts

Frequency stability from ±25ppm over -40° to +85°C

Available in three standard SM packages.

GENERAL SPECIFICATION

Model (Output Logic)

Type

Dimensions

Frequency Range

Supply Voltage V

Current Consumption

Output Logic “HIGH,” “1”

Output Logic “LOW,” “0”

Rise Time (T

)/Fall Time (T

)

EQHJ32

3.2 x 2.5 x 1.0mm

5.0MHz to 50.0MHz

1.8V

±10%

Voltage code is “18”

3mA typical, 5mA maximum

1.62V (minimum)

0.18V (maximum)

5.0ns typical, 10ns maximum

EQHJ Series Oscillators

5.0MHz to 50.0MHz

Page 1 of 2

“HJ Series LVCMOS

EQHJ53

5.0 x 3.2 x 1.2mm

5.0MHz to 50.0MHz

2.5V

±10%

Voltage code is “25”

4.7mA typical, 7mA maximum

2.25 (minimum)

0.25V (maximum)

2.0ns typical, 10ns maximum

EQHJ57

7.0 x 5.0 x1.4mm

5.0MHz to 50.0MHz

3.3V

±10%

Voltage Code is 3”

7mA typical, 10mA maximum

2.97V (minimum)

0.33V (maximum)

1.5ns typical, 10ns maximum

Measured between 10% - 90% of V

, (CL = 15pF)

Supply Voltage vs. Freq. Stability:

Load:

Start-up Time:

Duty Cycle:

Tristate Function on Pad no. 1:

Enable/Disable Time

Enable:

Disable:

Storage Temperature:

Ageing at Ta = 25°C:

RMS Phase Jitter (at 49.152MHz):

±1.0ppm (maximum)

15pF (CMOS)

0.8ms typical, 5.0ms max.

50%±5% (Measured at 50% V

)

High Enable

1ms max.

200ns max.

-55° to +150°C

±3ppm max. in first year

±2ppm max. per year thereafter

48fs typical at 3.3V

118fs typical at1.8V

HJ Series vs. Traditional Osc. Phase Jitter

SSB Phase Noise

49.152MHz, 3.3V

49.152MHz, 1.8V

Offset

dBC/Hz (typ.)

10Hz

-91

-97

100Hz

-126

-120

1kHz

-141

-132

10kHz

-153

-146

100kHz

-166

-159

1MHz

-171

-164

10MHz

-172

-164

20MHz

-174

-165

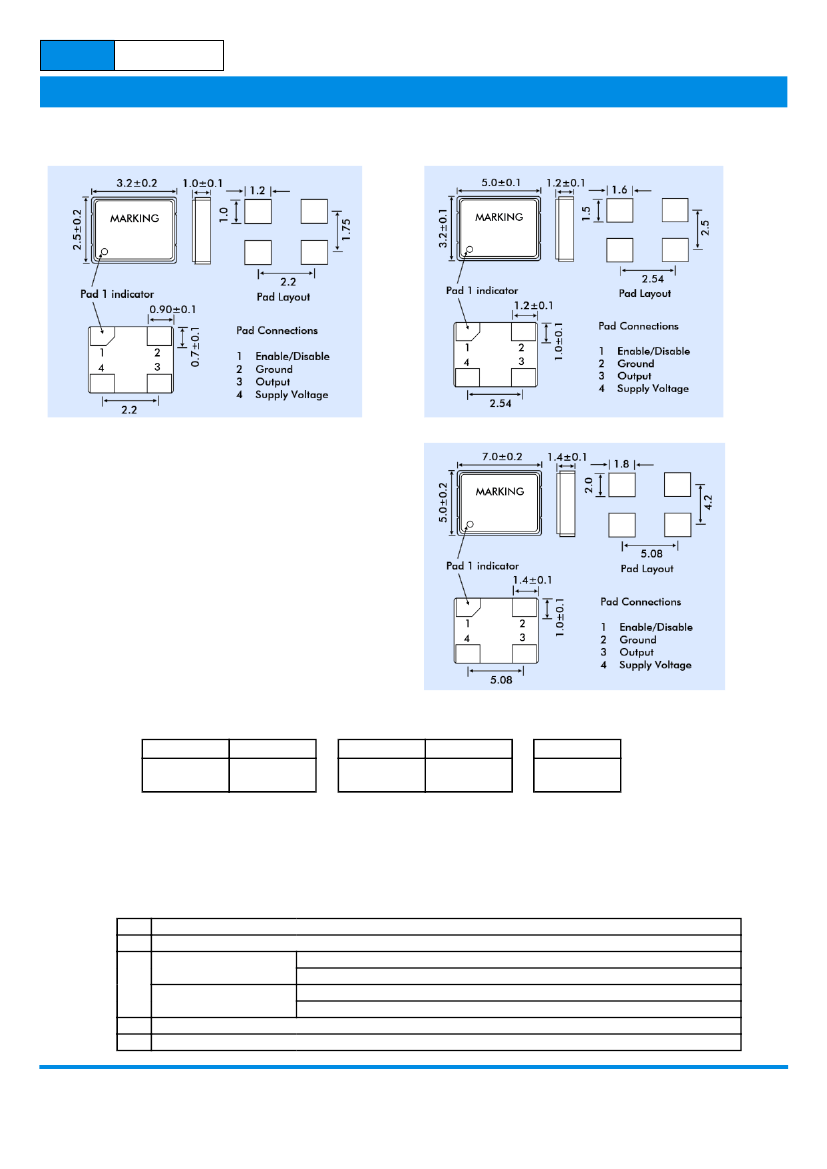

CMOS TEST CIRCUIT

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
