Instrument panel and cockpit connectors
Component-to-wire connectors
DCS-2

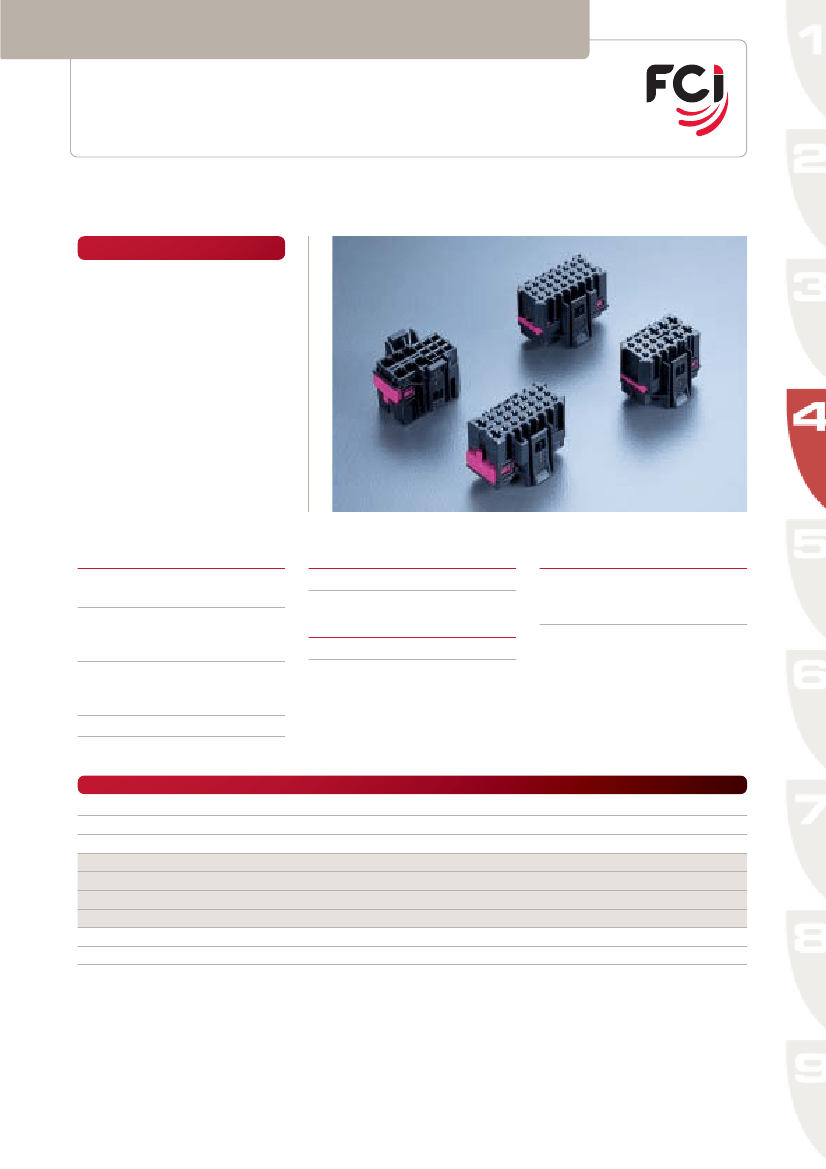

15/23/24 way switch housings for 1.5 + 2.8 mm terminals
Features
•
15-23-24 position housings
•
•
•
•
available
Lateral secondary lock for terminal
position assurance (T.P.A.)
Plastic locking feature
Mechanical polarization
Several colours available
Performance characteristics
•
Temperature range:
from -40°C to +120°C
Construction
•
Housing material:
PBT
Connector compatibility
•
Usable terminals:
- DCS-2 1.5 mm female terminals
- DCS-2 2.8 mm female terminals
•
Contact retention force:
> 80 N for DCS-2 2.8 mm terminals
> 55 N for DCS-2 1.5 mm terminals
Tooling
•
Terminal removal tool:
Consult us
•
Contact insertion force:
< 15 N for DCS-2 2.8 mm terminals
< 10 N for DCS-2 1.5 mm terminals
•
Connector mating force:
< 100 N
Part Numbers
3 023 15 01
3 023 15 00
3 023 15 12
3 023 16 01
3 023 16 08
3 023 16 15
3 023 16 27
3 023 17 01
3 023 17 18
No. of position
15
15
15
23
23
23
23
24
24
Terminal size
9 x [1.5 mm] + 6 x [2.8 mm]
9 x [1.5 mm] + 6 x [2.8 mm]
9 x [1.5 mm] + 6 x [2.8 mm]
21 x [1.5 mm] + 2 x [2.8 mm]
21 x [1.5 mm] + 2 x [2.8 mm]
21 x [1.5 mm] + 2 x [2.8 mm]
21 x [1.5 mm] + 2 x [2.8 mm]
24 x [1.5 mm]
24 x [1.5 mm]
Colour
Black
Nature
Brown
Black
Grey
Blue
Green
Black
Grey
4.36
Instrument panel and cockpit connectors
Component-to-wire connectors
DCS-2
15/23/24 way switch housings for 1.5 + 2.8 mm terminals

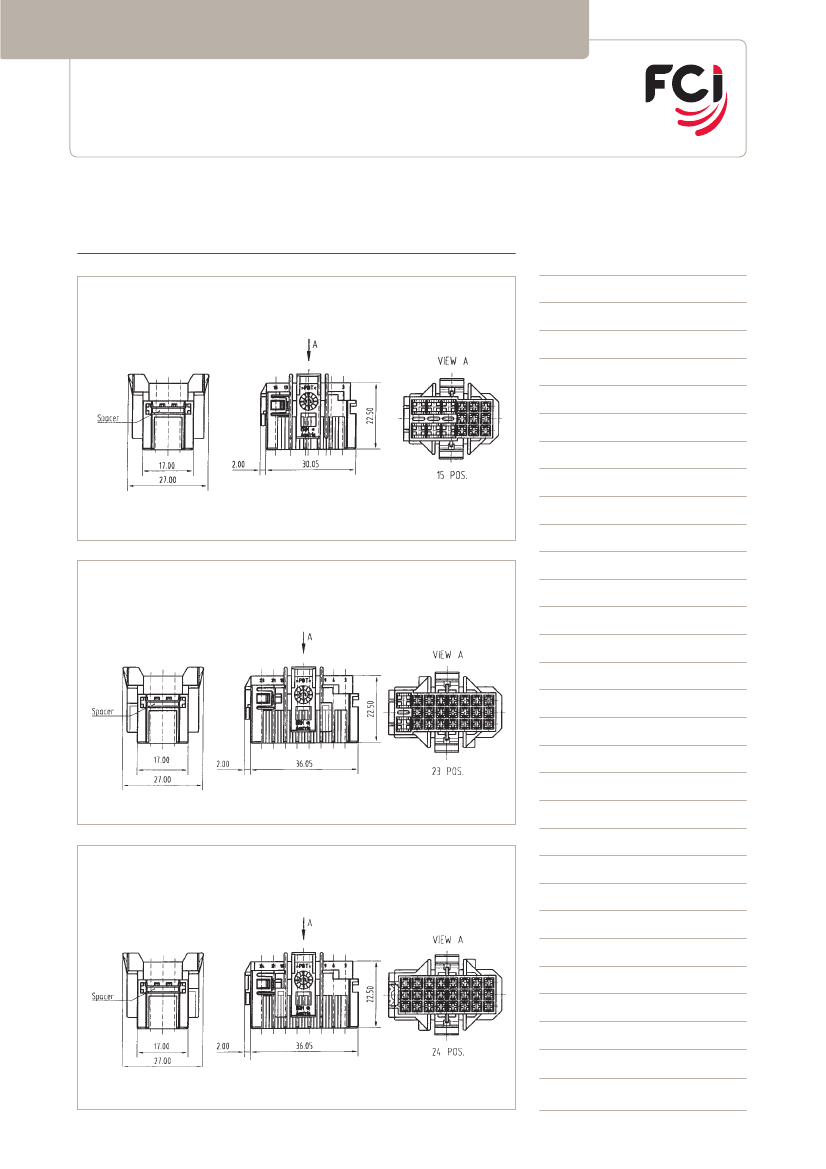

Dimensional characteristics
Notes:
15 way housing
23 way housing
24 way housing
4.37
